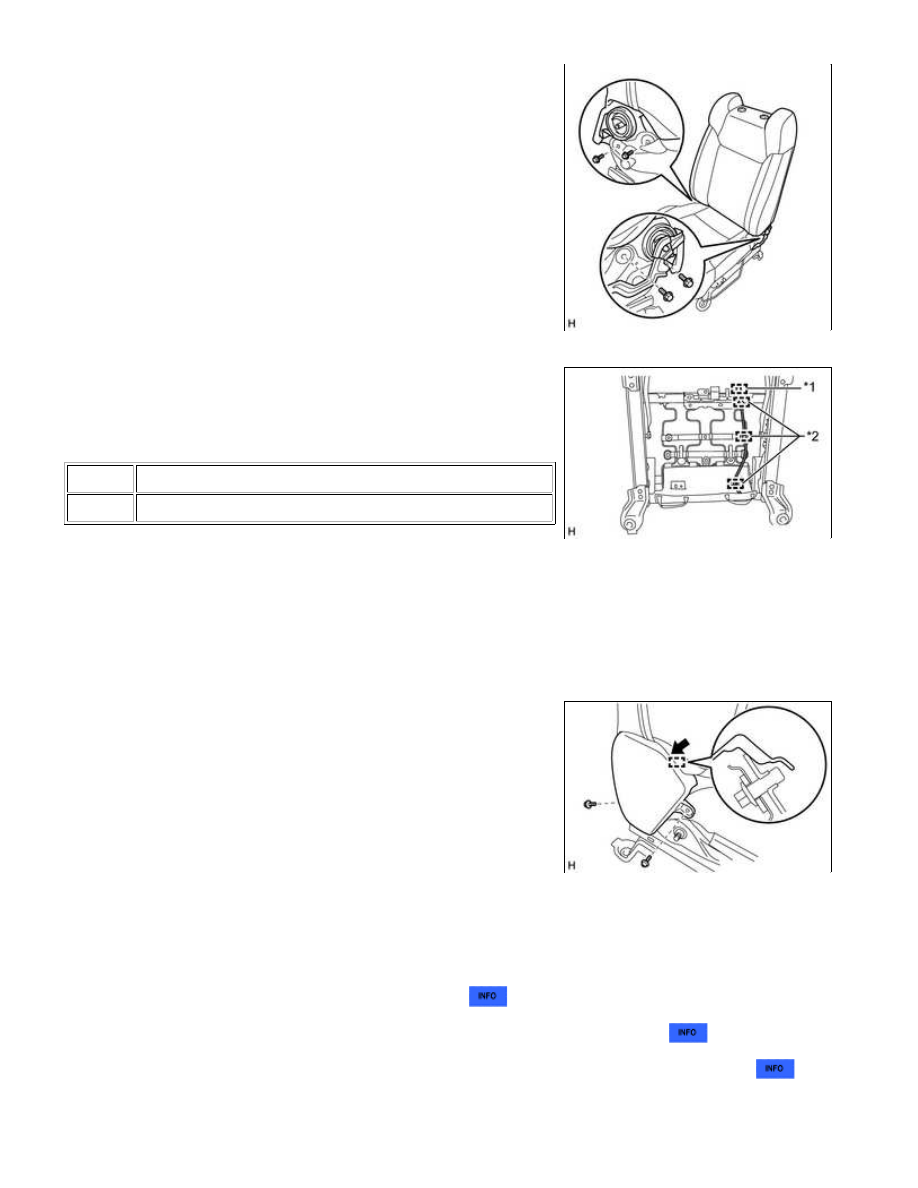

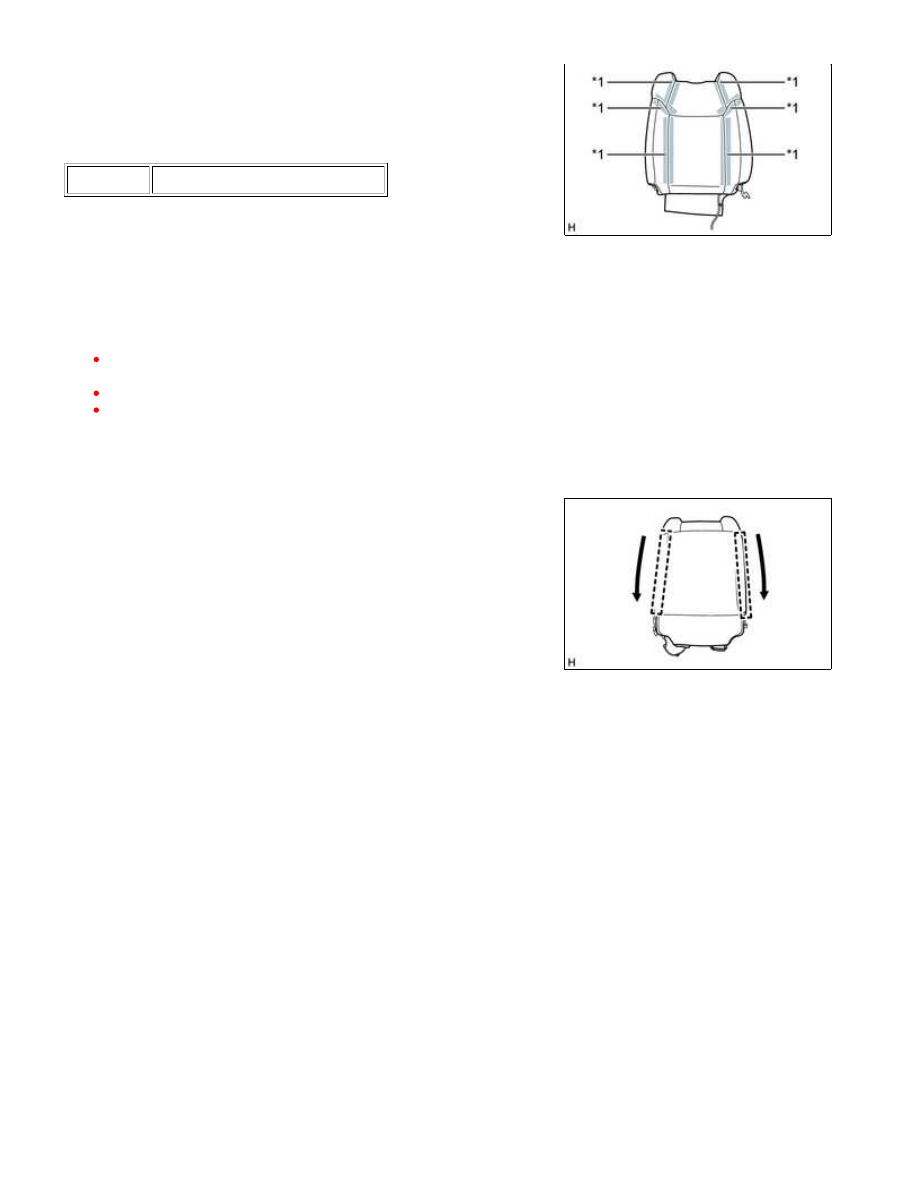

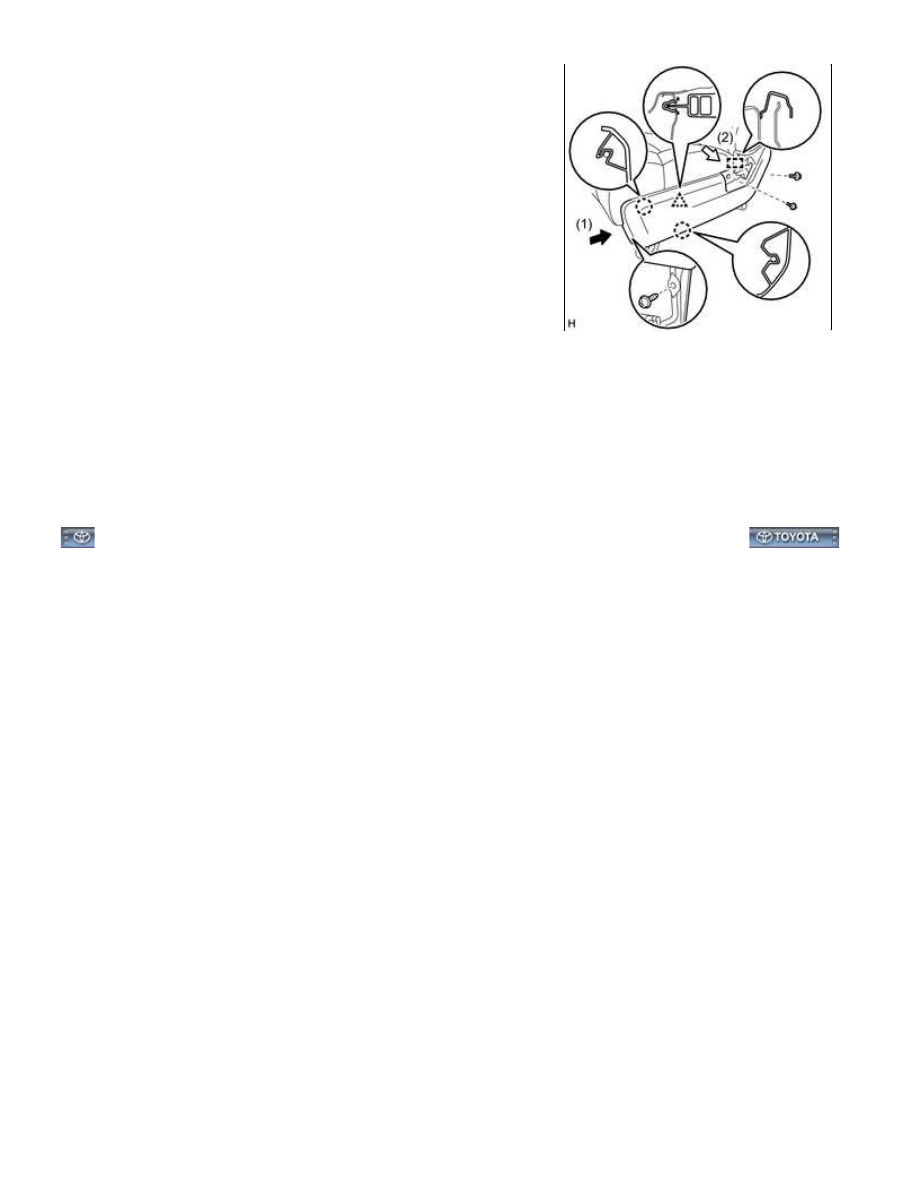

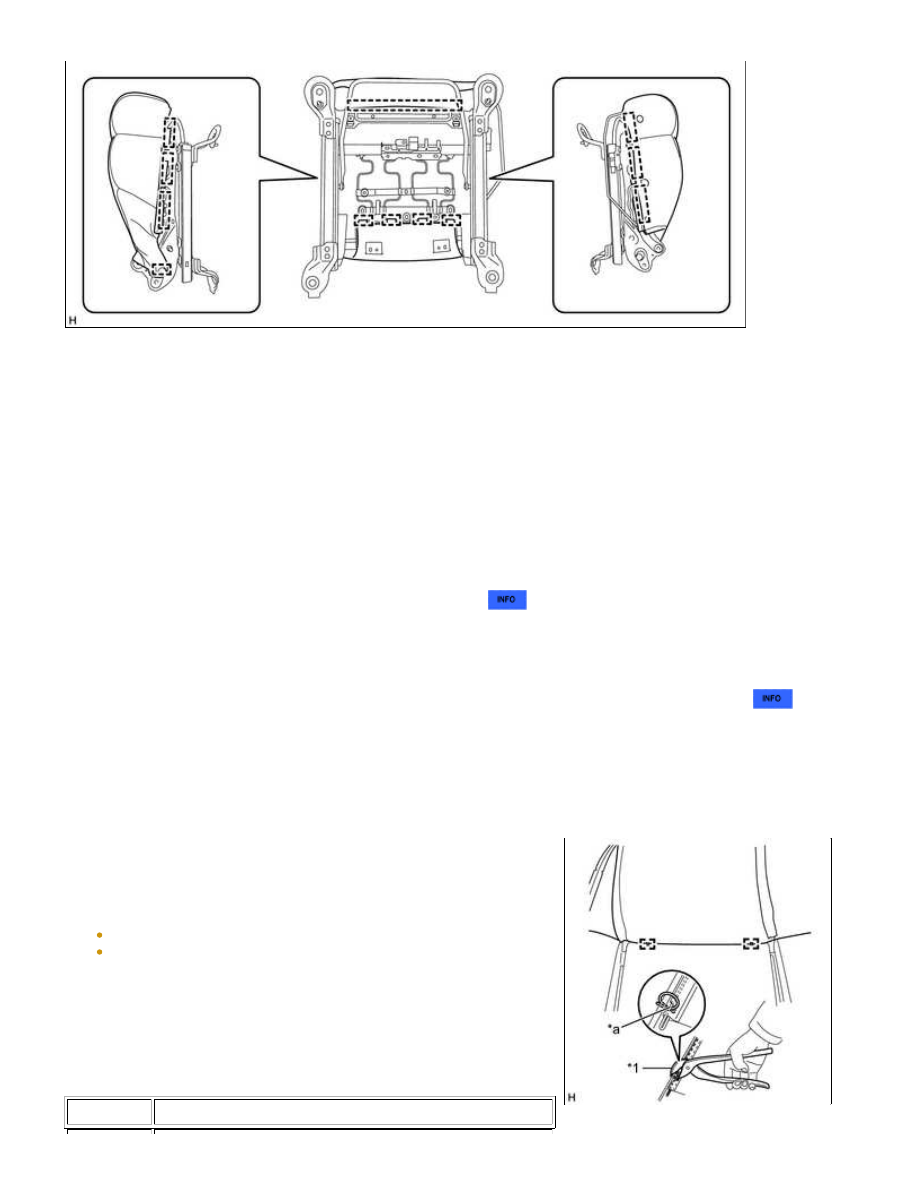

15. INSTALL FRONT SEATBACK HOOK (a) Install the 2 front seatback hooks to the front seatback spring assembly. 16. INSTALL FRONT SEATBACK SPRING ASSEMBLY (a) Attach the 2 guides and 2 clips to install the front seatback spring assembly. 17. INSTALL RECLINING CONTROL LEVER LH (a) Install the reclining control lever LH with the bolt. Torque: 4.0 N·m {41 kgf·cm, 35in·lbf} 18. INSTALL FRONT SEAT AIRBAG ASSEMBLY LH 19. INSTALL SEPARATE TYPE FRONT SEATBACK PAD (a) Install the separate type front seatback pad to the front seatback frame sub-assembly LH. 20. INSTALL FRONT SEATBACK HEATER ASSEMBLY RH (w/ Seat Heater System) 21. INSTALL SEPARATE TYPE FRONT SEATBACK COVER (a) Set the separate type front seatback cover in place. (b) Attach the 4 claws to install the 2 front seat headrest supports. (c) Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 2 new hog rings as shown in the illustration. NOTICE: Be careful not to damage the separate type front seatback cover. HINT: Install the hog rings at the cutouts if they are there. Text in Illustration *1 Hog Ring Pliers SEAT: FRONT SEAT ASSEMBLY (for Manual Seat): REASSEMBLY; 2... |
