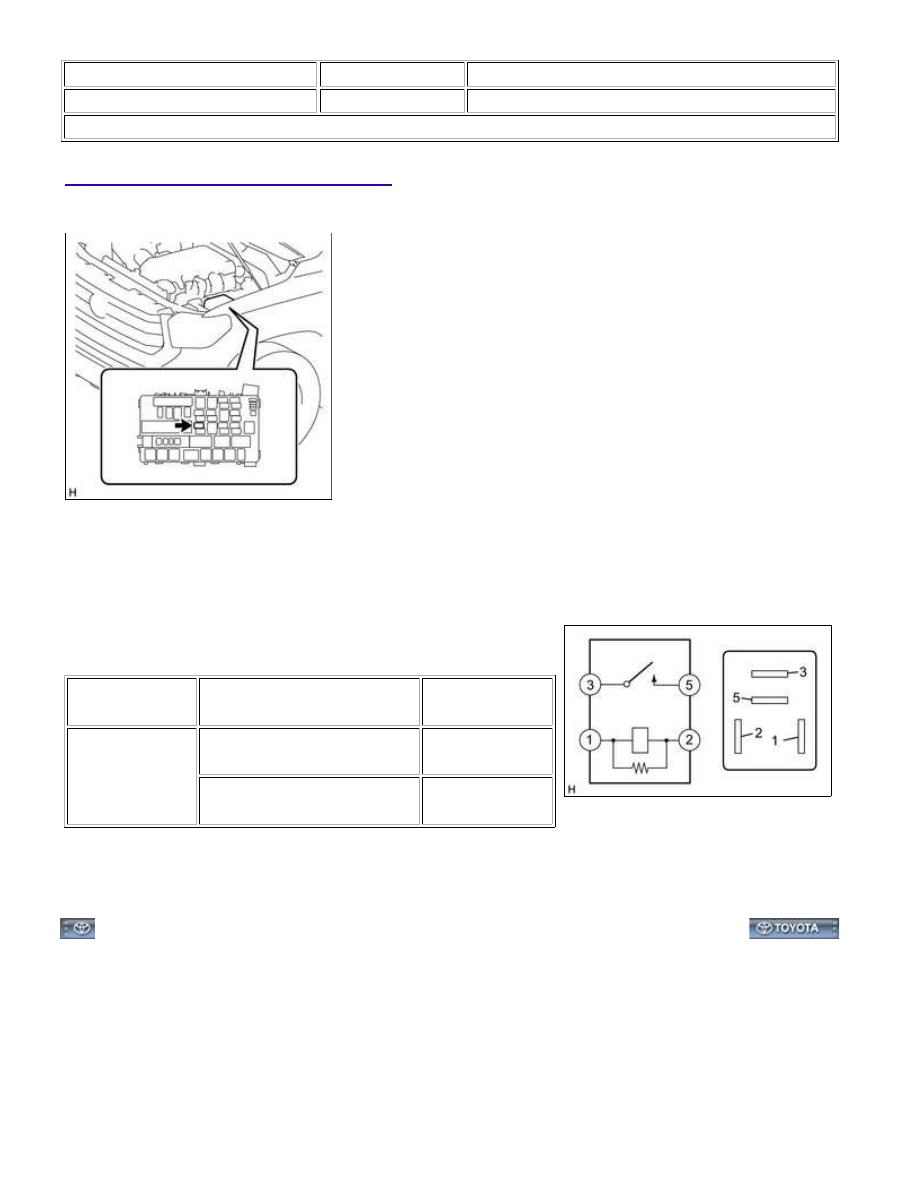

Last Modified: 9-16-2014 6.6 G Doc ID: RM000005KXC001X Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: LIGHTING: DOME RELAY: ON-VEHICLE INSPECTION; 2015 MY Tundra [08/2014 - ] ON-VEHICLE INSPECTION 1. INSPECT DOME LIGHT RELAY (a) Remove the dome light relay from the engine room relay box. (b) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION 3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher Battery voltage applied to terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the dome light relay. (c) Install the dome light relay to the engine room relay box. LIGHTING: DOME RELAY: ON-VEHICLE INSPECTION; 2015 MY Tu... |
