Last Modified: 9-16-2014 6.6 A Doc ID: RM000002W7Z009X Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: INTERIOR: ROOF HEADLINING (for Regular Cab): INSTALLATION; 2015 MY Tundra [08/2014 - ] INSTALLATION HINT: A bolt without a torque specification is shown in the standard bolt chart

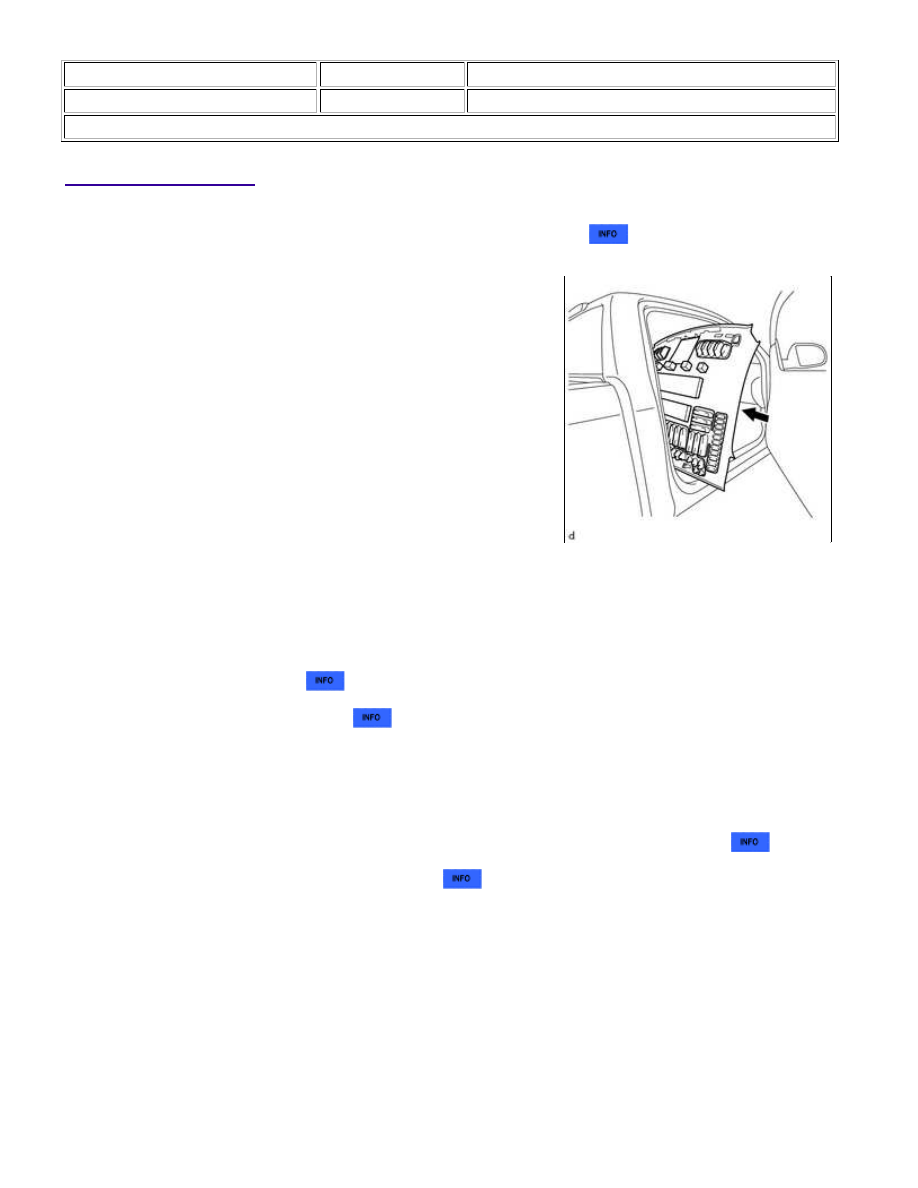

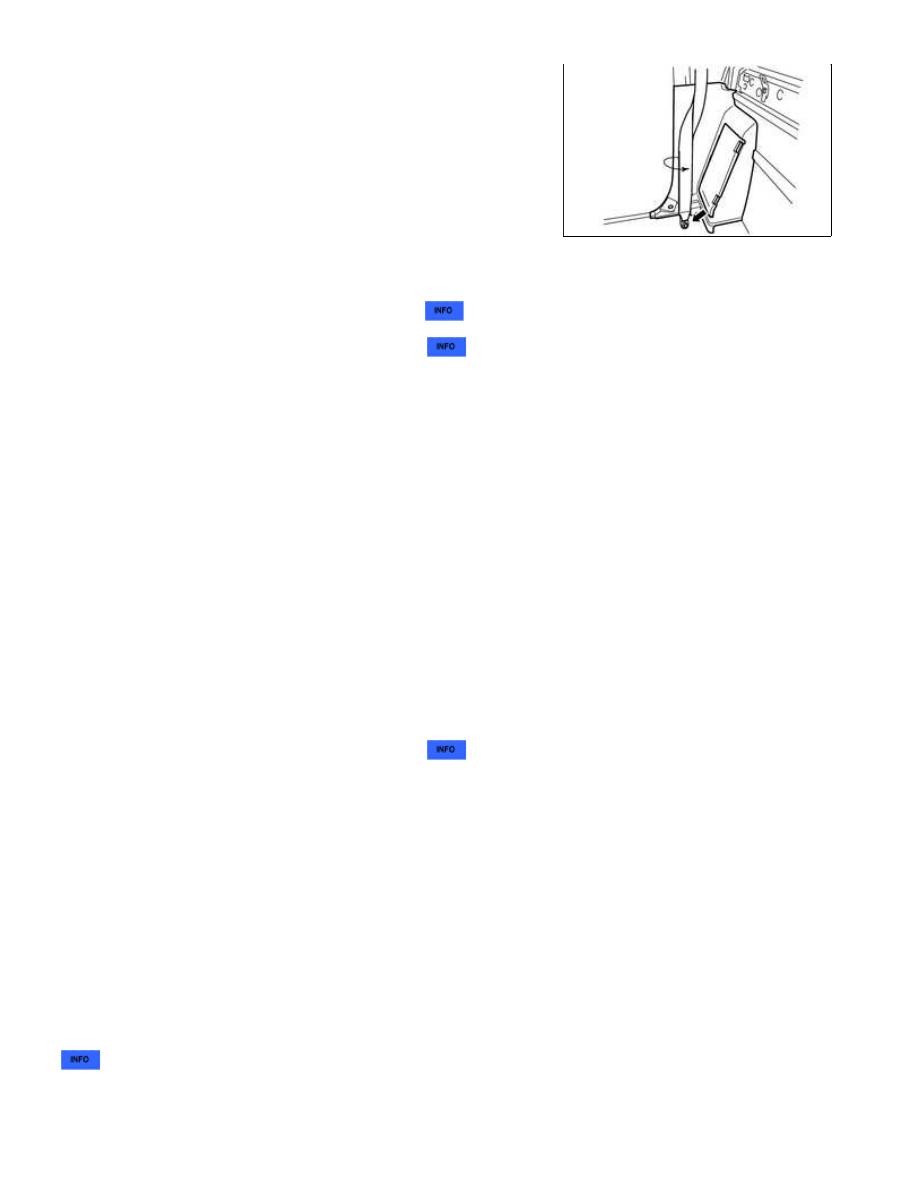

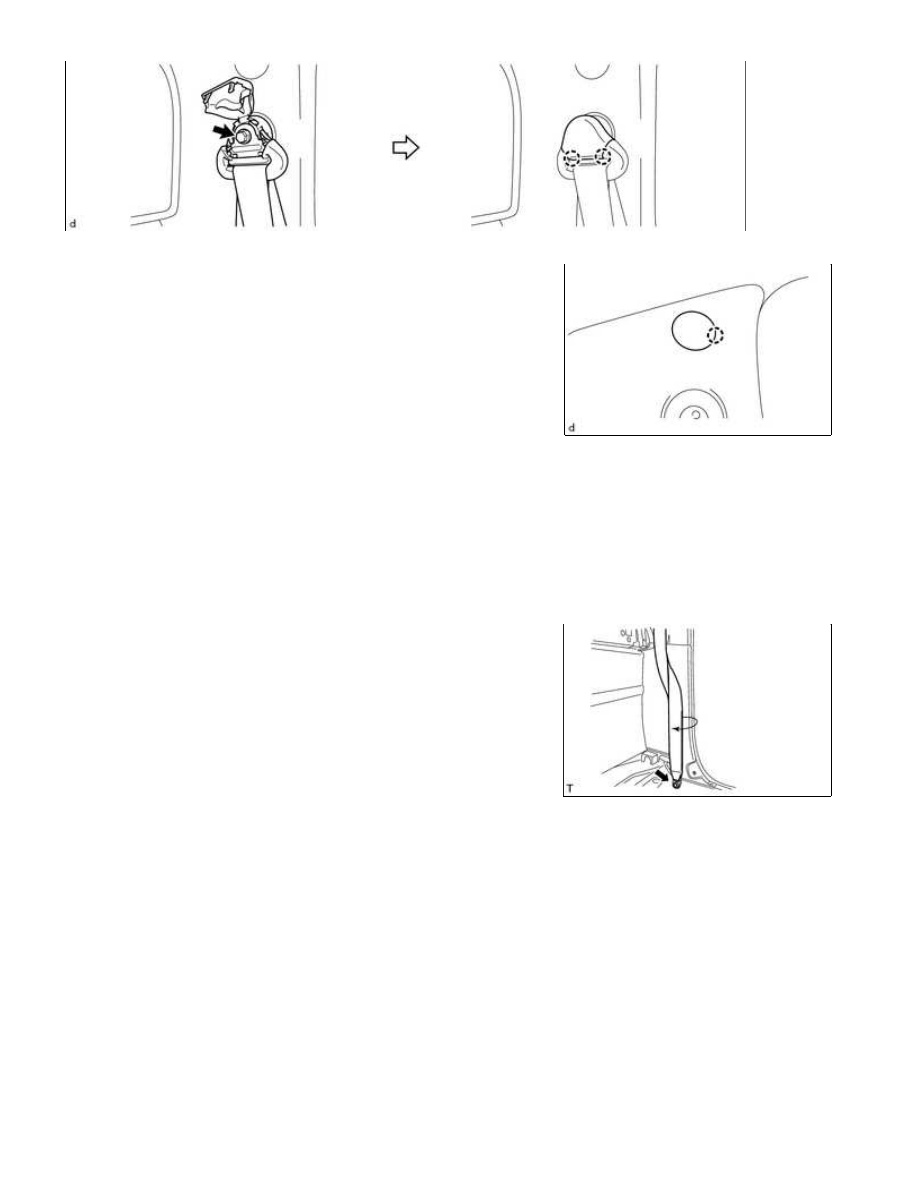

. 1. INSTALL ROOF HEADLINING ASSEMBLY NOTICE: the front pillar LH. (d) w/ EC Mirror: Connect the connector. 2. INSTALL COAT HOOK (a) Using a T20 "TORX" driver, install the coat hook with the "TORX" screw. (b) Attach the 2 claws to install the coat hook cap. 3. INSTALL VISOR HOLDER 4. INSTALL VISOR ASSEMBLY LH 5. INSTALL VISOR ASSEMBLY RH HINT: Use the same procedure described for the LH side. 6. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ EC Mirror) 7. INSTALL ROOF CONSOLE BOX ASSEMBLY 8. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH (a) Attach the 5 clips to install the front quarter trim panel assembly LH. (b) Install the 2 bolts. (c) Connect the front seat outer belt assembly LH with the bolt. Torque: 42 N·m {428 kgf·cm, 31ft·lbf} (d) Attach the 2 claws to close the shoulder belt anchor cover. INTERIOR: ROOF HEADLINING (for Regular Cab): INSTALLATION; ... |
