Title: BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C0210/33,C0215/34,C1273/73,C1274

/74,C1277/77,C1278/78,C1332/37,C1333/38; Right Rear Wheel Speed Sensor Signal; 2015 MY Tundra

[08/2014 -        ]

DTC

C0210/33 Right Rear Wheel Speed Sensor Signal

DTC

C0215/34 Left Rear Wheel Speed Sensor Signal

DTC

C1332/37 Open Circuit in Right Rear Wheel Speed Sensor Circuit

DTC

C1333/38 Open Circuit in Left Rear Wheel Speed Sensor Circuit

DESCRIPTION

Refer to DTC C0200/31



.

DTC

CODE

DTC DETECTION CONDITION

TROUBLE AREA

C0210/33

C0215/34

(4 mph).

1.

more.

2.

When vehicle speed between 10 km/h (6 mph) and 15 km/h

(9 mph) for 3 minutes, one wheel speed 0 km/h (0 mph).

3.

4.

Rear speed

sensor

Rear speed

sensor circuit

Sensor

installation

Foreign matter

on sensor rotor

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

DTC

CODE

DTC DETECTION CONDITION

TROUBLE AREA

sensors occurs twice or more for 30 seconds or more.

5.

Foreign matter adheres to sensor rotor.

6.

C1273/73

C1274/74

Detected only during test mode.

Rear speed

sensor

Rear speed

sensor circuit

Sensor

installation

Foreign matter

on sensor rotor

C1277/77

C1278/78

Detected only during test mode.

Rear speed

sensor (open)

Rear speed

sensor circuit

(open)

C1332/37

C1333/38

Open in rear speed sensor circuit continues for 0.15 seconds or more.

Rear speed

sensor (open)

Rear speed

sensor circuit

(open)

HINT:

DTCs C0210/33 and C1332/37 are for the rear speed sensor RH.
DTCs C0215/34 and C1333/38 are for the rear speed sensor LH.

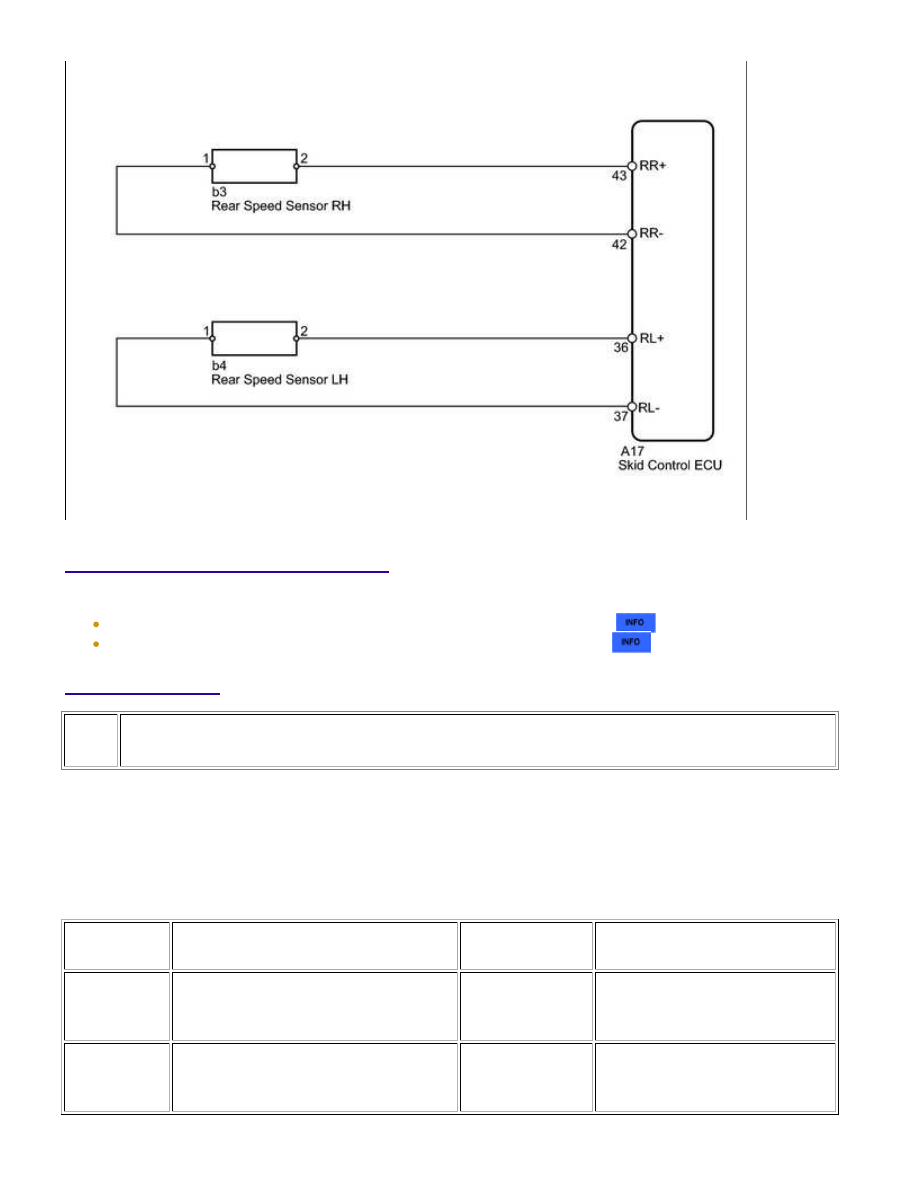

WIRING DIAGRAM

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

INSPECTION PROCEDURE

NOTICE:

When replacing the VSC actuator assembly, perform zero point calibration



.

Check the speed sensor signal in test mode after cleaning or replacement



.

PROCEDURE

1.

READ VALUE USING TECHSTREAM (RL/RR WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Select the Data List mode on the Techstream.

ABS/VSC/TRAC

TESTER

DISPLAY

MEASUREMENT ITEM/RANGE

NORMAL

CONDITION

DIAGNOSTIC NOTE

RL Wheel

Speed

Rear wheel speed sensor LH reading /

min.: 0 km/h (0 mph), max.: 326 km/h

(202 mph)

Actual wheel

speed

Similar speed as indicated on

speedometer

RR Wheel

Speed

Rear wheel speed sensor RH reading /

min.: 0 km/h (0 mph), max.: 326 km/h

(202 mph)

Actual wheel

speed

Similar speed as indicated on

speedometer

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

OK

OK

(d) Check that the speed value output from the speed sensor displayed on the Techstream and the

speed value displayed on the speedometer are almost the same when driving the vehicle.

OK:

The speed value output from the speed sensor displayed on the Techstream is the same as the actual

vehicle speed.

HINT:

GO TO STEP 4

2.

PERFORM TEST MODE INSPECTION (SIGNAL CHECK)

(a) Perform a TEST MODE inspection and check for DTCs



.

OK:

No DTCs output.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

(SPEED SENSOR CIRCUIT)

3.

RECONFIRM DTC

(a) Clear the DTC(s)



.

(b) Start the engine.



.

Result

RESULT

PROCEED TO

DTC is not output

A

DTC is output

B

B

GO TO STEP 10
