Toyota Tundra (2015 year). Manual - part 235





OK

OK

6.

CHECK SPEED SENSOR TIP

(a) Remove the speed sensor



.

(b) Check the sensor tip.

OK:

No scratches or foreign matter on the sensor tip.

NG

CLEAN OR REPLACE SPEED SENSOR

7.

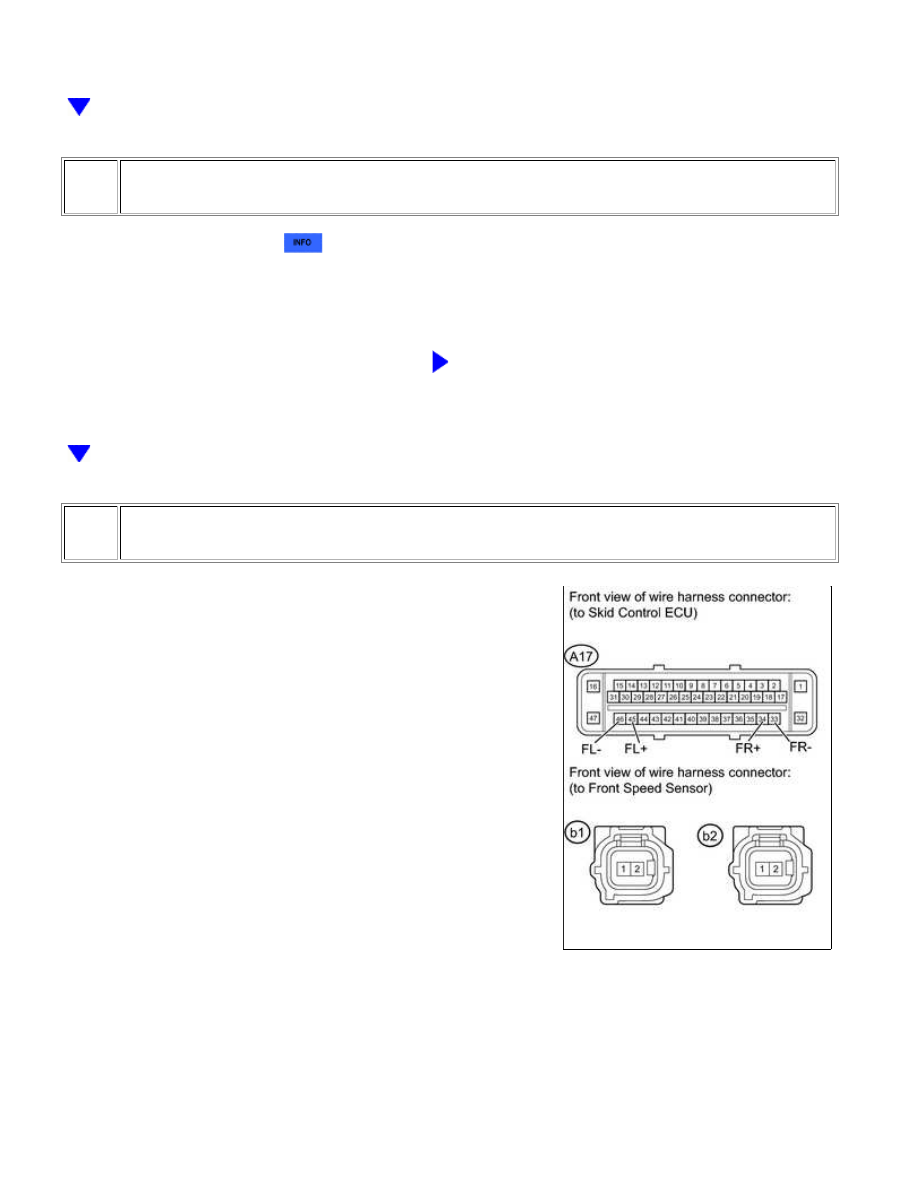

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FRONT SPEED SENSOR)

(a) Confirm that the skid control ECU connector and speed sensor

connector are properly connected.

(b) Disconnect the A17 ECU connector.

(c) Disconnect the b1 and b2 sensor connectors.

(d) Inspect both the connector case and the terminal for deformation and corrosion.

OK:

No deformation or corrosion.

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

OK

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

for RH

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

A17-34 (FR+) - b1-2

Always

Below 1 Ω

A17-33 (FR-) - b1-1

A17-34 (FR+) - Body ground

Always

10 kΩ or higher

A17-33 (FR-) - Body ground

for LH:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

A17-45 (FL+) - b2-2

Always

Below 1 Ω

A17-46 (FL-) - b2-1

A17-45 (FL+) - Body ground

Always

10 kΩ or higher

A17-46 (FL-) - Body ground

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.

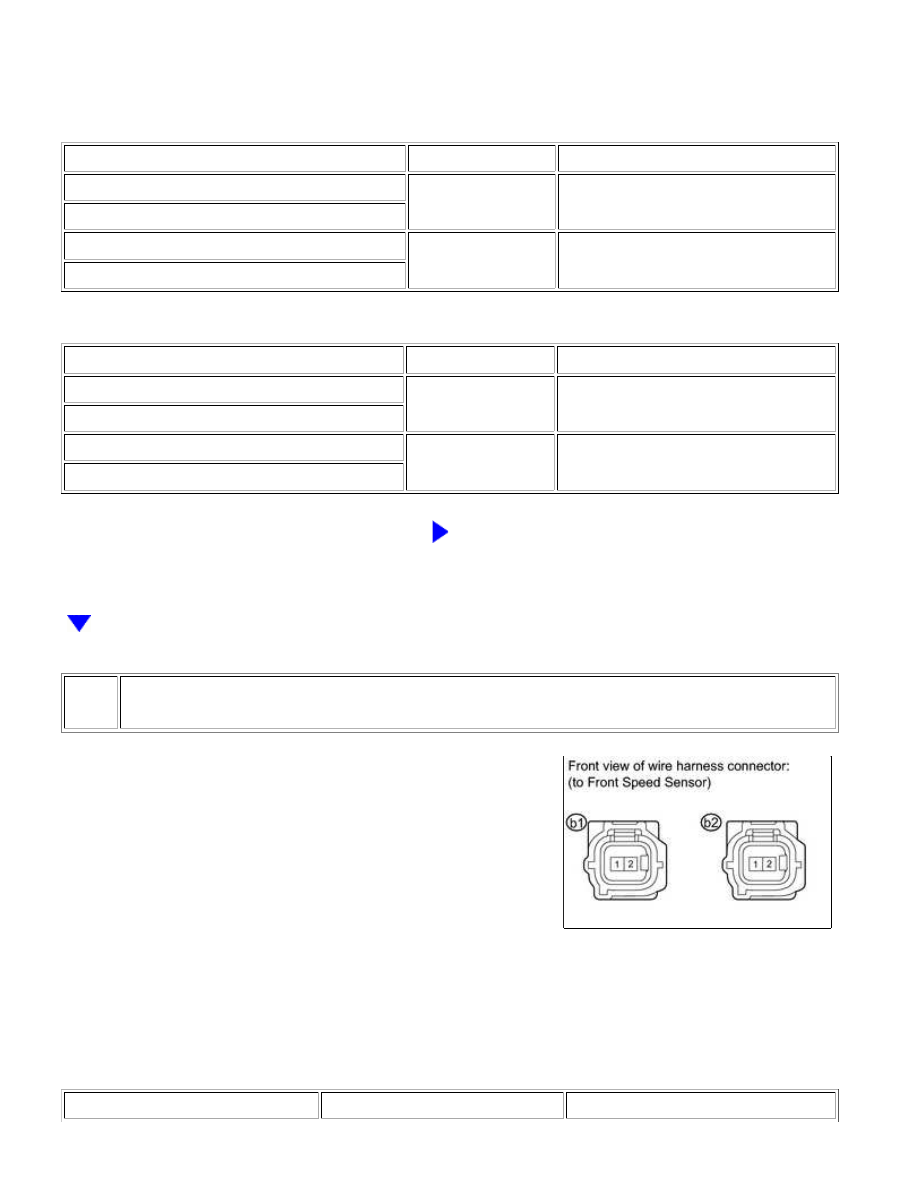

INSPECT FRONT SPEED SENSOR (INPUT VOLTAGE)

(a) Reconnect the A17 ECU connector.

(b) Disconnect the b1 and b2 sensor connectors.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

OK

A

NEXT

TESTER CONNECTION

SWITCH CONDITION

SPECIFIED CONDITION

b1-2 - Body ground

Ignition switch ON

5.5 to 20 V

b2-2 - Body ground

NG

REPLACE VSC ACTUATOR ASSEMBLY

9.

RECONFIRM DTC

(a) Clear the DTC(s)



.

(b) Start the engine.



.

Result

RESULT

PROCEED TO

DTC is output

A

DTC is not output

B

B

USE SIMULATION METHOD TO CHECK

10.

REPLACE FRONT SPEED SENSOR

(a) Replace the front speed sensor



.

11.

RECONFIRM DTC

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...

(a) Clear the DTC(s)



.

(b) Start the engine.



.

Result

RESULT

PROCEED TO

DTC is output

A

DTC is not output

B

B

END

A

REPLACE VSC ACTUATOR ASSEMBLY

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C...
