Last Modified: 9-16-2014
6.6 A
Doc ID: RM000000SS9096X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: BRAKE CONTROL: STEERING ANGLE SENSOR: REMOVAL; 2015 MY Tundra [08/2014 - ]
REMOVAL
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal
notice before proceeding with work
.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the
SRS system.
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE LOWER NO. 3 STEERING WHEEL COVER
5. REMOVE LOWER NO. 2 STEERING WHEEL COVER
6. REMOVE STEERING PAD
7. REMOVE STEERING WHEEL ASSEMBLY

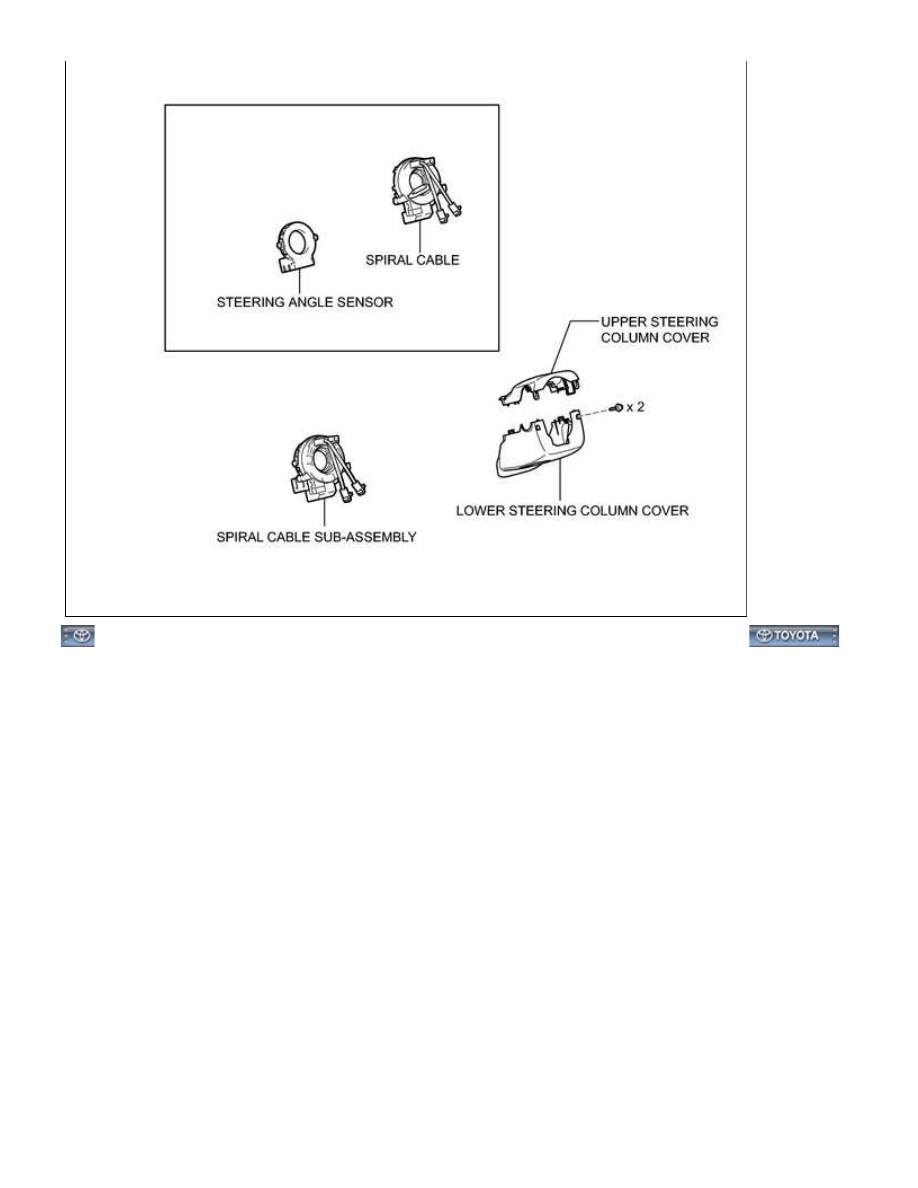

8. REMOVE LOWER STEERING COLUMN COVER
9. REMOVE UPPER STEERING COLUMN COVER
10. REMOVE SPIRAL CABLE SUB-ASSEMBLY
11. REMOVE STEERING ANGLE SENSOR
