Toyota Tundra (2015 year). Manual - part 2097





Last Modified: 9-16-2014

6.6 J

Doc ID: RM000002ZP2022X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit; 2015 MY Tundra [08/2014 -        ]

Turn Signal Light Circuit

DESCRIPTION

The turn signal flasher receives a turn signal switch signal from the headlight dimmer switch, and illuminates the

front turn signal light, outer rear view mirror and rear combination light.

WIRING DIAGRAM

LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit; 2015 M...

INSPECTION PROCEDURE

HINT:

Inspect the bulbs for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.

CHECK TURN SIGNAL LIGHT

LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit; 2015 M...

A

OK

(a) Check that the turn signal lights blink.

Result

RESULT

PROCEED TO

All turn signal lights do not blink

A

Only front turn signal light does not blink

B

Only rear combination light does not blink

C

Only door mirror foot light does not blink

D

B

GO TO STEP 4

C

GO TO STEP 5

D

GO TO STEP 6

2.

INSPECT FUSE (LH-IG, TURN-HAZ)

(a) Remove the LH-IG fuse from the main body ECU.

(b) Remove the TURN-HAZ fuse from the engine room junction block.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

LH-IG fuse

Always

Below 1 Ω

TURN-HAZ fuse

NG

REPLACE FUSE

3.

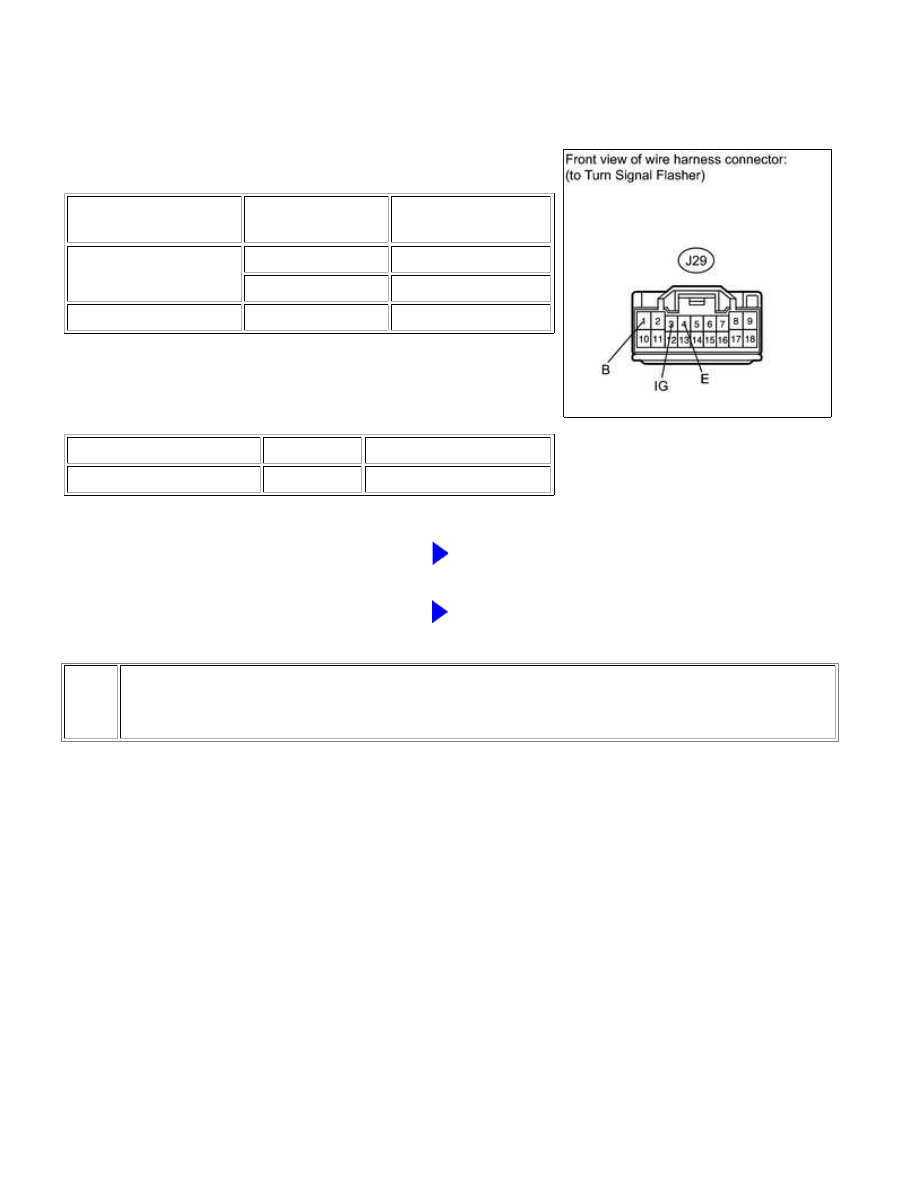

CHECK HARNESS AND CONNECTOR (TURN SIGNAL FLASHER - BATTERY AND BODY
GROUND)

LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit; 2015 M...

(a) Disconnect the J29 relay connector.

(b) Measure the voltage according to the value(s) in the table

below.

Standard voltage:

TESTER CONNECTION

SWITCH

CONDITION

SPECIFIED

CONDITION

J29-3 (IG) - Body

ground

Ignition switch ON

11 to 14 V

Ignition switch OFF

Below 1 V

J29-1 (B) - Body ground Always

11 to 14 V

(c) Measure the resistance according to the value(s) in the table

below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J29-4 (E) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN

IN PROBLEM SYMPTOMS TABLE

4.

CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT - TURN SIGNAL
FLASHER AND BODY GROUND)

LIGHTING: LIGHTING SYSTEM: Turn Signal Light Circuit; 2015 M...
