Toyota Tundra (2015 year). Manual - part 1816

ILLUSTRATION

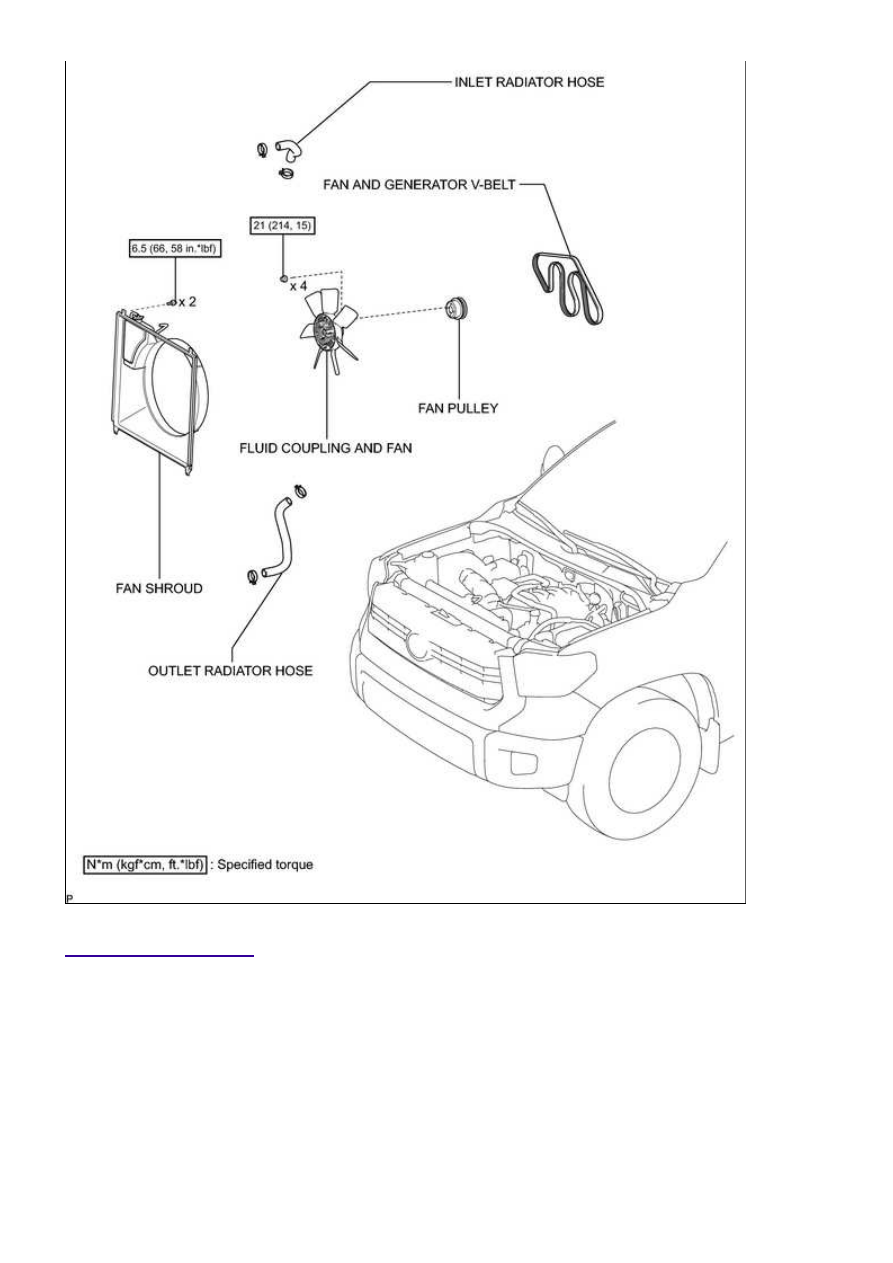

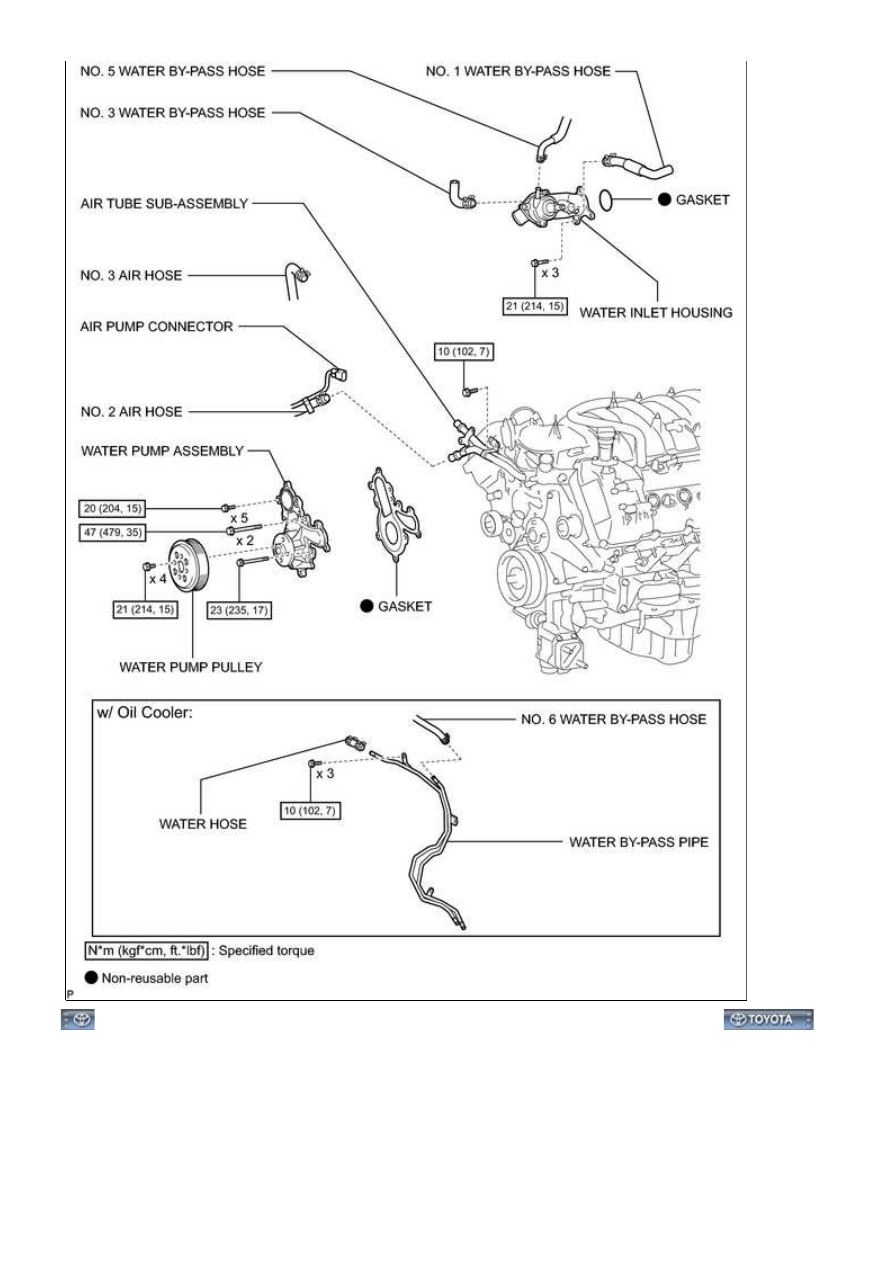

3UR-FE COOLING: WATER PUMP: COMPONENTS; 2015 MY Tundr...

3UR-FE COOLING: WATER PUMP: COMPONENTS; 2015 MY Tundr...

Last Modified: 9-16-2014

6.6 G

Doc ID: RM000002S4Q034X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

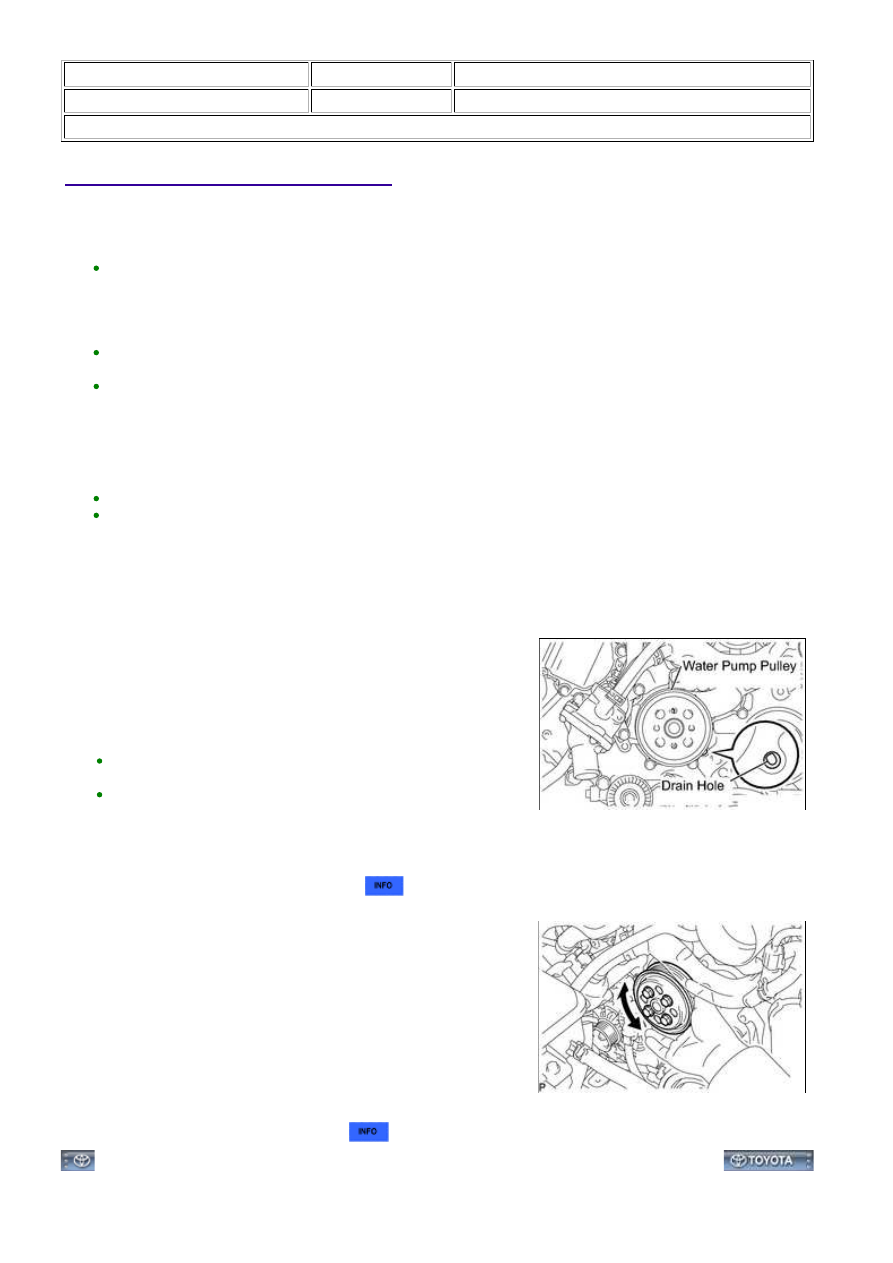

Title: 3UR-FE COOLING: WATER PUMP: ON-VEHICLE INSPECTION; 2015 MY Tundra [08/2014 - ]

ON-VEHICLE INSPECTION

1. INSPECT FOR COOLANT LEAK

HINT:

(1) Check that engine coolant is not dripping from the water pump assembly.

HINT:

If engine coolant is dripping, replace the engine water pump assembly.
If engine coolant is not dripping, perform the following check.

(b) Inspect the area around the water pump assembly.

HINT:

towel.

HINT:

If the thin paper towel is wet, replace the water pump
assembly.
If the thin paper towel is dry, thoroughly clean the area
around the water pump assembly.

2. INSPECT WATER PUMP ASSEMBLY

(a) Remove the fan and generator V belt

(b) Turn the pulley and check that the water pump bearing

moves smoothly and quietly.

If necessary, replace the water pump assembly.

3UR-FE COOLING: WATER PUMP: ON-VEHICLE INSPECTION; 20...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002S4T03OX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

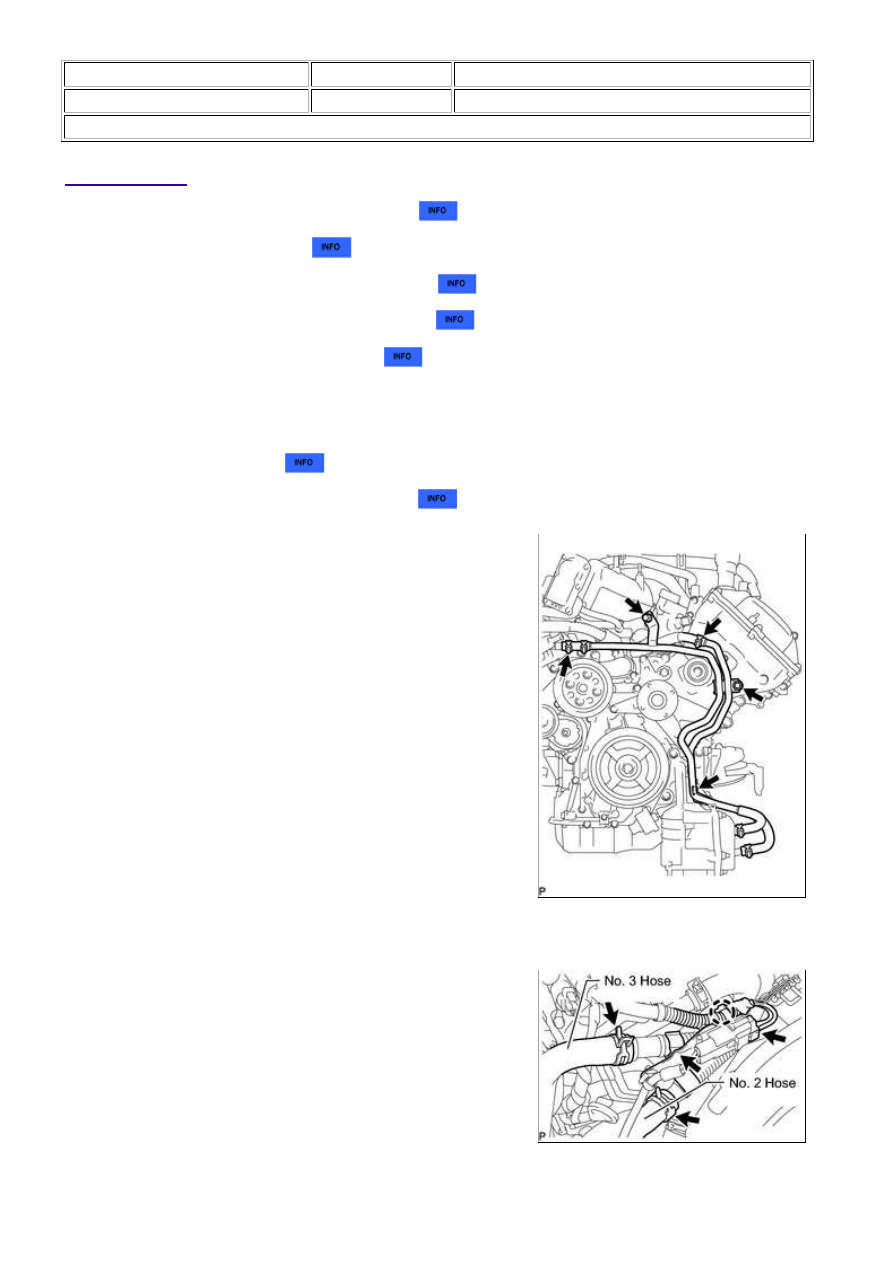

Title: 3UR-FE COOLING: WATER PUMP: REMOVAL; 2015 MY Tundra [08/2014 - ]

REMOVAL

1. REMOVE NO. 1 ENGINE UNDER COVER

2. DRAIN ENGINE COOLANT

3. REMOVE V-BANK COVER SUB-ASSEMBLY

4. REMOVE AIR CLEANER HOSE ASSEMBLY

5. REMOVE AIR CLEANER ASSEMBLY

6. DISCONNECT INLET RADIATOR HOSE

7. DISCONNECT OUTLET RADIATOR HOSE

8. REMOVE FAN SHROUD

9. REMOVE NO. 1 WATER BY-PASS HOSE

10. DISCONNECT WATER BY-PASS PIPE (w/ Oil

Cooler)

(a) Disconnect the No. 6 water by-pass hose.

(b) Remove the 3 bolts.

11. REMOVE WATER INLET HOUSING

(a) Disconnect the No. 2 and No. 3 air hoses.

(b) Disconnect the air pump connector.

3UR-FE COOLING: WATER PUMP: REMOVAL; 2015 MY Tundra [0...
