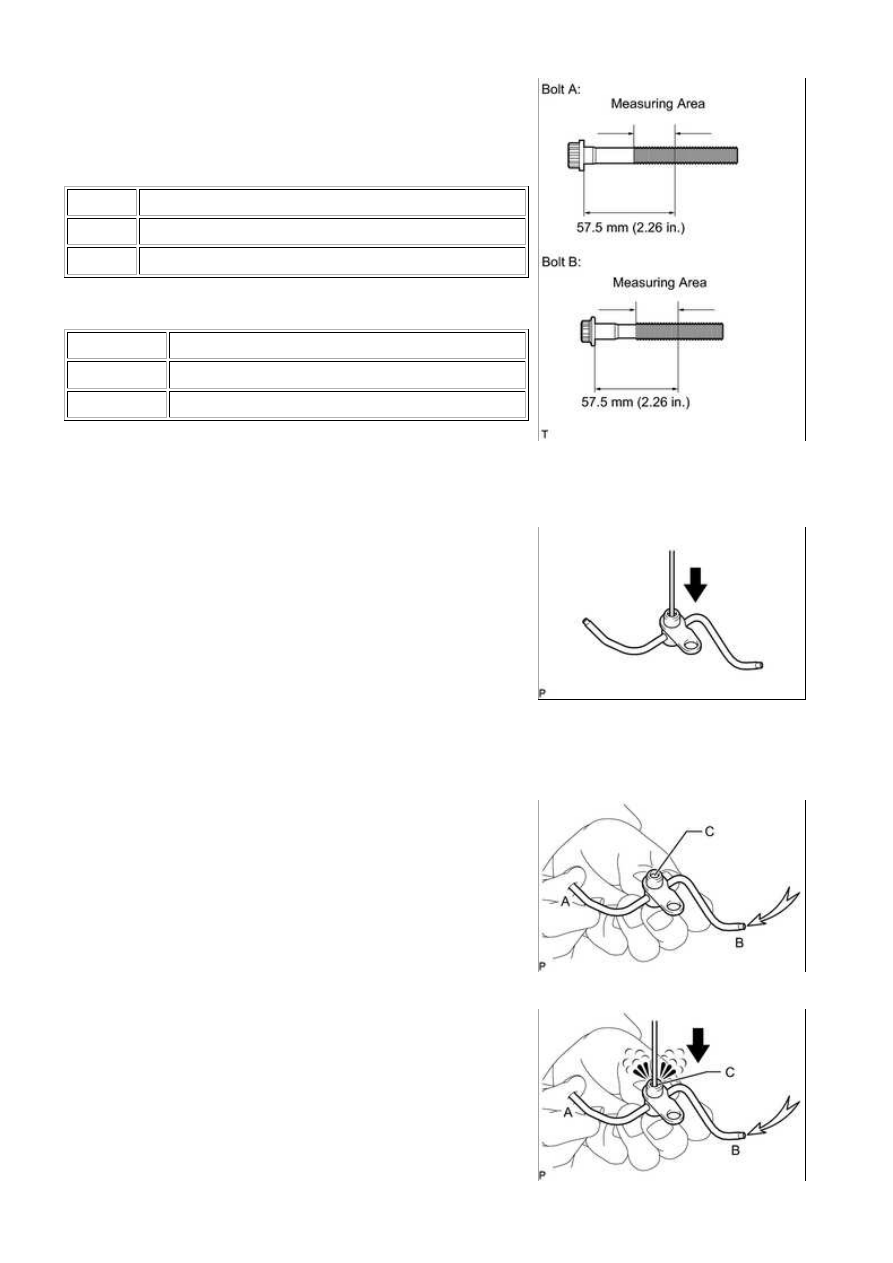

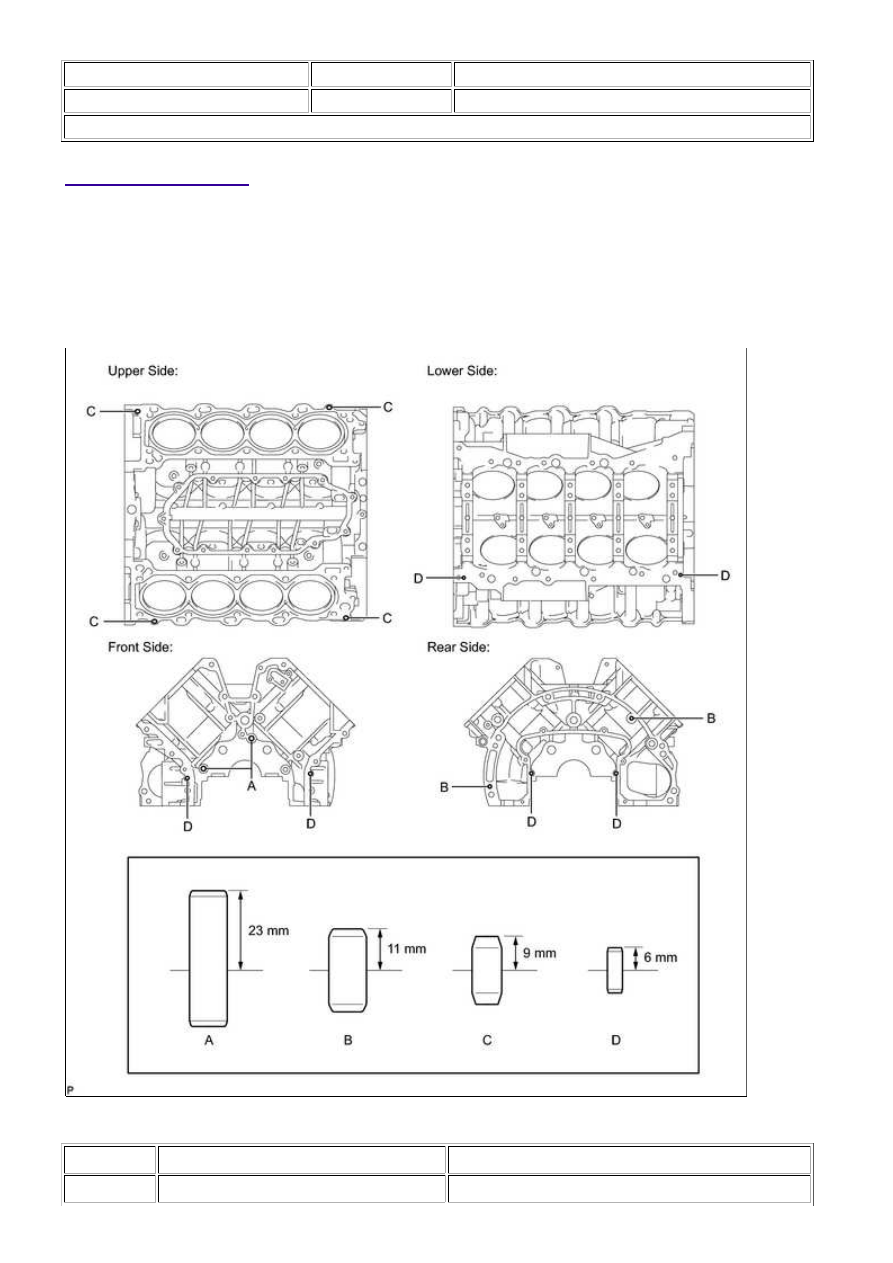

12. INSPECT CRANKSHAFT BEARING CAP SET BOLT (a) Using a vernier caliper, measure the minimum diameter of the elongated thread at the measuring point. Standard diameter: ITEM SPECIFIED CONDITION Bolt A 10.5 to 11.0 mm (0.413 to 0.433 in.) Bolt B 9.5 to 10.0 mm (0.374 to 0.394 in.) Minimum diameter: ITEM SPECIFIED CONDITION Bolt A 10.4 mm (0.409 in.) Bolt B 9.4 mm (0.370 in.) If the diameter is less than the minimum, replace the bolt. 13. INSPECT NO. 1 OIL NOZZLE SUB-ASSEMBLY (a) Push the check valve with a pin to check if it is stuck. If stuck, replace the oil nozzle. (b) Push the check valve with a pin to check if it moves smoothly. If it does not move smoothly, clean or replace the oil nozzle. (c) While covering A, apply air into B. Check that air does not leak through C. Perform the check again while covering B and applying air into A. If air leaks, clean or replace the oil nozzle. (d) Push the check valve while covering A, and apply air into B. Check that air passes through C. Perform the check again while covering B, pushing the check valve and applying air into A. If air does not pass through C, clean or replace the oil nozzle. 3UR-FBE ENGINE MECHANICAL: CYLINDER BLOCK: INSPECT... |
