Shift the transmission to 2nd gear [C]. 10. Accelerate the vehicle to 64 km/h (40 mph) or more by depressing the accelerator pedal for at least 10 seconds [D]. 11. Soon after performing step [D] above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal in order to execute fuel-cut control [E]. HINT: Fuel-cut is performed when the following conditions are met: Accelerator pedal is fully released. 12. Allow the vehicle to decelerate until the vehicle speed decreases to less than 10 km/h (6 mph). 13. Repeat steps [C] through [E] above at least 3 times in one driving cycle. 14. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes. 15. Read the Pending DTCs. HINT: If a pending DTC is output, the system is malfunctioning. 16. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness. 17. Input the DTC: P2195, P2196, P2197 or P2198. 18. Check the DTC judgment result. TESTER DISPLAY DESCRIPTION NORMAL DTC judgment completed System normal ABNORMAL DTC judgment completed System abnormal INCOMPLETE DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions N/A Unable to perform DTC judgment HINT: If the judgment result shows ABNORMAL, the system has a malfunction. 19. If no pending DTC is output, perform a universal trip and check for permanent DTCs
. HINT: If a permanent DTC is output, the system is malfunctioning. 20. MONITOR RESULT Refer to CHECKING MONITOR STATUS

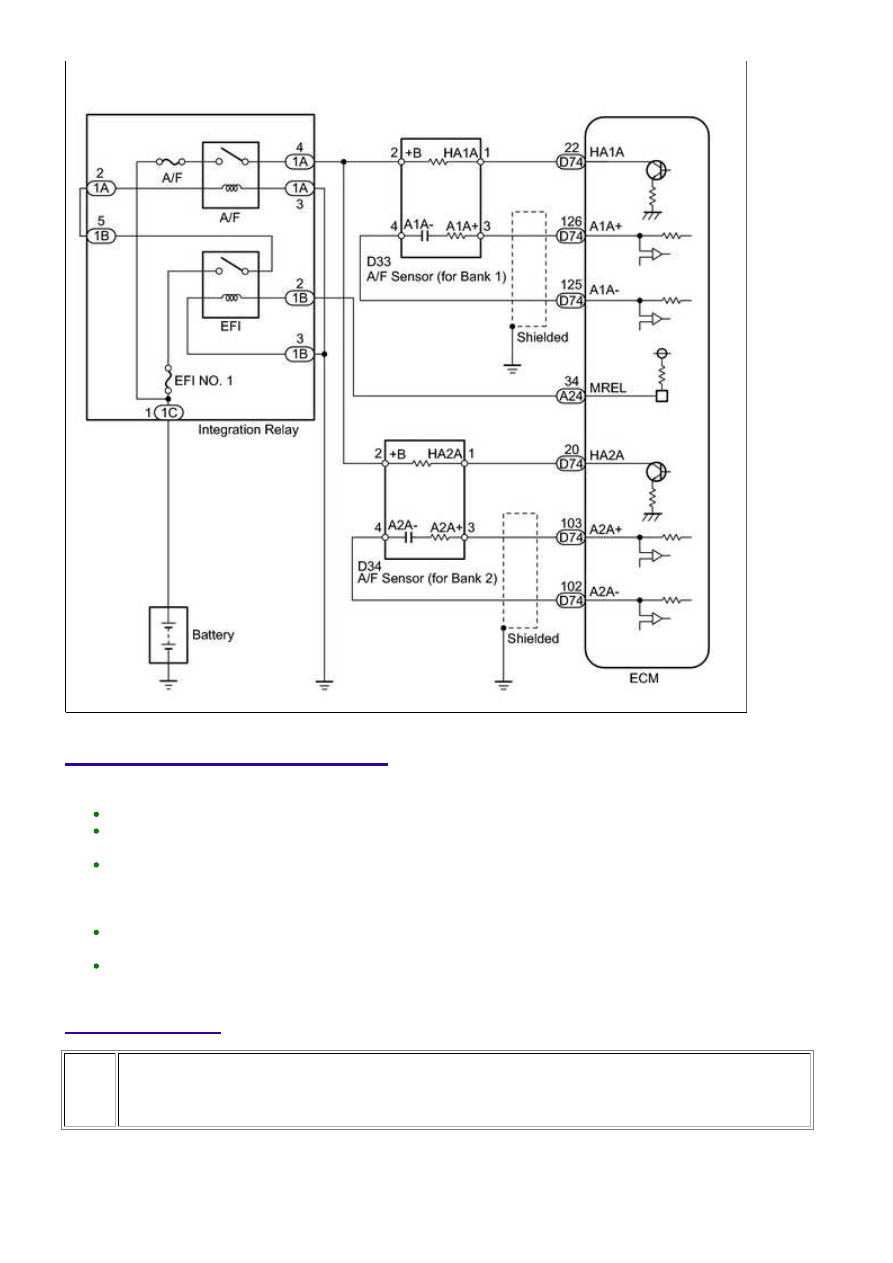

. WIRING DIAGRAM 3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2195-P219... |
