Toyota Tundra (2015 year). Manual - part 1602





OK

OK

NEXT

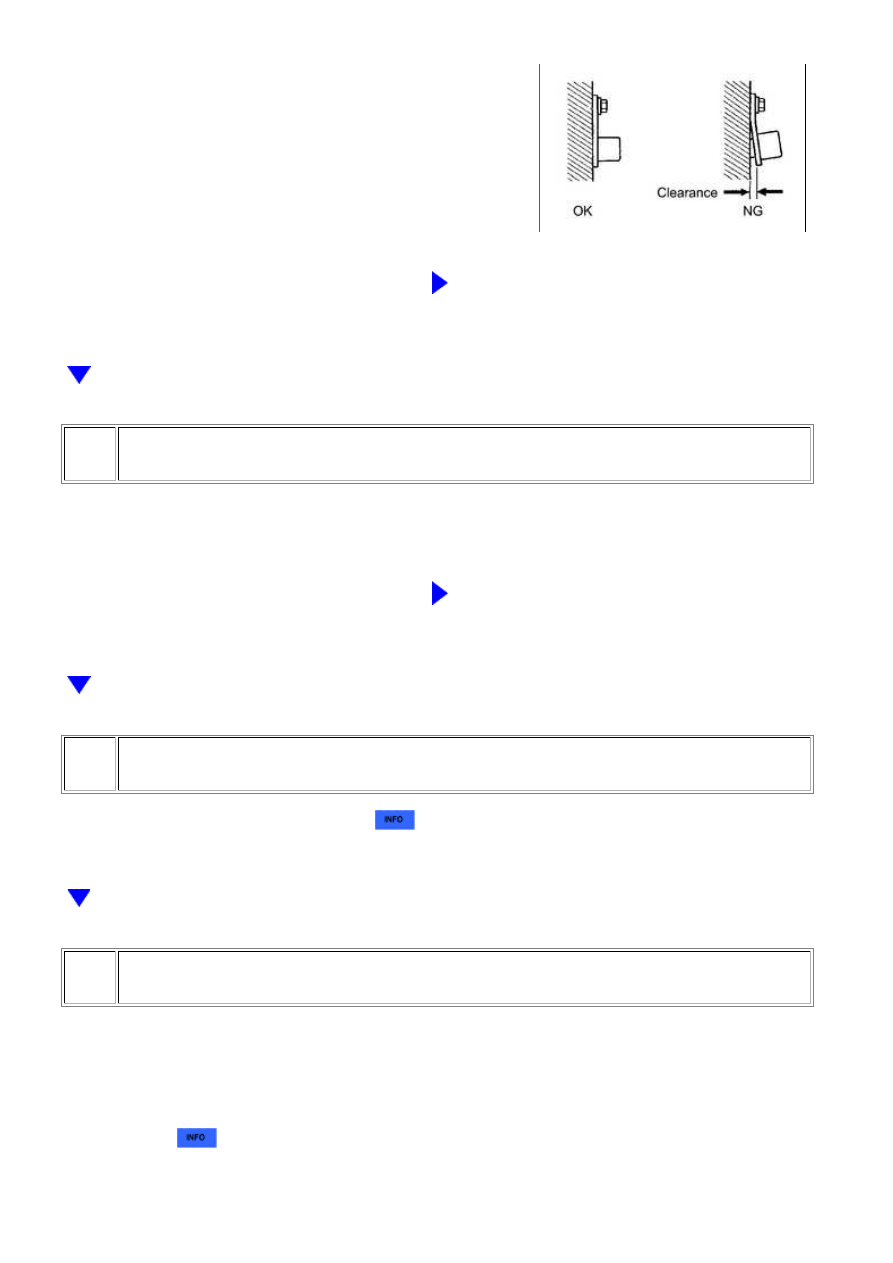

(a) Check the camshaft position sensor installation.

OK:

The camshaft position sensor is installed properly.

NG

SECURELY REINSTALL SENSOR

4.

INSPECT CAMSHAFT TIMING PLATE (SIGNAL PLATE TOOTH)

Sensor plate teeth do not have any cracks or deformation.

NG

REPLACE CAMSHAFT TIMING PLATE

5.

REPLACE CAMSHAFT POSITION SENSOR

(a) Replace the camshaft position sensor



.

6.

CONFIRM WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear DTCs



.

(e) Start the engine.

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1340,P134...

(f) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving

Pattern.

(g) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.

(h) Read DTCs.

Result

RESULT

PROCEED TO

No DTC is output

A

P1340, P1342 and/or P1343 are output

B

HINT:

If the engine does not start, replace the ECM.

B

REPLACE ECM

A

END

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1340,P134...

Last Modified: 9-16-2014

6.6 C

Doc ID: RM0000046N101CX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P144C,P144D; Open in Secondary Air Injection

System Heater Control Circuit; 2015 MY Tundra [08/2014 -        ]

DTC

P144C

Open in Secondary Air Injection System Heater Control Circuit

DTC

P144D

Short in Secondary Air Injection System Heater Control Circuit

DESCRIPTION

The ECM operates the air pump heater relay (AI HTR) which causes the air pump heater to operate.

DTC

NO.

DTC DETECTION CONDITION

TROUBLE AREA

P144C

Open or short in the air pump heater relay circuit for 5

seconds (1 trip detection logic).

Open or short in air pump

heater relay circuit

Air pump heater relay (AI

HTR)

ECM

P144D

Open or short in the air pump heater relay circuit for 5

seconds (1 trip detection logic).

Open or short in air pump

heater relay circuit

Air pump heater relay (AI

HTR)

ECM

MONITOR DESCRIPTION

These DTCs are designed to detect a malfunction in the air pump heater relay circuit. When the system is

The battery voltage is not applied to terminal HAI1 while the air pump heater relay (AI HTR) is off.

The battery voltage is applied to terminal HAI1 while the air pump heater relay (AI HTR) is on.

MONITOR STRATEGY

Related DTCs

P144C: Air pump heater relay circuit range check (Low voltage)

P144D: Air pump heater relay circuit range check (High voltage)

Required Sensors/Components (Main)

Air pump heater relay

Required Sensors/Components (Related)

-

Duration

5 seconds

MIL operation

Immediate

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P144C,P144...

TYPICAL ENABLING CONDITIONS

Case 1

Monitor runs whenever following DTCs not stored

None

Current air pump heater relay (AIR PMP HTR)

ON

Last air pump heater relay (AIR PMP HTR)

ON

Battery

8 V or more

Ignition switch

ON

Starter

OFF

Case 2

Monitor runs whenever following DTCs not stored

None

Current air pump heater relay (AIR PMP HTR)

OFF

Last air pump heater relay (AIR PMP HTR)

OFF

Battery

8 V or more

Ignition switch

ON

Starter

OFF

TYPICAL MALFUNCTION THRESHOLDS

P144C

Air pump heater relay output terminal voltage

Low

P144D

Air pump heater relay output terminal voltage

High

CONFIRMATION DRIVING PATTERN

Connect the Techstream to the DLC3.

1.

Turn the ignition switch to ON and turn the Techstream on.

2.

Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

3.

Turn the ignition switch off and wait for at least 30 seconds.

4.

Turn the ignition switch to ON and turn the Techstream on.

5.

Start the engine and wait 10 seconds or more.

6.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

7.

Read the pending DTC.

HINT:

If a pending DTC is output, the system is malfunctioning.
If a pending DTC is not output, perform the following procedure.

8.

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

9.

Input the DTC: P144C or P144D.

10.

Check the DTC judgment result.

11.

3UR-FBE ENGINE CONTROL SYSTEM: SFI SYSTEM: P144C,P144...
