Title: PARK ASSIST / MONITORING: CLEARANCE WARNING ECU: REMOVAL; 2015 MY Tundra [08/2014 - ]
REMOVAL
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the
battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal
notice before proceeding with work
.
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
(a) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the
SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.

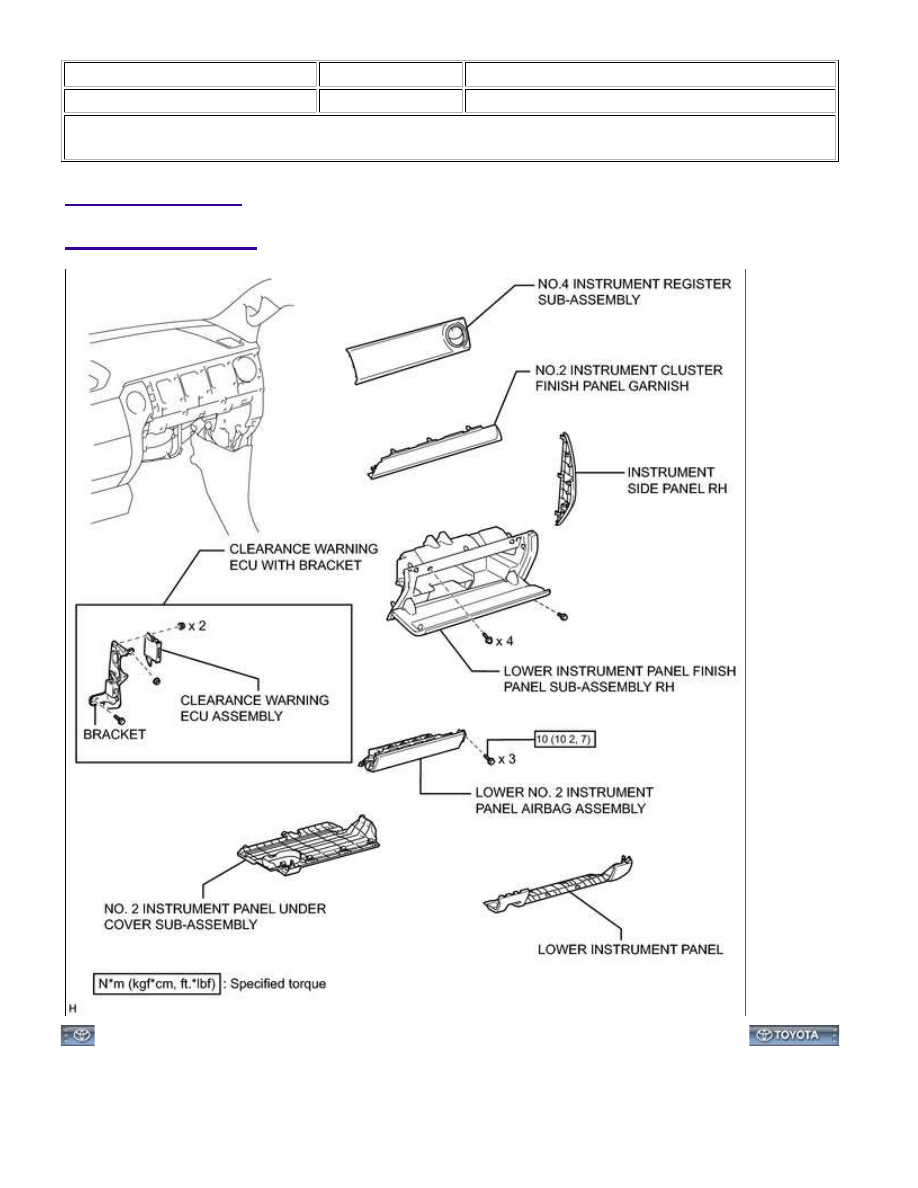

3. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. REMOVE LOWER INSTRUMENT PANEL
5. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
6. REMOVE NO.4 INSTRUMENT REGISTER SUB-ASSEMBLY
7. REMOVE INSTRUMENT SIDE PANEL RH
8. REMOVE NO.2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
9. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH
10. REMOVE CLEARANCE WARNING ECU WITH BRACKET

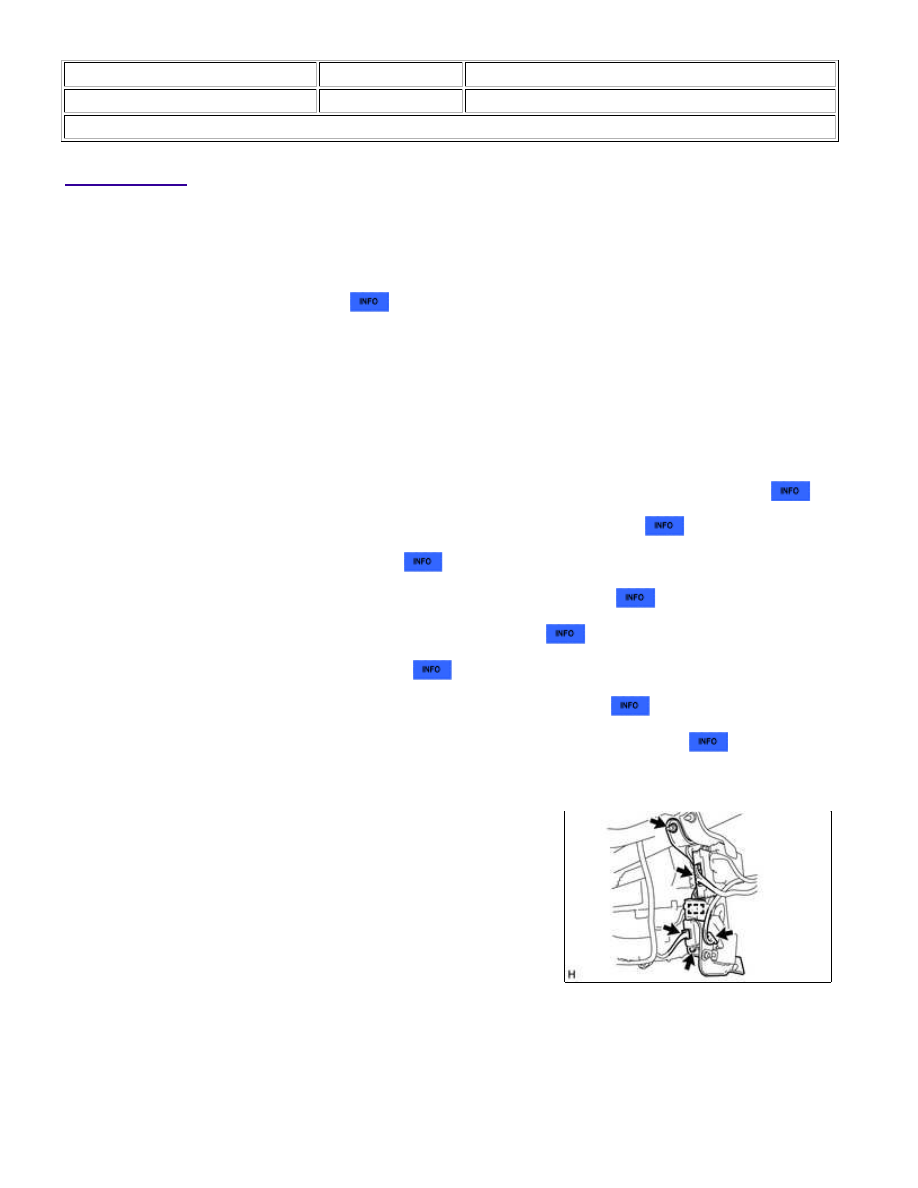

(a) Disconnect the ECU connectors and detach the harness clamp.
NOTICE:
Do not apply excessive force to the wire harnesses.

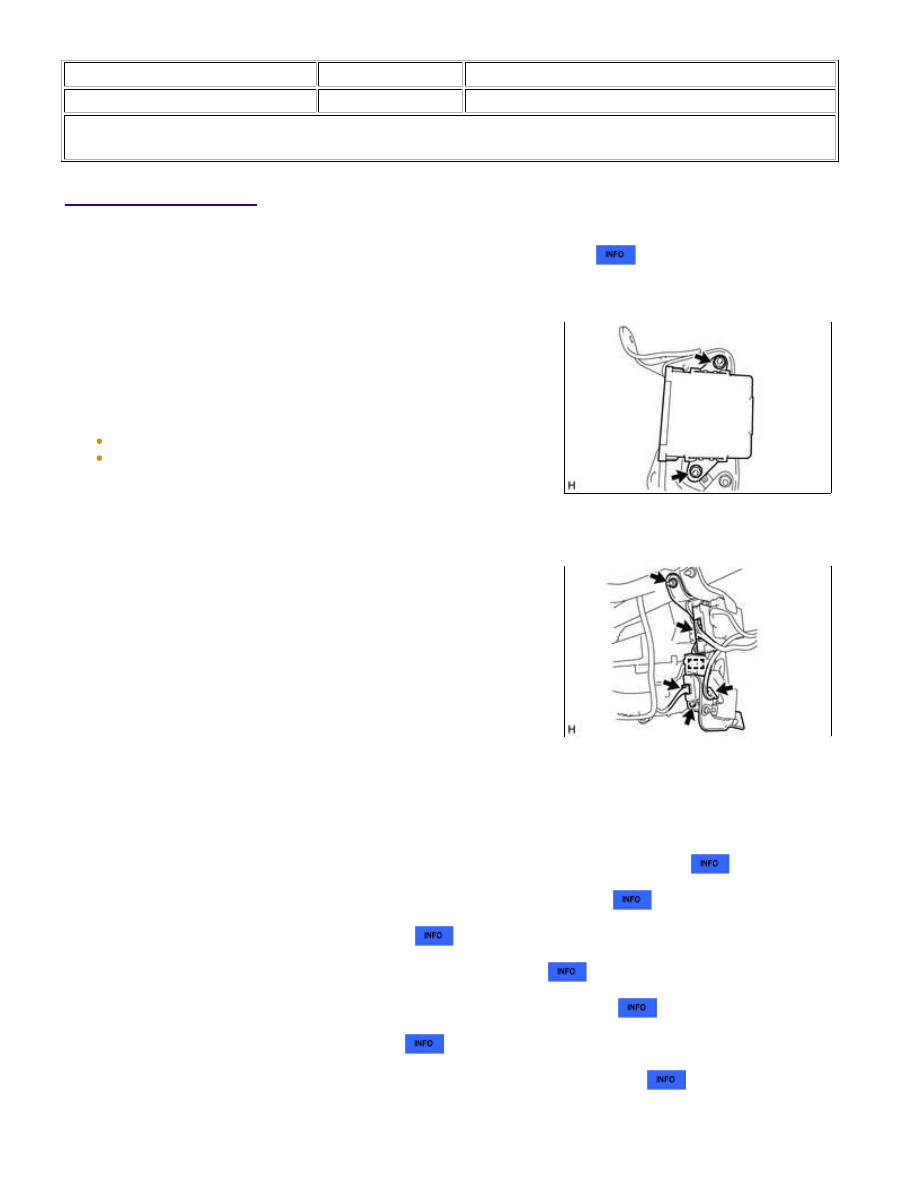

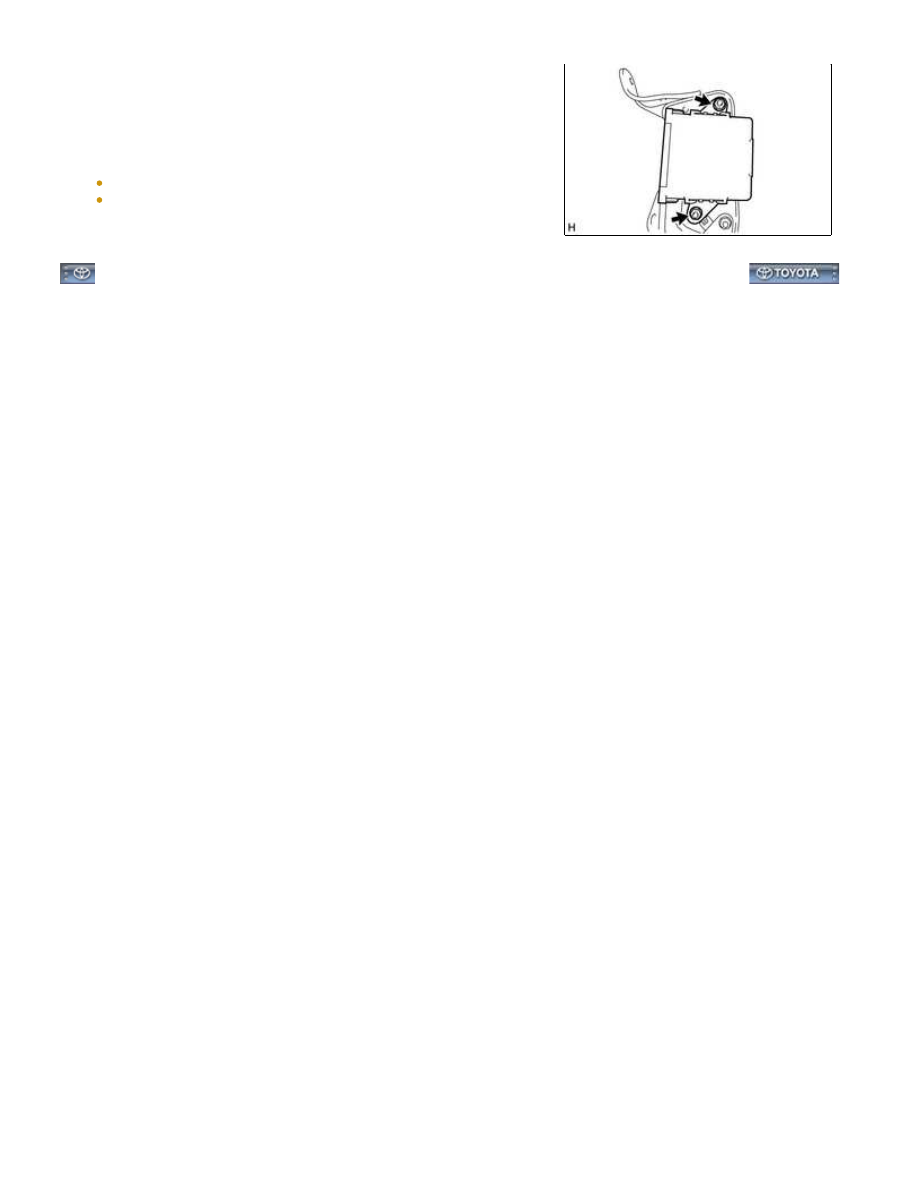

(b) Remove the bolt, nut and clearance warning ECU with bracket.
11. REMOVE CLEARANCE WARNING ECU ASSEMBLY
PARK ASSIST / MONITORING: CLEARANCE WARNING ECU: R...
