(6) Check the results displayed for the BSM beam axis display.
Allowable Range:
ITEM
BLIND SPOT MONITOR SENSOR RH (MASTER)
BLIND SPOT MONITOR SENSOR LH (SLAVE)
Angle
-3.6 to +3.6°
-3.6 to +3.6°
Distance
2.0 to 3.0 m
(6.57 to 9.85 ft.)
2.0 to 3.0 m
(6.57 to 9.85 ft.)
HINT:
If the results are outside the allowable range, try again as the reflector setting position may be incorrect or
a metal object may exist near the detection area.
(7) Perform the blind spot monitor beam axis adjustment using the Techstream. Enter the following
menus: Body Electrical / Blind spot monitor Master or Blind spot monitor Slave / Utility / BSM Master
beam axis adjustment or BSM Slave beam axis adjustment.
HINT:
When values on the axis display are in the allowable range, performing this adjustment compensates the
values to the normal value.
3. BLIND SPOT MONITOR INSTALLATION CONDITION INSPECTION
NOTICE:
Perform this inspection on level ground.
Unload the vehicle before beginning the inspection.
Confirm that the tire pressure is correct before beginning the inspection.

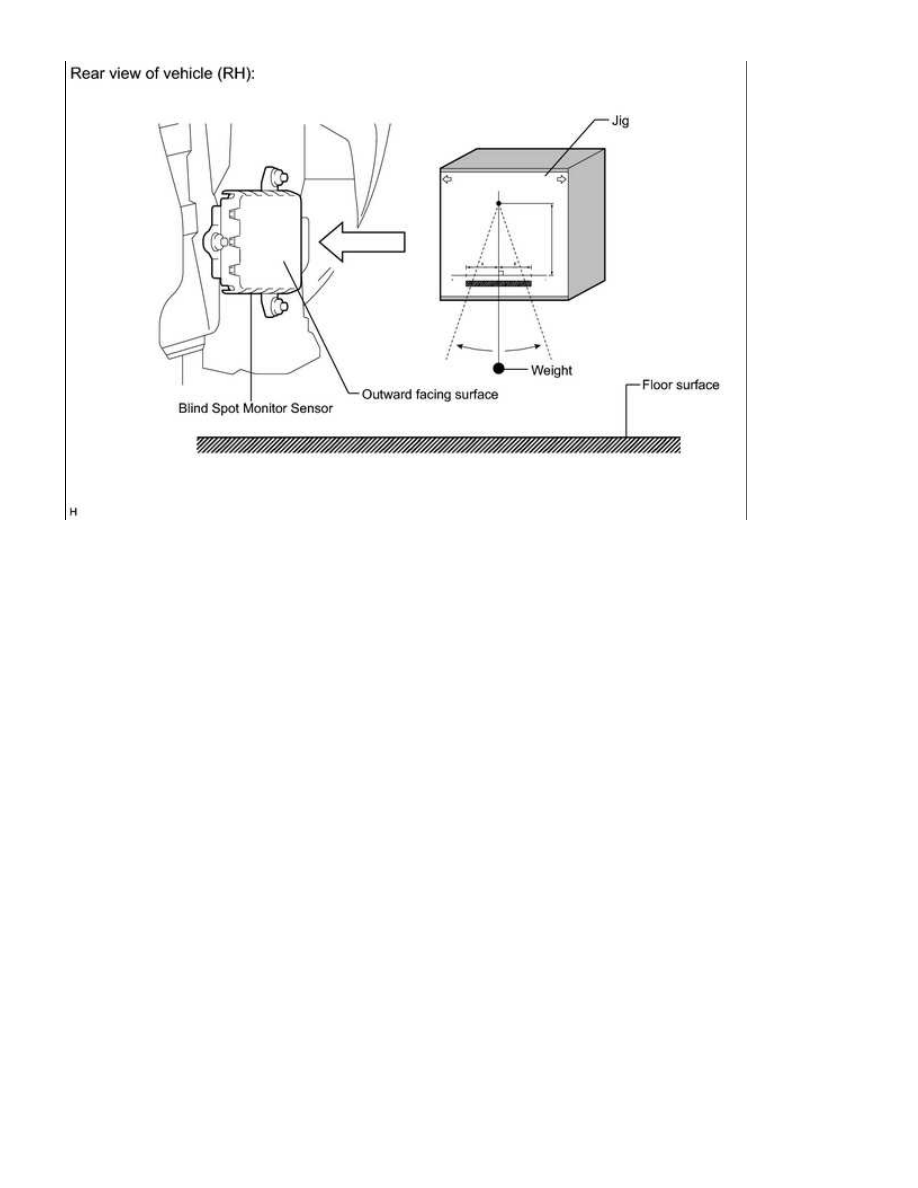

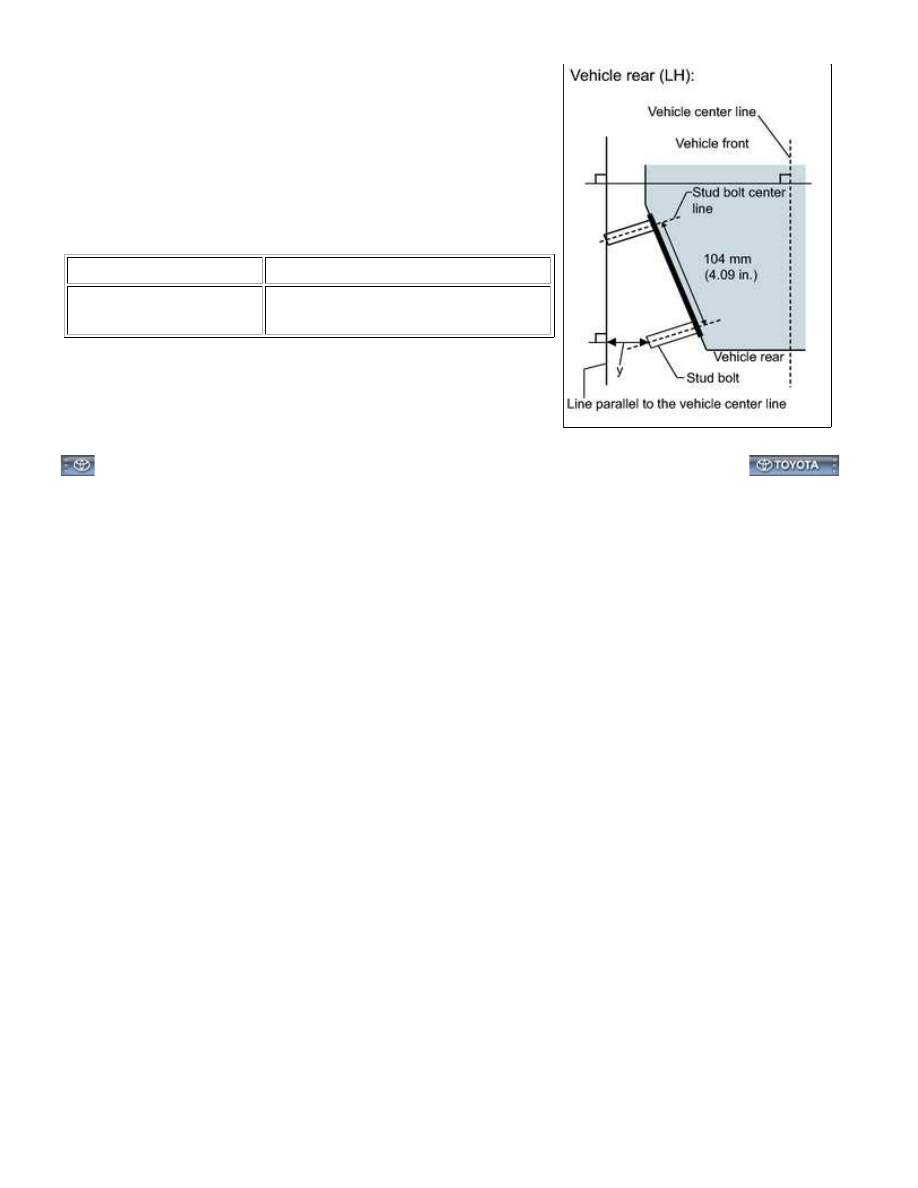

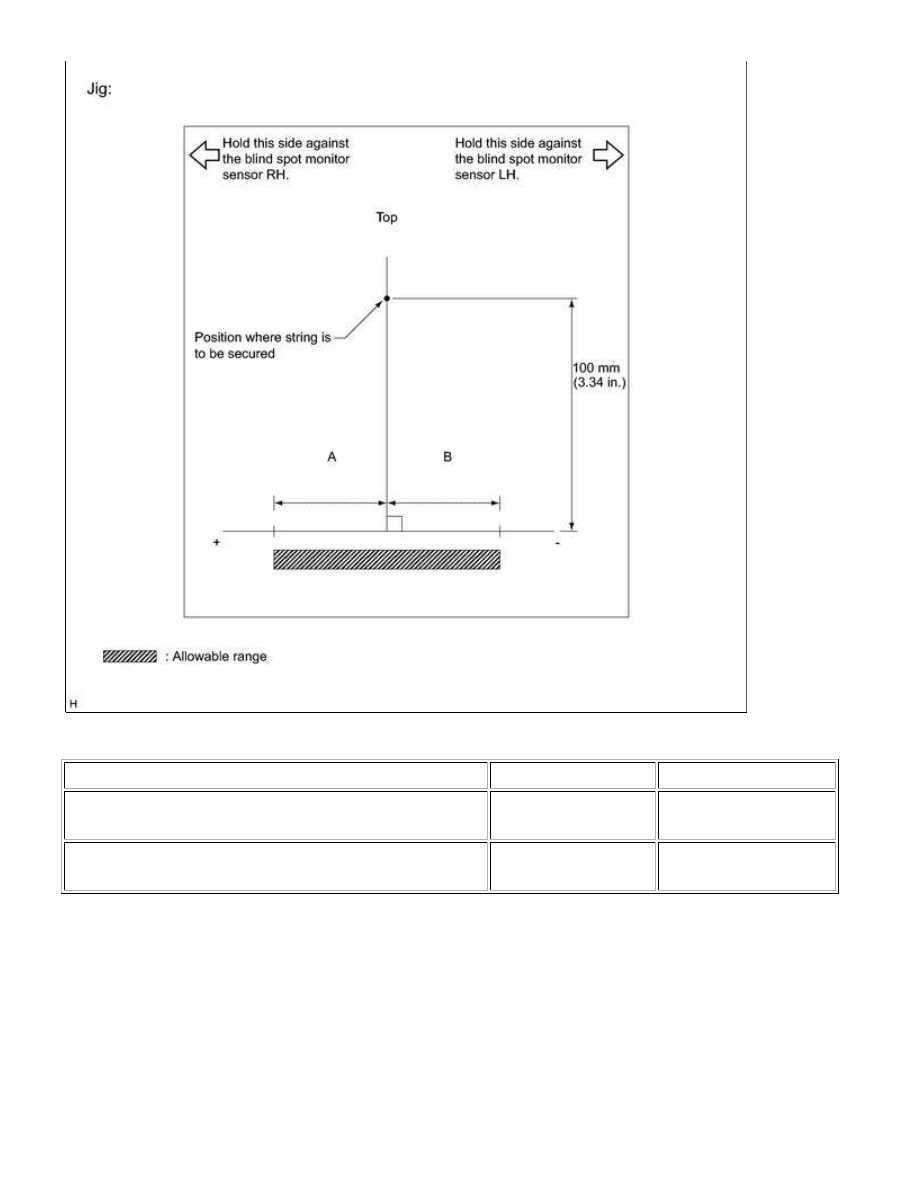

(a) Remove the rear bumper
.
the allowable range.
PARK ASSIST / MONITORING: BLIND SPOT MONITOR SYSTEM:...
