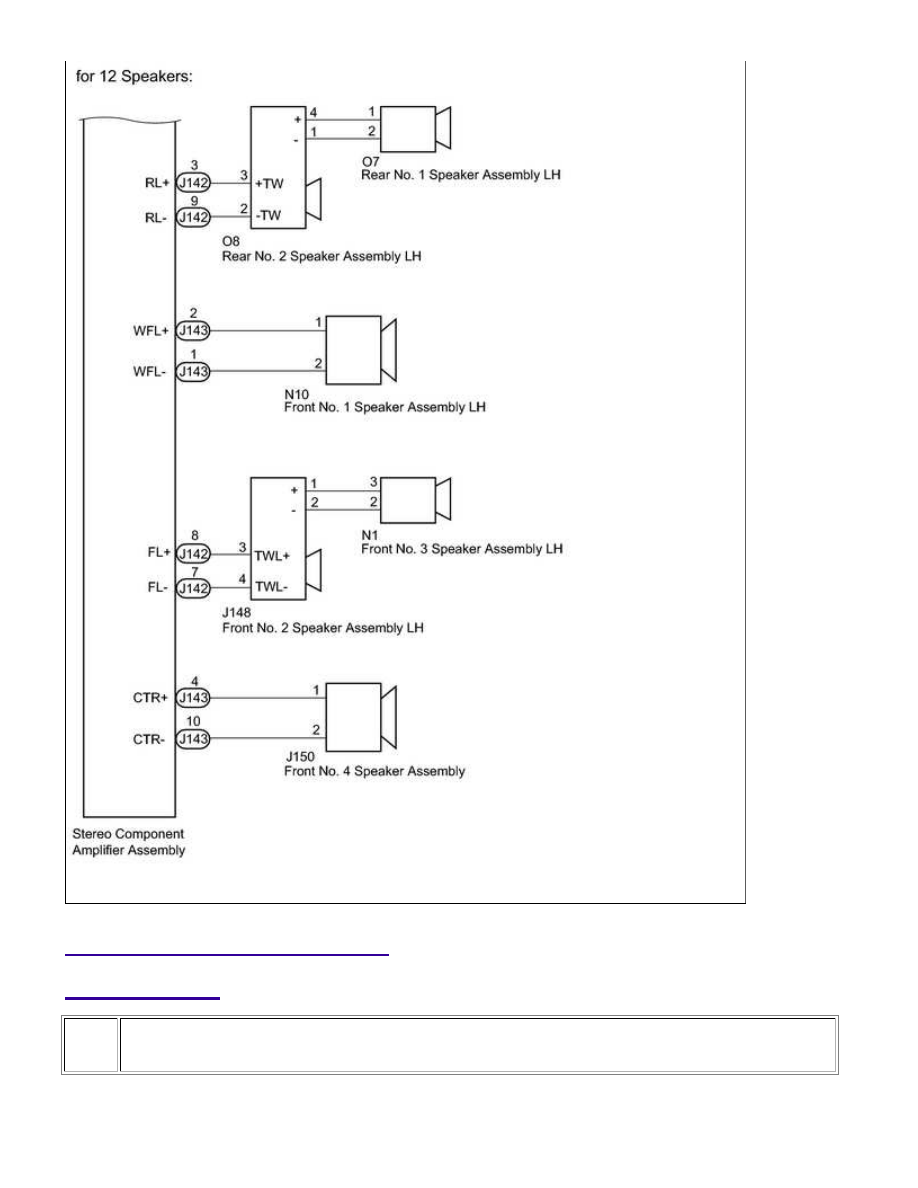

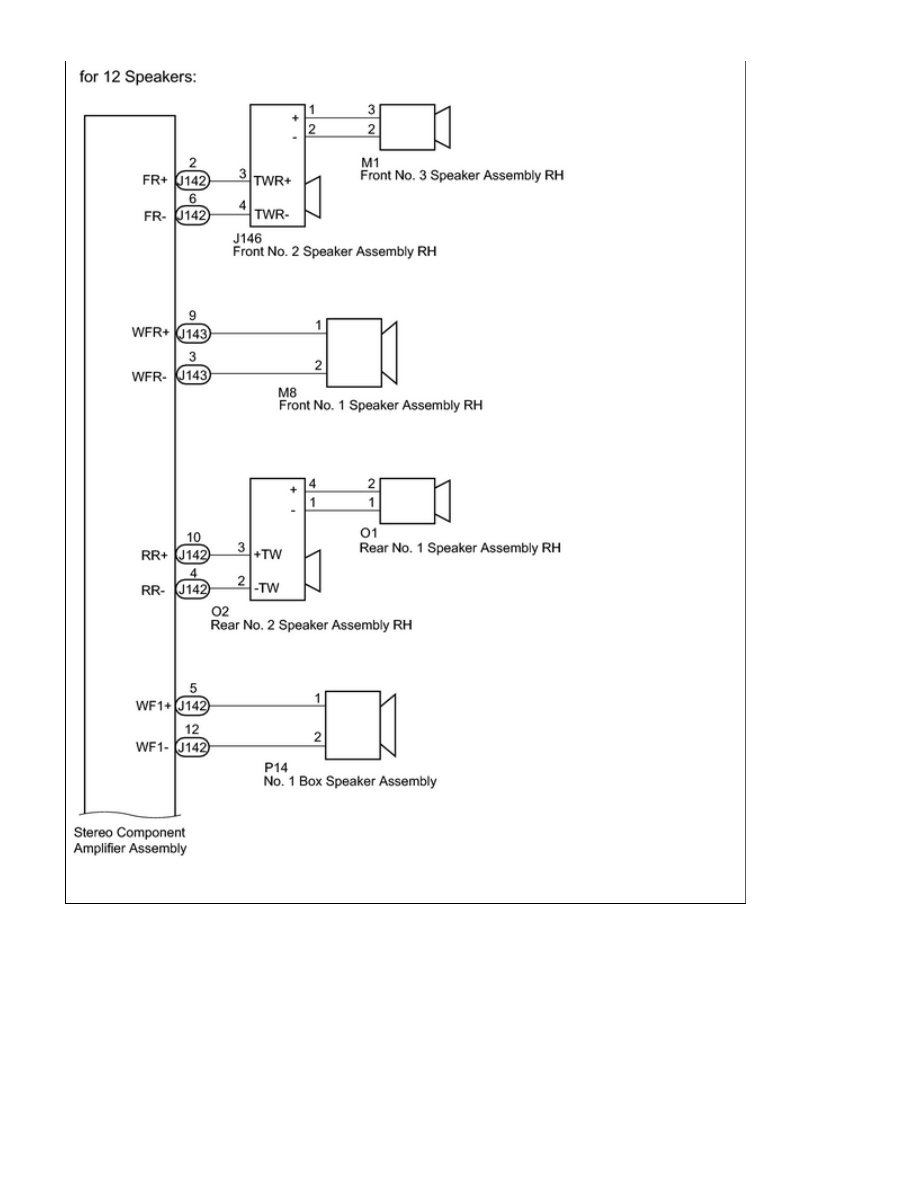

NAVIGATION: NAVIGATION SYSTEM: Speaker Circuit; 2015 MY T...

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK VEHICLE CONDITION

(a) Check the vehicle condition.

NAVIGATION: NAVIGATION SYSTEM: Speaker Circuit; 2015 MY T...

A

Result

RESULT

PROCEED TO

for 4 Speakers

A

for 7 or 9 Speakers

B

for 12 Speakers

C

B

GO TO STEP 5

C

GO TO STEP 12

2.

CHECK HARNESS AND CONNECTOR (SPEAKER CIRCUIT)

*1: for RH Side

*2: for LH Side

(a) Disconnect the J133 navigation receiver assembly connector.

(b) Disconnect the M8*1 and/or N10*2 front No. 1 speaker assembly connector.

(c) Disconnect the J147*1 and/or J149*2 front No. 2 speaker assembly connector.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J133-1 (FR+) - J147-3 (TWR+)

Always

Below 1 Ω

J133-5 (FR-) - J147-2 (TWR-)

Always

Below 1 Ω

M8-1 - J147-1 (+)

Always

Below 1 Ω

M8-2 - J147-4 (-)

Always

Below 1 Ω

J133-2 (FL+) - J149-3 (TWL+)

Always

Below 1 Ω

J133-6 (FL-) - J149-2 (TWL-)

Always

Below 1 Ω

N10-1 - J149-1 (+)

Always

Below 1 Ω

N10-2 - J149-4 (-)

Always

Below 1 Ω

J133-1 (FR+) - Body ground

Always

10 kΩ or higher

J133-5 (FR-) - Body ground

Always

10 kΩ or higher

M8-2 - Body ground

Always

10 kΩ or higher

M8-1 - Body ground

Always

10 kΩ or higher

NAVIGATION: NAVIGATION SYSTEM: Speaker Circuit; 2015 MY T...

OK

OK

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J133-2 (FL+) - Body ground

Always

10 kΩ or higher

J133-6 (FL-) - Body ground

Always

10 kΩ or higher

N10-2 - Body ground

Always

10 kΩ or higher

N10-1 - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY

(a) Remove the front No. 1 speaker assembly



.

(b) Inspect the front No. 1 speaker assembly



.

NG

REPLACE FRONT NO. 1 SPEAKER ASSEMBLY

4.

CHECK FRONT NO. 2 SPEAKER ASSEMBLY

(a) Replace the front No. 2 speaker assembly with a known good one

(b) Check that the malfunction disappears.

NOTICE:

Connect all the connectors to the front No. 2 speaker assemblies that were disconnected.
Connect all the connectors to the front No. 2 speaker assemblies that were disconnected.
Perform the above inspection on both LH and RH sides.

OK:

Malfunction disappears.

Result

RESULT

PROCEED TO

OK

A

NG (for Column Shift Type)

B

NG (for Floor Shift Type)

C

NAVIGATION: NAVIGATION SYSTEM: Speaker Circuit; 2015 MY T...
