6.6 A
Doc ID: RM0000030WE02JX
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: 1UR-FE EMISSION CONTROL: AIR SWITCHING VALVE (for Bank 1): INSTALLATION; 2015 MY Tundra
[08/2014 - ]

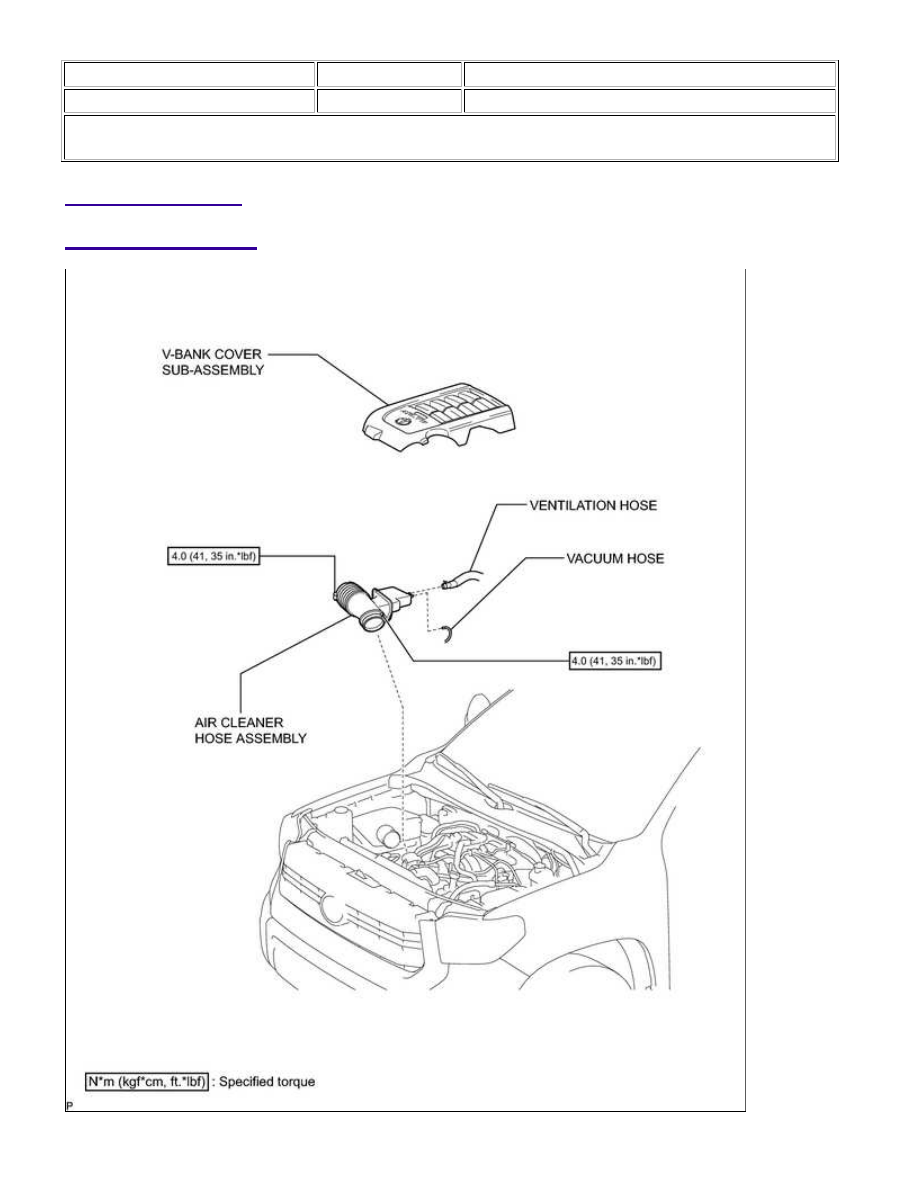

INSTALLATION

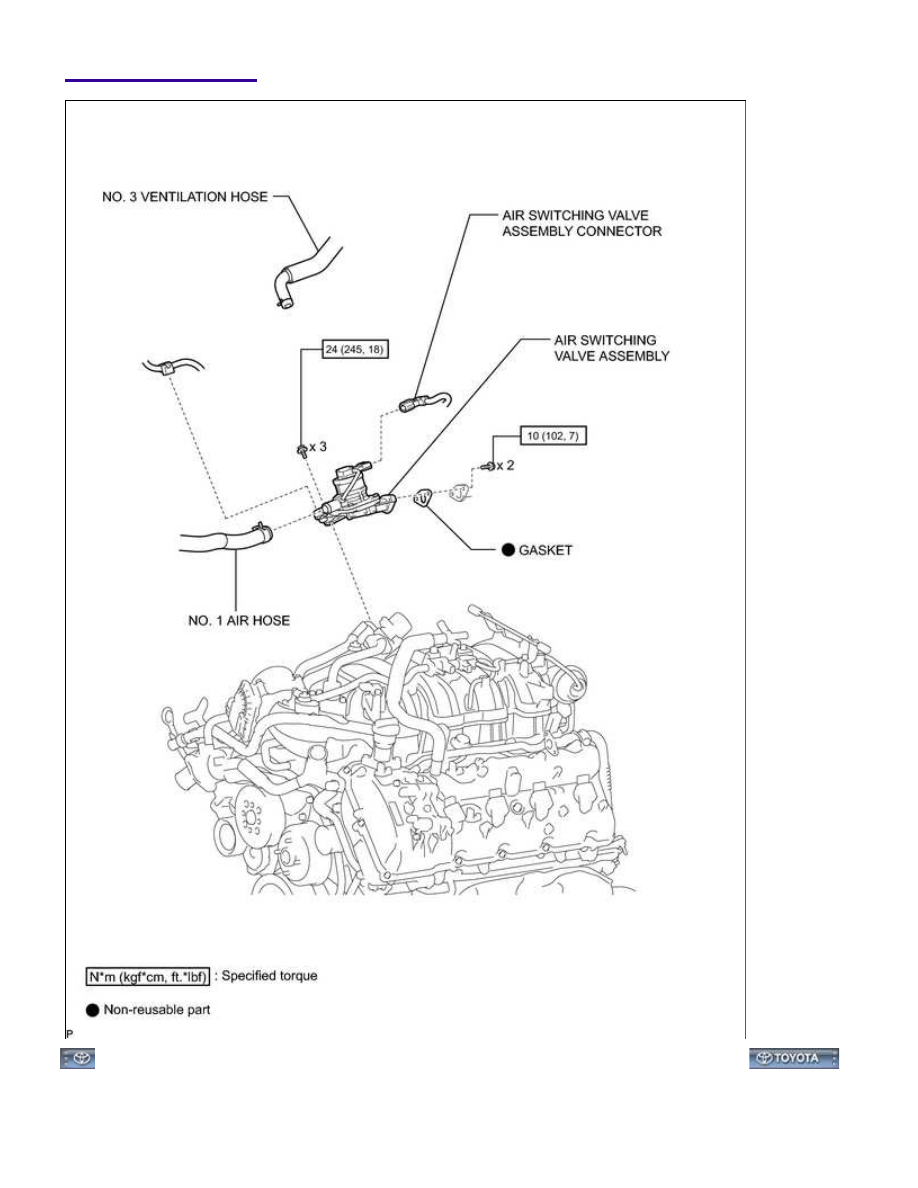

1. INSTALL AIR SWITCHING VALVE ASSEMBLY

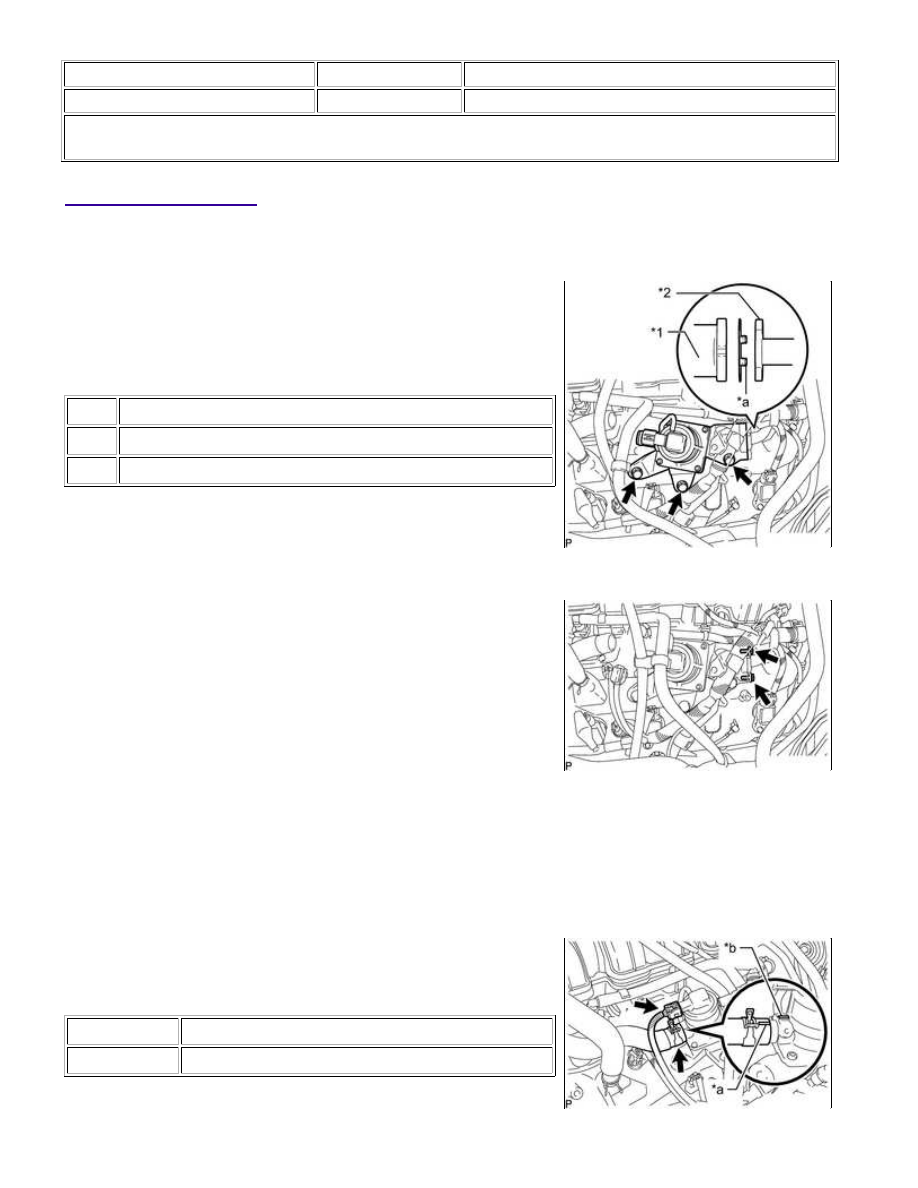

(a) Install a new gasket and the air switching valve assembly with
the 3 bolts.
Torque:
24 N·m {245 kgf·cm, 18ft·lbf}
Text in Illustration
*1
Air Switching Valve Assembly
*2
No. 4 Air Tube
*a
Claw
NOTICE:
Make sure the gasket's claws are not caught between the air
switching valve assembly and No. 4 air tube.
(b) Install the 2 bolts.
Torque:
10 N·m {102 kgf·cm, 7ft·lbf}
(c) Connect the wire harness clamp bracket to the cylinder head cover sub-assembly LH with the bolt.
Torque:
8.0 N·m {82 kgf·cm, 71in·lbf}
2. CONNECT NO. 2 AIR HOSE
(a) Align the paint mark with the projection and connect the No. 2
air hose, and slide the clamp to secure the hose.
Text in Illustration
*a
Paint Mark
*b
Projection
HINT:
1UR-FE EMISSION CONTROL: AIR SWITCHING VALVE (for Bank 1...
