Toyota Tundra (2015 year). Manual - part 1006





*a

NG

REPLACE 4 WHEEL DRIVE CONTROL ECU

OK

REPLACE TRANSFER SHIFT ACTUATOR ASSEMBLY

WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYS...

Last Modified: 9-16-2014

6.6 C

Doc ID: RM000005KPX001X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYSTEM: P2772; Four Wheel Drive (4WD) Low

Switch Circuit Range / Performance; 2015 MY Tundra [08/2014 -        ]

DTC

P2772

Four Wheel Drive (4WD) Low Switch Circuit Range / Performance

DESCRIPTION

TERMINAL

IN 4H

SWITCHING BETWEEN 4H AND 4L

IN 4L

H4

OFF (OPEN)

ON (GND)

ON (GND)

L4

OFF (OPEN)

OFF (OPEN)

ON (GND)

This DTC is detected when the 4WD HIGH position and 4WD LOW position judgment signals do not match.

DTC

CODE

DTC DETECTION CONDITION

DIAGNOSIS CONDITION

1.

MALFUNCTION STATUS

2.

MALFUNCTION TIME

3.

OTHER

4.

TROUBLE AREA

P2772

Ignition switch is ON and engine is running

1.

H4 terminal signal is OFF (OPEN) and L4 terminal

signal is ON (GND)

2.

1 second or more

3.

1 trip detection logic

4.

Wire harness and

connector

4 wheel drive control

ECU

Transfer indicator

switch

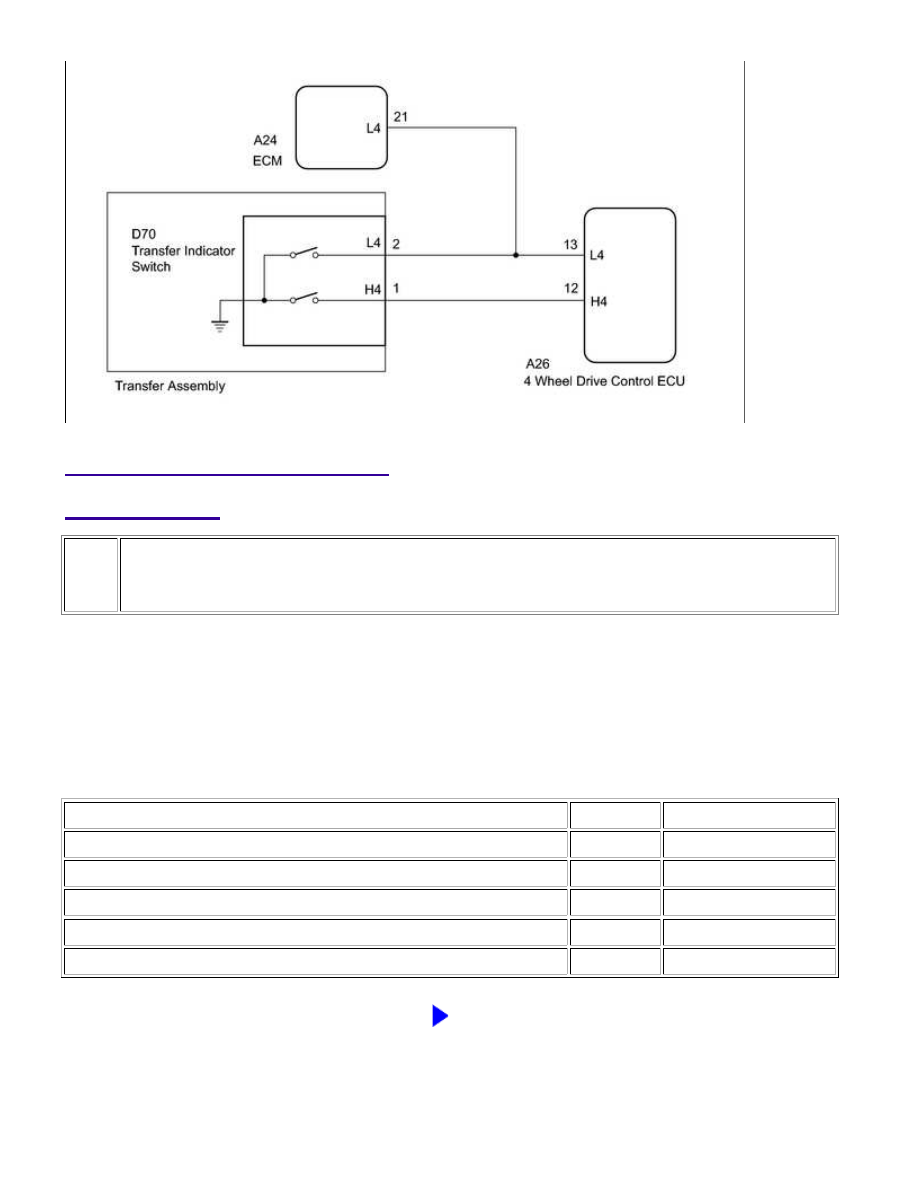

WIRING DIAGRAM

WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYS...

INSPECTION PROCEDURE

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (4 WHEEL DRIVE CONTROL ECU - TRANSFER
INDICATOR SWITCH)

(a) Disconnect the A26 4 wheel drive control ECU connector.

(b) Disconnect the D70 transfer indicator switch connector.

(c) Disconnect the A24 ECM connector.

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

A26-13 (L4) - D70-2 (L4)

Always

Below 1 Ω

A26-12 (H4) - D70-1 (H4)

Always

Below 1 Ω

A26-13 (L4), D70-2 (L4) or A24-21 (L4) - Body ground

Always

10 kΩ or higher

A26-12 (H4) or D70-1 (H4) - Body ground

Always

10 kΩ or higher

A26-13 (L4), D70-2 (L4) or A24-21 (L4) - A26-12 (H4) or D70-1 (H4)

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYS...

OK

2.

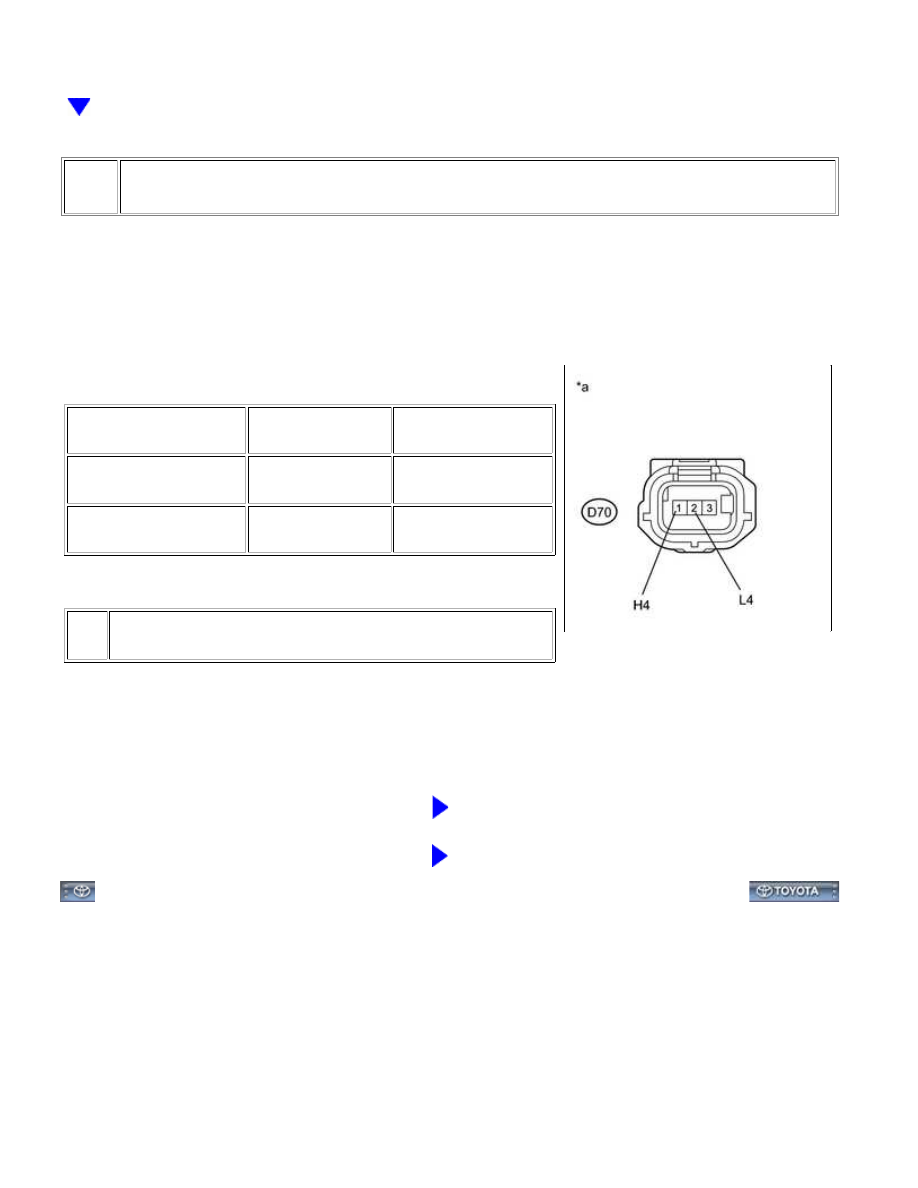

CHECK 4 WHEEL DRIVE CONTROL ECU (ECU OUTPUT VOLTAGE)

(a) Disconnect the A24 ECM connector.

(b) Disconnect the transfer indicator switch connector.

(c) Measure the voltage according to the value(s) in the table

below.

Standard Voltage:

TESTER CONNECTION

SWITCH

CONDITION

SPECIFIED

CONDITION

D70-2 (L4) - Body

ground

Ignition switch ON

4 to 6 V

D70-1 (H4) - Body

ground

Ignition switch ON

4 to 6 V

Text in Illustration

*a

NOTICE:

Turning the ignition switch on with the ECM connector

disconnected causes other DTCs to be stored. Clear the DTCs
after performing this inspection.

NG

REPLACE 4 WHEEL DRIVE CONTROL ECU

OK

REPLACE TRANSFER INDICATOR SWITCH

WF1AM TRANSFER: TOUCH SELECT 2-4 AND HIGH-LOW SYS...
