TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J135-17 (SPD) - J28-29 (+S)

Always

Below 1 Ω

Result

RESULT

PROCEED TO

OK (for Column Shift Type)

A

OK (for Floor Shift Type)

B

NG

C

B

REPLACE NAVIGATION RECEIVER ASSEMBLY

C

REPAIR OR REPLACE HARNESS OR CONNECTOR

A

REPLACE NAVIGATION RECEIVER ASSEMBLY

NAVIGATION: NAVIGATION SYSTEM: B15C2; Speed Signal Malfun...

Last Modified: 9-16-2014

6.6 C

Doc ID: RM000001YQB05KX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: NAVIGATION: NAVIGATION SYSTEM: B15C3; Speaker Output Short; 2015 MY Tundra [08/2014 -        ]

DTC

B15C3

Speaker Output Short

DESCRIPTION

This DTC is stored when a malfunction occurs in the speakers.

DTC

CODE

DTC DETECTION CONDITION

TROUBLE AREA

B15C3

A short is detected in the speaker output

circuit.

Speakers

Harness or connector

Stereo component amplifier assembly (except 4

speakers)

Navigation receiver assembly

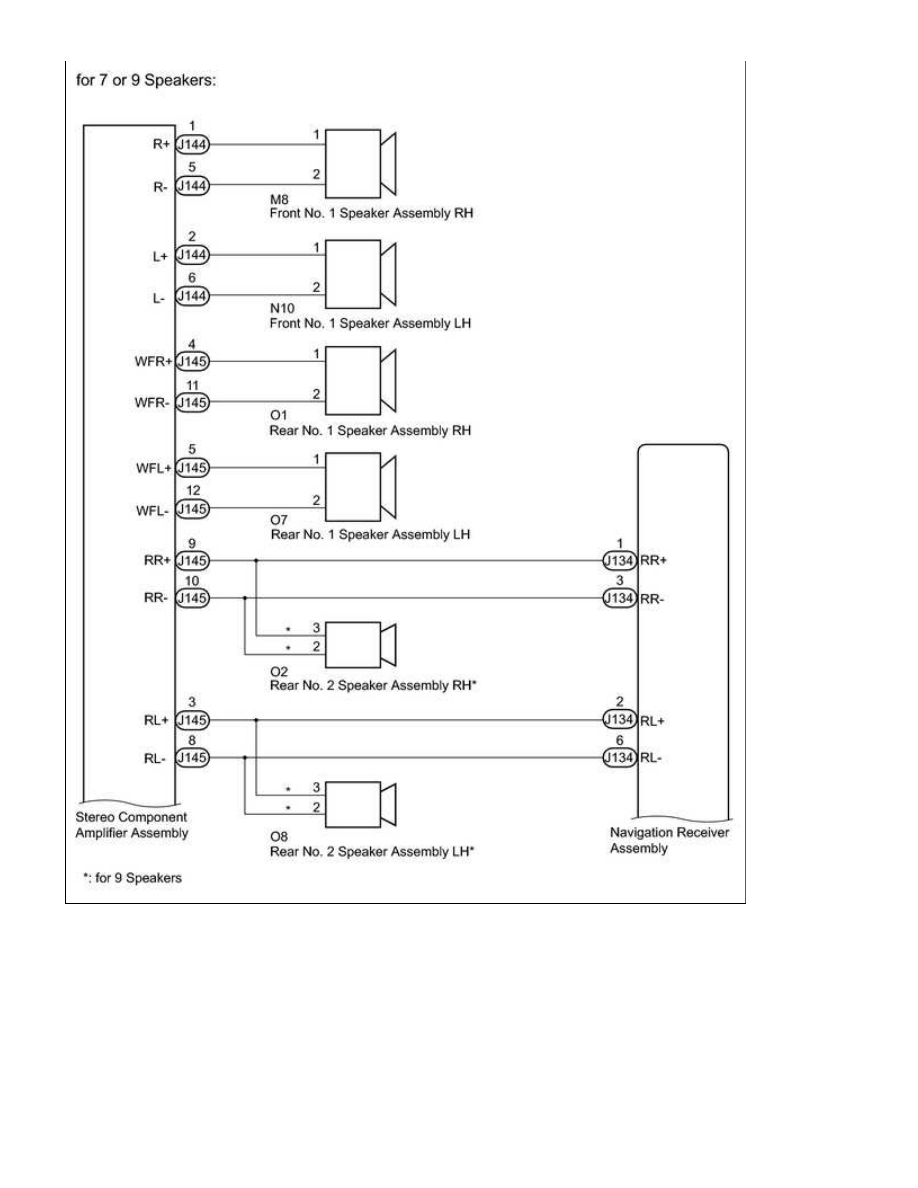

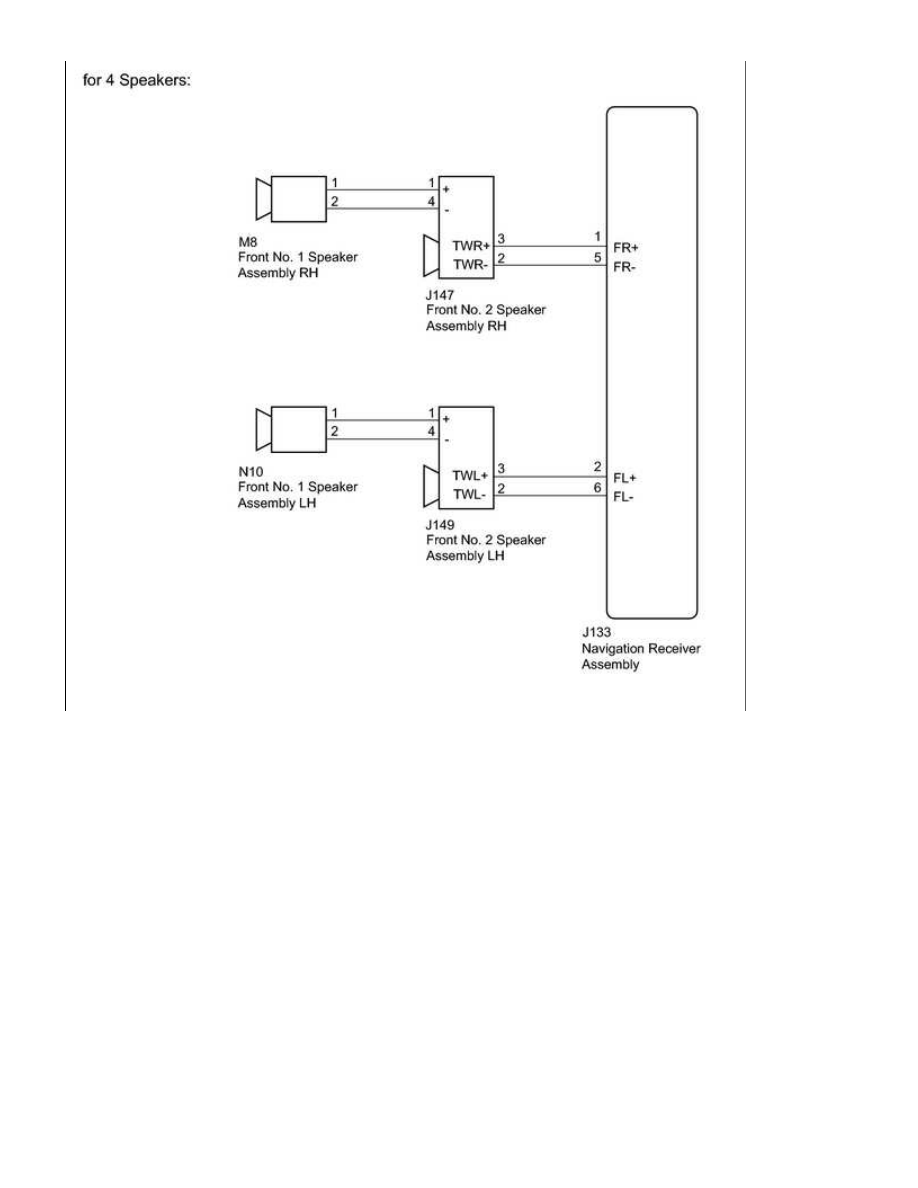

WIRING DIAGRAM

NAVIGATION: NAVIGATION SYSTEM: B15C3; Speaker Output Short...

NAVIGATION: NAVIGATION SYSTEM: B15C3; Speaker Output Short...

NAVIGATION: NAVIGATION SYSTEM: B15C3; Speaker Output Short...
