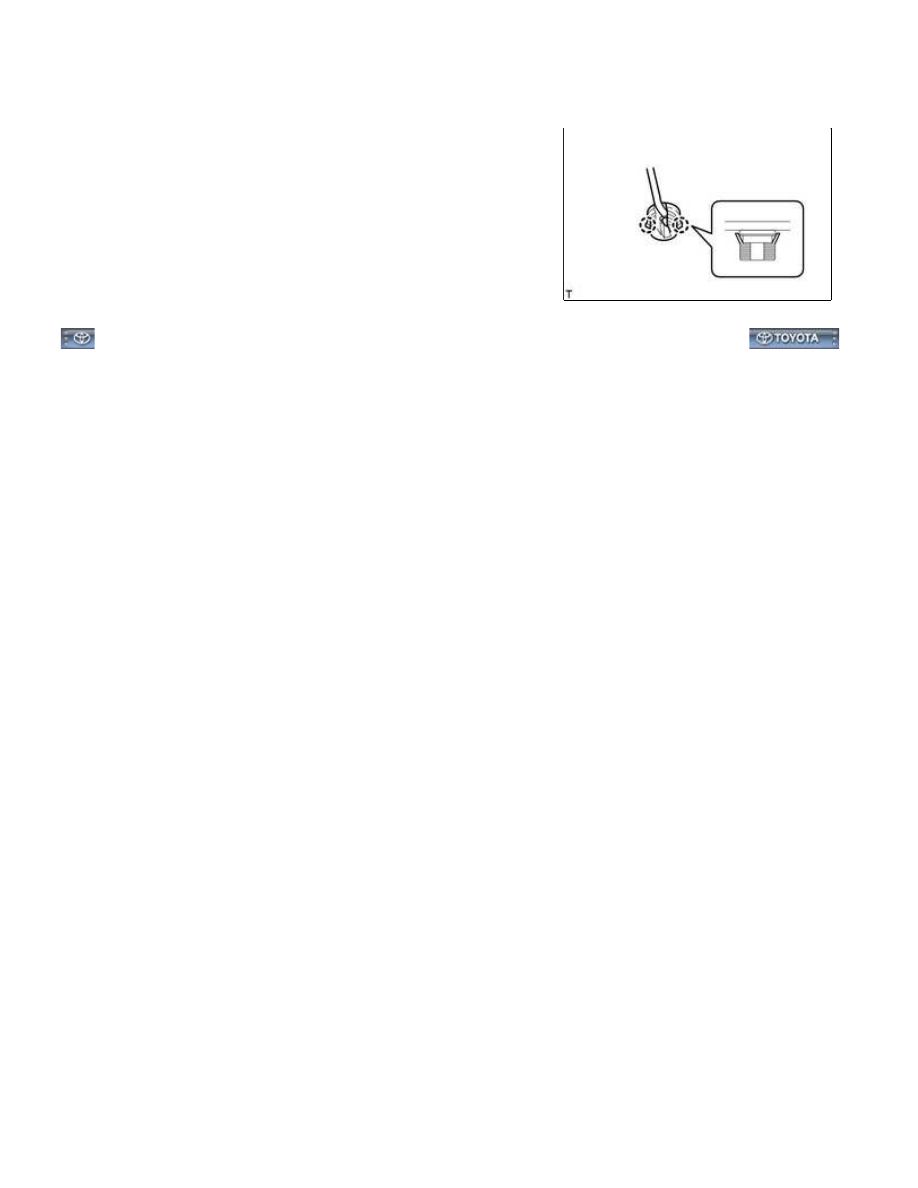

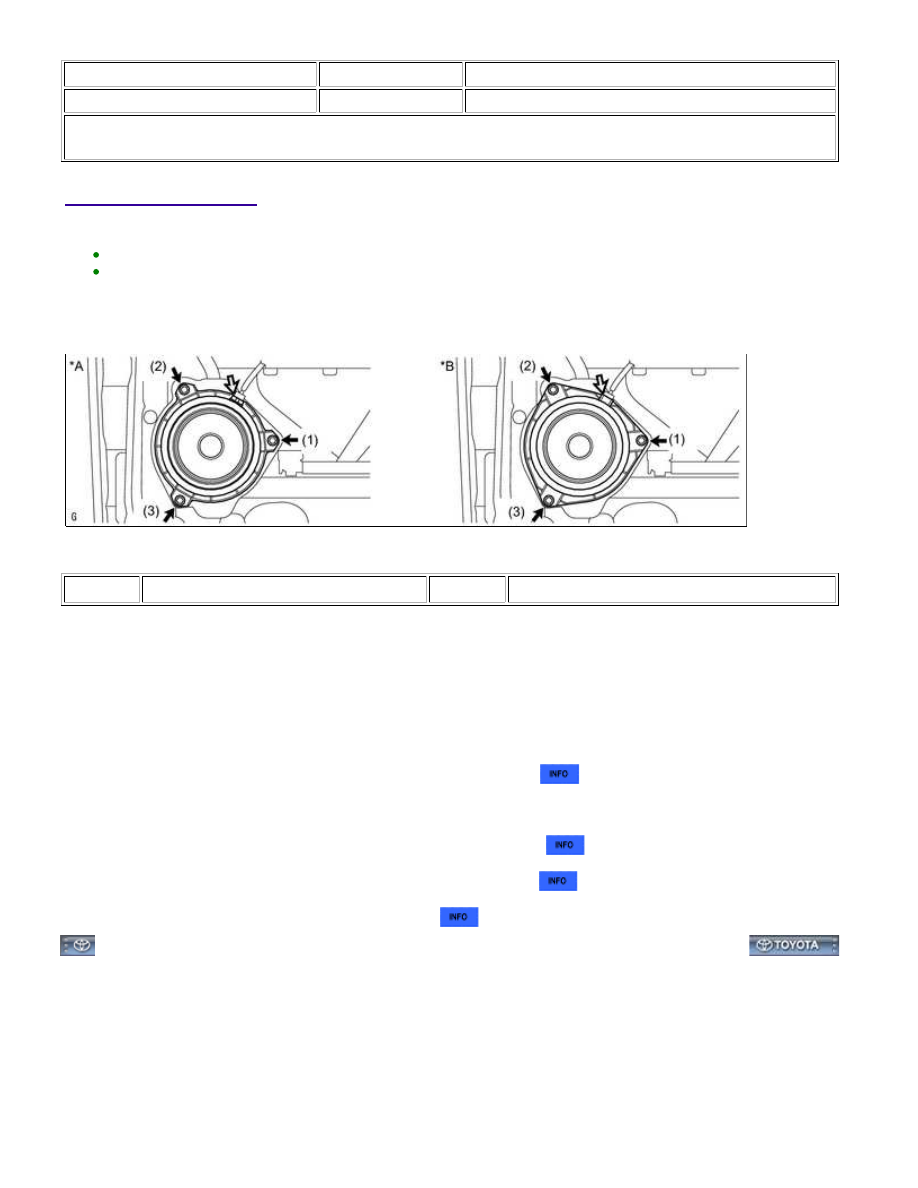

Last Modified: 9-16-2014 6.6 A Doc ID: RM000002ZUP00AX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: AUDIO / VISUAL: REAR DOOR SPEAKER (for Double Cab): INSTALLATION; 2015 MY Tundra [08/2014 - ] INSTALLATION HINT: Use the same procedure for the RH and LH sides. 1. INSTALL REAR NO. 1 SPEAKER ASSEMBLY (a) Connect the connector. Text in Illustration *A for Standard *B for 7 Speakers (b) Install the rear No. 1 speaker assembly with the 3 screws. NOTICE: Install the screws in the order shown in the illustration. 2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH 3. INSTALL REAR DOOR ARMREST COVER LH 4. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH 5. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH 6. INSTALL REAR DOOR FRAME GARNISH LH AUDIO / VISUAL: REAR DOOR SPEAKER (for Double Cab): INST... |
