Toyota Tundra (2015 year). Manual - part 9





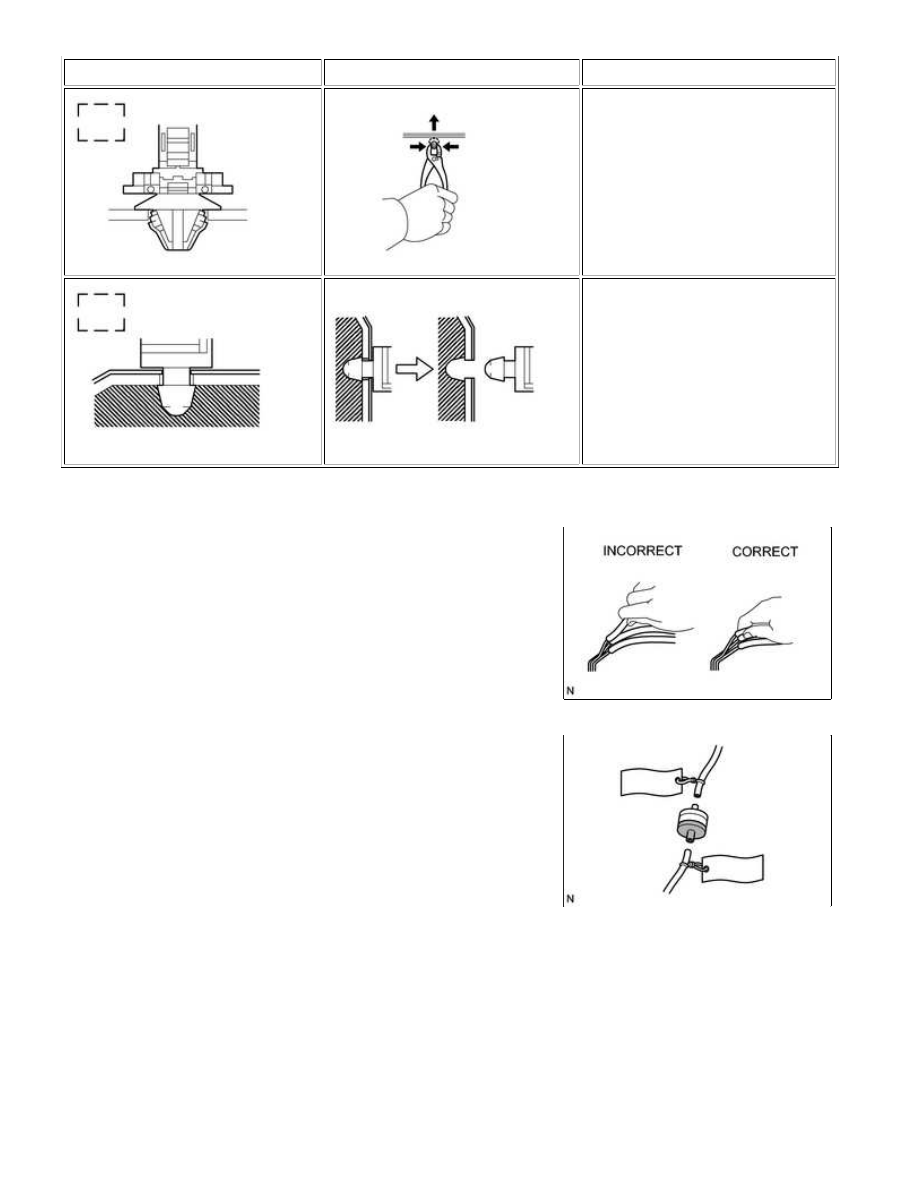

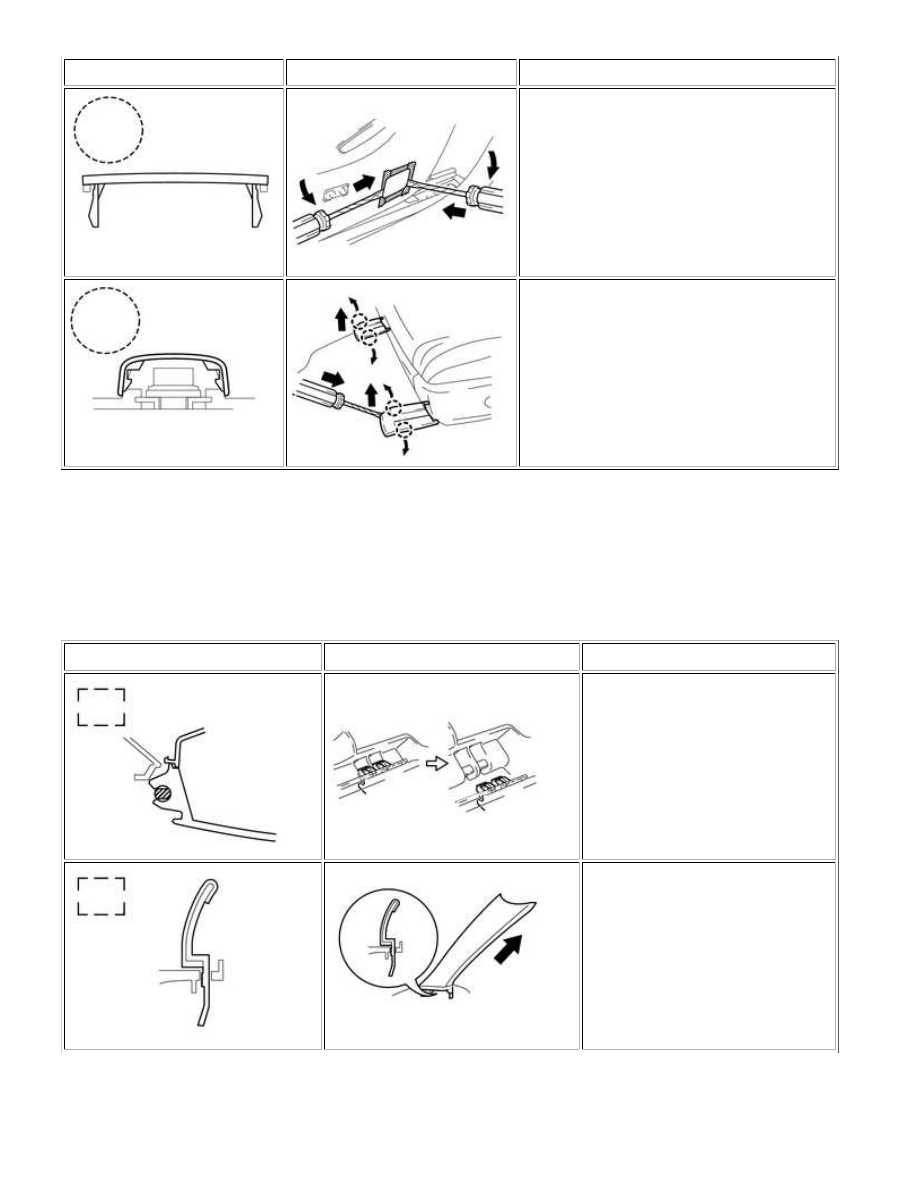

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Using a screwdriver, detach the claws and

remove the caps or covers.

Using a screwdriver, detach the claws and

remove the caps or covers.

(i) HINGE, GUIDE, CLAMP, PIN ETC.

HINT:

If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with

a new one.

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Disengage the pins by pulling.

Disengage the pins by pulling.

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Remove the clamps with pliers.

Disengage the pins by pulling.

(j) REMOVAL AND INSTALLATION OF VACUUM HOSES

(1) To disconnect a vacuum hose, pull and twist from the end of

(2) When disconnecting vacuum hoses, use tags to identify

where they should be reconnected.

(3) After completing any hose related repairs, double check that the vacuum hoses are properly connected.

The label under the hood shows the proper layout.

(4) When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has

been stretched, it may leak air. Use a step-down adapter if necessary.

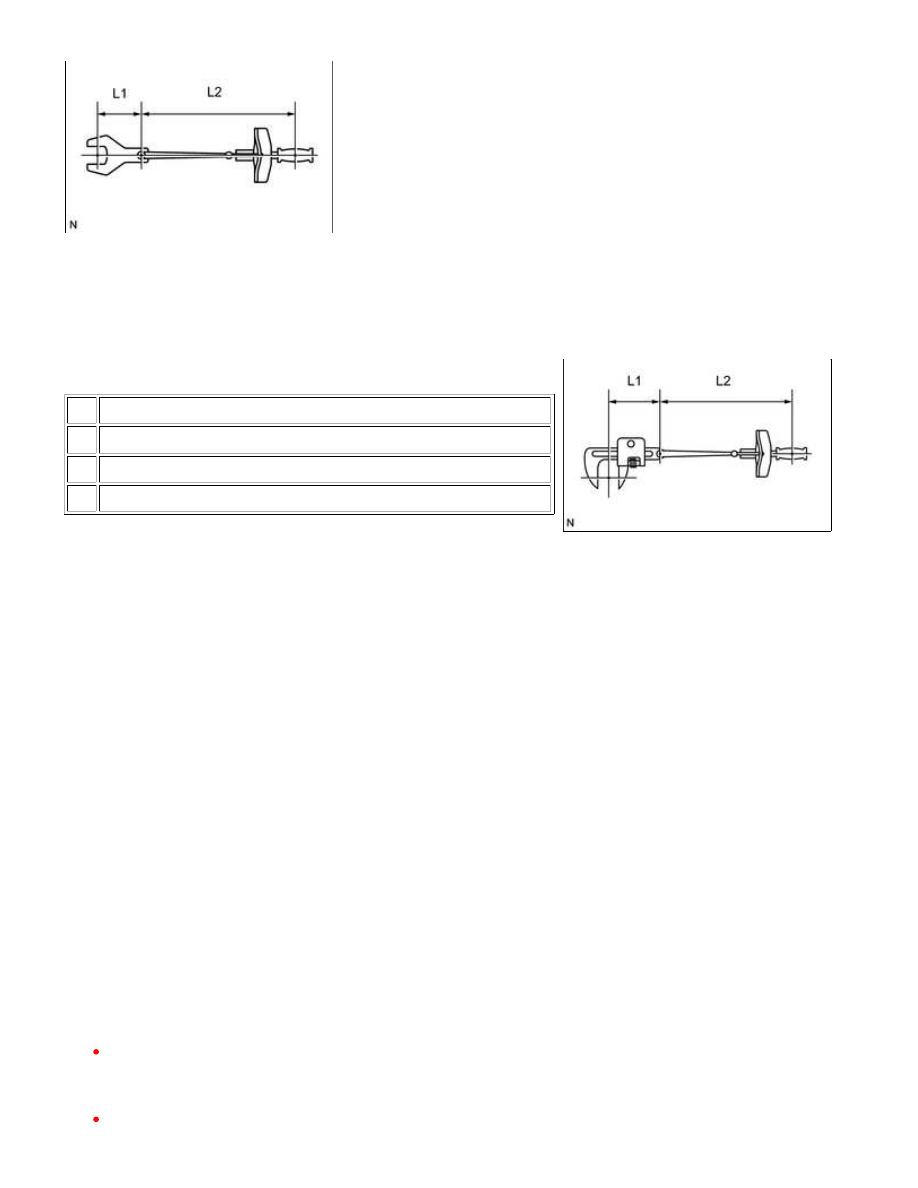

(k) TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL

(1) Use the formula below to calculate special torque values for

situations where SST or an extension tool is combined with a

torque wrench.

Formula:

T' = L2 / (L1 + L2) * T

T'

Torque {N*m (kgf*cm, ft.*lbf)}

L1

If an extension tool or SST is combined with a torque wrench

and the wrench is used to tighten to a torque specification in this
manual, the actual torque will be excessive and parts will be
damaged.

2. FOR VEHICLES WITH SUPPLEMENTAL RESTRAINT SYSTEM

Steering pad

1.

Front passenger airbag assembly

2.

Curtain shield airbag assembly

3.

Front seat side airbag assembly

4.

Driver side knee airbag assembly

5.

Front passenger side knee airbag assembly

6.

Center airbag sensor assembly

7.

Front airbag sensor

8.

Side airbag sensor

9.

Seat position airbag sensor

10.

Door side airbag sensor

11.

Occupant classification ECU

12.

Front seat outer belt assembly with pretensioner

13.

CAUTION:

(1) The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral

position, as cable disconnection and other problems may occur. Refer to the information about correct

(1) Airbag assembly with pad:

Always place a removed or new airbag assembly with the pad surface facing upward. Placing the airbag

assembly with the airbag inflation direction facing downward could cause a serious accident if the

cause a serious injury.

humidity is not high and there is no electrical noise.

(5) When using electric welding anywhere on the vehicle, disconnect the center airbag sensor connectors.

(c) SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER

(2) Never install the seat outer belt on another vehicle.

(3) Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the

humidity is not high and there is no electrical noise.
