4

Before starting operation, prepare a tool stand, SST, gauge, oil and parts for

replacement.

5

Removal and

installation,

disassembly and

assembly operations

When the assembly is complicated, take notes. For example, note the

positions. Temporarily mark hoses and their fittings if needed.

Clean and wash the removed parts if necessary and assemble them after

a thorough check.

6

Removed parts

Place the removed parts in a separate box to avoid mixing them up with

the new parts or contaminating the new parts.

For non-reusable parts such as gaskets, O-rings, and self-locking nuts,

replace them with new ones as instructed in this manual.

Retain the removed parts for customer inspection, if requested.

7*

Checks to perform

after work is finished

Make sure that removed and installed parts (oil filler cap, level dipstick,

floor mat, etc.) are properly installed/tightened.

Check that there are no oil leaks.

CAUTION:

*:Be sure to perform these checks properly, not performing these checks properly after finishing work can

lead to serious accident or injury.

(b) JACKING UP AND SUPPORTING VEHICLE

(1) Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle

at the proper locations.

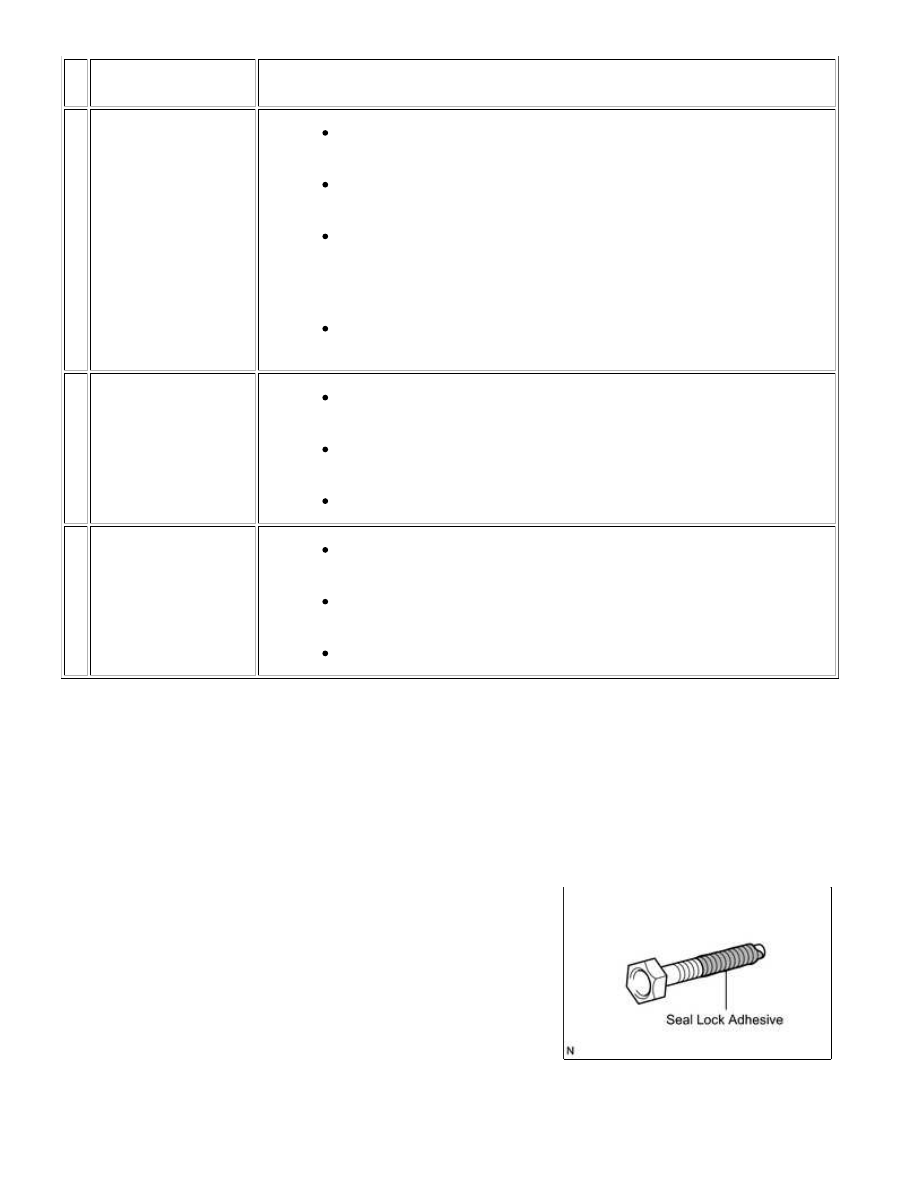

(c) PRECOATED PARTS

(1) Precoated parts are bolts and nuts that are coated with a

seal lock adhesive at the factory.

(2) If a precoated part is retightened, loosened or moved in any

way, it must be recoated with the specified adhesive.

(3) When reusing a precoated part, clean off the old adhesive

and dry the part with compressed air. Then apply new seal

lock adhesive appropriate to that part.

(4) Some seal lock agents harden slowly. You may have to wait

for the seal lock adhesive to harden.

(d) GASKETS

(1) When necessary, use a sealer on gaskets to prevent leaks.

(e) BOLTS, NUTS AND SCREWS

(1) Carefully follow all the specifications for tightening torque. Always use a torque wrench.

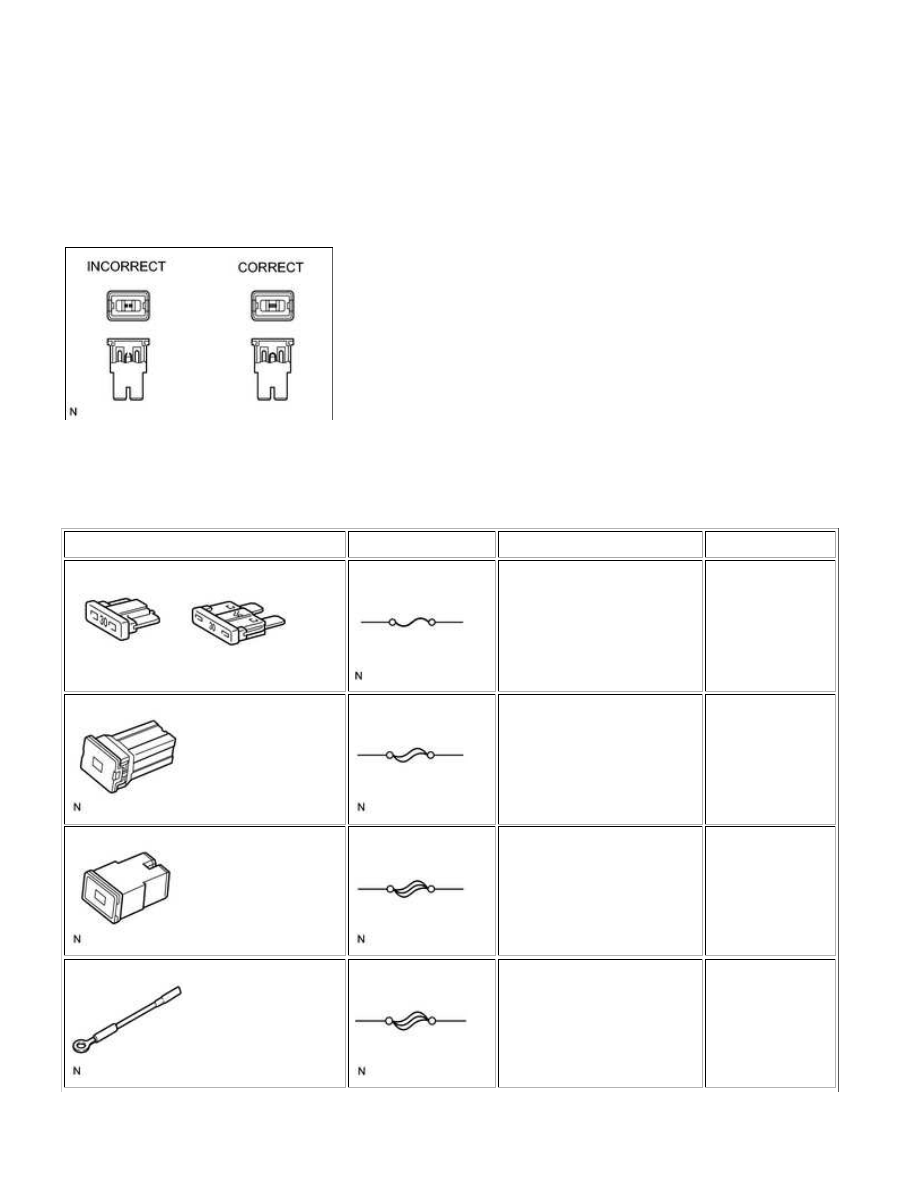

(f) FUSES

(3) When a fuse is replaced, a fuse with the same amperage rating must be used.

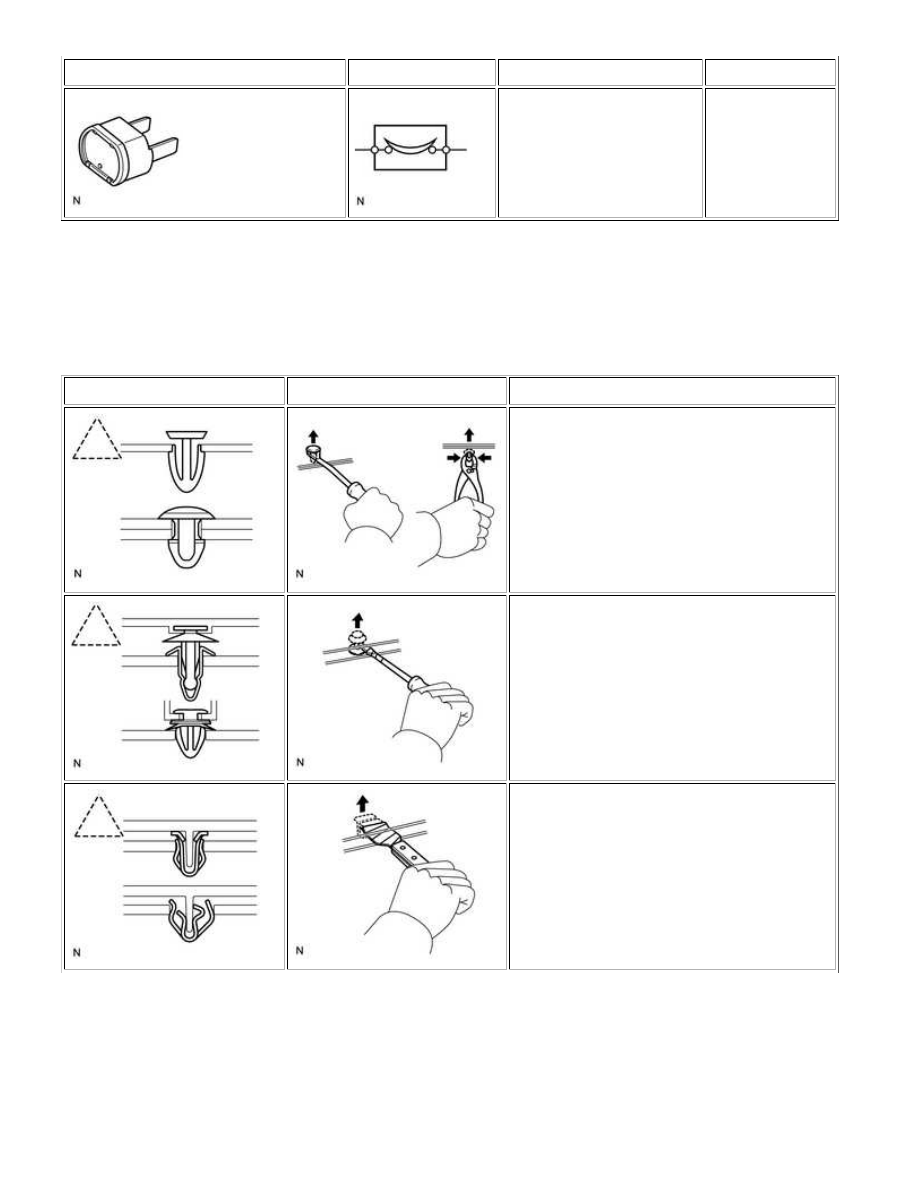

ILLUSTRATION

SYMBOL

PART NAME

ABBREVIATION

FUSE

FUSE

MEDIUM CURRENT FUSE

M-FUSE

HIGH CURRENT FUSE

H-FUSE

FUSIBLE LINK

FL

ILLUSTRATION

SYMBOL

PART NAME

ABBREVIATION

CIRCUIT BREAKER

CB

(g) CLIPS

HINT:

If clips are damaged during a procedure, always replace the clips with new clips.

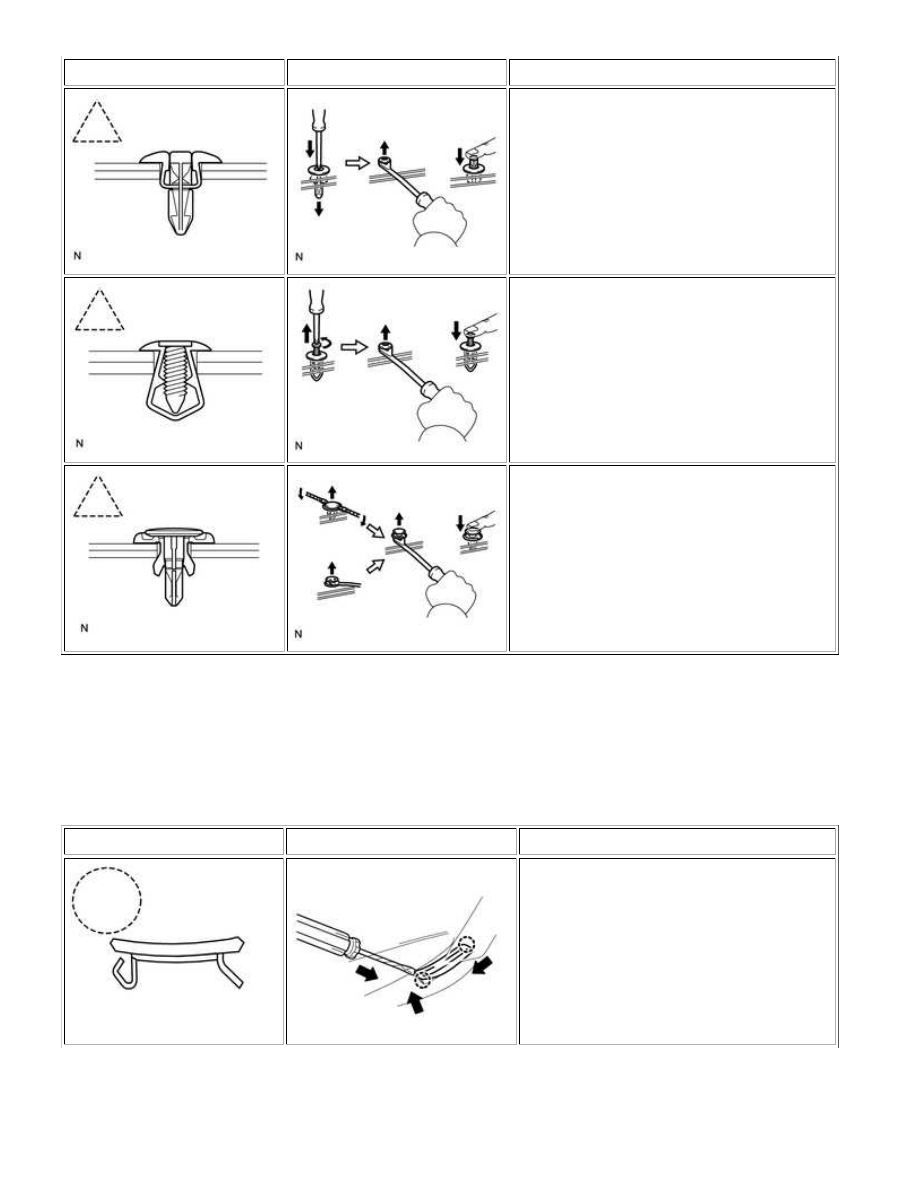

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Remove clips with a clip remover or pliers.

Remove clips with a clip remover or

screwdriver.

Remove clips with a wide scraper to prevent

panel damage.

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Remove clips by pushing the center pin

through and prying out the shell.

Remove clips by unscrewing the center pin

and prying out the shell.

Remove clips by prying out the pin and then

prying out the shell.

(h) CLAWS

HINT:

SHAPE (EXAMPLE)

ILLUSTRATION

PROCEDURES

Using a screwdriver, detach the claws and

remove the caps or covers.
