1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

■

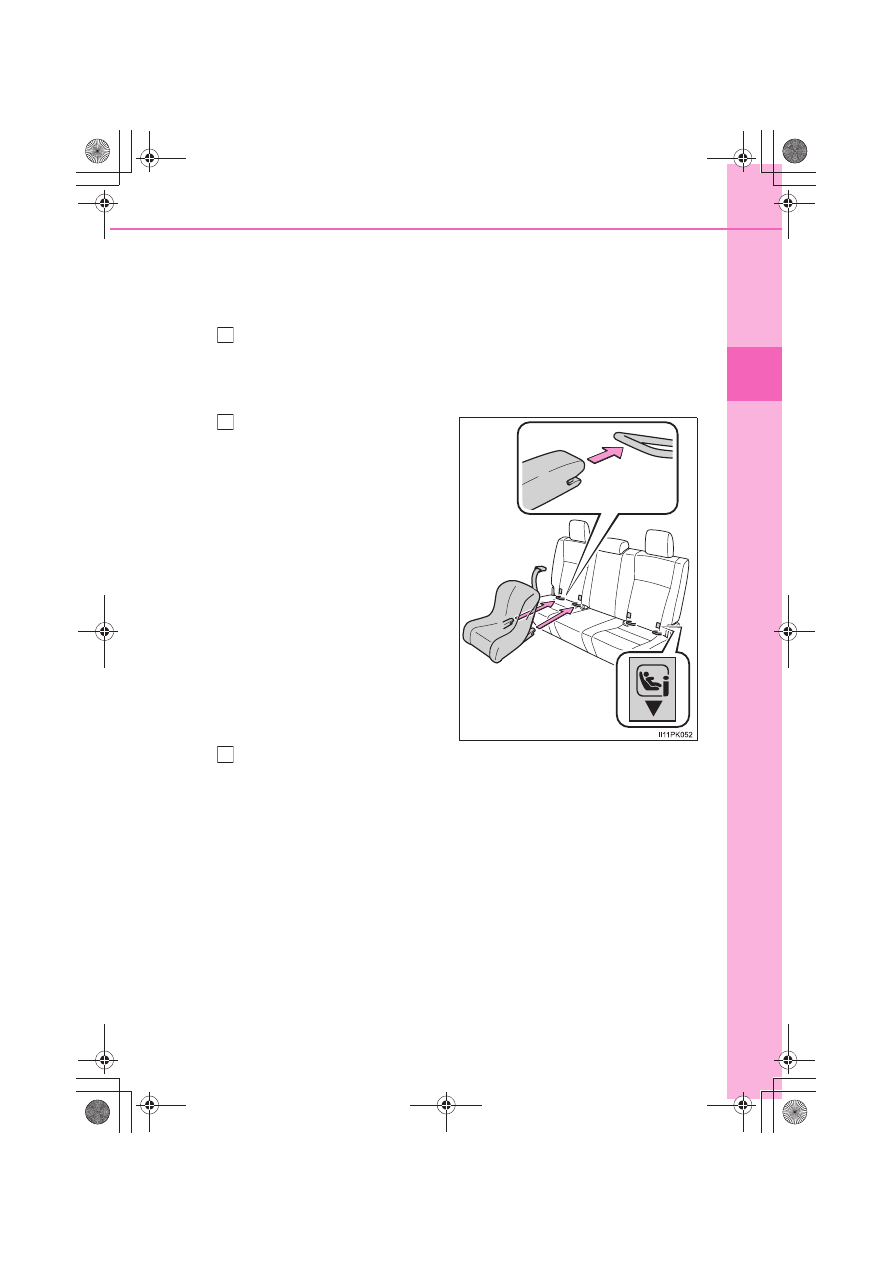

Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint. Otherwise, put the head restraint in the upper most
position. (

→P. 191)

Check the positions of the
exclusive fixing bars, and
install the child restraint sys-
tem to the seat.

The bars are installed in the
clearance between the seat
cushion and seatback.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

→P. 81)

1

2

3

96

1-2. Child safety

■

When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

After securing a child restraint system, never adjust the seat.

●

When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

97

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

■

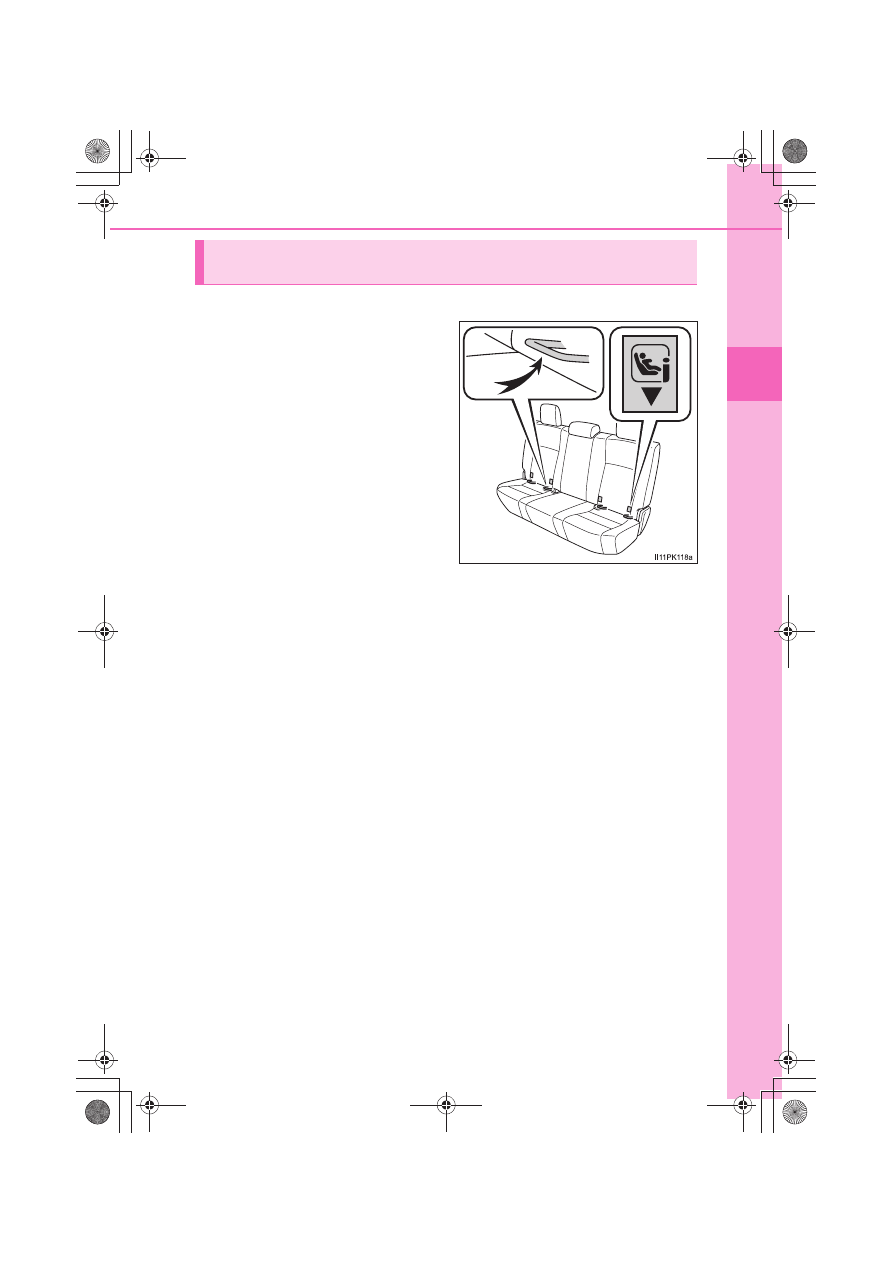

ISOFIX rigid anchors (ISOFIX child restraint system)

Lower anchors are provided for
the outboard rear seats. (Tags
displaying the location of the
anchors are attached to the
seats.)

■

Child restraint system compatibility for various seating posi-
tions
The child restraint system compatibility table (

→P. 99), with sym-

bols, displays the types of usable child restraint systems and possi-
ble seating position installation for the child restraint system owned
by the customer. Confirm in accordance with the listed Size class,
Anchor, as well as [Confirming the Mass group and Size class for
ECE R44 ISOFIX corresponding child restraint systems].

Child restraint system fixed with an ISOFIX rigid anchor (for
Kazakhstan)

98

1-2. Child safety

■

Confirming the Mass group and Size class for ECE R44 ISOFIX
corresponding child restraint systems

Confirm the corresponding [Mass group] from the weight of the
child (

→P. 68)

(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in
step

 from the [Child restraint systems fastened with ISOFIX

(ECE R44) - Compatibility table] (

→P. 99)

*

.

(Ex. 1) When [Mass group 0+], the corresponding size class is

[C], [D], [E].

(Ex. 2) When [Mass group I], the corresponding size class is [A],

[B], [B1], [C], [D].

*

: However, listings that are marked with [X] can not be selected, despite

having the corresponding size class in the suitability table of the [Seat-
ing position].

1

2

1
