1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

■

Child restraint systems fastened with ISOFIX (ECE R44) - Com-
patibility table
ISOFIX child restraint systems are divided in different “size class”.
According to this “size class”, you will be allowed to use it in the
vehicle seating position mentioned in the table below. To know your
child restraint system “size class” and “mass group”, please refer to
the child restraint system manual.
If your child restraint system has no “size class” (or if you cannot
find information in the table below), please refer to the child
restraint system “vehicle list” for compatibility information or ask the
retailer of your child seat.

Size class

Description

A

Full-height, forward-facing child restraint systems

B

Reduced-height forward-facing child restraint systems

B1

Reduced-height forward-facing child restraint systems

C

Full-size rearward-facing child restraint systems

D

Reduced-size rearward-facing child restraint systems

E

Rearward-facing infant seat

F

Left lateral-facing (carrycot) infant seat

G

Right lateral-facing (carrycot) infant seat

100

1-2. Child safety

X

Double-cab models

Key of letters inserted in the above table:
X:

Not suitable seat position for ISOFIX child restraint systems in
this mass group and/or size class.

IUF: Suitable for ISOFIX forward-facing child restraint systems of “uni-

versal” category approved for use in this mass group.

IL: Suitable for ISOFIX child restraint systems of the categories for

“specific vehicles”, “restricted”, or “semi-universal” approved for
use in this mass group.

*

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint. Otherwise, put
the head restraint in the upper most position.

Mass groups

Size class

Seating position

Front seat

Rear seat

Passenger

seat

Outboard

Center

Carrycot

F

X

X

X

G

X

X

X

0
Up to 10 kg
(22 lb.)

E

X

IL

X

0+
Up to 13 kg
(28 lb.)

E

X

IL

X

D

X

IL

X

C

X

IL

X

I
9 to 18 kg
(20 to 39 lb.)

D

X

IL

X

C

X

IL

X

B

X

IUF

*

X

B1

X

IUF

*

X

A

X

IUF

*

X

101

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.

■

i-Size child restraint systems fastened with ISOFIX (ECE R129)
- Compatibility table
If your child restraint system is of “i-Size” category, you can install it
on the positions mentioned by i-U in the table below.
Child restraint system category can be found in the child restraint
system manual.

X

Double-cab models

Key of letters inserted in the above table:
X:

Not suitable for use with i-Size child restraint systems.

i-U: Suitable for i-Size “universal” child restraint systems forward and

rearward facing.

*

: If the head restraint interferes with your child restraint system, and the

head restraint can be removed, remove the head restraint. Otherwise, put
the head restraint in the upper most position.

Seating position

Front seat

Rear seat

Passenger seat

Outboard

Center

i-Size child
restraint
systems

X

i-U

*

X

102

1-2. Child safety

When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting seat belt effec-
tiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in death or
serious injury.
● When installing a child restraint in the rear seats, adjust the front

seat so that it does not interfere with the child or child restraint sys-
tem.

■

Installation with ISOFIX rigid anchor (ISOFIX child restraint
system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

If the head restraint interferes with your child restraint system,
and the head restraint can be removed, remove the head
restraint. Otherwise, put the head restraint in the upper most
position. (

→P. 191)

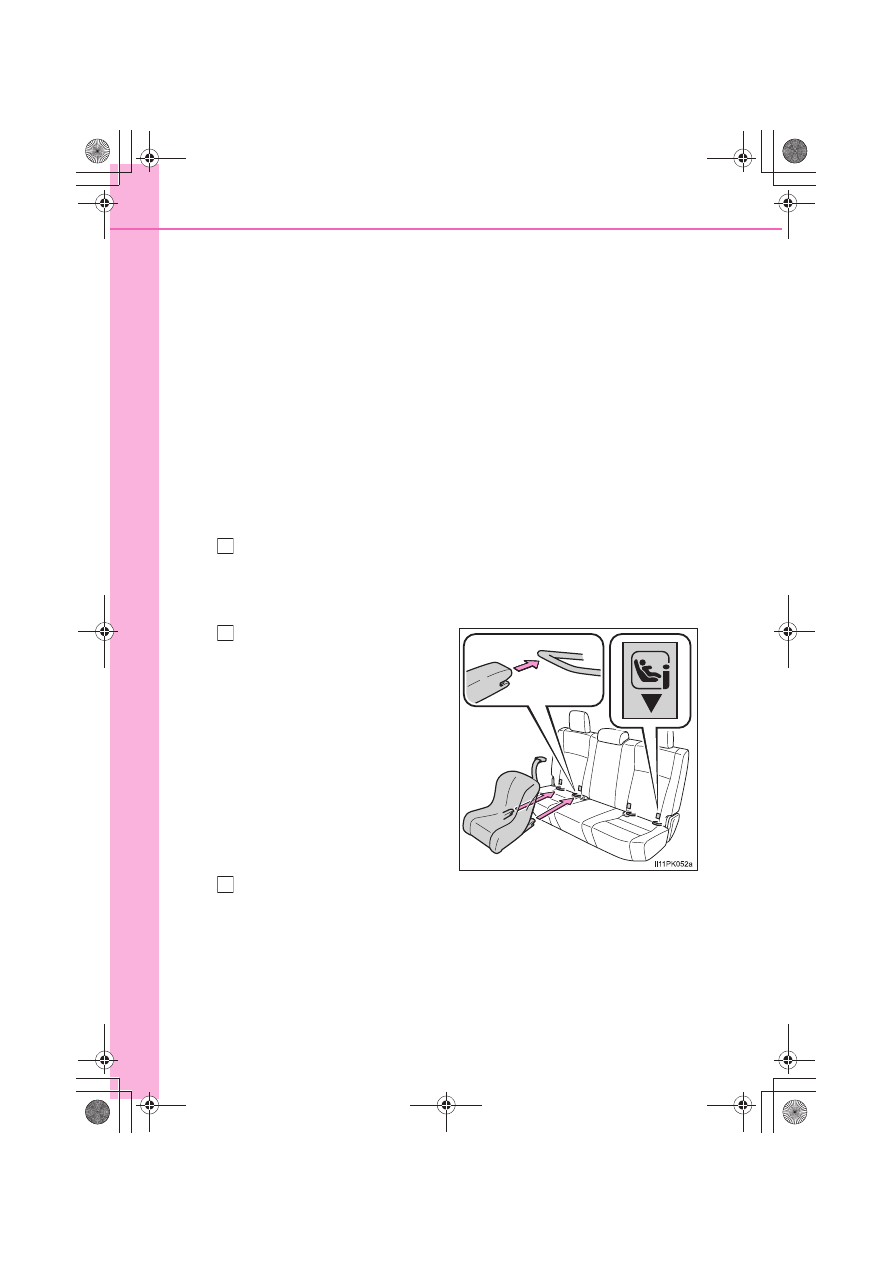

Check the positions of the
exclusive fixing bars, and
install the child restraint sys-
tem to the seat.

The bars are installed in the
clearance between the seat
cushion and seatback.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

→P. 88)

1

2

3
