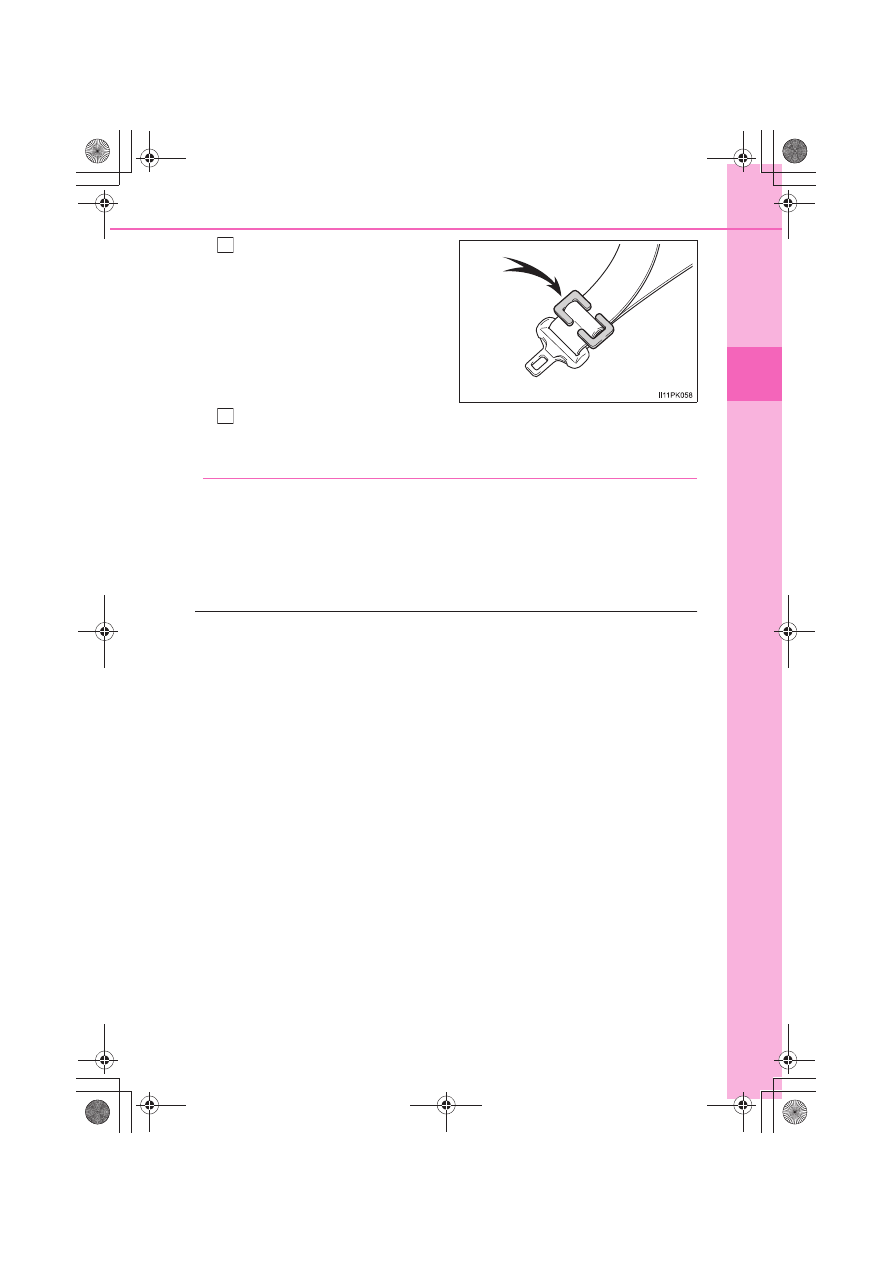

If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

→P. 88)

◆

Removing a child restraint system installed with a seat belt

Press the buckle release button and fully retract the seat belt.

When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.

■

When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional: Locking clip for child restraint system
(Part No. 73119-22010)

■

When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.

3

4

88

1-2. Child safety

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

89

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

■

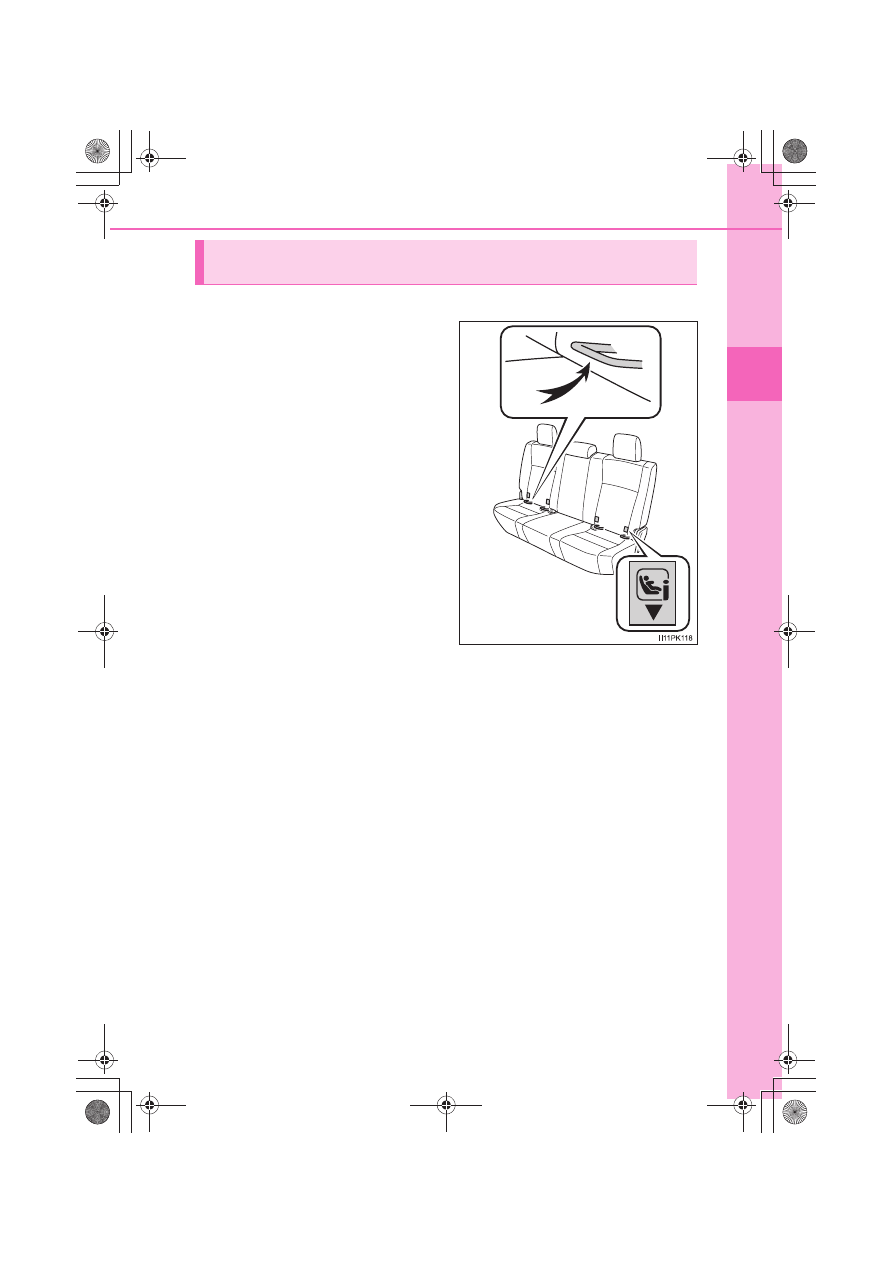

ISOFIX rigid anchors (ISOFIX child restraint system)

Lower anchors are provided for
the outboard rear seats. (Tags
displaying the location of the
anchors are attached to the
seats.)

Child restraint system fixed with an ISOFIX rigid anchor (if
equipped except for Kazakhstan)

90

1-2. Child safety

■

Confirming the Mass group and Size class for ECE R44 ISOFIX
corresponding child restraint systems

Confirm the corresponding [Mass group] from the weight of the
child (

→P. 68)

(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in
step

 from the [Child restraint systems fastened with ISOFIX

(ECE R44) - Compatibility and Recommended child restraint sys-
tems table] (

→P. 91)

*

.

(Ex. 1) When [Mass group 0+], the corresponding size class is

[C], [D], [E].

(Ex. 2) When [Mass group I], the corresponding size class is [A],

[B], [B1], [C], [D].

*

: However, listings that are marked with [X] can not be selected, despite

having the corresponding size class in the suitability table of the [Seat-
ing position]. Also, select the product designated by [Recommended
Child Restraint Systems] (

→P. 92), if the listing is marked with [IL].

1

2

1
