5A-108 Automatic Transmission/Transaxle:

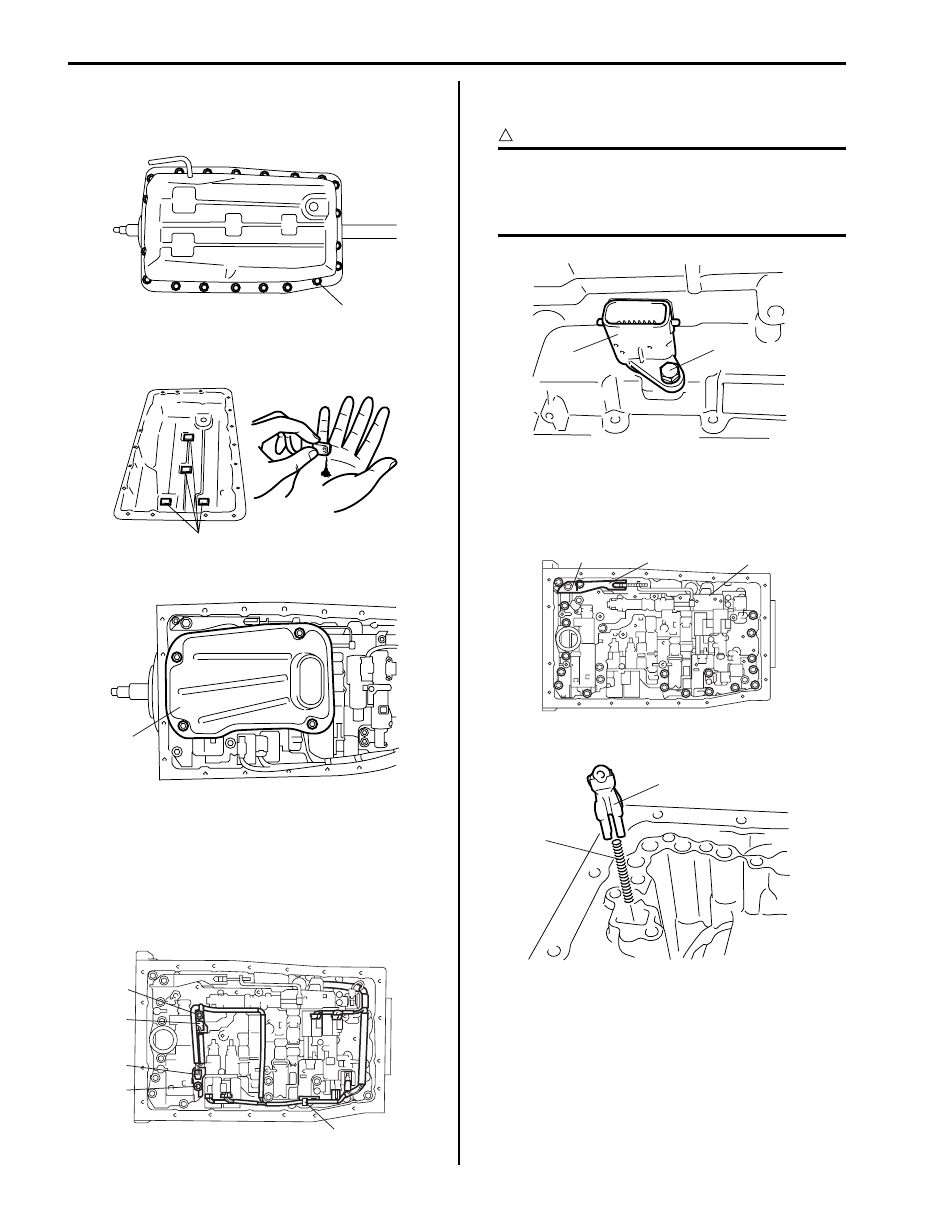

10) Remove oil pan bolts (1).

11) Remove oil pan and oil pan gasket from

transmission case.

12) Remove the 4 magnets (1) and clean them to steel

particles etc.

13) Remove oil strainer (1) from valve body assembly.

14) Remove transmission fluid temperature sensor A (1)

and B (4) (if equipped) from sensor clamps (2).

15) Remove wire harness clamp (3).
16) Disconnect the following connectors from shift

solenoid-A, shift solenoid-B, shift solenoid-E, TCC
solenoid, pressure control solenoid-A, pressure
control solenoid-B and pressure control solenoid-C.

17) After removing bolt (1) pull out transmission wire

connector (2) from transmission case.

CAUTION

!



When pulling transmission wire harness out
of transmission case, take care not to
damage connectors and transmission fluid
temperature sensors at narrow exist of case.



18) Remove spring plate (1) and manual shift lever

spring (2).

19) Remove valve body assembly (3) by removing 19

bolts.

20) Remove check ball body (1) and spring (2).

1

I4JA01512066-01

1

I4JA01512067-01

1

I4JA01512068-01

2

1

4

2

3

I6JB0B510009-01

2

1

I4JA01512070-01

3

1

2

I4JA01512071-01

1

2

I4JA01512072-01

Automatic Transmission/Transaxle:  5A-109

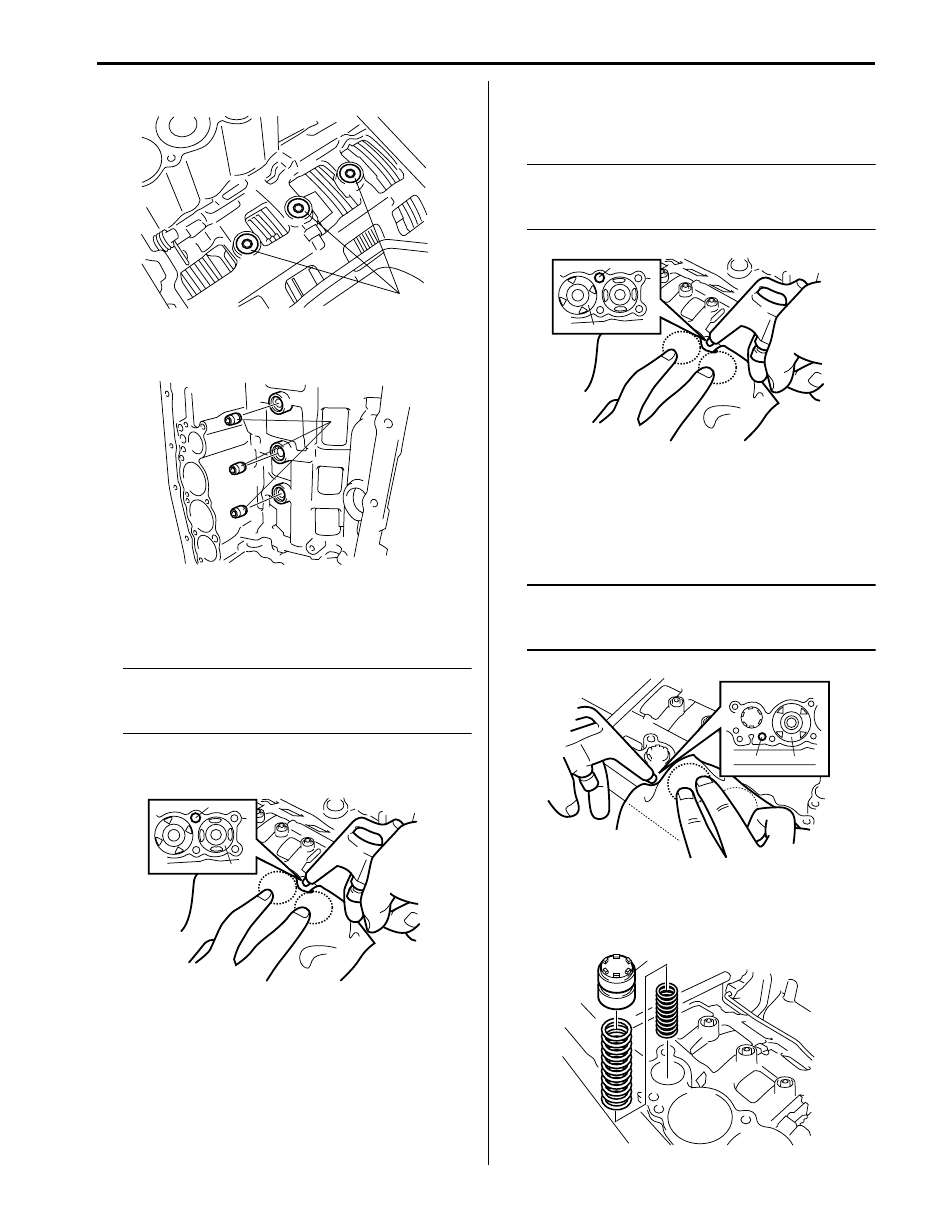

21) Remove transmission case gaskets (1).

22) Remove brake drum gaskets (1) from transmission

case.

23) Remove direct clutch accumulator piston (1) by

compressed air (392 kPa, 4.0 kg/cm

2

, 57 psi) into

hole (2).

NOTE
Cover accumulator piston (1) with shop cloth
while blowing because A/T fluid should be
spattered.



24) Remove direct clutch accumulator piston spring from

transmission case.

25) Remove 2nd (No.3) brake accumulator piston (1) by

compressed air (392 kPa, 4.0 kg/cm

2

, 57 psi) into

hole (2).

NOTE
Cover accumulator piston (1) with shop cloth
while blowing because A/T fluid should be
spattered.



26) Remove 2nd (No.3) brake accumulator piston spring

from transmission case.

27) Remove reverse clutch accumulator piston (1) by

compressed air (392 kPa, 4.0 kg/cm

2

, 57 psi) into

hole (2).

NOTE
Cover accumulator piston (1) with shop cloth
while blowing because A/T fluid should be
spattered.



28) Remove reverse clutch accumulator piston springs

from transmission case.

29) Remove forward clutch accumulator piston (1).

1

I4JA01512073-01

1

I4JA01512074-01

2

1

I4JA01512075-01

1

2

I4JA01512076-01

1

2

I4JA01512077-01

1

I4JA01512078-01

5A-110 Automatic Transmission/Transaxle:

30) Remove forward clutch accumulator piston springs

from transmission case.

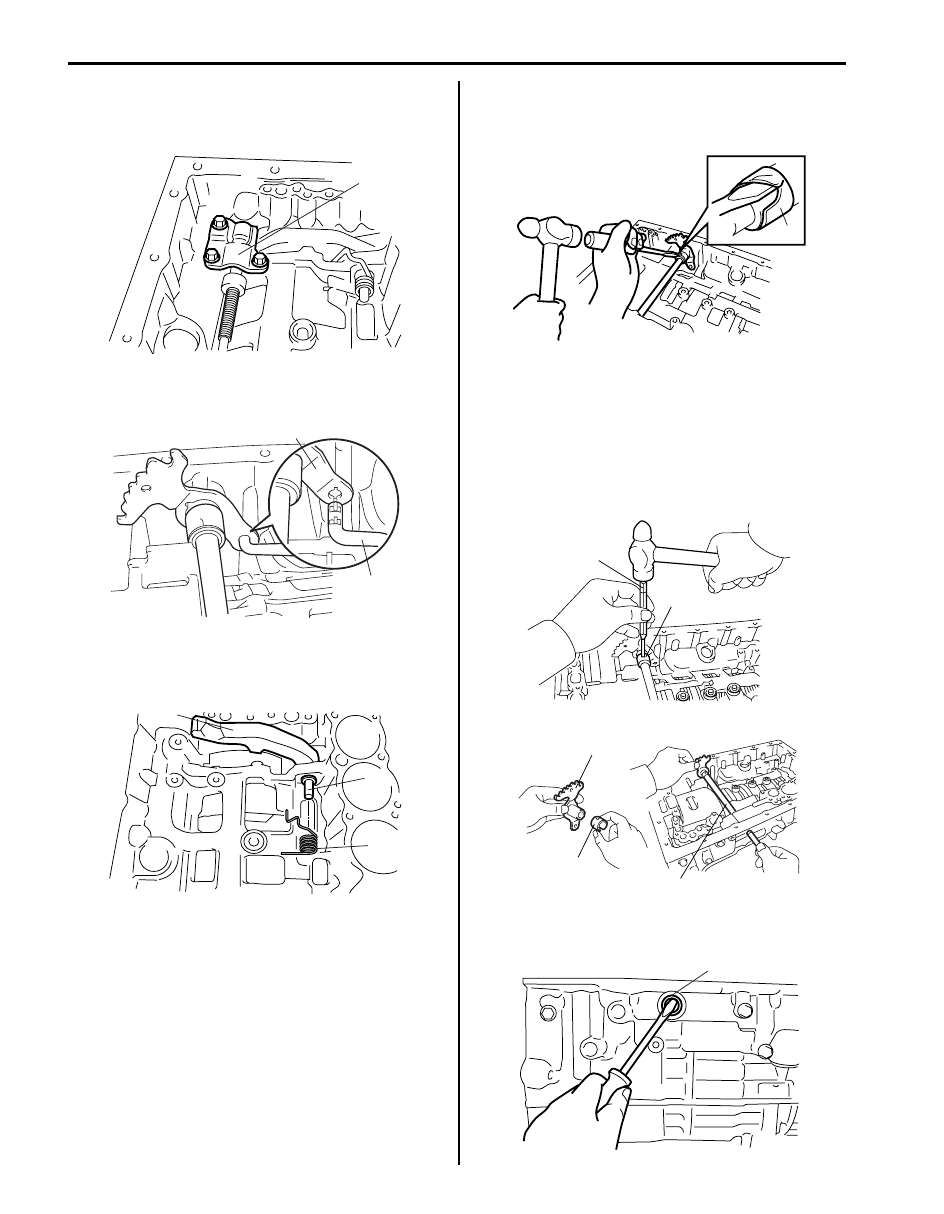

31) Remove parking pawl bracket (1).

32) Remove parking lock rod (2) from manual shift lever

(1).

33) Pull out parking pawl pin (1) to oil pump side and

then remove parking lock pawl (2) and parking pawl
spring (3).

34) Remove manual shift shaft and lever as follows.

a) Undo caulking of sleeve cover (1) by using flat

end rod or the like and hammer.

b) Drive out manual shift lever pin (1) by using

special tool and hammer.

Special tool
(A):  09922–89810

c) Pull out manual shift shaft (2) from transmission

case, and then remove manual shift lever (3) and
sleeve cover (4).

35) Remove 2 manual shift shaft oil seals (1) from

transmission case by using flat end rod or the like.

1

I4JA01512079-01

2

1

I4JA01512080-01

2

1

3

I4JA01512081-01

1

I4JA01512082-01

1

3

(A)

2

4

I4JA01512083-01

1

I4JA01512084-01

Automatic Transmission/Transaxle:  5A-111

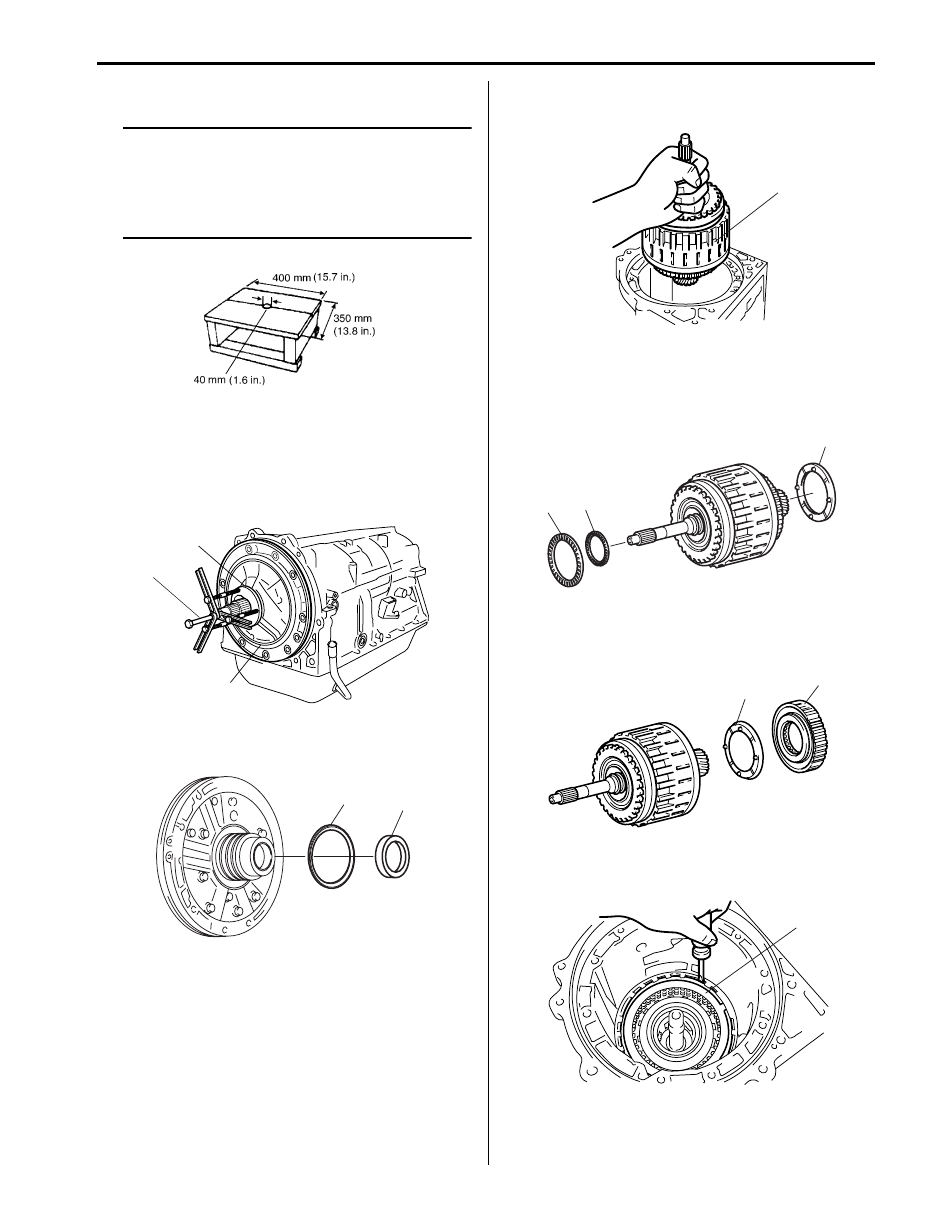

36) Place transmission on stand facing oil pump upward.

NOTE

• To prevent transmission case from getting

damaged, protect its contacting surface
with stand by using shop cloth or the like.

• A stand of such size as shown in the figure

will facilitate work.



37) After removing oil pump bolts, remove oil pump

assembly (1) by using special tool.

Special tool
(A):  09927–66520
(B):  09920–13120

38) Remove thrust bearing race No.1 (1) and thrust

bearing race No.10 (2) from oil pump assembly.

39) Remove clutch drum and input shaft assembly (1)

from transmission case.

40) Remove clutch hub thrust washer (1) and thrust

needle roller bearing No.1 (2) and thrust needle
roller bearing (3) from clutch drum and input shaft
assembly.

41) Remove one-way No.2 clutch assembly (1) and

clutch drum thrust washer No.2 (2) from clutch drum
& input shaft assembly.

42) Remove snap ring (1) by using flat end rod or the

like.
