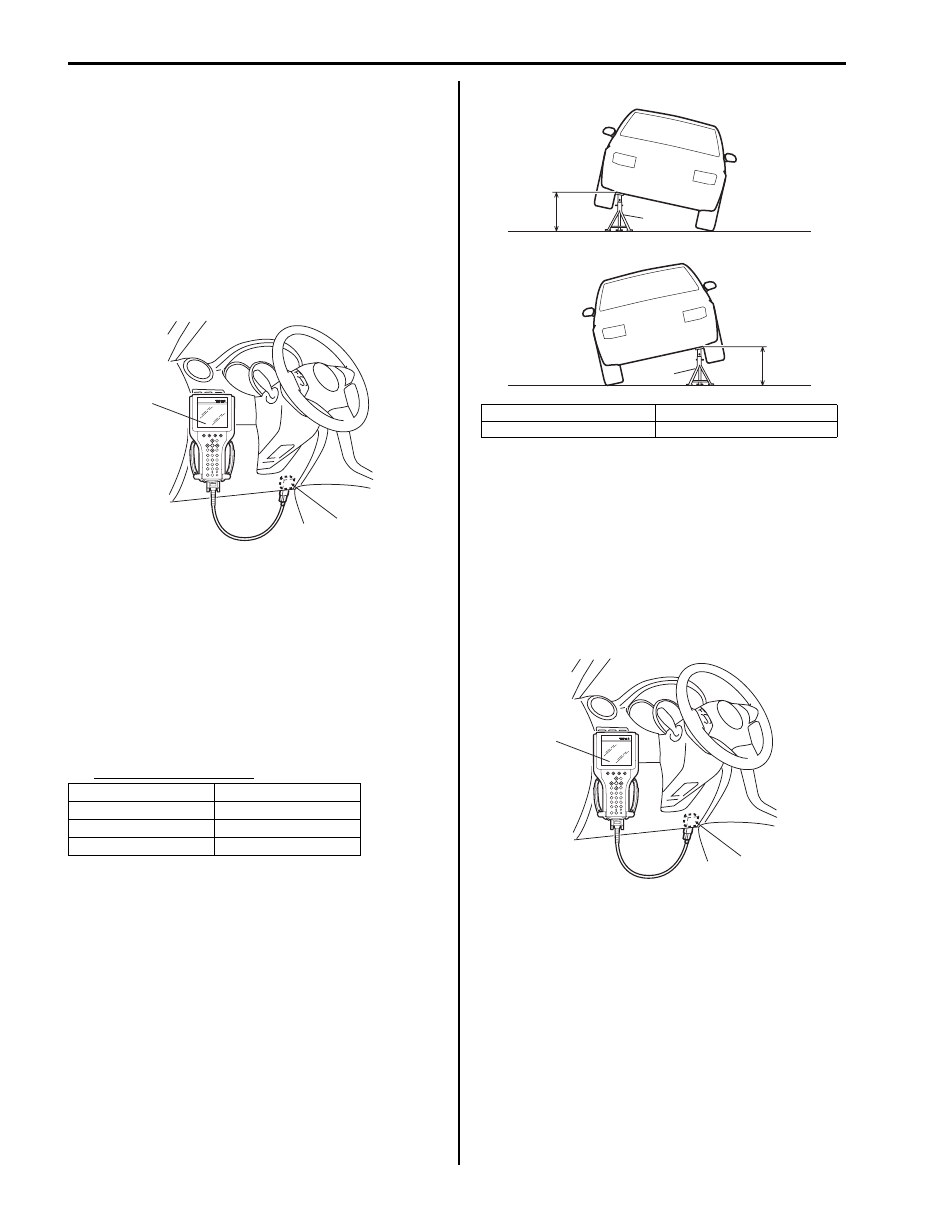

4F-47 Electronic Stability Program:

Lateral G Inspection

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Park and level the vehicle with parking brake and fix

wheels with chokes.

3) Check yaw rate / G sensor assembly installation

condition.

4) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

5) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

6) Check “G Sensor (lateral)” under “DATA LIST” of

SUZUKI scan tool in the following vehicle conditions.
• Level condition
• Right-up condition
• Left-up condition
If Lateral G condition is out of specification, replace
yaw rate / G sensor assembly.

Lateral G specification

Yaw Rate Inspection

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Check yaw rate / G sensor assembly installation

condition.

3) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

Vehicle condition

G Sensor (lateral)

Level condition

0

± 0.1 G

Right -up condition

0.1

± 0.1 G

Left-up condition

–0.1

± 0.1 G

(A)

1

I5JB0A450008-01

[A]: Right-up condition

“a”: Approx 350 mm (13.78 in.)

[B]: Left-up condition

1. Safety stand

[A]

[B]

“a”

“a”

1

1

I6JB01460027-01

(A)

1

I5JB0A450008-01

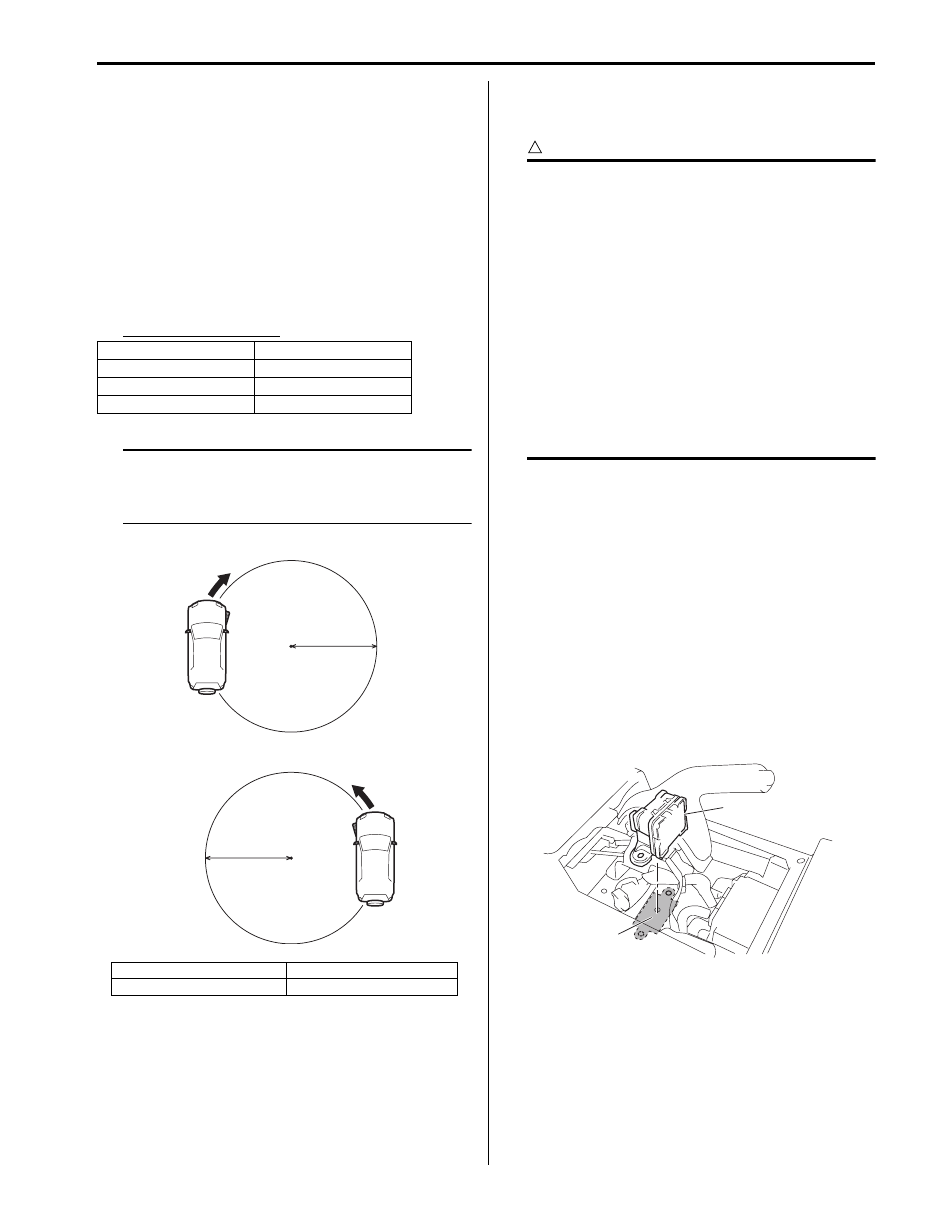

Electronic Stability Program:  4F-48

4) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

5) Check “Yaw rate sensor” under “DATA LIST” of

SUZUKI scan tool in the following vehicle conditions.
• Parking condition
• Drive vehicle in right turning condition with

steering wheel fully turned

• Drive vehicle in left turning condition with steering

wheel fully turned

If yaw rate condition is out of specification, replace
yaw rate / G sensor assembly.

Yaw rate specification

NOTE

• Drive the vehicle on level ground and at 10

km/h (6.2 mph).

• Minimum turning radius is 5.3 m (17.4 ft).



Yaw Rate / G Sensor Assembly Removal and
Installation

S6JB0B4606018

CAUTION

!



• When yaw rate / G sensor assembly is

replaced, ESP

® control module needs zero

calibration. Perform zero calibration by
SUZUKI scan tool referring to “Sensor
Calibration”.

• Regarding yaw rate / G sensor assembly

removal/installation, confirm specified
torque and never use impact wrench to
avoid damage.

• When handling the yaw rate / G sensor

assembly, be careful not to drop it or apply
an impact to it.
If an excessive impact was applied, never
attempt disassembly or repair but replace
it with a new one.



Removal

1) Disconnect negative (–) cable at battery.
2) Remove console rear panel referring to “Console

Box Components in Section 9H”.

3) Remove yaw rate / G sensor assembly from floor

panel.

Installation

1) Before installing yaw rate / G sensor assembly (1),

check installing condition as follows.
• Deformations around sensor installation area (2)

(in floor panel).

• Foreign matters on mating surface between

sensor and floor panel.

Vehicle condition

Yaw rate

Parking

0

± 4 deg/s

Right turning

30

± 4 deg/s

Left turning

–30

± 4 deg/s

[A]: Right turning

“a”: Approx 5.3 m (17.4 ft.)

[B]: Left turning

[A]

[B]

“a”

“a”

I6JB01460028-01

2

1

I6JB01460029-05

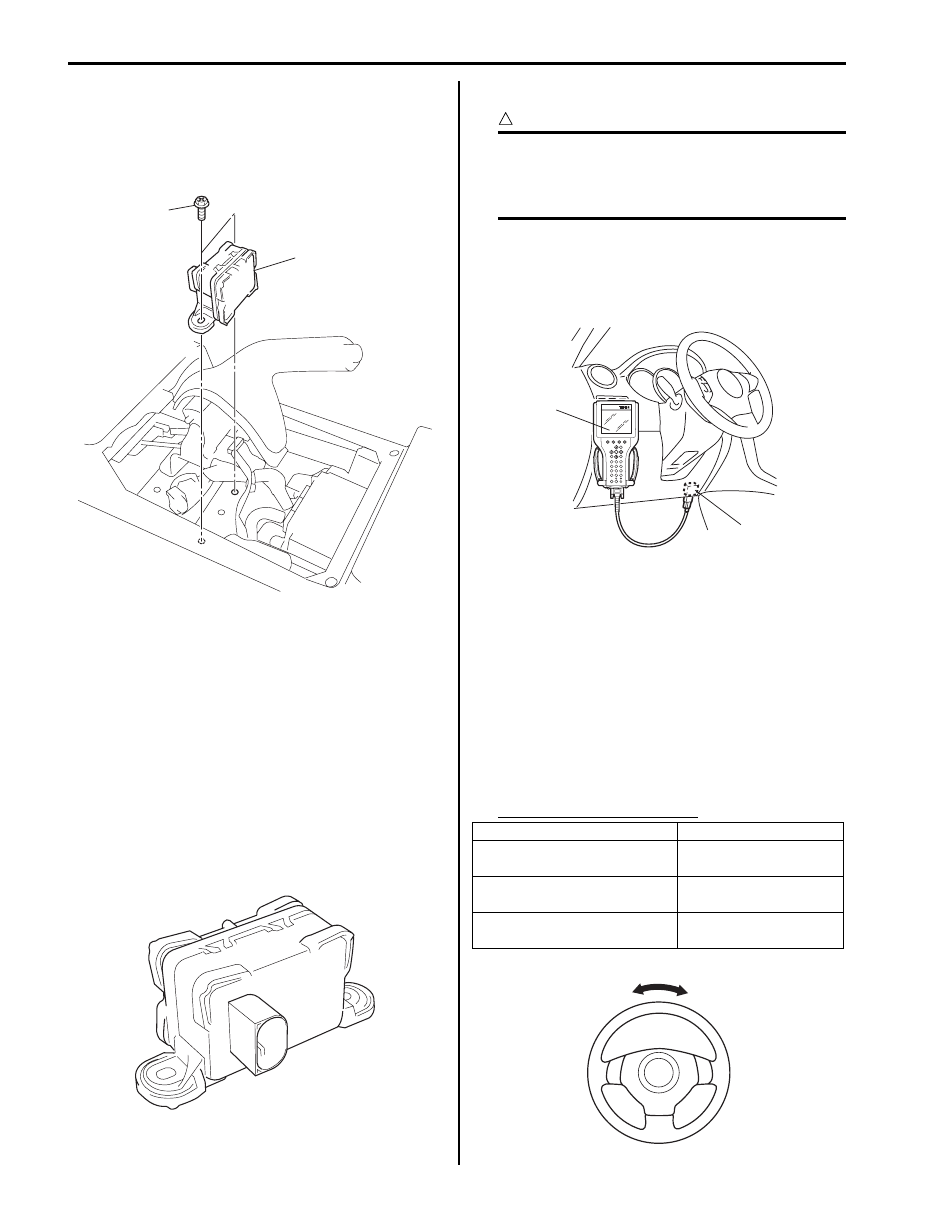

4F-49 Electronic Stability Program:

2) Install yaw rate / G sensor assembly (1) to floor

panel.

Tightening torque
Yaw rate / G sensor assembly bolt (a):  8 N·m (
0.8 kgf-m, 6.0 lb-ft)

3) Install console rear panel referring to “Console Box

Components in Section 9H”.

4) Connect negative (–) cable to battery.
5) After completing installation, calibrate yaw rate / G

sensor assembly referring to “Sensor Calibration”.

Yaw Rate / G Sensor Inspection

S6JB0B4606019

• Check sensor for dents, cracks or deformation.
• Check sensor connector (sensor side and harness

side) and sensor connector lock mechanism for
damage or crack.

• Check connector terminals for bend, corrosion or rust.
If it is found faulty, replace yaw rate / G sensor assembly.

Steering Angle Sensor On-Vehicle Inspection

S6JB0B4606020

CAUTION

!



Before each inspection, confirm steering
angle sensor calibration is completed.
If calibration is incompleted, calibrate sensor
referring to “Sensor Calibration”.



1) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

2) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool.
Refer to scan tool operator's manual for further
derails.

3) Check “Steering angle Sen” under “DATA LIST” of

SUZUKI scan tool in the following steering wheel
conditions.
• Front wheels in straight-ahead position
• Rotate steering wheel a round in clockwise

(counter clockwise) from straight-ahead position

If steering angle condition is out of specification,
replace steering angle sensor.

Steering angle Specification

1

(a)

I6JB01460030-02

I6JB01460031-01

Vehicle condition

Steering angle

Front wheels in straight-
ahead position

0

± 3°

Rotate steering wheel a
round in clockwise

360

± 3°

Rotate steering wheel a
round in counterclockwise

–360

± 3°

(A)

1

I5JB0A450008-01

I6JB01460032-01

Electronic Stability Program:  4F-50

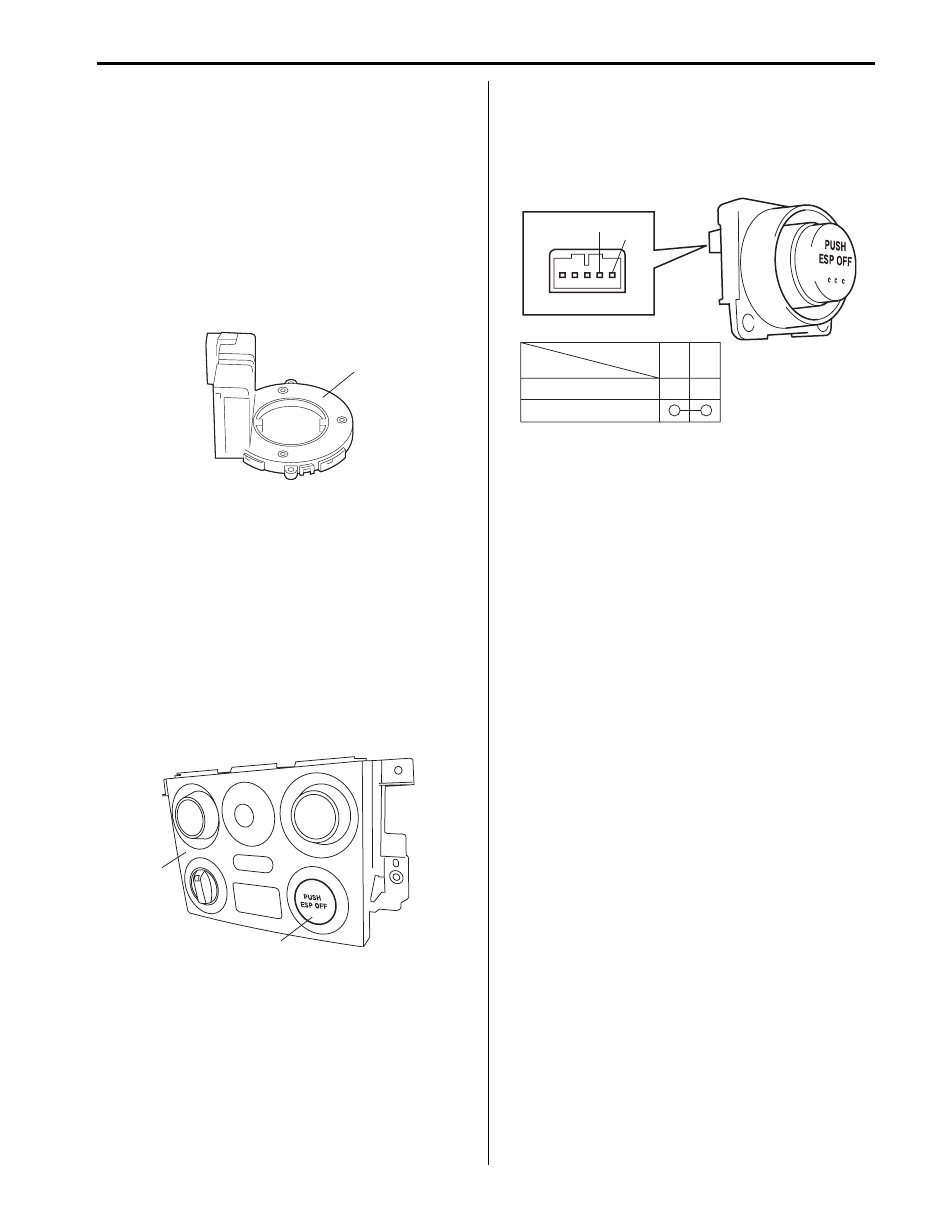

Steering Angle Sensor Removal and Installation

S6JB0B4606021

Refer to “Steering Angle Sensor Removal and
Installation (ESP

® Model) in Section 6B”.

Steering Angle Sensor Inspection

S6JB0B4606022

• Check sensor for dents, cracks or deformation.
• Check sensor connector (sensor side and harness

side) and sensor connector lock mechanism for
damage or crack.

• Check connector terminals for bend, corrosion or rust.
If it is found faulty, replace steering angle sensor (1).

ESP

® OFF Switch Removal and Installation

S6JB0B4606023

Removal

1) Disconnect negative (–) cable at battery.
2) Remove center garnish with audio unit (if equipped)

and HVAC control module referring to “Audio Unit
Removal and Installation in Section 9C”.

3) Remove HVAC control module from center garnish,

referring to “Air Flow Control Actuator Removal and
Installation in Section 7A”.

4) Remove ESP

® OFF Switch (1) from center garnish

(2).

Installation
Reverse removal procedure.

ESP

® OFF Switch Inspection

S6JB0B4606024

Check for continuity between terminals at each switch
position.
If check result is not as specified, replace ESP

® OFF

switch.

1

I6JB01460033-01

2

1

I6JB01460034-01

ESP OFF switch

Terminal

FREE

PUSH

1

2

2

1

I6JB01460035-02
