DI-25

General Description

DIFFERENTIALS

2. GENERAL TOOL

499705401

PULLER ASSY

• Used for removing the side bearing race.
• Used together with SEAT (499705404).
• For  VA-type

398417700

DRIFT

• Used for installing side bearing race.
• For T-type and VA2-type

498937110

HOLDER DRIVE
PINION

• Used for installing the pilot bearing.
• For T-type

18674AA000

INSTALLER

• Used for installing the rear bearing cone.
• For T-type

TOOL NAME

REMARKS

Transmission jack

Used for assembly/disassembly of the rear differential.

Puller

Used for removing the side retainer.

Thickness gauge

Used for measuring clearance.

Hexagon wrench

Used for installing and removing the filler and drain plug.

Tire lever

Used for removing the rear drive shaft. (VA-type)

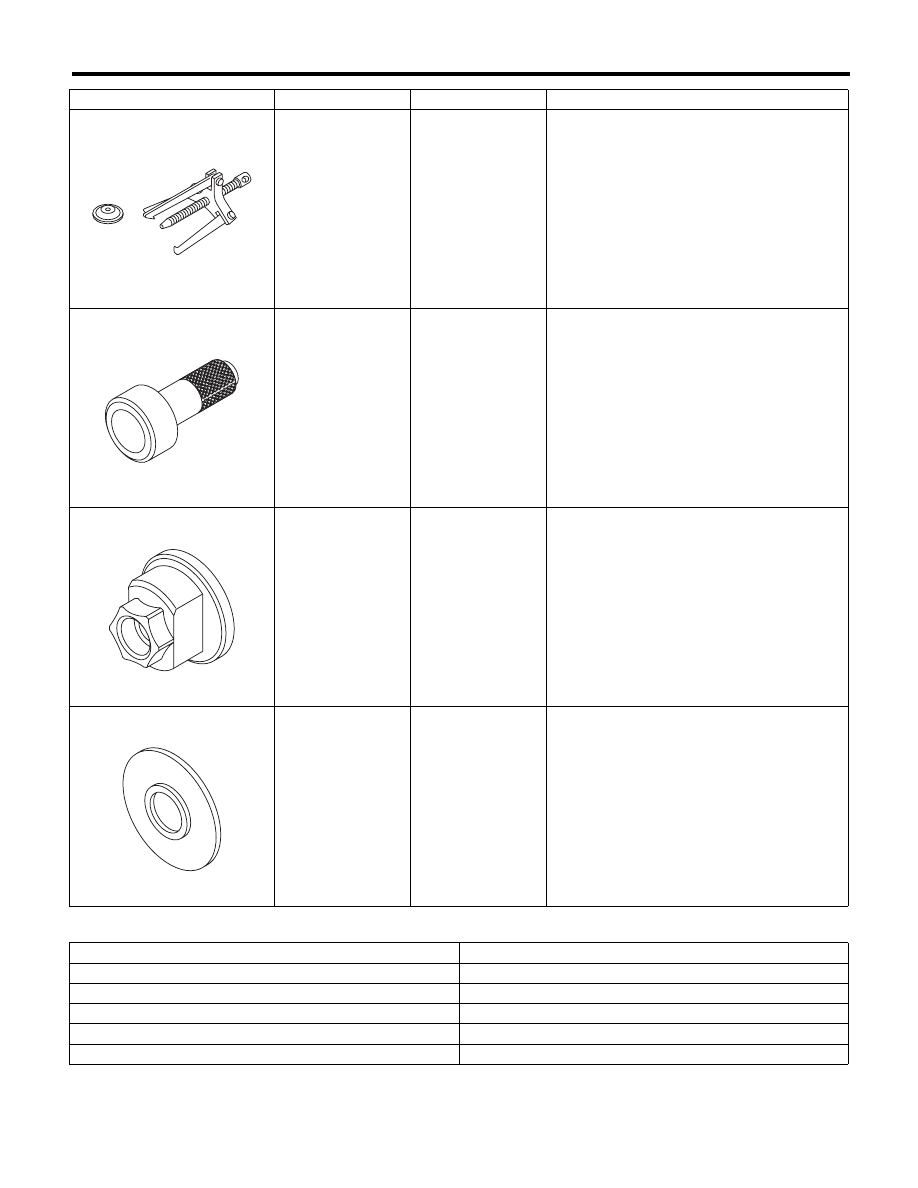

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499705401

ST-398417700

ST-498937110

ST18674AA000

DI-26

Differential Gear Oil

DIFFERENTIALS

2. Differential Gear Oil

A: INSPECTION

1) Remove the filler plug, and then check the gear
oil. Replace the gear oil if it is contaminated or de-
teriorated. <Ref. to DI-26, REPLACEMENT, Differ-
ential Gear Oil.>
2) Check that the gear oil level is within –5 mm (–0.2 in)
from the bottom of the filler plug hole. If the level is low,
confirm that there is no oil leakage and refill up to the
bottom of filler plug.

NOTE:
On VA1-types at factory settings, the oil level may
be within –14 mm (–0.6 in) from the bottom of the
filler plug. This is at normal level, requiring no oil re-
fill.

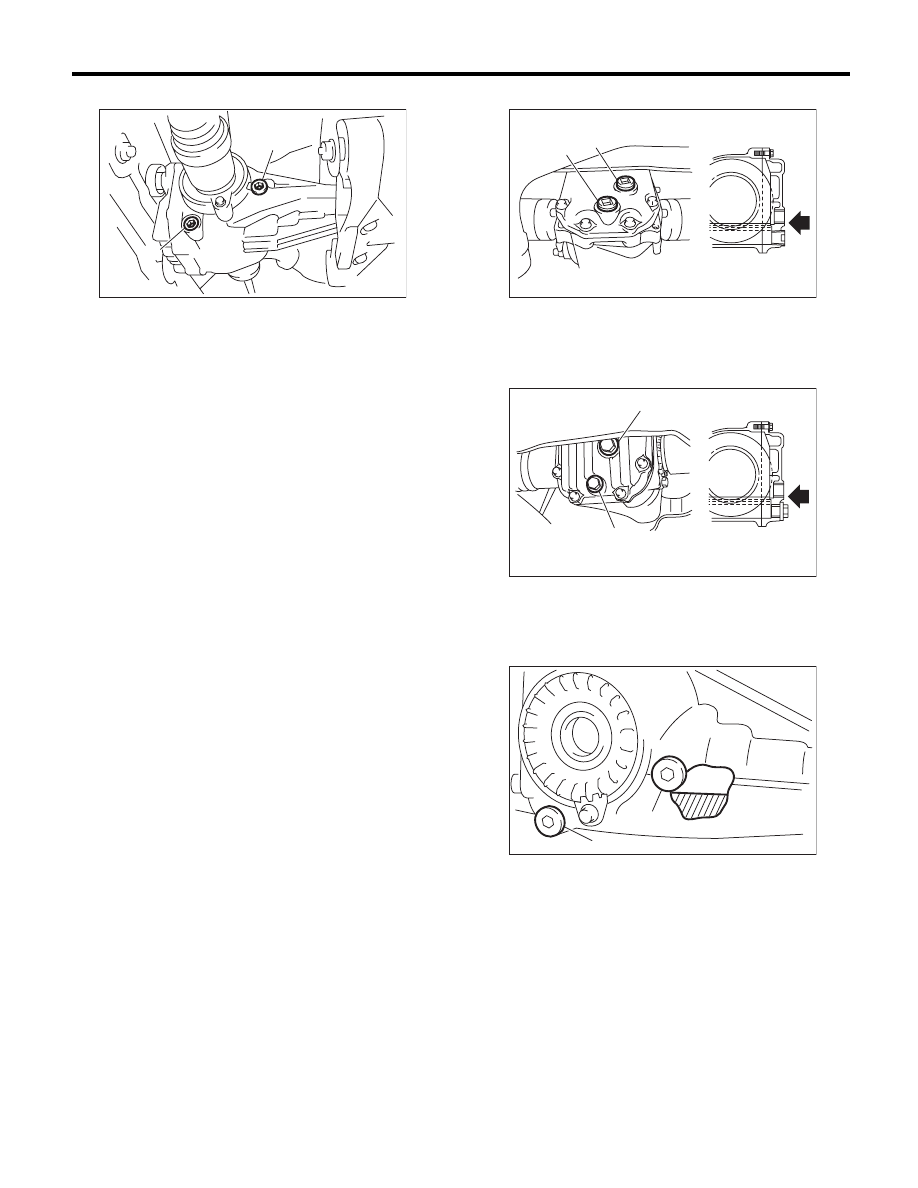

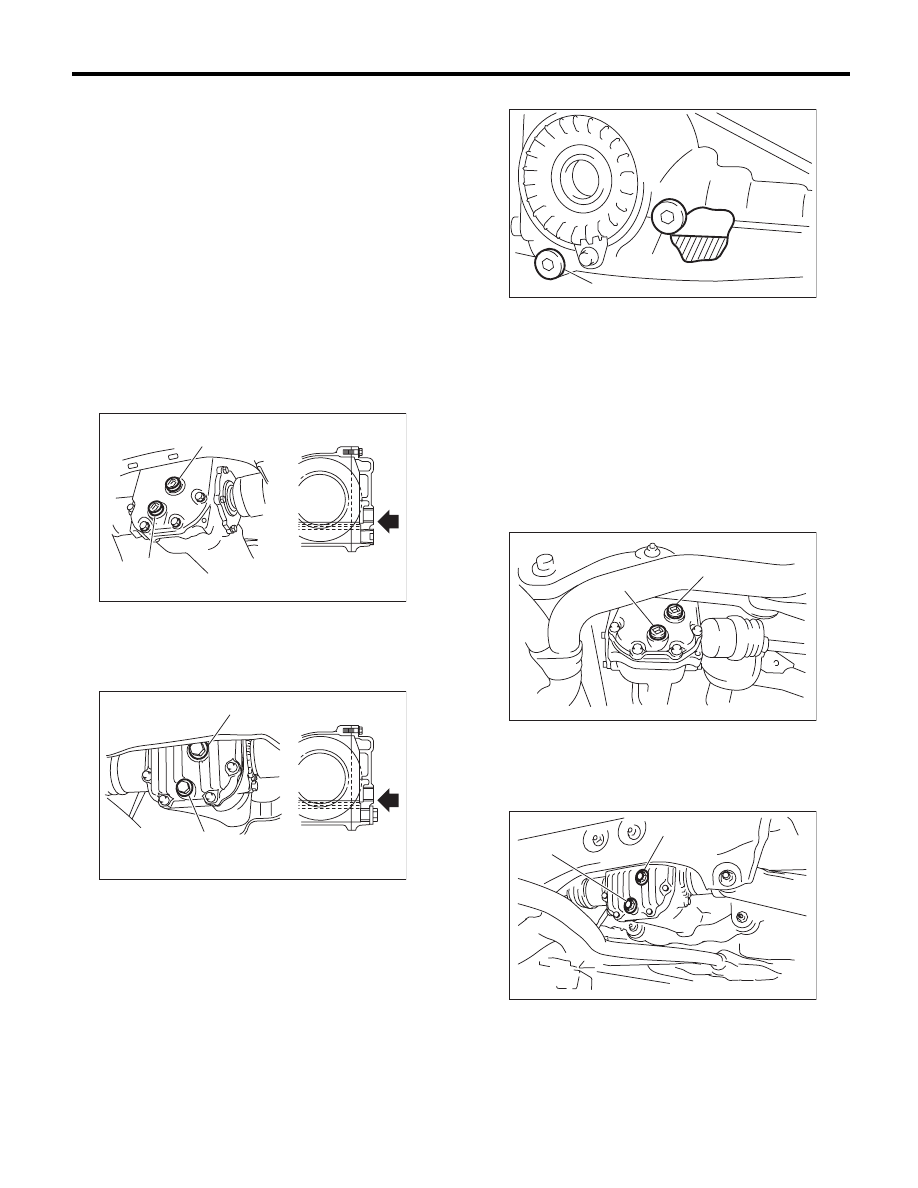

• T-type

• VA1-type

• VA2-type

B: REPLACEMENT

1) Lift up the vehicle.
2) Remove the oil drain plug and filler plug, and
drain the gear oil.

CAUTION:
Be careful not to burn your hands, because
gear oil becomes extremely hot after running.
• T-type

• VA1-type

(A) Filler plug

(B) Oil drain plug

(A) Filler plug

(B) Oil drain plug

DI-00521

(A)

(B)

DI-00528

(A)

(B)

(A) Filler plug

(B) Oil drain plug

(A) Filler plug

(B) Oil drain plug

(A) Filler plug

(B) Oil drain plug

(B)

DI-00355

(A)

DI-00356

(A)

(B)

DI-00505

(A)

(B)

DI-27

Differential Gear Oil

DIFFERENTIALS

• VA2-type

3) Tighten the oil drain plug.

NOTE:
• Apply liquid gasket to the drain plug for the T-
type (except for GT spec. B 6MT model).

Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or
equivalent

• Use a new gasket for the VA-type and T-type
(GT spec. B 6MT model).

Tightening torque:

T-type (except for GT spec.B 6MT model):

49 N·m (5.0 kgf-m, 36.1 ft-lb)

T-type (GT spec. B 6MT model):

60 N·m (6.1 kgf-m, 44.3 ft-lb)

VA1-type:

34 N·m (3.5 kgf-m, 25.1 ft-lb)

VA2-type:

50 N·m (5.1 kgf-m, 36.9 ft-lb)

4) Fill the differential carrier with gear oil to the bot-
tom of filler plug.

NOTE:
• Carefully refill oil while watching the level. Exces-
sive or insufficient oil must be avoided.

Recommended gear oil:

<Ref. to DI-2, SPECIFICATION, General De-
scription.>

Oil capacity:

Except for GT spec. B 6MT model:

0.8

2

 (0.8 US qt, 0.7 Imp qt)

GT spec. B 6MT model:

1.0

2

 (1.1 US qt, 0.9 Imp qt)

• T-type

• VA1-type

• VA2-type

(A) Filler plug

(B) Oil drain plug

(A)

DI-00357

(B)

(A) Filler plug

(B) Oil drain plug

(A) Filler plug

(B) Oil drain plug

(A) Filler plug

(B) Oil drain plug

DI-00391

(A)

(B)

DI-00528

(A)

(B)

(B)

DI-00355

(A)

DI-28

Differential Gear Oil

DIFFERENTIALS

5) Install the filler plug.

NOTE:
• Apply liquid gasket to the filler plug for the T-type
(except for GT spec. B 6MT model).

Liquid gasket:

THREE BOND 1105 (Part No. 004403010) or
equivalent

• Use a new gasket for the VA-type and T-type
(GT spec. B 6MT model).

Tightening torque:

T-type (except for GT spec.B 6MT model):

49 N·m (5.0 kgf-m, 36.1 ft-lb)

T-type (GT spec. B 6MT model):

60 N·m (6.1 kgf-m, 44.3 ft-lb)

VA1-type:

34 N·m (3.5 kgf-m, 25.1 ft-lb)

VA2-type:

50 N·m (5.1 kgf-m, 36.9 ft-lb)
