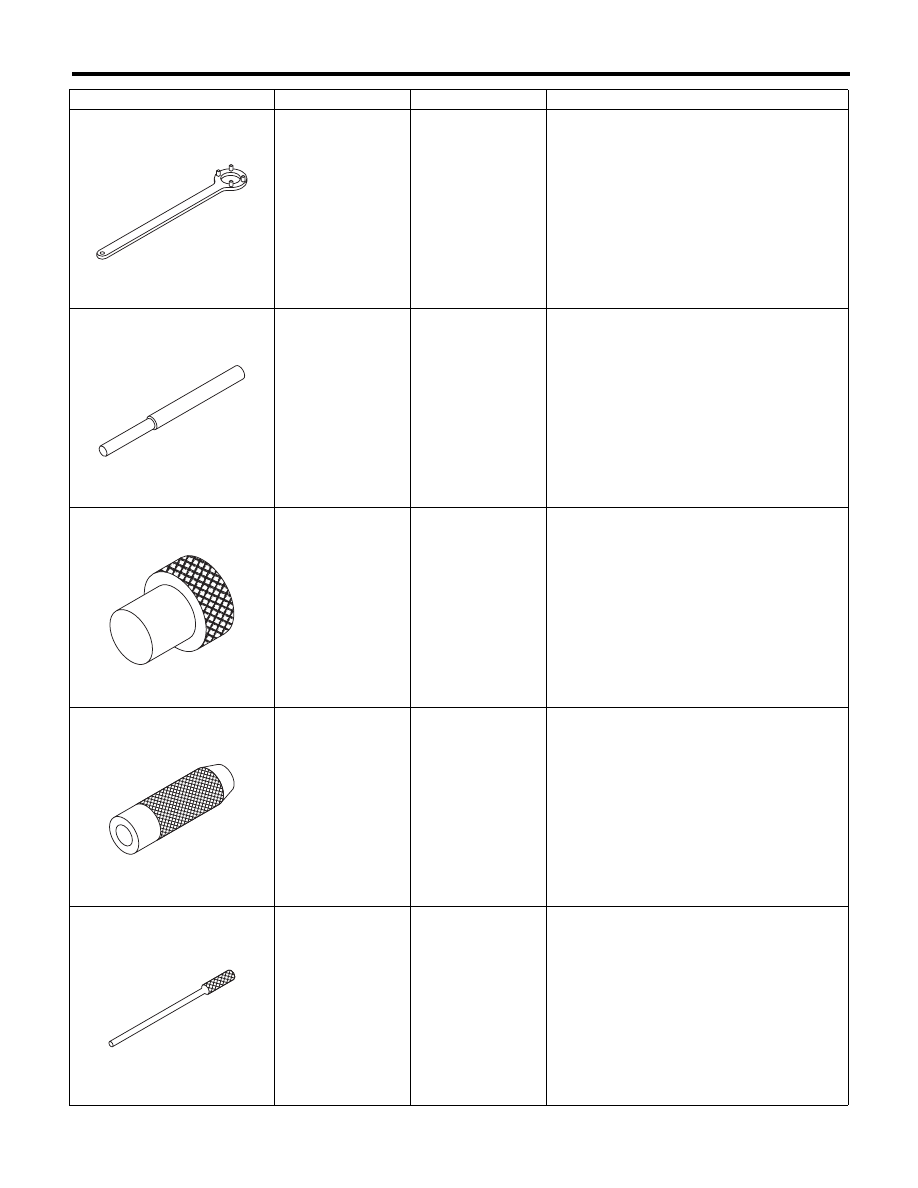

DI-17

General Description

DIFFERENTIALS

498427200

FLANGE WRENCH

Used for stopping rotation of companion flange
when removing and tightening self-lock nut.

398467700

DRIFT

• Used for removing pinion, pilot bearing and
front bearing cone.
• For T-type and VA1-type

399780104

WEIGHT

Used for installing the front bearing cone and the
pilot bearing companion flange.

899580100

INSTALLER

Used for press-fitting the front bearing cone and
pilot bearing.

899904100

STRAIGHT PIN
REMOVER

Used for driving out differential pinion shaft lock
pin.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498427200

ST-398467700

ST-399780104

ST-899580100

ST-899904100

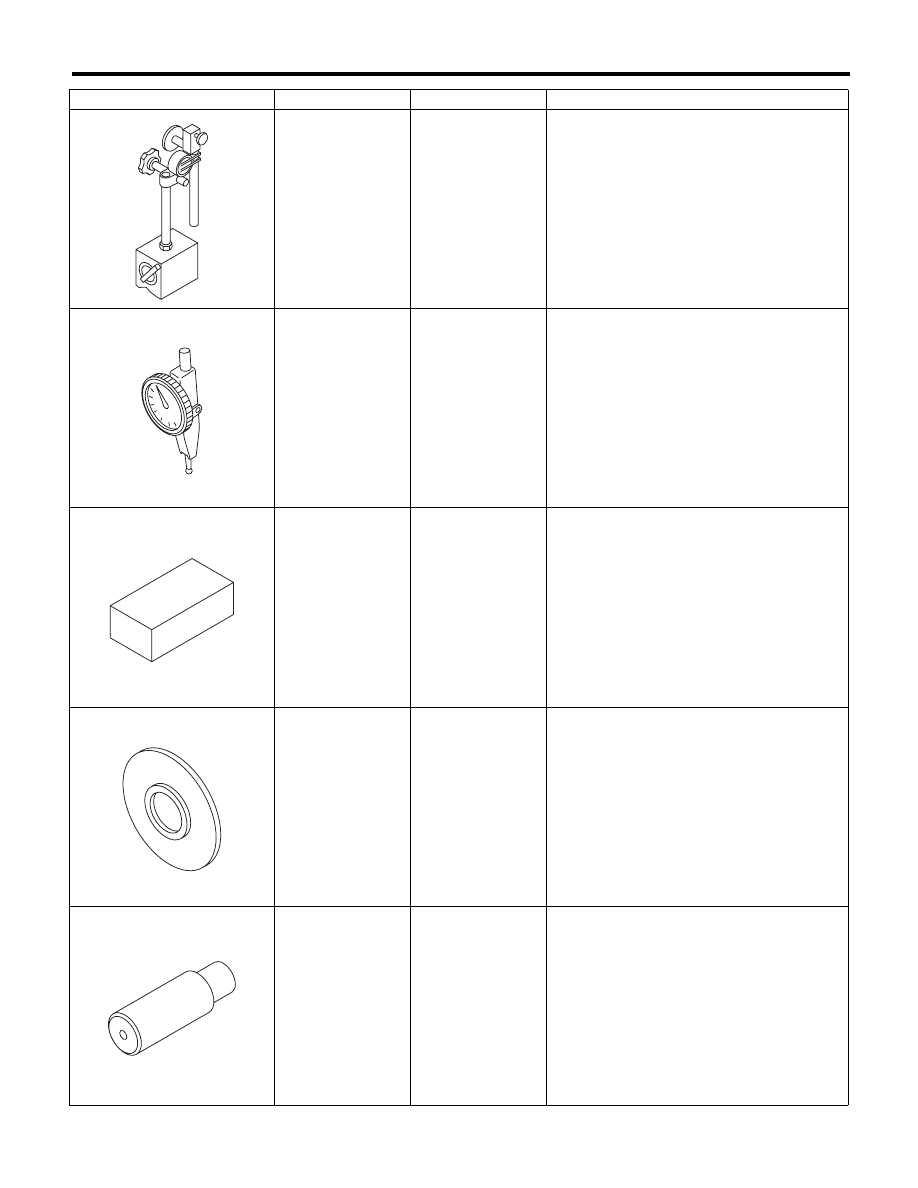

DI-18

General Description

DIFFERENTIALS

498247001

MAGNET BASE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used together with DIAL GAUGE
(498247100).

498247100

DIAL GAUGE

• Used for measuring backlash between side
gear and pinion, and hypoid gear.
• Used together with the MAGNET BASE
(498247001).

398507704

BLOCK

• Used for adjusting pinion height and preload.
• For T-type and VA1-type

398177700

INSTALLER

• Used for installing the rear bearing cone.
• For T-type and VA2-type

398457700

ATTACHMENT

• Used for removing the side retainer.
• For T-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498247001

ST-498247100

ST-398507704

ST-398177700

ST-398457700

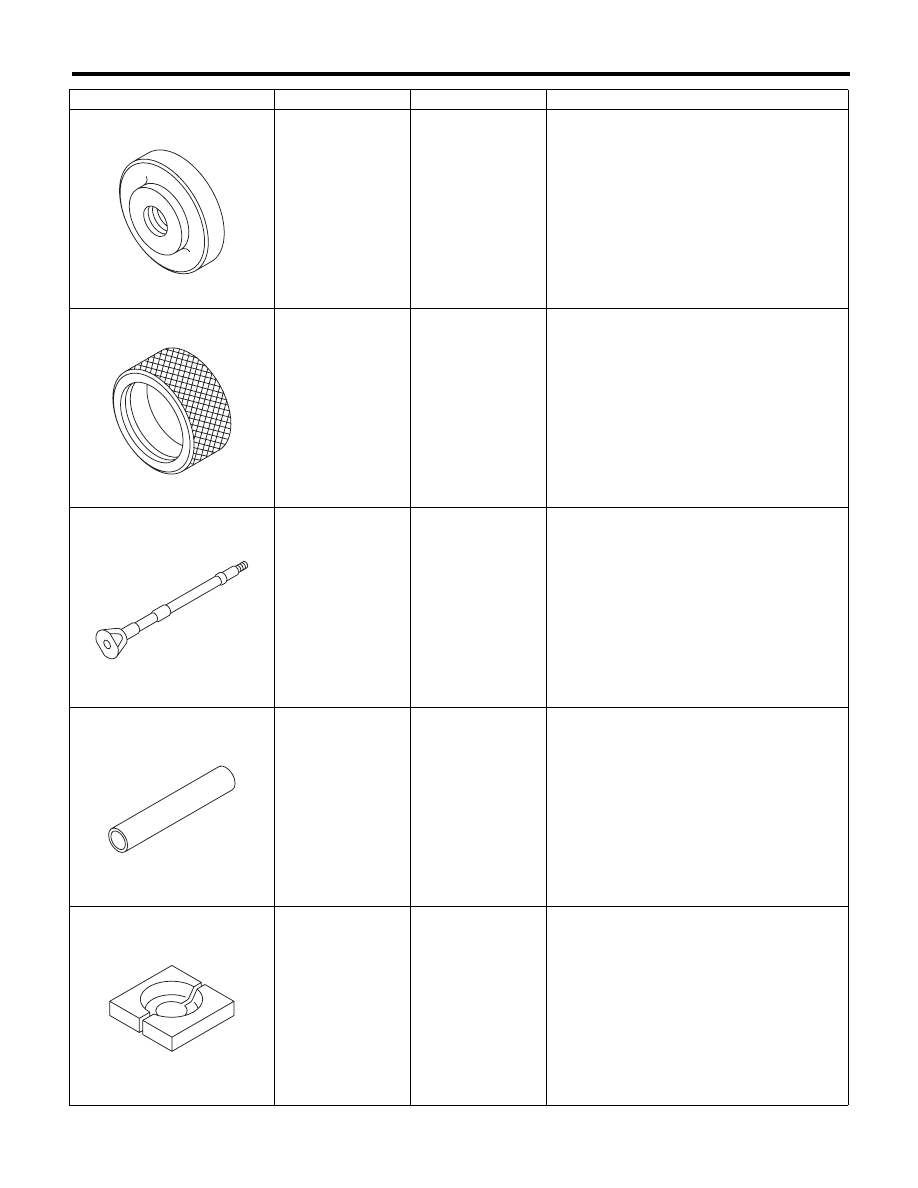

DI-19

General Description

DIFFERENTIALS

398477703

DRIFT 2

• Used for press-fitting bearing race (rear) of dif-
ferential carrier.
• For T-type and VA2-type

398437700

DRIFT

• Used for installing the side oil seal.
• For T-type and VA2-type

398507702

DUMMY SHAFT

• Used for adjusting pinion height and preload.
• For T-type

398507703

DUMMY COLLAR

• Used for adjusting pinion height and preload.
• For T-type

398517700

REPLACER

• Used for removing rear bearing cone.
• For T-type and VA2-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398477703

ST-398437700

ST-398507702

ST-398507703

ST-398517700

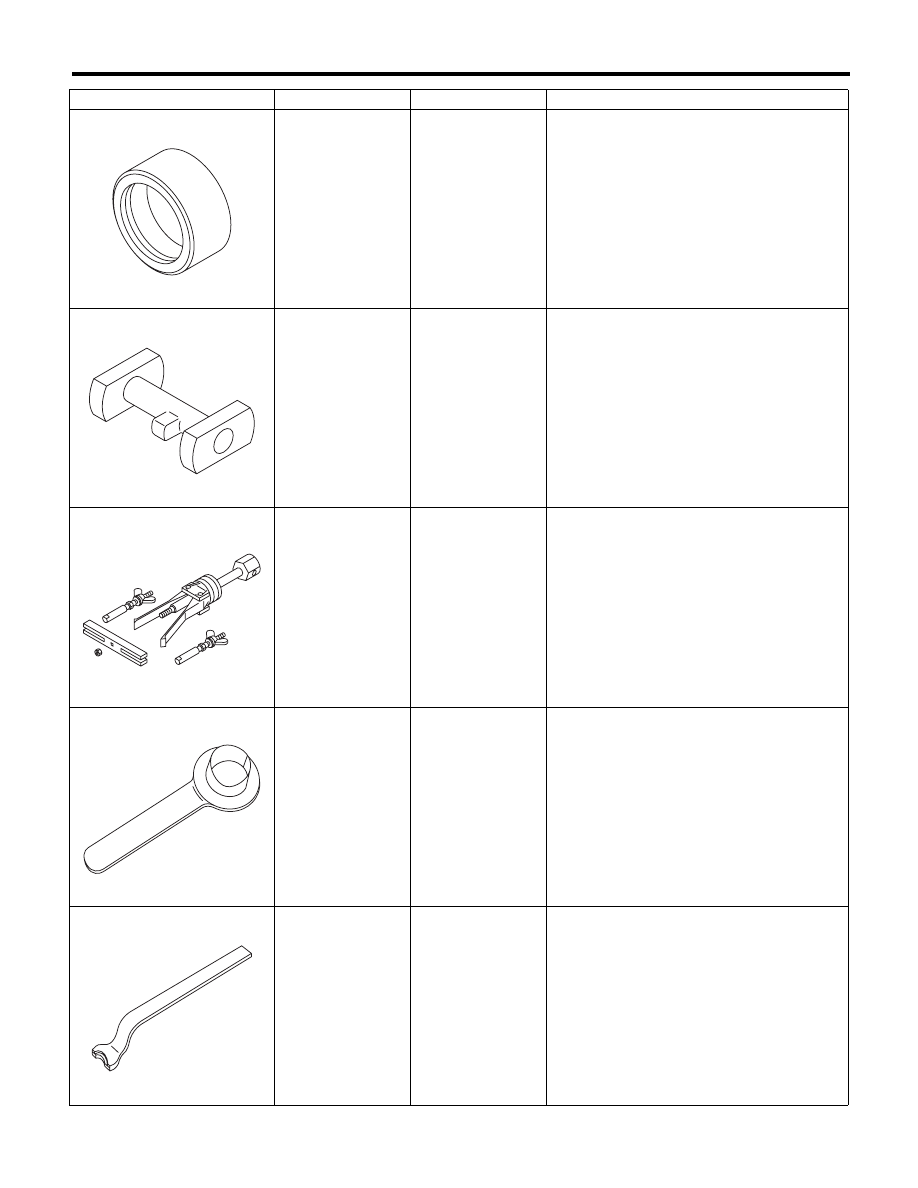

DI-20

General Description

DIFFERENTIALS

398487700

DRIFT

• Used for press-fitting side bearing cone.
• For T-type and VA2-type

398507701

DIFFERENTIAL
CARRIER GAUGE

• Used for adjusting pinion height.
• For T-type

398527700

PULLER ASSY

• Used for removing front oil seal.
• Used for removing side bearing cup. (T-type
and VA1-type)

28099PA090

OIL SEAL
PROTECTOR

• Used for installing the rear drive shaft to the
rear differential.
• For oil seal protection

28099PA100

DRIVE SHAFT
REMOVER

• Used for removing the rear drive shaft from
rear differential.
• For T-type

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398487700

ST-398507701

ST-398527700

ST28099PA090

ST28099PA100
