CL-6

General Description

CLUTCH SYSTEM

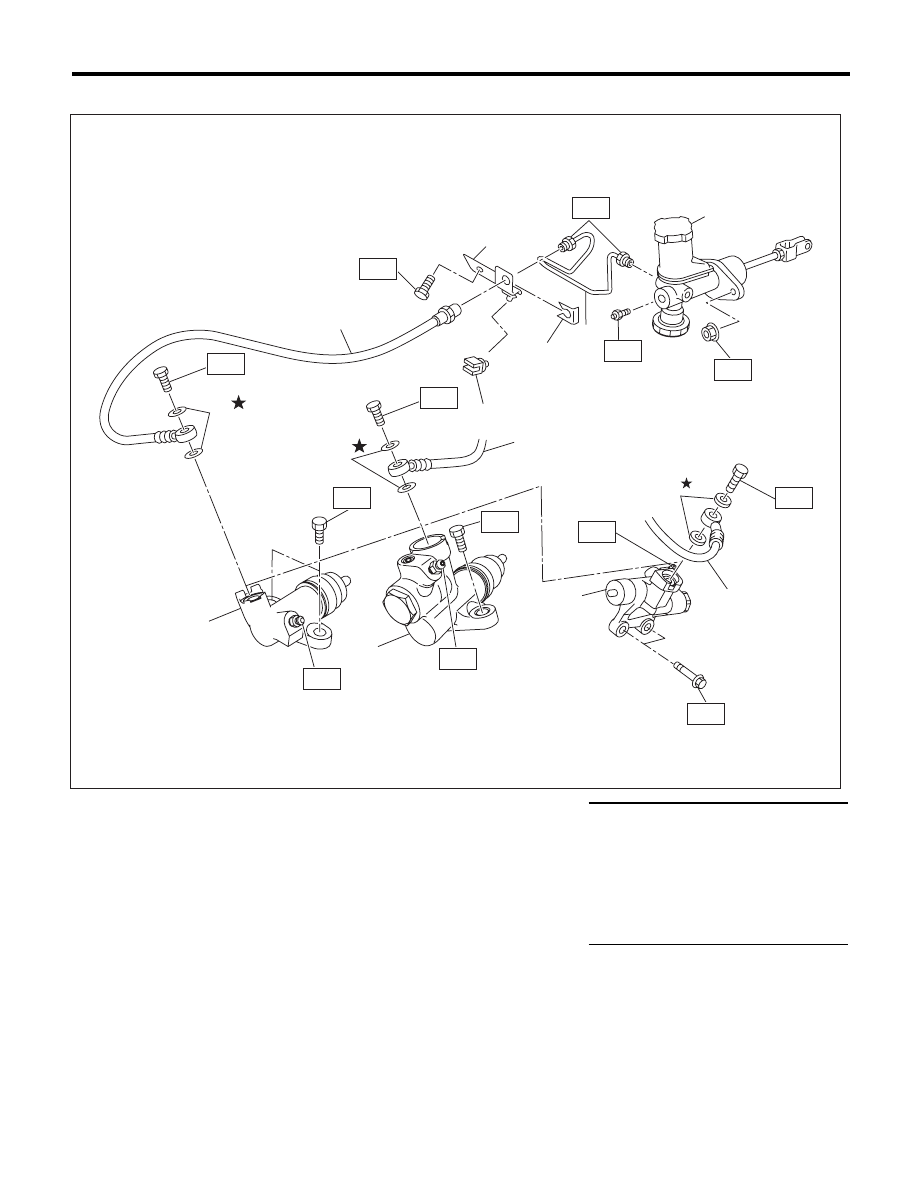

2. CLUTCH PIPE AND HOSE

(1)

Master cylinder ASSY

(8)

Operating cylinder
(5MT turbo model)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Clutch pipe

T1: 7.8 (0.8, 5.8)

(3)

Clamp

(9)

Operating cylinder
(6MT turbo model)

T2: 15 (1.5, 11.1)

(4)

Bracket

T3: 18 (1.8, 13.3)

(5)

Clutch hose

(10)

Clip

T4: 25 (2.5, 18.4)

(6)

Washer



T5: 37 (3.8, 27.3)

(7)

Operating cylinder
(5MT non-turbo model)

T6: 41 (4.2, 30.2)

(1)

(2)

(3)

(10)

(4)

(5)

(6)

T4

T2

T3

T1

T1

T3

(7)

(8)

(9)

T3

(6)

CL-00650

(5)

(6)

T3

(5)

T5

T6

T5

T1

T1

CL-7

General Description

CLUTCH SYSTEM

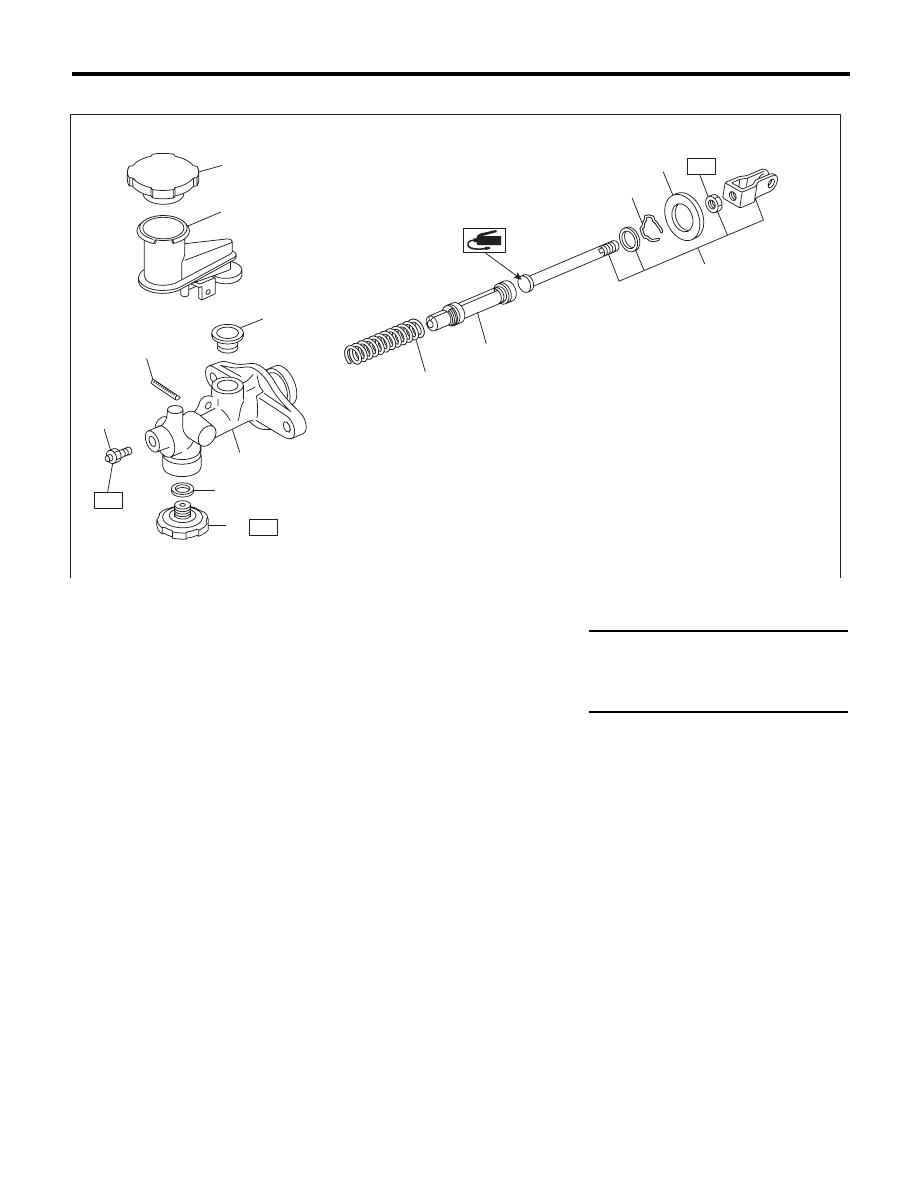

3. MASTER CYLINDER

(1)

Reservoir cap

(7)

Gasket

(13)

Bleeder screw

(2)

Reservoir tank

(8)

Return spring





(3)

Oil seal

(9)

Piston

Tightening torque:N·m (kgf-m, ft-lb)

(4)

Straight pin

(10)

Push rod ASSY

T1: 7.8 (0.8, 5.8)

(5)

Master cylinder

(11)

Piston stop ring

T2: 10 (1.0, 7.4)

(6)

Clutch damper

(12)

Seat

T3: 46.6 (4.8, 34.4)

CL-00559

(1)

(2)

(3)

(4)

(5)

(7)

(6)

T3

T2

(8)

(9)

(10)

(11)

(12)

T1

(13)

CL-8

General Description

CLUTCH SYSTEM

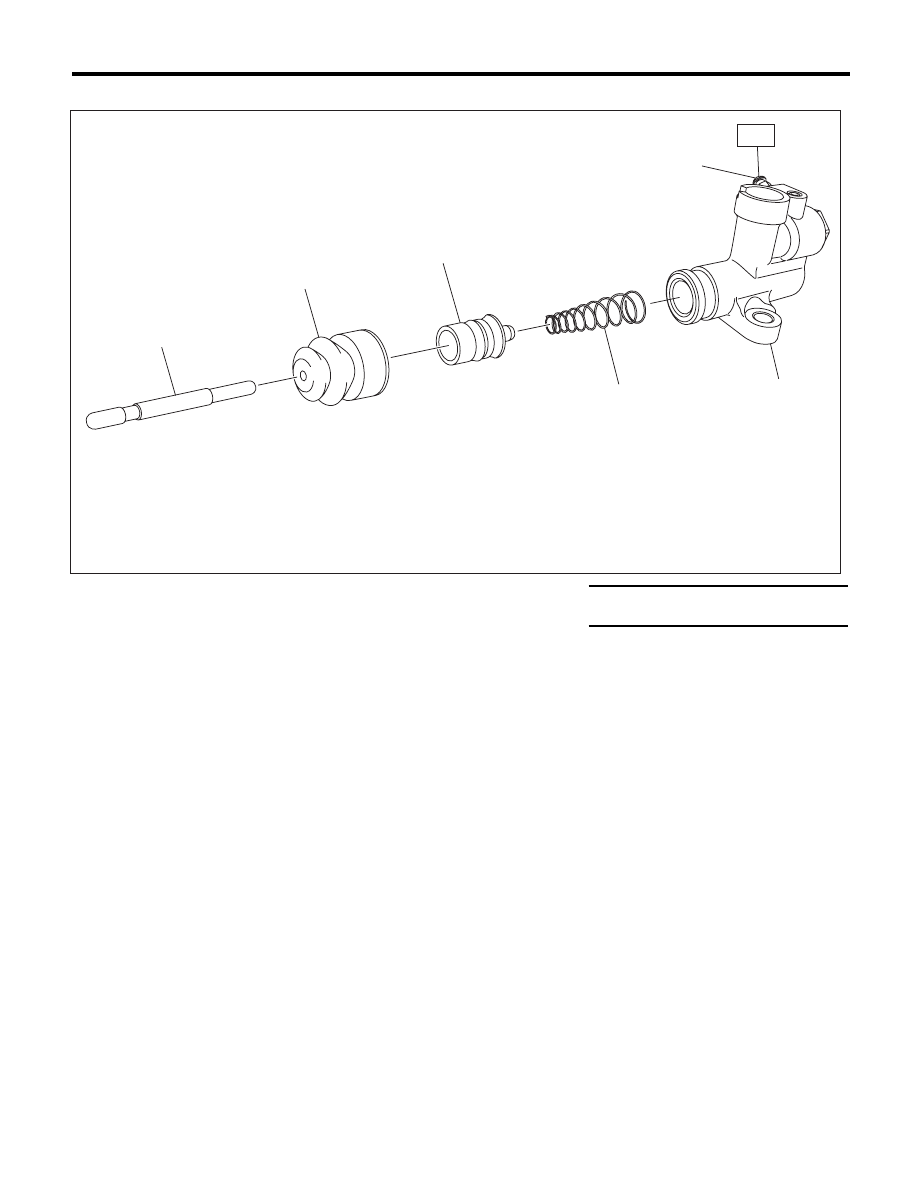

4. OPERATING CYLINDER

• 5MT non-turbo model

(1)

Push rod

(4)

Piston spring

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Boot

(5)

Operating cylinder

T: 7.8 (0.8, 5.8)

(3)

Piston

(6)

Bleeder screw





CL-00503

T

(5)

(4)

(3)

(2)

(1)

(6)

CL-9

General Description

CLUTCH SYSTEM

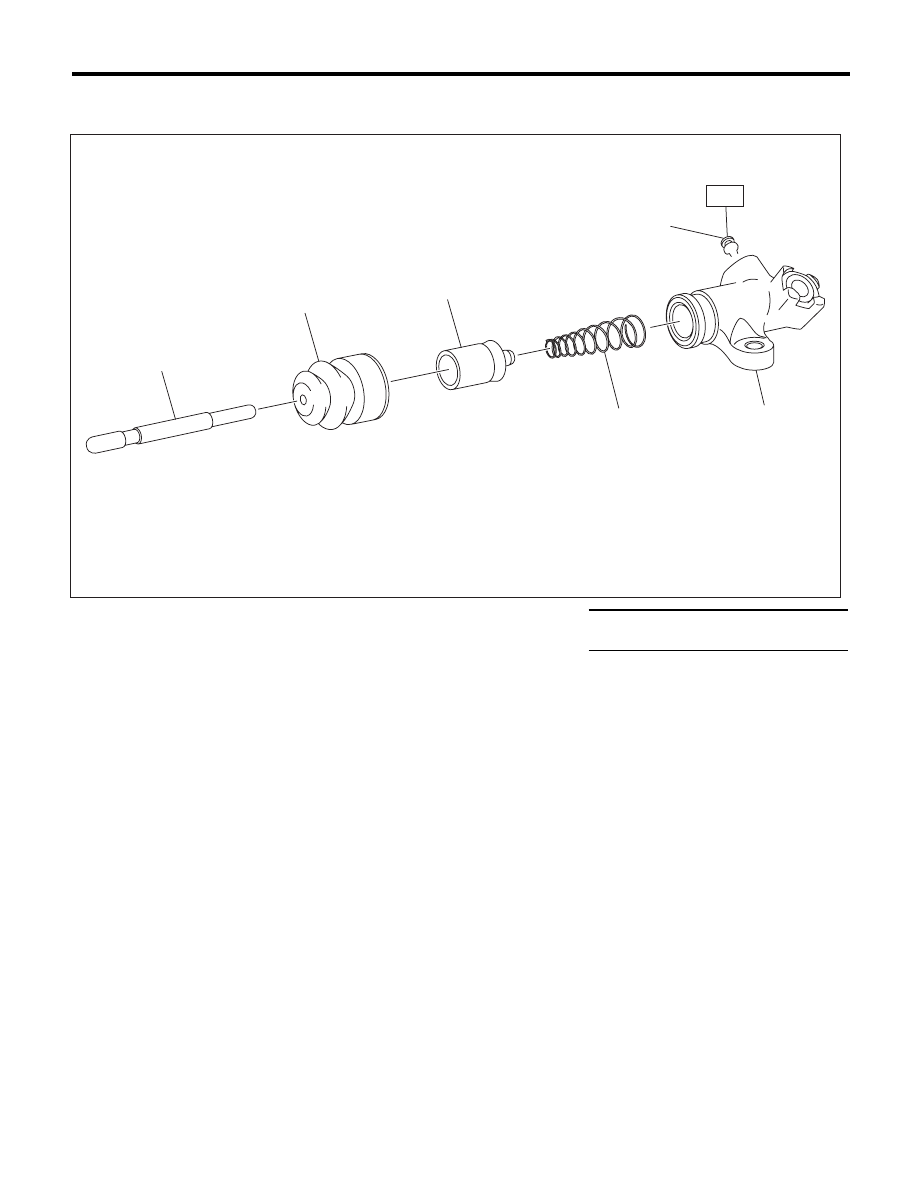

• 5MT turbo model

(1)

Push rod

(4)

Piston spring

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Boot

(5)

Operating cylinder

T: 7.8 (0.8, 5.8)

(3)

Piston

(6)

Bleeder screw





CL-00504

T

(5)

(4)

(3)

(2)

(1)

(6)
