Shifter Fork and Rod

MANUAL TRANSMISSION AND DIFFERENTIAL

8) According to both of the measurements, calcu-
late the neutral position of the 1st-2nd sleeve. From
the following calculation, select a fork rod which
matches the calculated value.
Calculation: T = (B1 + B2) / 2
T: 1st-2nd sleeve center position
B1: Height from the adapter plate end to the sleeve
end, when shifted to 1st gear
B2: Measured height from the adapter plate end to
the sleeve end, when shifted to 2nd gear: +55 mm
(2.17 in)

NOTE:
Attach the indicator upside down in comparison to
the setting procedures for the 0 point. Add “d1”
[Value: 55 mm (2.17 in)] from the figure below to
“B2”, and measure “B2”.

2. 3RD-4TH FORK ROD SELECTION

NOTE:
In the following conditions, perform the procedures
below.
• Replacing the main shaft
• Replacing the 3rd, and 3rd to 6th drive gear and
bushing
• Replacing the 3rd, and 3rd to 6th synchro as-
semblies
• Replacing the 3rd-4th hub and sleeve assem-
blies
1) Insert the main shaft assembly into the adapter
plate.
2) Set the height gauge to the adapter plate. Lower
the height gauge indicator to the top surface of the
snap ring groove, and set to the zero point on the
upper side of the main rear bearing.
ST

18853AA000

HEIGHT GAUGE

NOTE:
• The height gauge will be set on the adapter plate
during the measurement. Use a scraper to remove
any gasket material remaining on the end face.
• During measurement, do not place the height

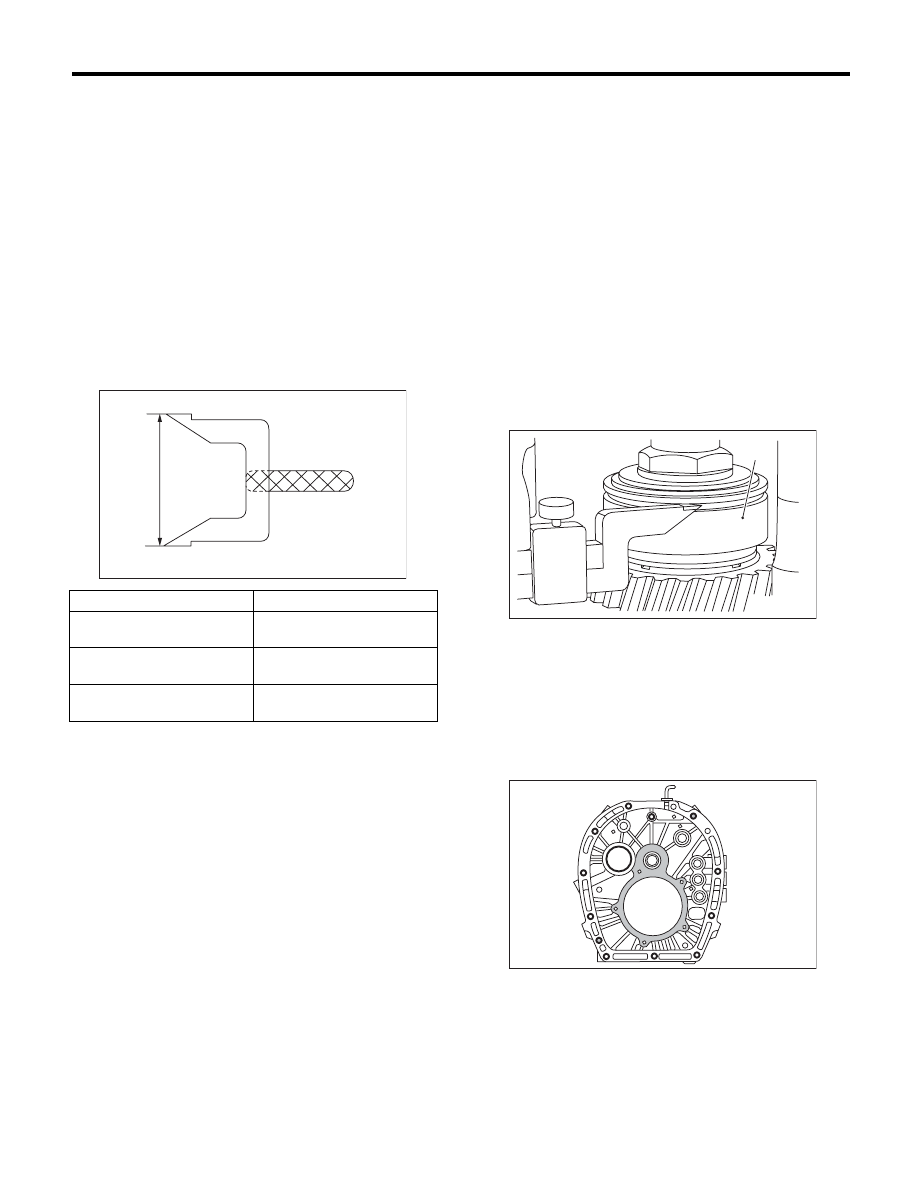

gauge in the shaded area shown in the figure.

T mm (in)

Lot No. (marking)

62.93 — 63.23

(2.4776 — 2.4894)

32801AA180 (1)

63.23 — 63.53

(2.4894 — 2.5012)

32801AA190 (none)

62.63 — 62.93

(2.4657 — 2.4776)

32801AA240 (3)

MT-00705

(A) Ball bearing

MT-00706

(A)

MT-00583

6MT-118

Shifter Fork and Rod

MANUAL TRANSMISSION AND DIFFERENTIAL

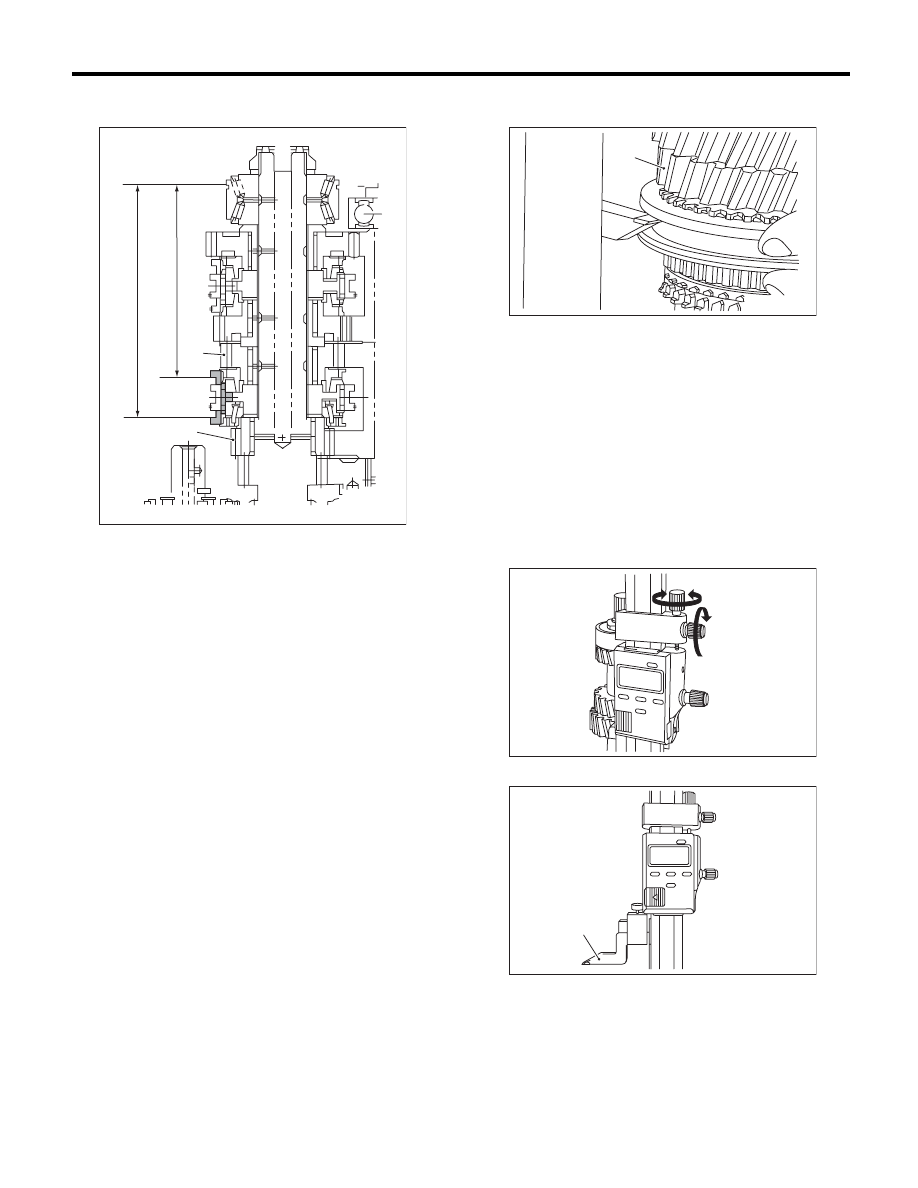

3) Use a height gauge to measure “C1” and “C2” as
shown in the figure.

(1) Shift the 3rd-4th sleeve to the 4th gear side,
push up on the stopper, and measure “C2”.

NOTE:

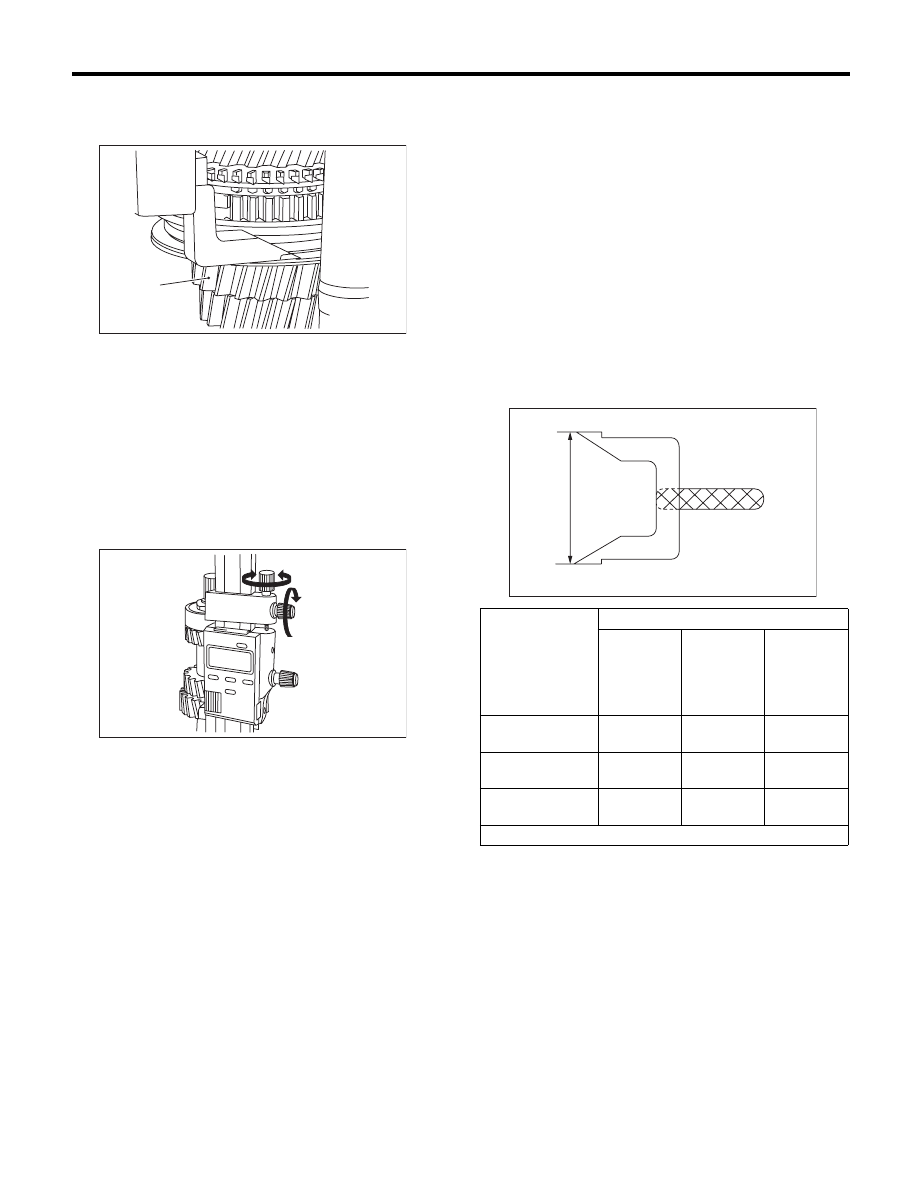

• Set the height gauge indicator near the measure-
ment target, and lock dial (1) as shown in the figure.
• Turn dial (2), and set the indicator to the 4th side
end surface of the sleeve.
• The measurement is to be performed with 2 per-
sons, while holding the sleeve straight.
• Turn approximately 72° at a time, and measure
the sleeve in 5 locations. Round down the 2 highest
and 2 lowest measurement values. The remaining
center value is used as the measurement value.

(2) Set the height gauge indicator upside down.

(A) 3rd drive gear

(B) 4th drive gear

MT-00707

(A)

(B)

(A) 4th drive gear

(A) Indicator

MT-00708

(A)

MT-00585

(2)

(1)

MT-00710

(A)

6MT-119

Shifter Fork and Rod

MANUAL TRANSMISSION AND DIFFERENTIAL

(3) Shift the 3rd-4th sleeve to the 3rd drive gear
side, push down to the stopper, and measure
“C1”.

NOTE:
• Set the height gauge indicator near the measure-
ment target, and lock dial (1) as shown in the figure.
Turn dial (2), and set the indicator to the 3rd side
end surface of the sleeve.
• Turn approximately 72° at a time, and measure
the sleeve in 5 locations. Round down the 2 highest
and 2 lowest measurement values. The remaining
center value is used as the measurement value.

4) According to both of the measurements, calcu-
late the neutral position of the 3rd-4th sleeve. From
the following calculation, select a fork rod which
matches the calculated value.
Calculation: T = (C1 + C2) / 2
T: 3rd-4th sleeve center position
C1: Measured depth from the main shaft rear bear-
ing snap ring groove to the sleeve end, when shift-
ed to 3rd gear: +55 mm (2.17 in)
C2: Measured depth from the main shaft rear bear-
ing snap ring groove to the sleeve end, when shift-
ed to 4th gear

NOTE:
Attach the indicator upside down in comparison to
the setting procedures for the 0 point. Add “d1”
[Value: 55 mm (2.17 in)] from the figure below to
“C1”, and measure “C1”.

(A) 3rd drive gear

MT-00711

(A)

MT-00585

(2)

(1)

T mm (in)

Lot No. (marking)

M.SFT
Snap ring
805072010
[t = 1.65 mm
(0.065 in)]

M.SFT
Snap ring
805072011
[t = 1.95 mm
(0.077 in)]

M.SFT
Snap ring
805072012
[t = 2.25 mm
(0.089 in)]

137.22 — 137.52

(5.4024 — 5.4142)

32809AA171

(none)

32809AA181

(2)

32809AA191

(4)

137.52 — 137.82

(5.4142 — 5.4260)

32809AA161

(1)

32809AA171

(none)

32809AA181

(2)

137.82 — 138.12

(5.4260 — 5.4379)

32809AA141

(3)

32809AA161

(1)

32809AA171

(none)

T = Thickness

MT-00705

6MT-120

Shifter Fork and Rod

MANUAL TRANSMISSION AND DIFFERENTIAL

3. 5TH-6TH FORK ROD SELECTION

NOTE:
In the following conditions, perform the procedures
below.
• Replacing the main shaft
• 3rd to 6th drive gear and bushing replacement
• Replacing the 3rd to 6th synchro ring assemblies
• Replacing the 3rd-4th hub and sleeve assem-
blies
• Replacing the 5th-6th hub and sleeve assem-
blies
1) Insert the main shaft assembly into the adapter
plate.
2) Set the height gauge to the adapter plate. Lower
the height gauge indicator to the upper face of the
snap ring groove or the upper side of the main rear
bearing. Set to 0 point.
ST

18853AA000

HEIGHT GAUGE

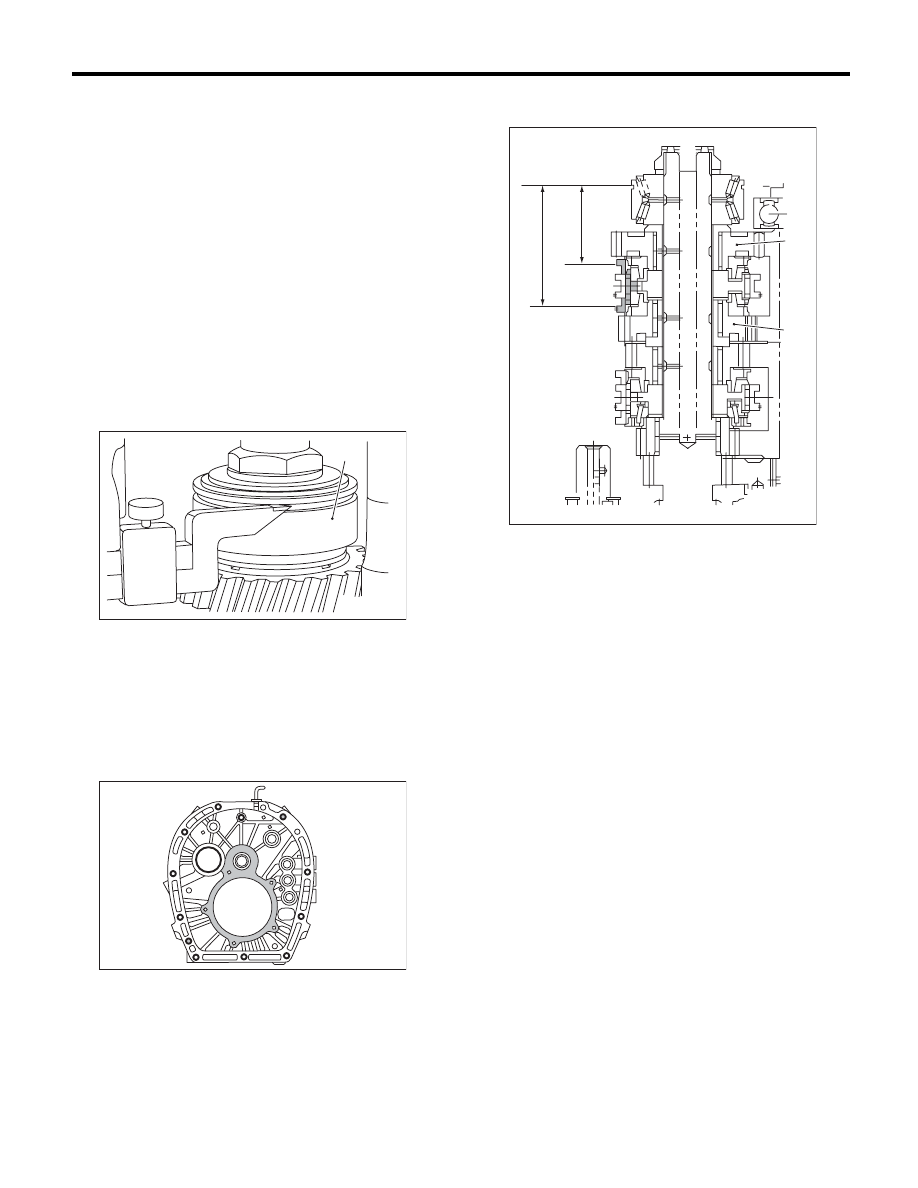

3) Use a height gauge to measure “D1” and “D2” as
shown in the figure.

(A) Ball bearing

MT-00706

(A)

MT-00583

(A) 5th main gear

(B) 6th main gear

MT-00712

(A)

(B)
