5AT-52

Front Vehicle Speed Sensor

AUTOMATIC TRANSMISSION

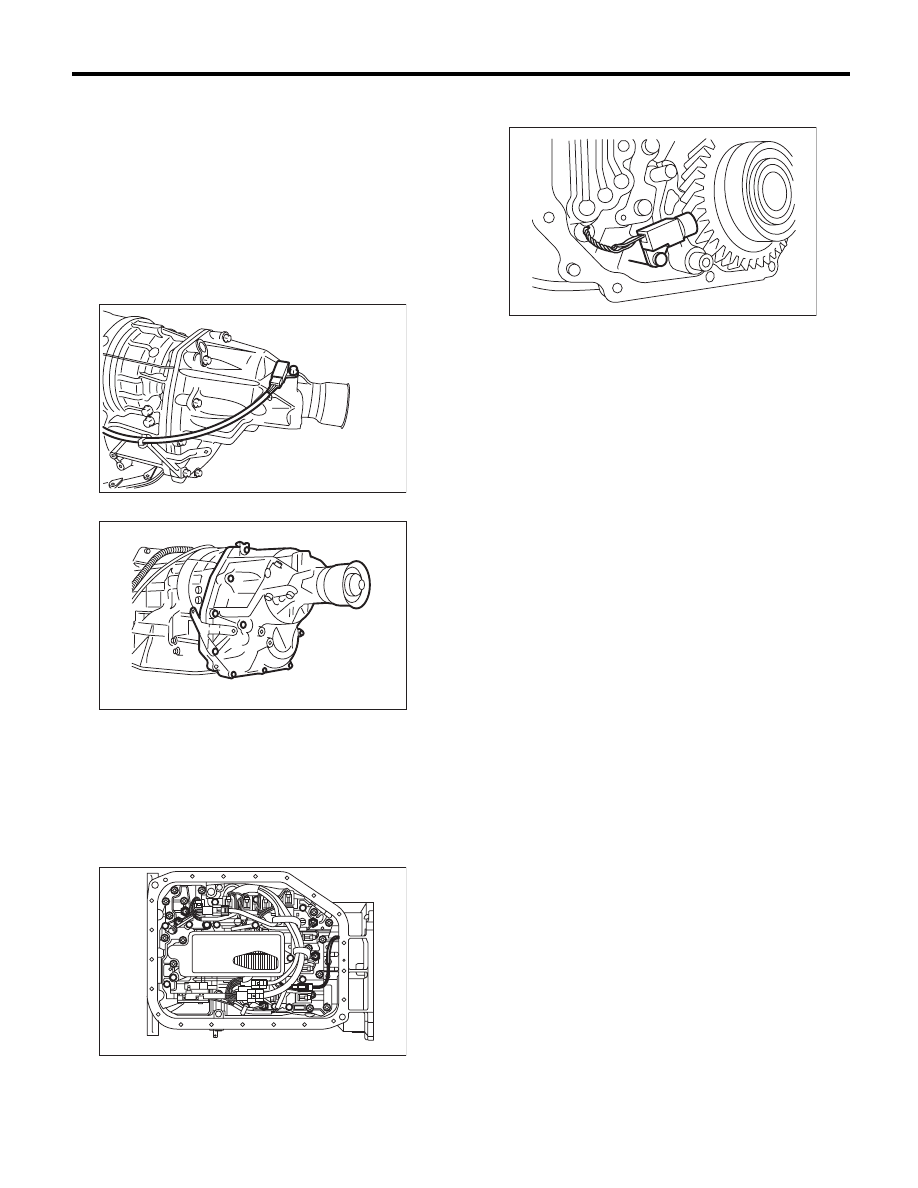

14.Front Vehicle Speed Sensor

A: REMOVAL

1) Remove the transmission assembly from vehicle
body. <Ref. to 5AT-39, REMOVAL, Automatic
Transmission Assembly.>
2) Disconnect the rear vehicle speed sensor con-
nector.

NOTE:
Secure the harness of the transmission harness to
the transmission body using wire etc.

3) Remove the extension case.

4) Remove the center differential carrier. <Ref. to
5AT-77, REMOVAL, Center Differential Carrier.>
5) Lay along the transmission case, and then re-
move the oil pan.
6) Remove the old gasket on the oil pan and trans-
mission case completely.
7) Disconnect the front vehicle speed sensor con-
nector.

8) Remove the front vehicle speed sensor securing
bolt.

9) Remove the front vehicle speed sensor through
the hole of AT transmission main case.

AT-04218

AT-03226

AT-04219

AT-03227

5AT-53

Front Vehicle Speed Sensor

AUTOMATIC TRANSMISSION

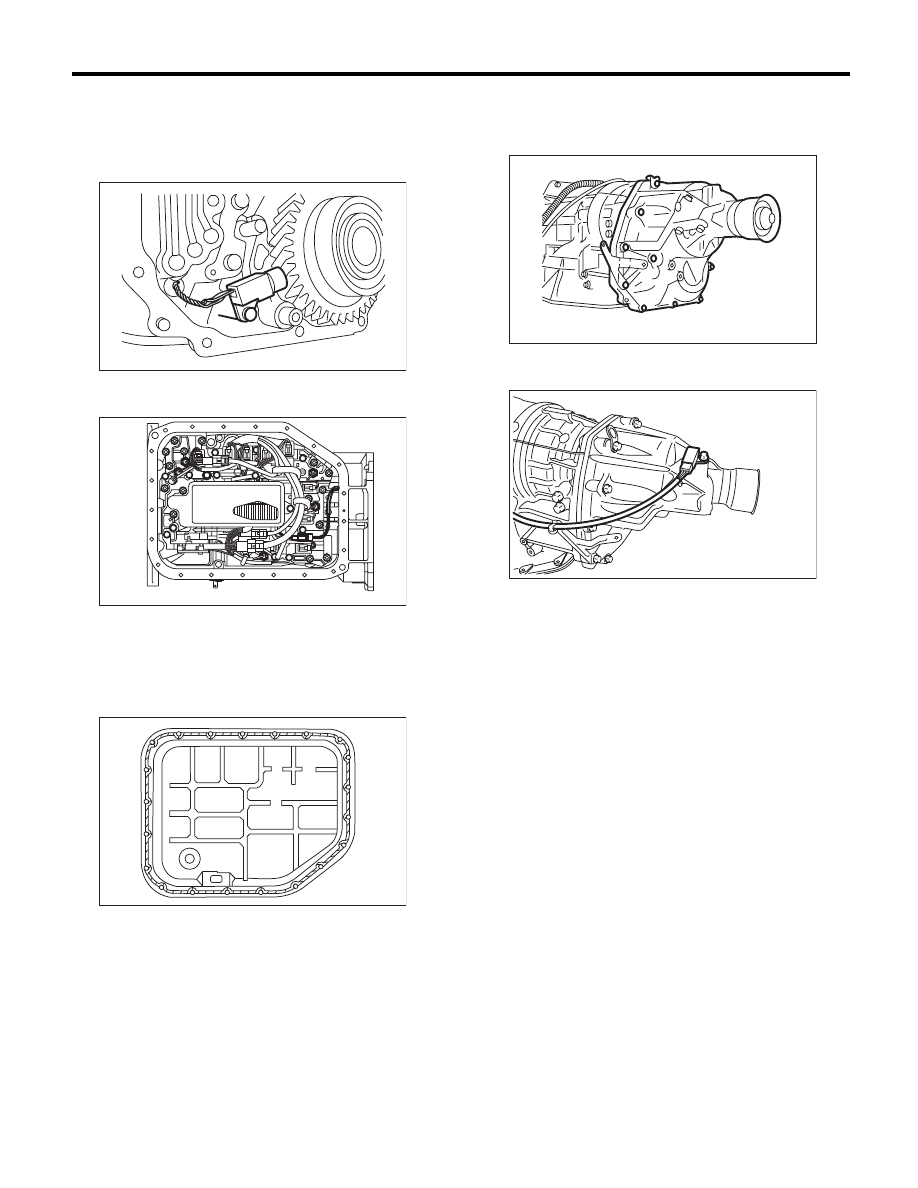

B: INSTALLATION

1) Install the front vehicle speed sensor.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

2) Connect the front vehicle speed sensor connec-
tor.

3) Apply proper amount of liquid gasket to the en-
tire oil pan mating surface.

Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020)
or equivalent

4) Install the oil pan by equally tightening the bolts.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

5) Install the center differential carrier. <Ref. to
5AT-77, INSTALLATION, Center Differential Carri-
er.>

6) Install the extension case.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

7) Connect the rear vehicle speed sensor connec-
tor.

8) Install the transmission assembly to the vehicle.
<Ref. to 5AT-43, INSTALLATION, Automatic
Transmission Assembly.>
9) Pour ATF from the oil charge pipe. <Ref. to 5AT-
28, Automatic Transmission Fluid.>
10) Check the level and leaks of ATF. <Ref. to 5AT-
28, INSPECTION, Automatic Transmission Fluid.>

AT-03227

AT-04219

AT-03249

AT-03226

AT-04218

5AT-54

Rear Vehicle Speed Sensor

AUTOMATIC TRANSMISSION

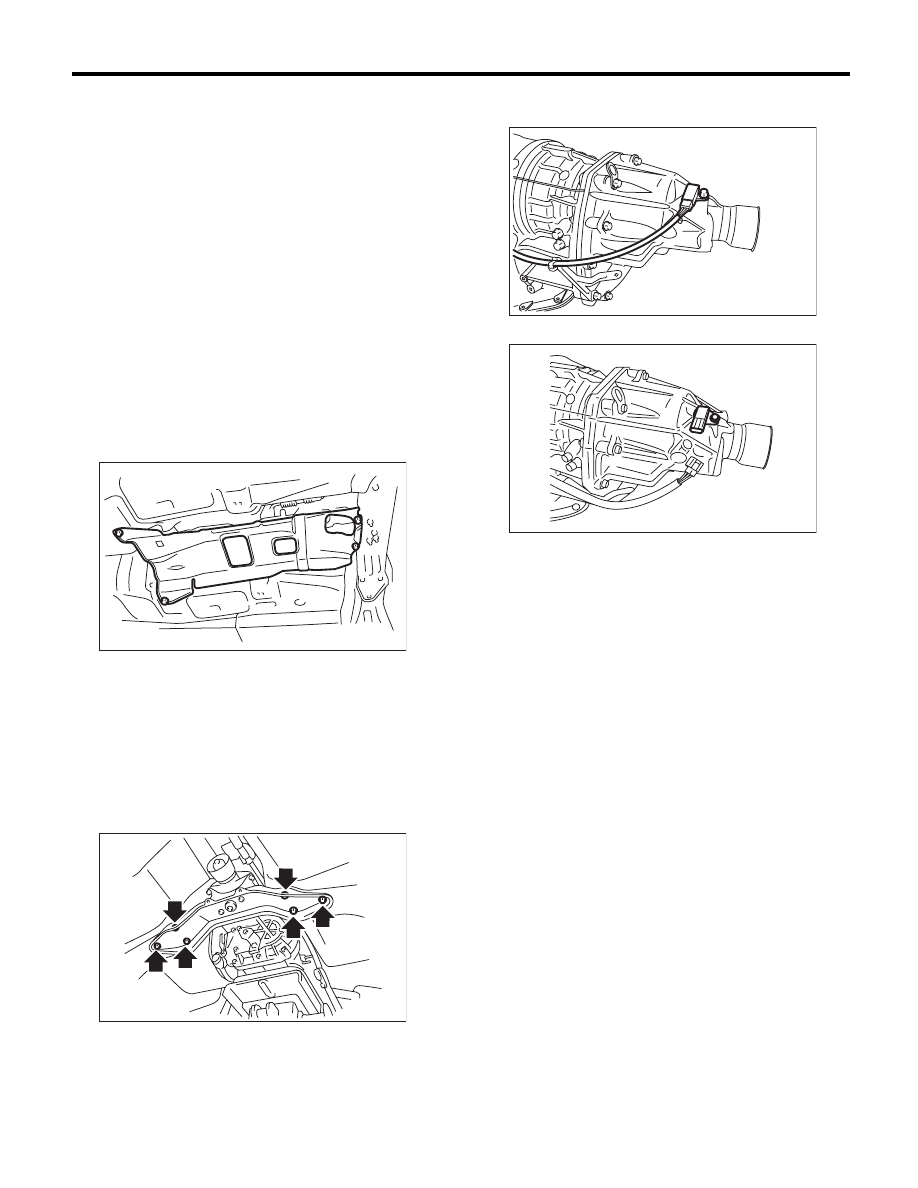

15.Rear Vehicle Speed Sensor

A: REMOVAL

1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Lift up the vehicle.
4) Clean the transmission exterior.
5) Drain the ATF completely. <Ref. to 5AT-28, RE-
PLACEMENT, Automatic Transmission Fluid.>
6) Remove the center and rear exhaust pipes and
the muffler. (Turbo model) <Ref. to EX(H4DOTC)-
7, REMOVAL, Center Exhaust Pipe.> <Ref. to
EX(H4DOTC)-12, REMOVAL, Rear Exhaust
Pipe.> <Ref. to EX(H4DOTC)-14, REMOVAL, Muf-
fler.>
7) Remove the rear exhaust pipe and muffler.
(Non-turbo model) <Ref. to EX(H6DO)-7, REMOV-
AL, Rear Exhaust Pipe.> <Ref. to EX(H6DO)-9,
REMOVAL, Muffler.>
8) Remove the heat shield cover.

9) Remove the propeller shaft. <Ref. to DS-10, RE-
MOVAL, Propeller Shaft.>
10) Place the transmission jack under the transmis-
sion.

NOTE:
Make sure that the support plate of transmission
jack does not touch the cross.
11) Remove the transmission rear crossmember
bolt.

12) Lower the transmission jack.

NOTE:
Do not separate the transmission jack and trans-
mission.

13) Disconnect the rear vehicle speed sensor con-
nector.

14) Remove the rear vehicle speed sensor.

AT-01331

AT-01377

AT-04218

AT-04261

5AT-55

Rear Vehicle Speed Sensor

AUTOMATIC TRANSMISSION

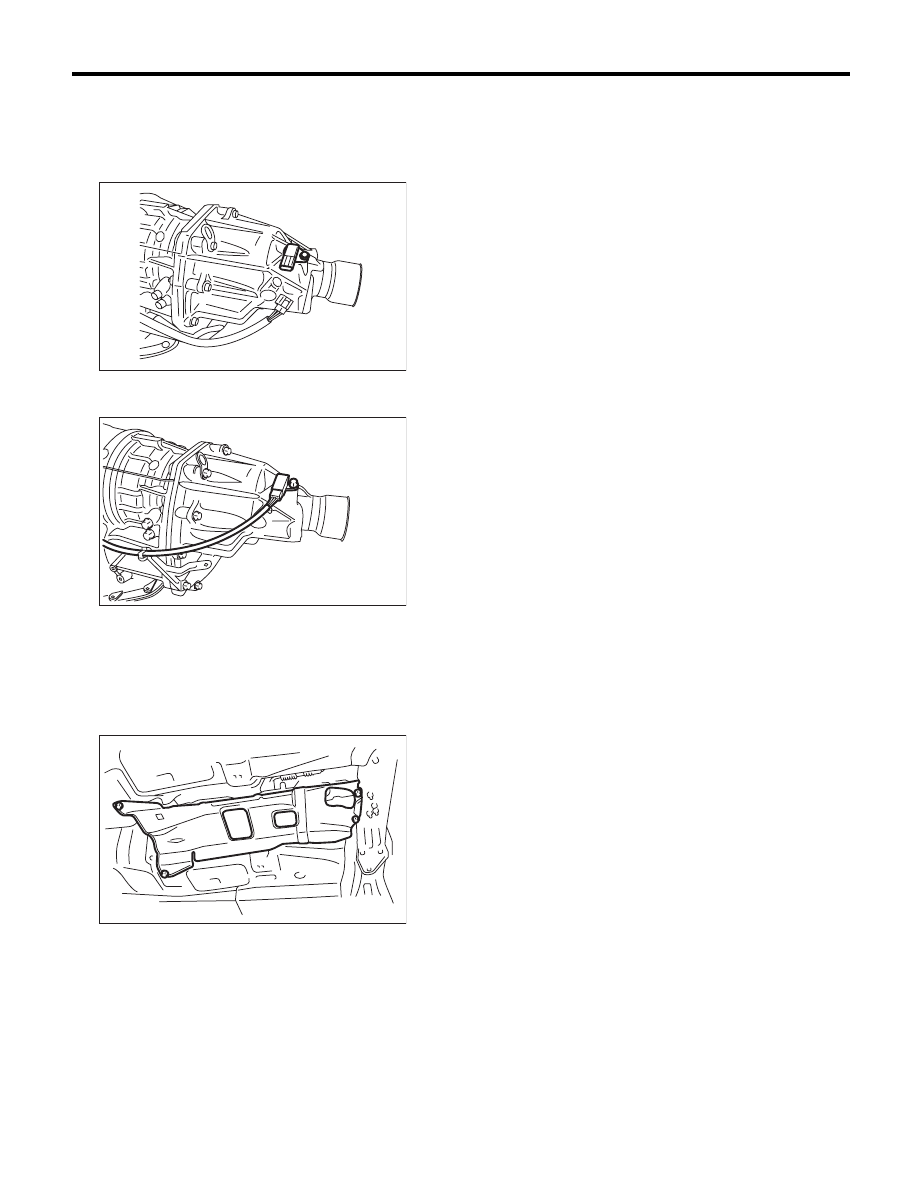

B: INSTALLATION

1) Install the rear vehicle speed sensor.

Tightening torque:

7 N·m (0.7 kgf-m, 5.2 ft-lb)

2) Connect the rear vehicle speed sensor connec-
tor.

3) Install the transmission rear crossmember bolt.

Tightening torque:

75 N·m (7.6 kgf-m, 55.3 ft-lb)

4) Install the propeller shaft. <Ref. to DS-11, IN-
STALLATION, Propeller Shaft.>
5) Install the heat shield cover.

6) Install the center, rear exhaust pipes and the
muffler. (Turbo model) <Ref. to EX(H4DOTC)-9,
INSTALLATION, Center Exhaust Pipe.> <Ref. to
EX(H4DOTC)-13, INSTALLATION, Rear Exhaust
Pipe.> <Ref. to EX(H4DOTC)-14, INSTALLATION,
Muffler.>
7) Install the rear exhaust pipe and muffler. (Non-
turbo model) <Ref. to EX(H6DO)-8, INSTALLA-
TION, Rear Exhaust Pipe.> <Ref. to EX(H6DO)-9,
INSTALLATION, Muffler.>

8) Lower the vehicle.
9) Pour ATF from the oil charge pipe. <Ref. to 5AT-
28, Automatic Transmission Fluid.>
10) Check the level and leaks of ATF. <Ref. to 5AT-
28, INSPECTION, Automatic Transmission Fluid.>

AT-04261

AT-04218

AT-01331
