5AT-8

General Description

AUTOMATIC TRANSMISSION

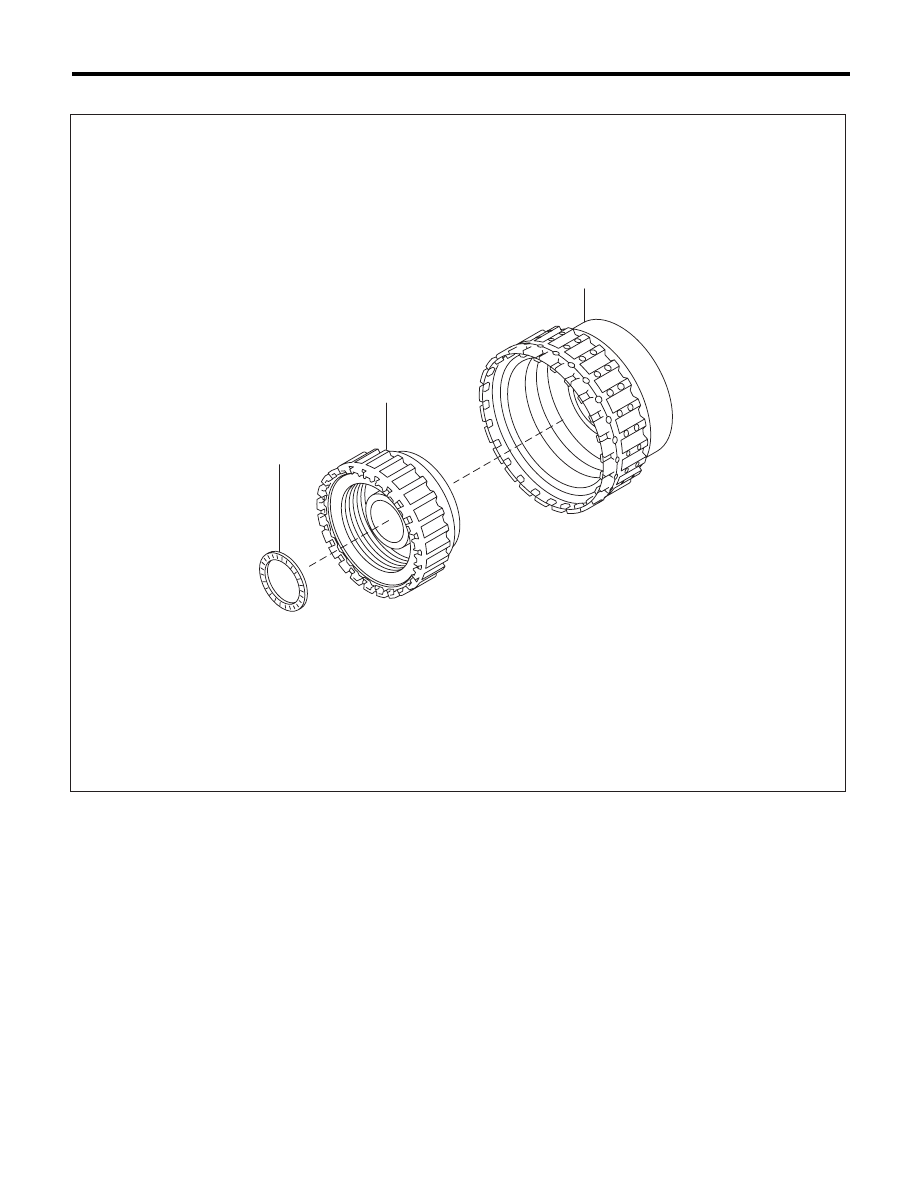

4. DIRECT CLUTCH AND HIGH & LOW REVERSE CLUTCH

(1)

Thrust bearing

(2)

High & low reverse clutch ASSY

(3)

Direct clutch ASSY

AT-02018

(3)

(2)

(1)

5AT-9

General Description

AUTOMATIC TRANSMISSION

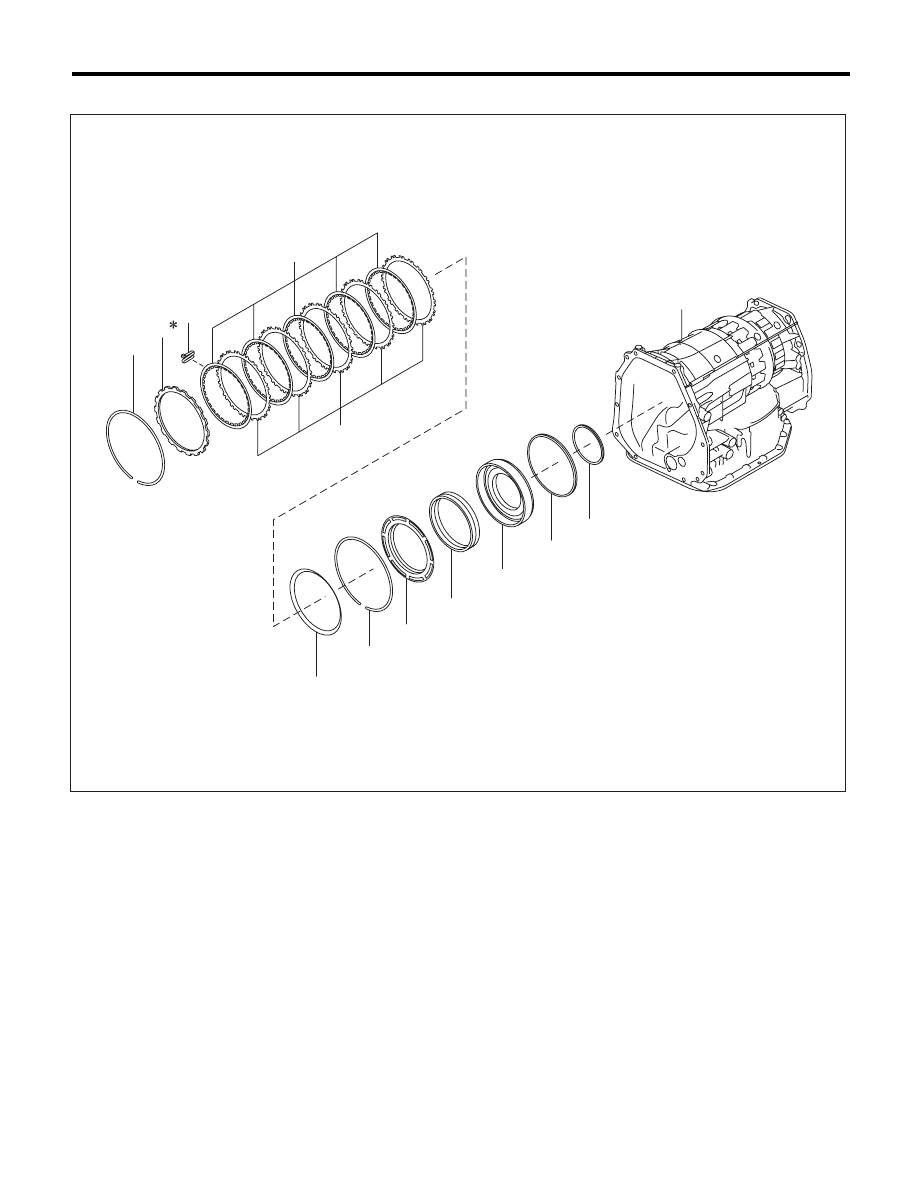

5. REVERSE BRAKE

(1)

Snap ring

(6)

Dish plate

(10)

Reverse brake piston

(2)

Retainer plate

(7)

Snap ring

(11)

D-ring (Outer)

(3)

Leaf spring

(8)

Retainer

(12)

D-ring (Inner)

(4)

Drive plate

(9)

Leaf spring

(13)

AT main case

(5)

Driven

plate





AT-03007

(1)

(6)

(5)

(7)

(8)

(9)

(10)

(11)

(12)

(4)

(2)

(3)

(13)

5AT-10

General Description

AUTOMATIC TRANSMISSION

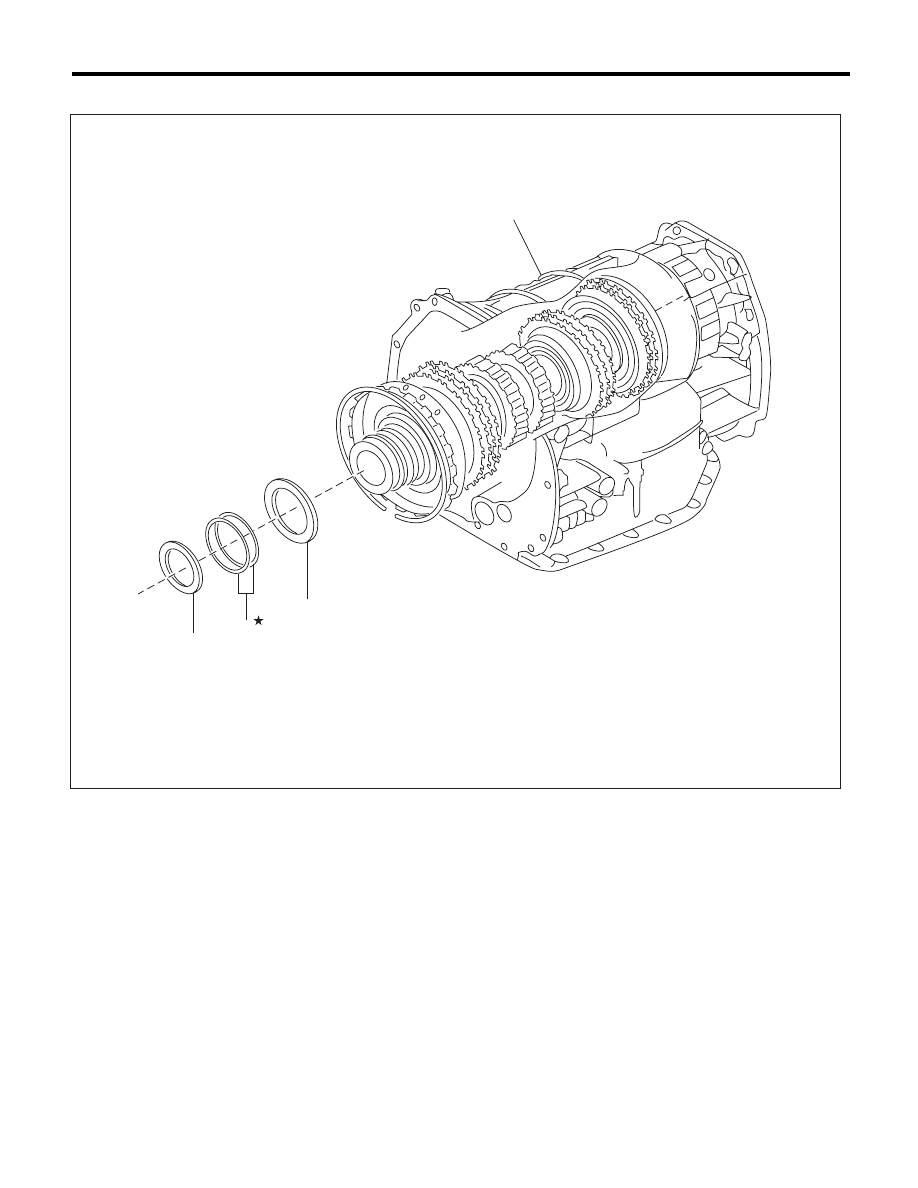

6. SHORT AT ASSEMBLY

(1)

Short AT ASSY
(Non-disassembled)

(2)

Thrust bearing

(4)

Thrust bearing

(3)

Seal ring





(1)

AT-04385

(2)

(3)

(4)

5AT-11

General Description

AUTOMATIC TRANSMISSION

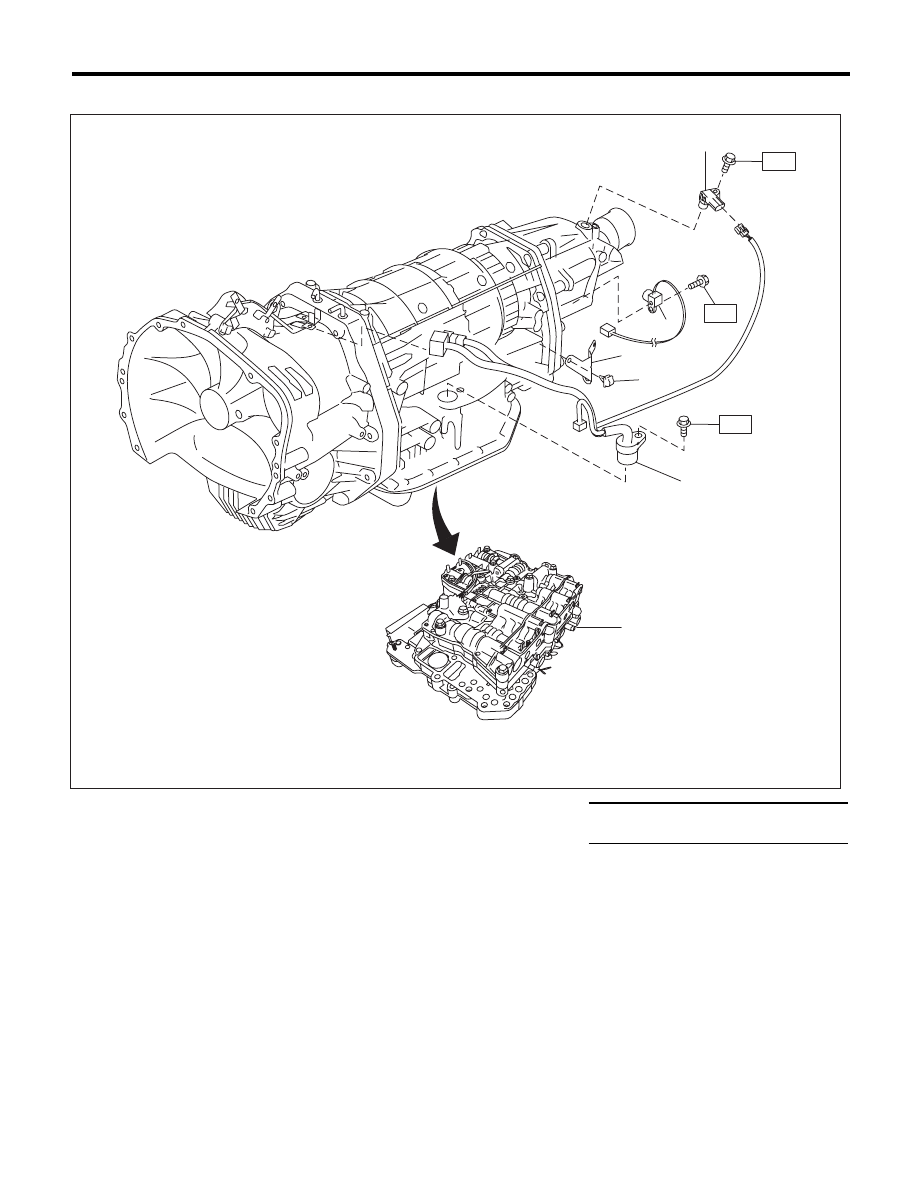

7. CONTROL VALVE & TRANSMISSION HARNESS

(1)

Rear vehicle speed sensor

(4)

Harness bracket

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Transmission harness ASSY

(5)

Clip

T: 7 (0.7, 5.2)

(3)

Front vehicle speed sensor

(6)

Control valve ASSY





AT-04215

(1)

(3)

(4)

(5)

(6)

(2)

T

T

T
