5AT-4

General Description

AUTOMATIC TRANSMISSION

B: COMPONENT

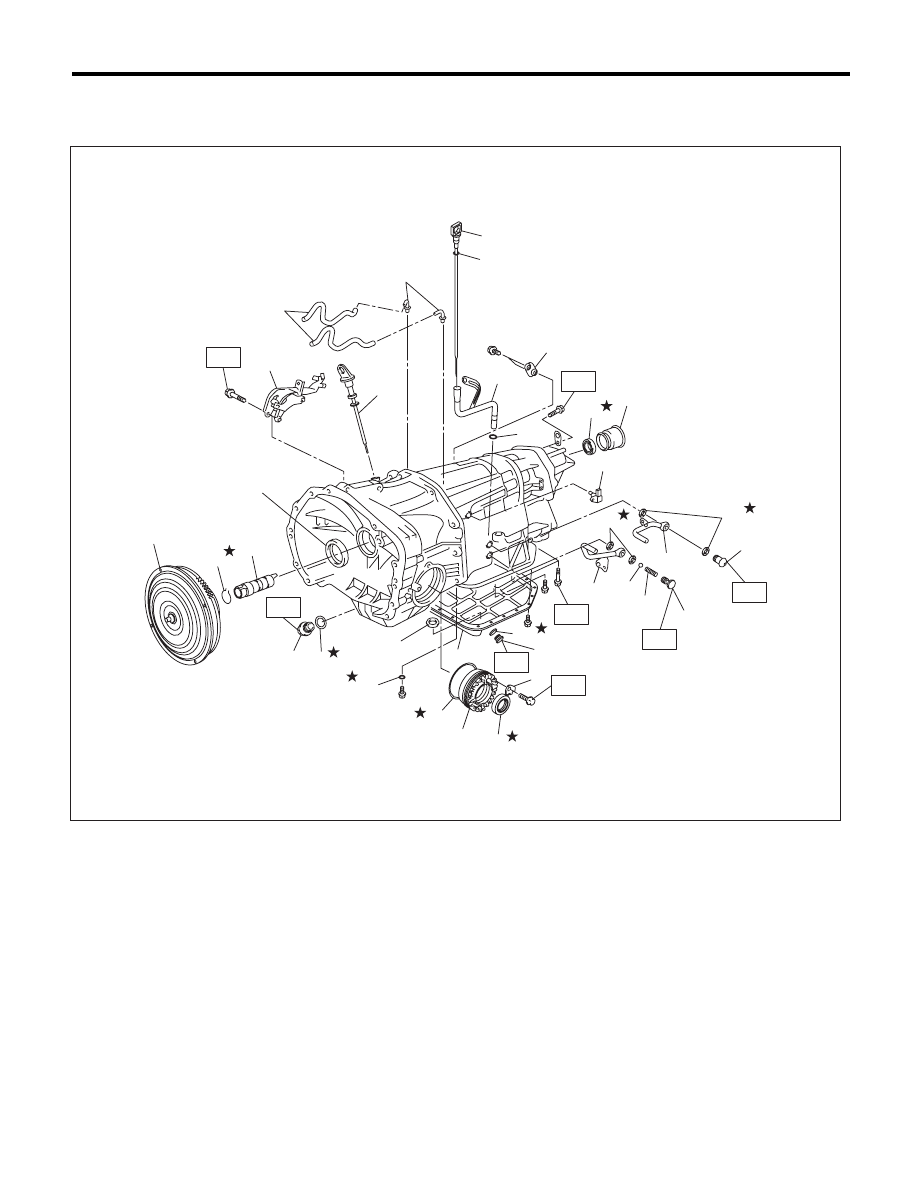

1. TORQUE CONVERTER CLUTCH & TRANSMISSION ASSEMBLY

T7

T5

T3

T6

T1

T2

T4

T3

(12)

(11)

(7)

(6)

(10)

(21)

(20)

(23)

(26)

(25)

(24)

(27)

(30)

(19)

(22)

(18)

(17)

(34)

(32)

(16)

(15)

(14)

(13)

(28)

(4)

(5)

(1)

(2)

(3)

(8)

(29)

(33)

(31)

(9)

(17)

AT-04325

5AT-5

General Description

AUTOMATIC TRANSMISSION

(1)

Torque converter ASSY

(16)

O-ring

(30)

O-ring

(2)

Circlip

(17)

Gasket

(31)

Oil seal

(3)

Oil pump shaft

(18)

Union screw

(32)

Dust cover

(4)

Differential oil level gauge

(19)

Ball

(33)

Floating bracket

(5)

Pitching stopper bracket

(20)

Spring

(34)

Turbine speed sensor 1

(6)

Differential oil drain plug

(21)

Union screw





(7)

Gasket

(22)

ATF outlet pipe

Tightening torque:N·m (kgf-m, ft-lb)

(8)

Oil seal

(23)

ATF inlet pipe

T1: 5 (0.5, 3.7)

(9)

Lock plate

(24)

Magnet

T2: 20 (2.0, 14.8)

(10)

Side retainer

(25)

Oil pan

T3: 25 (2.5, 18.4)

(11)

O-ring

(26)

Gasket

T4: 40 (4.1, 29.5)

(12)

Oil seal

(27)

ATF drain plug

T5: 41 (4.2, 30.2)

(13)

ATF level gauge

(28)

Breather hose

T6: 45 (4.6, 33.2)

(14)

O-ring

(29)

Nipple

T7: 70 (7.1, 51.6)

(15)

Oil charge pipe





5AT-6

General Description

AUTOMATIC TRANSMISSION

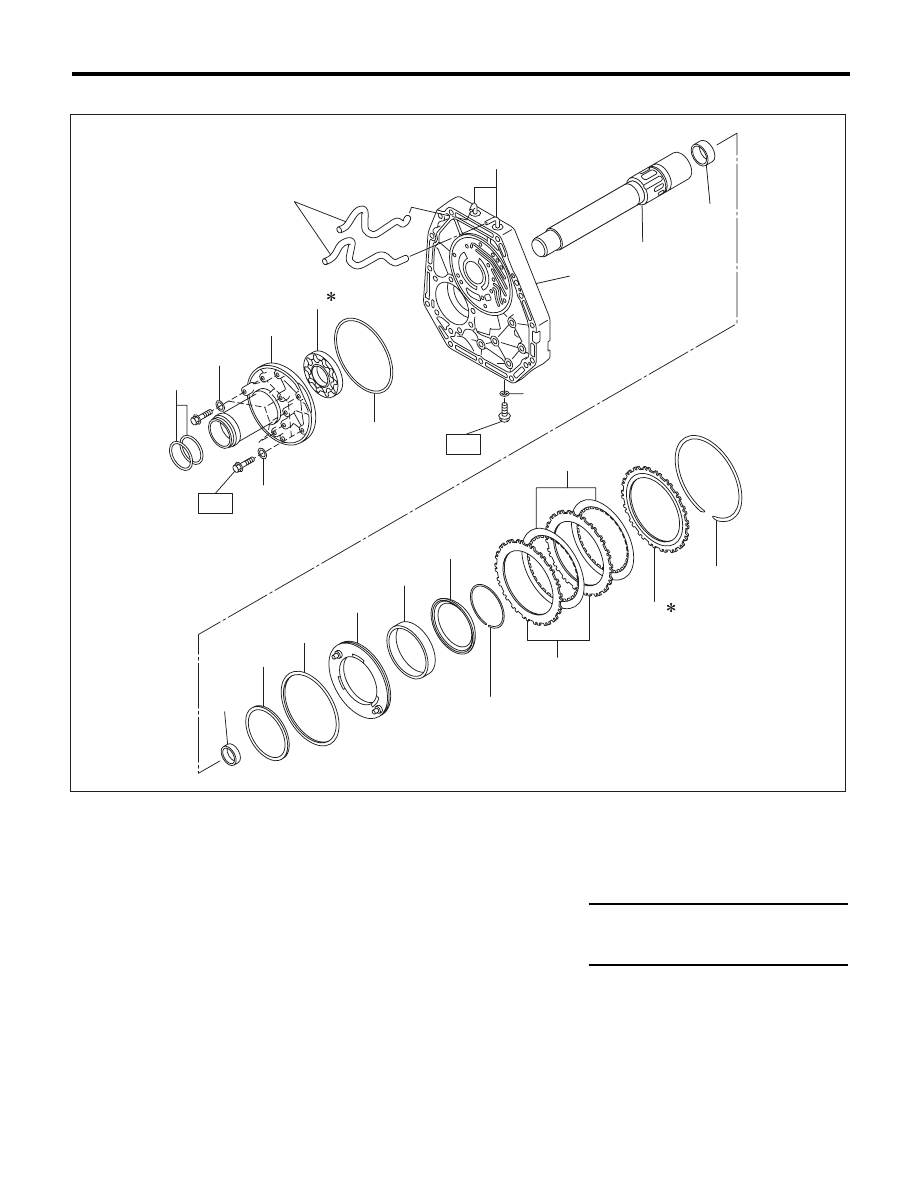

2. OIL PUMP & FRONT BRAKE

(1)

O-ring

(10)

Needle bearing

(19)

Retainer plate

(2)

Washer

(11)

D-ring (Inner)

(20)

Snap ring

(3)

Oil pump housing

(12)

D-ring (Outer)

(21)

Stator shaft

(4)

Oil pump rotor

(13)

Front brake piston

(22)

Needle bearing

(5)

O-ring

(14)

Return spring





(6)

Air breather hose

(15)

Retainer

Tightening torque:N·m (kgf-m, ft-lb)

(7)

Oil pump cover

(16)

Snap ring

T1: 10 (1.0, 7.4)

(8)

O-ring

(17)

Driven plate

T2: 13 (1.3, 9.6)

(9)

Nipple

(18)

Drive plate





AT-03806

(7)

(9)

(20)

(19)

(16)

(17)

(5)

(6)

(18)

(8)

(15)

(4)

(3)

(2)

(2)

(1)

(14)

(13)

(12)

(11)

(21)

(22)

(10)

T1

T2

5AT-7

General Description

AUTOMATIC TRANSMISSION

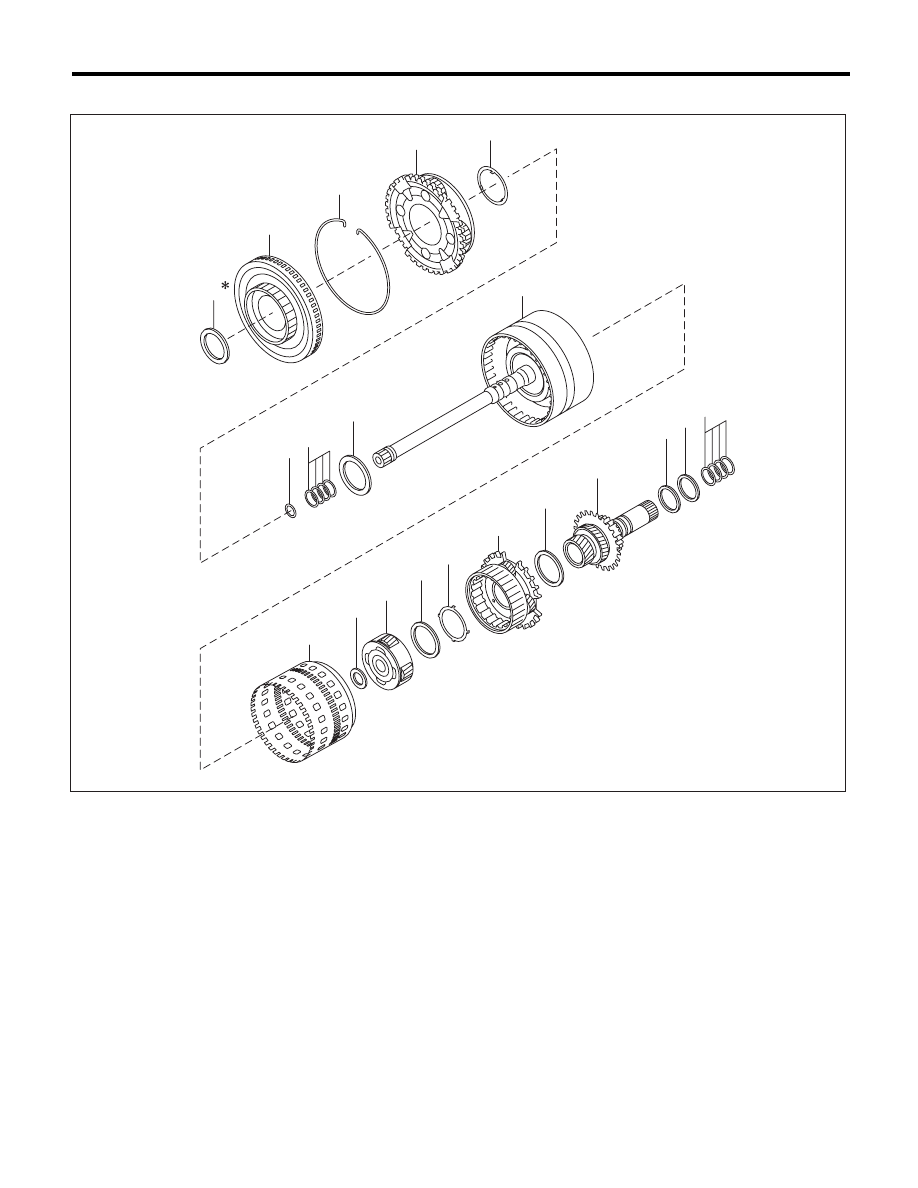

3. FRONT PLANETARY CARRIER AND MIDDLE & REAR PLANETARY CARRIER

(1)

Thrust bearing

(8)

Thrust bearing

(15)

Rear carrier ASSY

(2)

Front sun gear ASSY

(9)

Input clutch ASSY

(16)

Thrust bearing

(3)

Snap ring

(10)

Rear internal gear ASSY

(17)

Middle & rear sun gear ASSY

(4)

Front carrier ASSY

(11)

Thrust bearing

(18)

Washer

(5)

Race bearing

(12)

Middle carrier ASSY

(19)

Thrust bearing

(6)

O-ring

(13)

Thrust bearing

(20)

Seal ring

(7)

Seal ring

(14)

Race bearing





AT-03006

(2)

(6)

(7)

(8)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(9)

(3)

(4)

(5)

(1)

(20)
