CS-27

Select Lever

CONTROL SYSTEMS

D: ASSEMBLY

1) Clean all the parts before assembly.
2) Apply NIGTIGHT LYW No. 2 grease or the
equivalent to each part. <Ref. to CS-3, AT SELECT
LEVER, COMPONENT, General Description.>
3) Assemble in the reverse order of disassembly.

NOTE:
• Refer to “COMPONENT” for each tightening
torque. <Ref. to CS-3, AT SELECT LEVER, COM-
PONENT, General Description.>
• Connect the switch terminal to the connector.

4) After completing installation, shift the select le-
ver from “P” range to “D” range, then check wheth-
er the indicator and select lever matches, whether
the pointer and position mark matches and what
the operating force is.

E: INSPECTION

1) Inspect the removed parts by comparing with
new parts for deformation, damage and wear. Re-
pair or replace if defective.
2) Confirm the select lever operating condition be-
fore assembly. Normal if it operates smoothly.

(A) “P” range switch

CS-00529

3
9 8 7

2 1
6 5

(A)

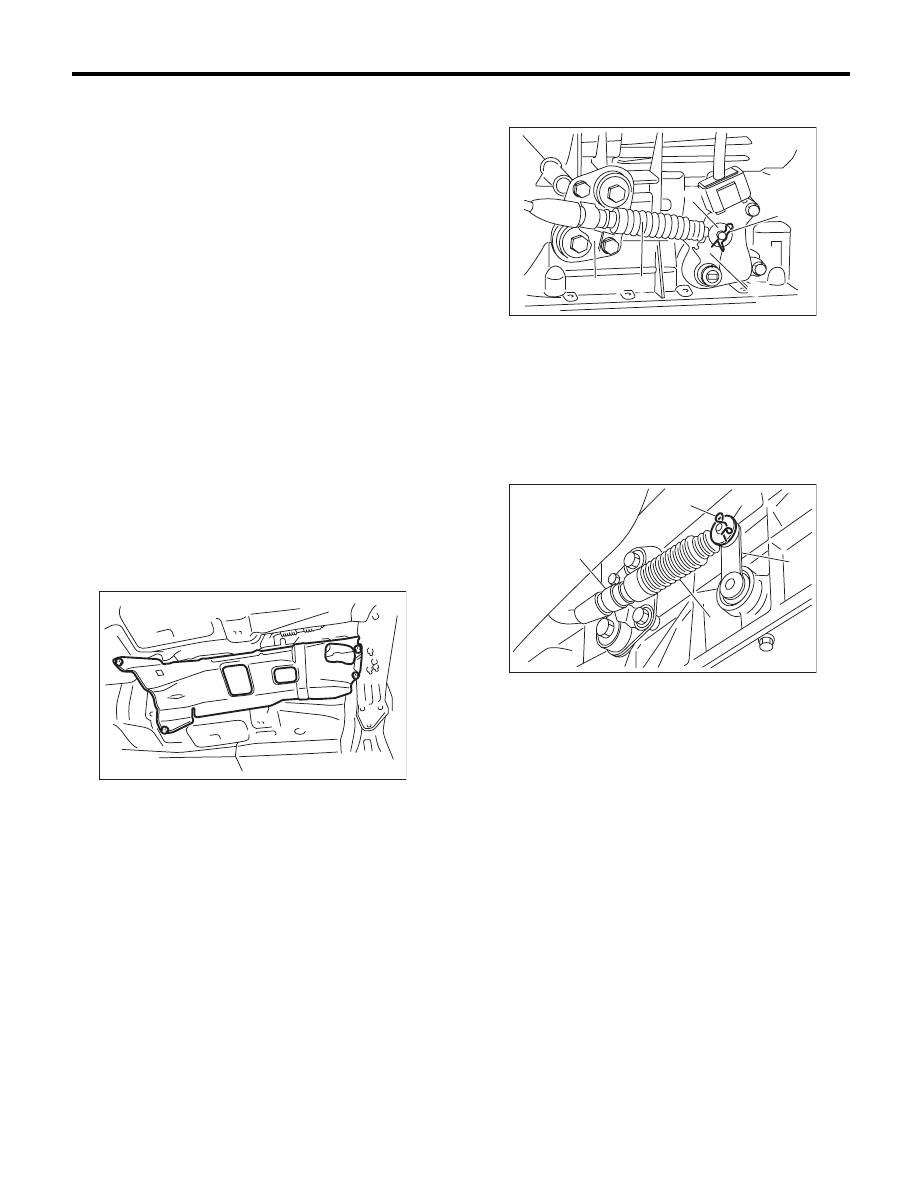

CS-28

Select Cable

CONTROL SYSTEMS

4. Select Cable

A: REMOVAL

1) Set the vehicle on a lift.
2) Shift the select lever to “N” range.
3) Disconnect the ground cable from the battery.
4) Lift up the vehicle.
5) Remove the front, center and rear exhaust pipes
and the muffler. (Non-turbo model)
• SOHC model
<Ref. to EX(H4SO)-4, REMOVAL, Front Exhaust
Pipe.> <Ref. to EX(H4SO)-7, REMOVAL, Center
Exhaust Pipe.> <Ref. to EX(H4SO)-8, REMOVAL,
Rear Exhaust Pipe.> <Ref. to EX(H4SO)-10, RE-
MOVAL, Muffler.>
• DOHC 3.0 L model
<Ref. to EX(H6DO)-4, REMOVAL, Front Exhaust
Pipe.> <Ref. to EX(H6DO)-7, REMOVAL, Rear Ex-
haust Pipe.> <Ref. to EX(H6DO)-9, REMOVAL,
Muffler.>
6) Remove the center and rear exhaust pipes and
the muffler. (Turbo model)
<Ref. to EX(H4DOTC)-7, REMOVAL, Center Ex-
haust Pipe.> <Ref. to EX(H4DOTC)-12, REMOV-
AL, Rear Exhaust Pipe.> <Ref. to EX(H4DOTC)-
14, REMOVAL, Muffler.>
7) Remove the heat shield cover.

8) Remove the snap pin and washer from the
shifter arm. (4AT model)

9) Remove the snap pin and washer from the range
select lever. (5AT model)

AT-01331

(A) Shifter arm

(B) Snap pin

(D) Bracket

(E) Washer

(A) Range select lever

(B) Snap pin

(D) Bracket

(E) Washer

CS-00954

(C)

(A)

(B)

(E)

(D)

CS-00327

(B)

(D)

(C)

(E)

(A)

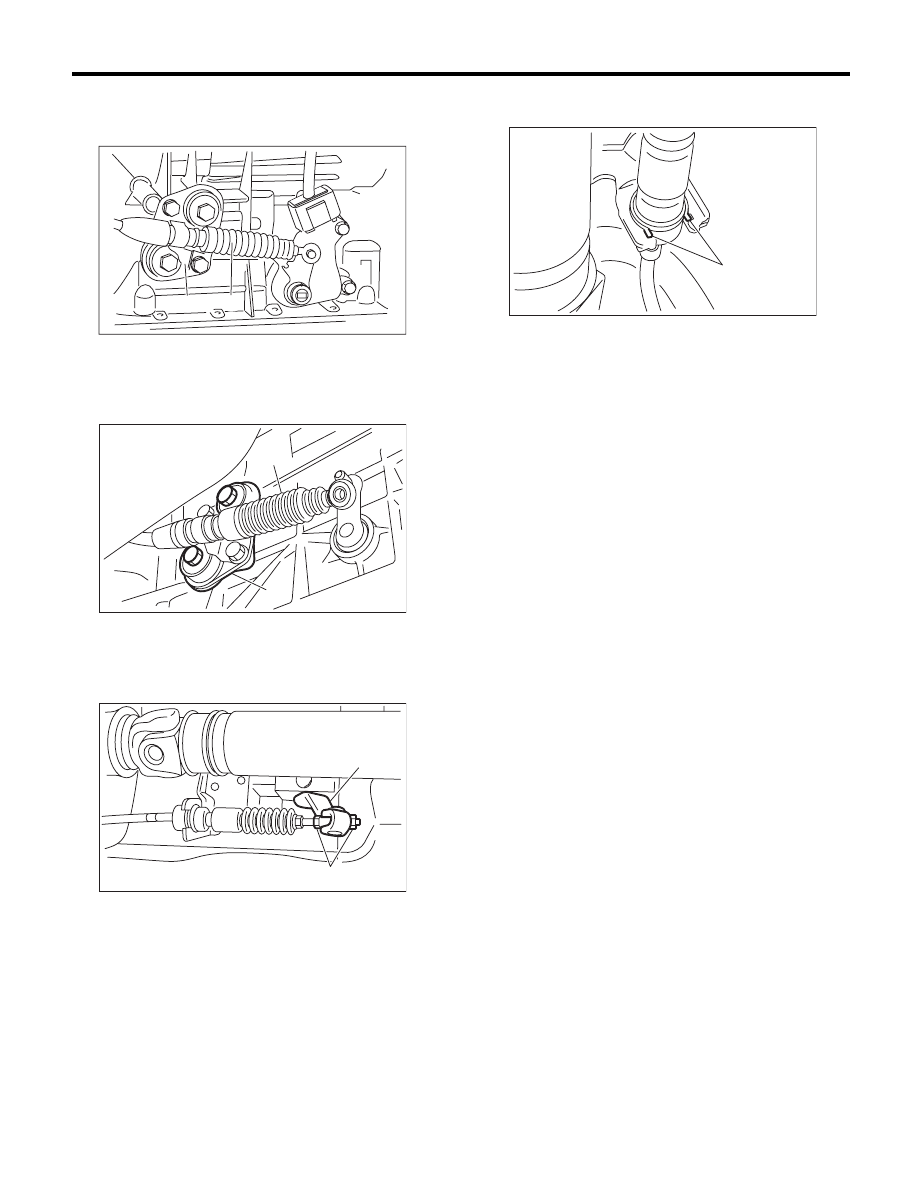

CS-29

Select Cable

CONTROL SYSTEMS

10) Remove the plate assembly from the transmis-
sion case.
• 4AT

• 5AT

11) Disconnect the cable from the arm assembly.

12) Raise the claw of clamp to remove the cable
from bracket.

13) Remove the select cable from plate assembly.

(A) Select cable

(B) Plate ASSY

(A) Select cable

(B) Plate ASSY

(A) Adjusting nut

(B) Arm ASSY

CS-00955

(A)

(B)

(A)

(B)

CS-00328

(B)

CS-00278

(A)

(A) Claw

CS-00279

(A)

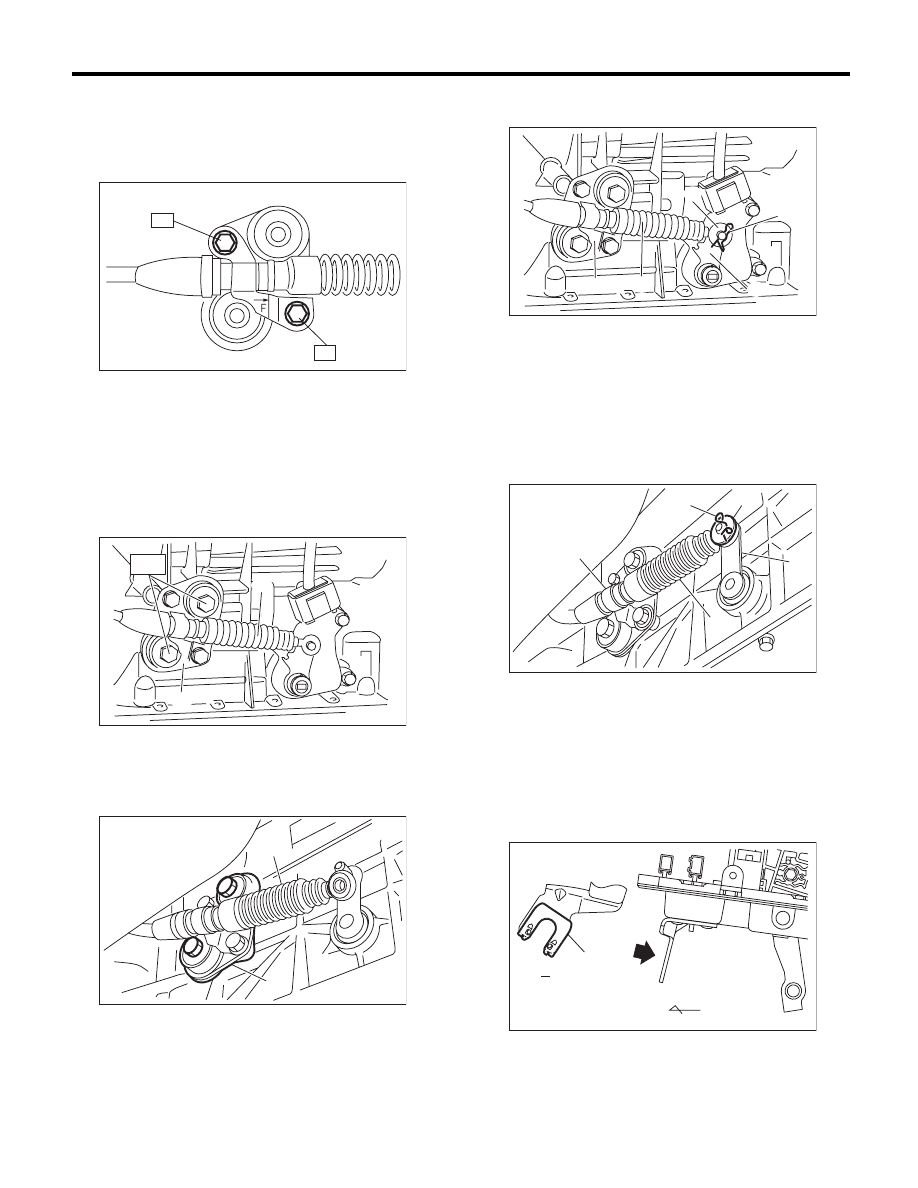

CS-30

Select Cable

CONTROL SYSTEMS

B: INSTALLATION

1) Install the select cable to the plate assembly.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

2) Install the select cable to the shifter arm. (4AT
model)
3) Install the select cable to the range select lever.
(5AT model)
4) Install the plate assembly to the transmission.

Tightening torque:

T: 25 N·m (2.5 kgf-m, 18.4 ft-lb)

• 4AT

• 5AT

5) Install the washer and snap pin to the shifter
arm. (4AT model)

6) Install the washer and snap pin to the range se-
lect lever. (5AT model)

7) Install new clamp paying attention to the install-
ing direction.

(A) Select cable

(B) Plate ASSY

(A) Select cable

(B) Plate ASSY

CS-00607

CS-00956

(B)

(A)

(B)

CS-00328

(A) Shifter arm

(B) Snap pin

(D) Bracket

(E) Washer

(A) Range select lever

(B) Snap pin

(D) Bracket

(E) Washer

(A) Clamp

(B) Forward

CS-00954

(C)

(A)

(B)

(E)

(D)

CS-00327

(B)

(D)

(C)

(E)

(A)

CS-00329

(A)

(B)
