ME(H6DO)-14

General Description

MECHANICAL

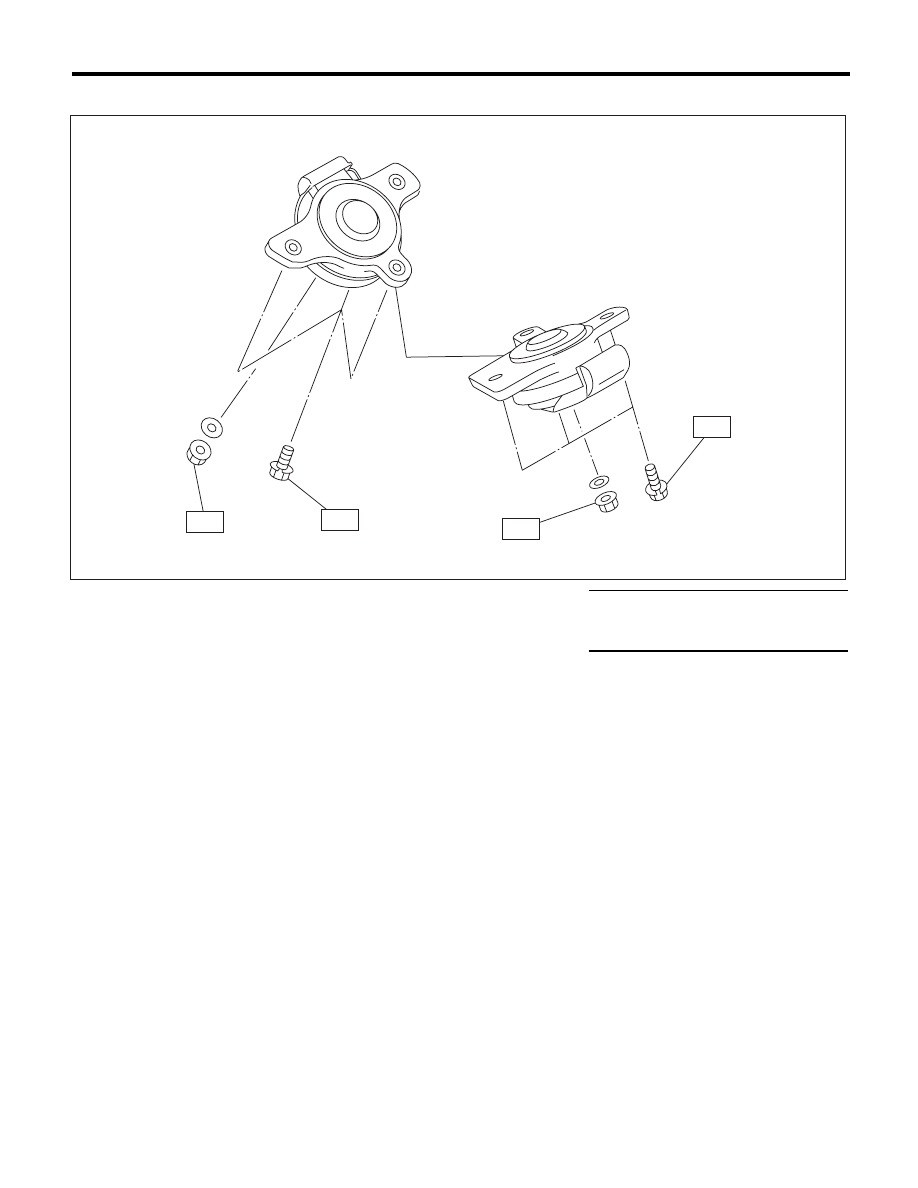

8. ENGINE MOUNTING

(1)

Front cushion rubber





Tightening torque:N·m (kgf-m, ft-lb)









T1: 35 (3.6, 25.8)









T2: 85 (8.7, 62.7)

(1)

T2

T1

T1

T2

ME-00445

ME(H6DO)-15

General Description

MECHANICAL

C: CAUTION

• Wear appropriate work clothing, including a cap, protective goggles and protective shoes when performing
any work.
• Remove contamination including dirt and corrosion before removal, installation or disassembly.
• Keep the disassembled parts in order and protect them from dust and dirt.
• Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, in-
stallation, disassembly and replacement.
• Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
• Be sure to tighten fasteners including bolts and nuts to the specified torque.
• Place shop jacks or rigid racks at the specified points.
• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from the bat-
tery.
• All parts should be thoroughly cleaned, paying special attention to engine oil passages, pistons and bear-
ings.
• Rotating parts and sliding parts such as piston, bearing and gear should be coated with oil prior to assem-
bly.
• All removed parts, if to be reused, should be reinstalled in the original positions and directions.
• Bolts, nuts and washers should be replaced with new parts as required.
• Even if necessary inspections have been made in advance, proceed with assembly work while making re-
checks.
• Remove or install the engine in an area where chain hoists, lifting devices, etc. are available for ready use.
• Be sure not to damage coated surfaces of body panels with tools, or not to stain seats and windows with
coolant or oil. Place a cover over fender, as required, for protection.
• Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch coolant and oil, wire ropes, chain hoist, transmission jacks, etc.
• Lift up or lower the vehicle when necessary. Make sure to support the correct positions.

ME(H6DO)-16

General Description

MECHANICAL

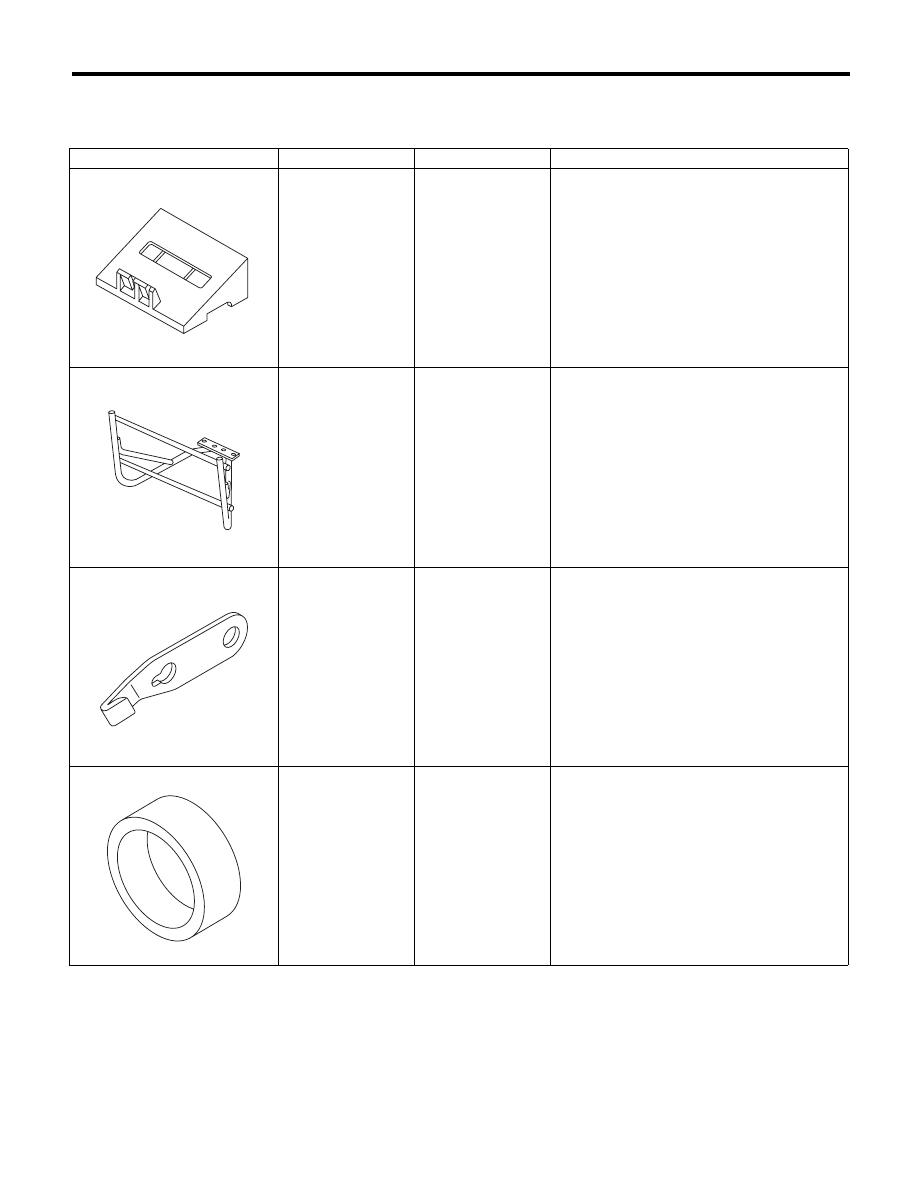

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

18250AA010

CYLINDER HEAD
TABLE

• Used for replacing valve guides.
• Used for removing and installing valve spring.

18232AA000

ENGINE STAND

Used for disassembling and assembling engine.

498497100

CRANKSHAFT
STOPPER

Used for removing and installing the drive plate.

18254AA000

PISTON GUIDE

Used for installing piston in cylinder.

ST18250AA010

ST18232AA000

ST-498497100

ST18254AA000

ME(H6DO)-17

General Description

MECHANICAL

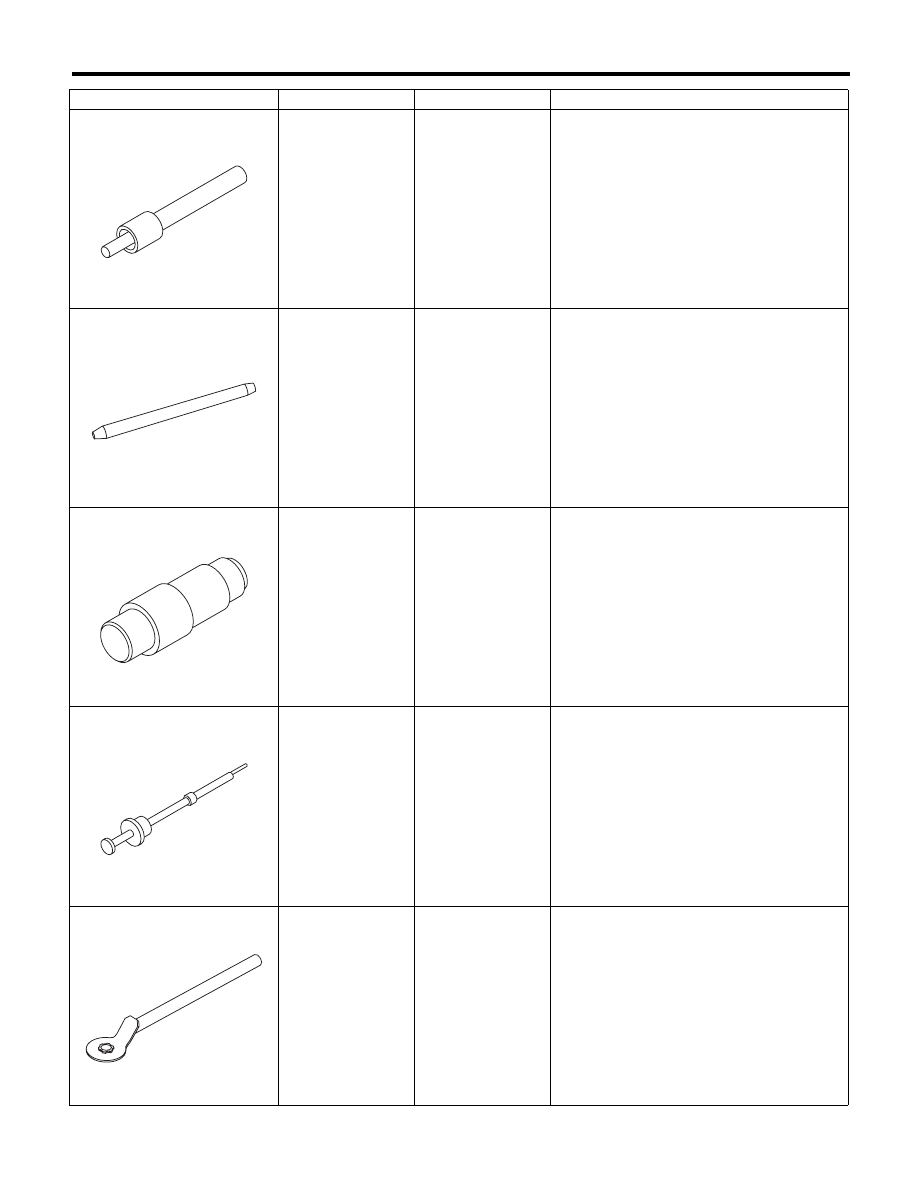

499585500

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust
valve guide oil seals.

18253AA000

PISTON PIN GUIDE

Used for installing piston pin, piston and con-
necting rod.

18350AA000

CONNECTING ROD
BUSHING
REMOVER AND
INSTALLER

Used for removing and installing connecting rod
bushing.

499097700

PISTON PIN
REMOVER ASSY

Used for removing piston pin.

499977500

CAM SPROCKET
WRENCH

Used for removing and installing intake cam
sprocket.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499585500

ST18253AA000

ST18350AA000

ST-499097700

ST-499977500
