Subaru Legacy IV (2008 year). Manual - part 470

ME(H6DO)-6

General Description

MECHANICAL

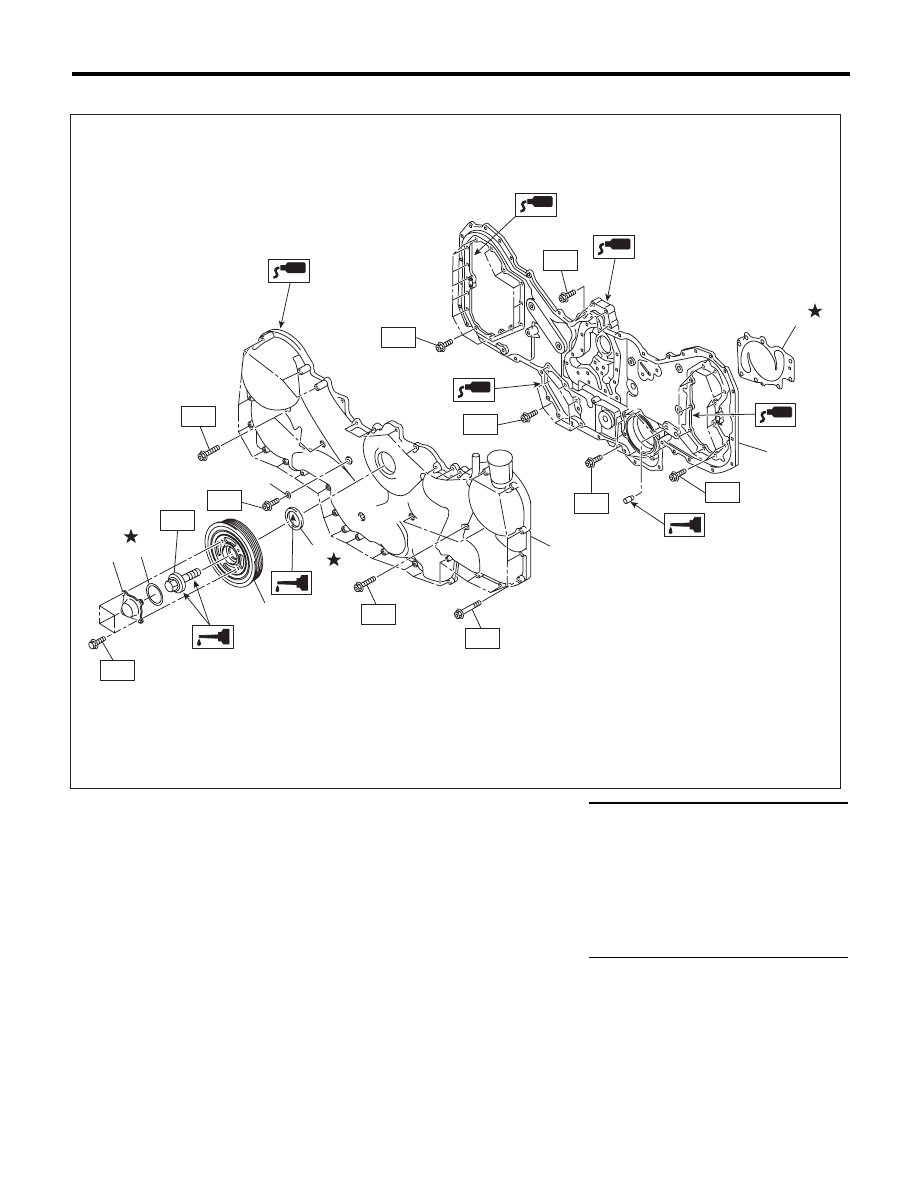

2. TIMING CHAIN COVER

(1)

Crank pulley cover

(5)

Oil seal

Tightening torque:N·m (kgf-m, ft-lb)

(2)

O-ring

(6)

Front chain cover

T1: <Ref. to ME(H6DO)-43, Crank

Pulley.>

(3)

Crank pulley

(7)

Rear chain cover

(4)

Sealing washer

(8)

Water pump gasket

T2: <Ref. to ME(H6DO)-44, Front

Chain Cover.>

T3: <Ref. to ME(H6DO)-53, Rear

Chain Cover.>









T4: 6.4 (0.7, 4.7)

T2

T2

T2

T2

T3

T3

T3

T3

T3

(4)

(6)

(7)

(8)

(5)

T1

T4

(1)

(3)

(2)

ME-03328

ME(H6DO)-7

General Description

MECHANICAL

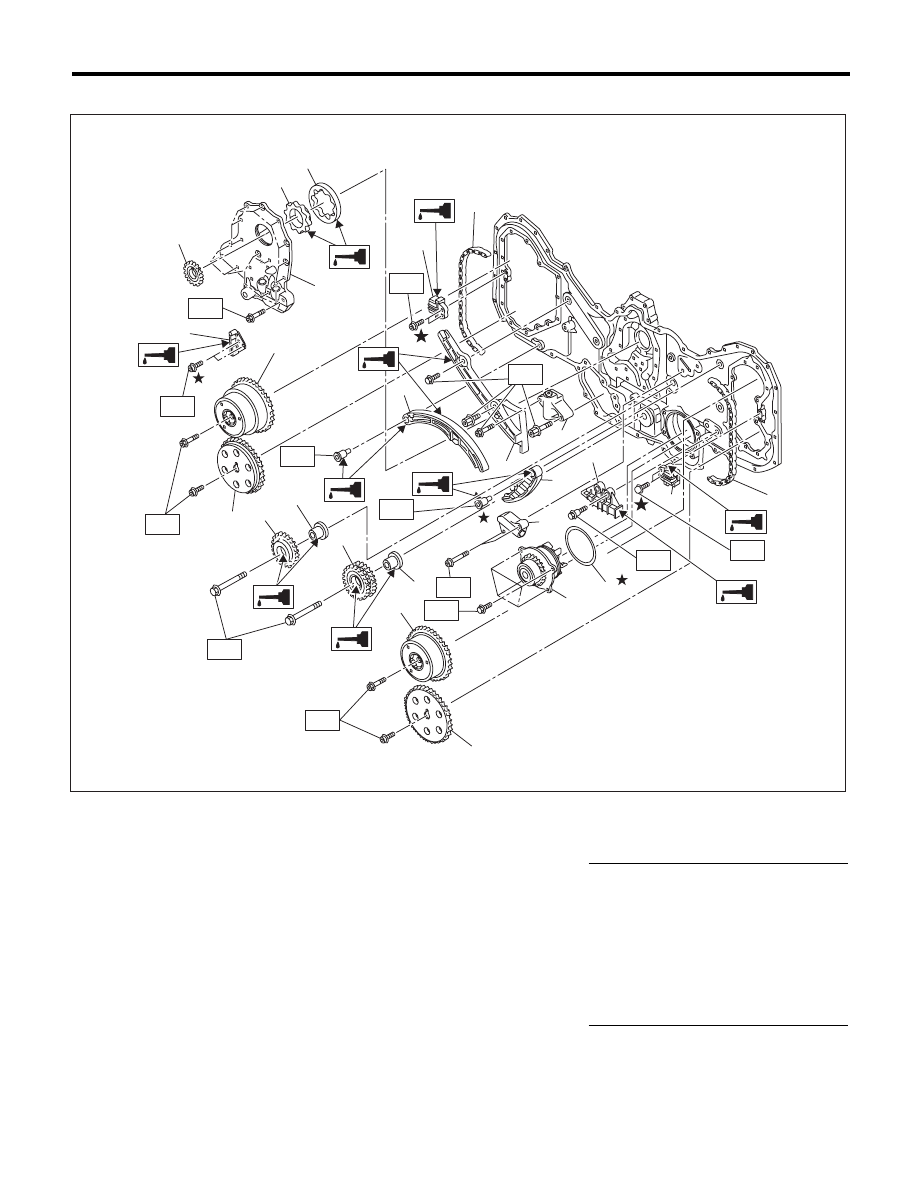

3. TIMING CHAIN

(1)

Crank sprocket

(12)

Chain tensioner (RH)

(23)

Idler sprocket collar

(2)

Oil relief case

(13)

Chain tensioner lever (LH)

(24)

Idler sprocket (upper)

(3)

Inner rotor

(14)

Chain tensioner (LH)





(4)

Outer rotor

(15)

Water pump

Tightening torque:N·m (kgf-m, ft-lb)

(5)

Chain guide (center)

(16)

O-ring

T1: 6.4 (0.7, 4.7)

(6)

Intake cam sprocket (RH)

(17)

Chain guide (LH)

T2: 7.8 (0.8, 5.8)

(7)

Exhaust cam sprocket (RH)

(18)

Chain guide (LH: between cams)

T3: <Ref. to ME(H6DO)-51, Cam

Sprocket.>

(8)

Chain guide (RH: between cams)

(19)

Timing chain (LH)

(9)

Timing chain (RH)

(20)

Intake cam sprocket (LH)

T4: 16 (1.6, 11.8)

(10)

Chain guide (RH)

(21)

Exhaust cam sprocket (LH)

T5: 69 (7.0, 50.9)

(11)

Chain tensioner lever (RH)

(22)

Idler sprocket (lower)

T6: <Ref. to LU(H6DO)-9, Oil Pump.>

ME-02380

T6

(2)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(5)

T3

T3

T5

T2

T1

T1

T1

T4

T4

T4

T4

T4

(7)

(21)

(20)

(22)

(23)

(23)

(24)

(6)

(1)

(3)

(4)

ME(H6DO)-8

General Description

MECHANICAL

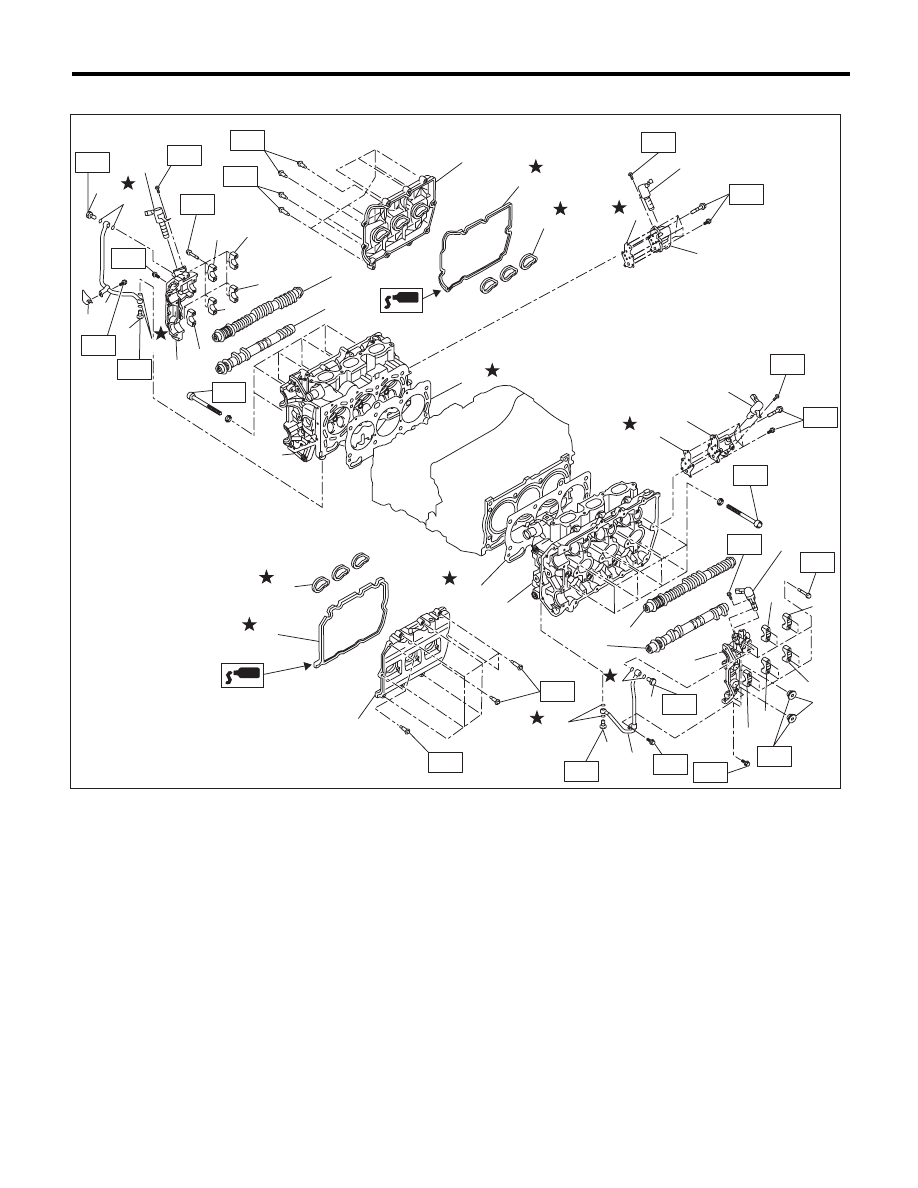

4. CYLINDER HEAD AND CAMSHAFT

ME-03351

(1)

(9)

(10)

(22)

(23)

(24)

(26)

(27)

(28)

(25)

(32)

(37)

(8)

(18)

(16)

(13)

(12)

(6)

(36)

(5)

(14)

(15)

(19)

(20)

(21)

(7)

(11)

(31)

(34)

(36)

(35)

(30)

(29)

(33)

T5

T1

T6

T4

T2

T2

T1

T6

T4

T4

T7

T2

T2

T5

T8

T4

T8

T8

T8

(17)

(37)

(17)

(17)

(2)

(3)

(4)

T4

T3

T3

T4

(17)

(38)

(38)

(38)

(38)

ME(H6DO)-9

General Description

MECHANICAL

(1)

Rocker cover (RH)

(18)

Cylinder head gasket (RH)

(35)

Rocker cover (LH)

(2)

Oil switching solenoid valve (RH)

(19)

Oil switching solenoid valve (LH)

(36)

Union screw with filter
(with protrusion)

(3)

Oil switching solenoid valve holder
(RH)

(20)

Oil switching solenoid valve holder
(LH)

(37)

Union screw without filter
(without protrusion)

(4)

Oil switching solenoid valve
gasket (RH)

(21)

Oil switching solenoid valve
gasket (LH)

(38)

Rocker cover gasket

(5)

Front chain cover

(22)

Cylinder head gasket (LH)



(6)

Oil pipe (RH)

(23)

Cylinder head (LH)

Tightening torque:N·m (kgf-m, ft-lb)

(7)

Oil flow control solenoid valve (RH)

(24)

Intake camshaft (LH)

T1: <Ref. to ME(H6DO)-59, Cylinder

Head.>

(8)

Intake camshaft cap (Center RH)

(25)

Exhaust camshaft (LH)

(9)

Intake camshaft cap (Rear RH)

(26)

Oil flow control solenoid valve (LH)

T2: <Ref. to ME(H6DO)-55, Cam-

shaft.>

(10)

Exhaust camshaft cap (Rear RH)

(27)

Intake camshaft cap (Rear LH)

(11)

Exhaust camshaft cap (Center RH)

(28)

Intake camshaft cap (Center LH)

T3: <Ref. to ME(H6DO)-80, Oil

Switching Solenoid Valve.>

(12)

Exhaust camshaft cap (Front RH)

(29)

Exhaust camshaft cap (Rear LH)

(13)

Front camshaft cap (RH)

(30)

Exhaust camshaft cap (Center LH)

T4: 6.4 (0.7, 4.7)

(14)

Intake camshaft (RH)

(31)

Exhaust camshaft cap (Front LH)

T5: 9.75 (1.0, 7.2)

(15)

Exhaust camshaft (RH)

(32)

Front camshaft cap (LH)

T6: 16 (1.6, 11.8)

(16)

Cylinder head (RH)

(33)

Plug

T7: 60 (6.1, 44.3)

(17)

Gasket

(34)

Oil pipe (LH)

T8: 29 (3.0, 21.4)
