ME(H6DO)-10

General Description

MECHANICAL

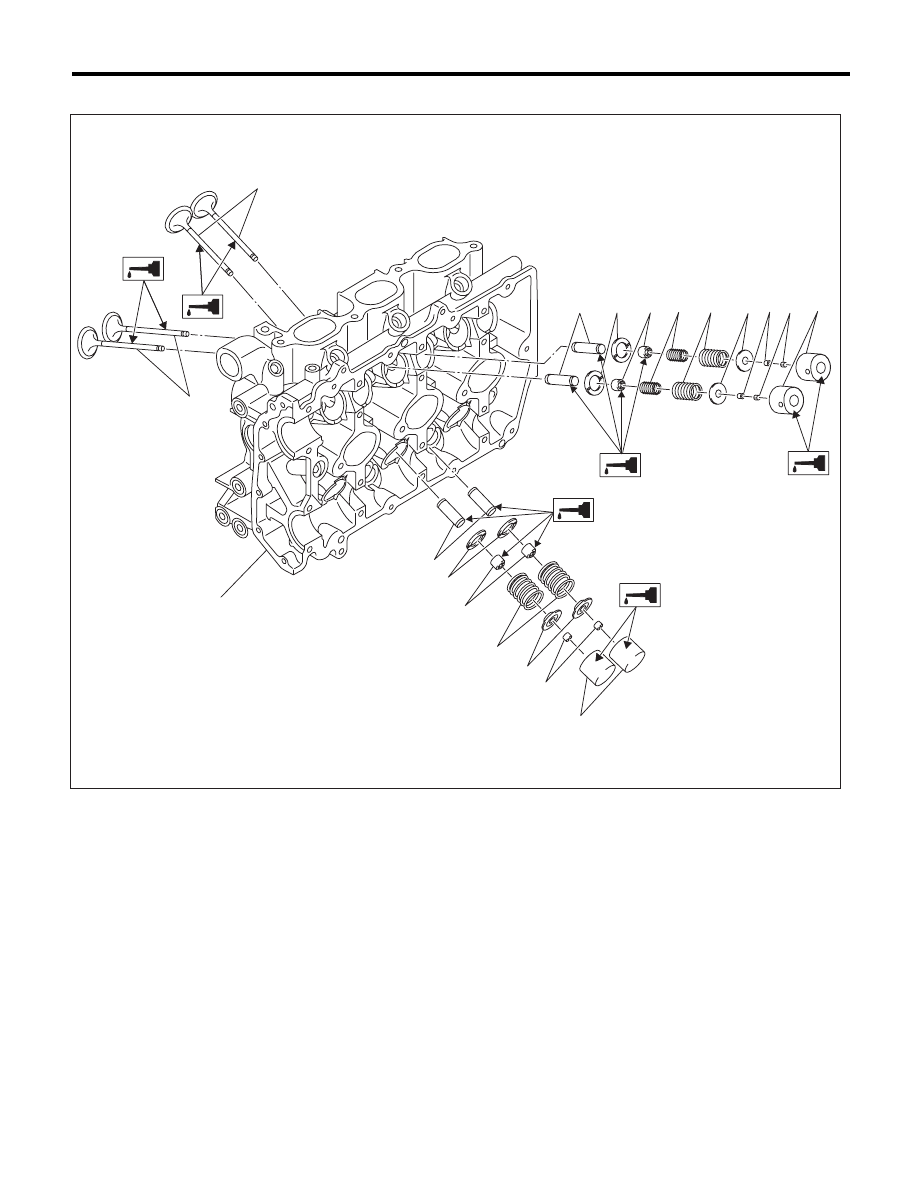

5. CYLINDER HEAD AND VALVE ASSEMBLY

(1)

Exhaust valve

(7)

Valve spring (Outer)

(12)

Exhaust valve guide

(2)

Intake valve

(8)

Retainer

(13)

Exhaust valve stem seal

(3)

Intake valve guide

(9)

Retainer key

(14)

Valve spring

(4)

Valve spring seat

(10)

Shim

(15)

Valve lifter (Exhaust)

(5)

Intake valve stem seal

(11)

Valve lifter (Intake)

(16)

Cylinder head

(6)

Valve spring (Inner)





ME-03102

(16)

(3)

(12)

(13)

(4)

(14)

(8)

(9)

(15)

(4)

(5)

(6)

(7)

(8) (9)

(11)

(10)

(1)

(2)

ME(H6DO)-11

General Description

MECHANICAL

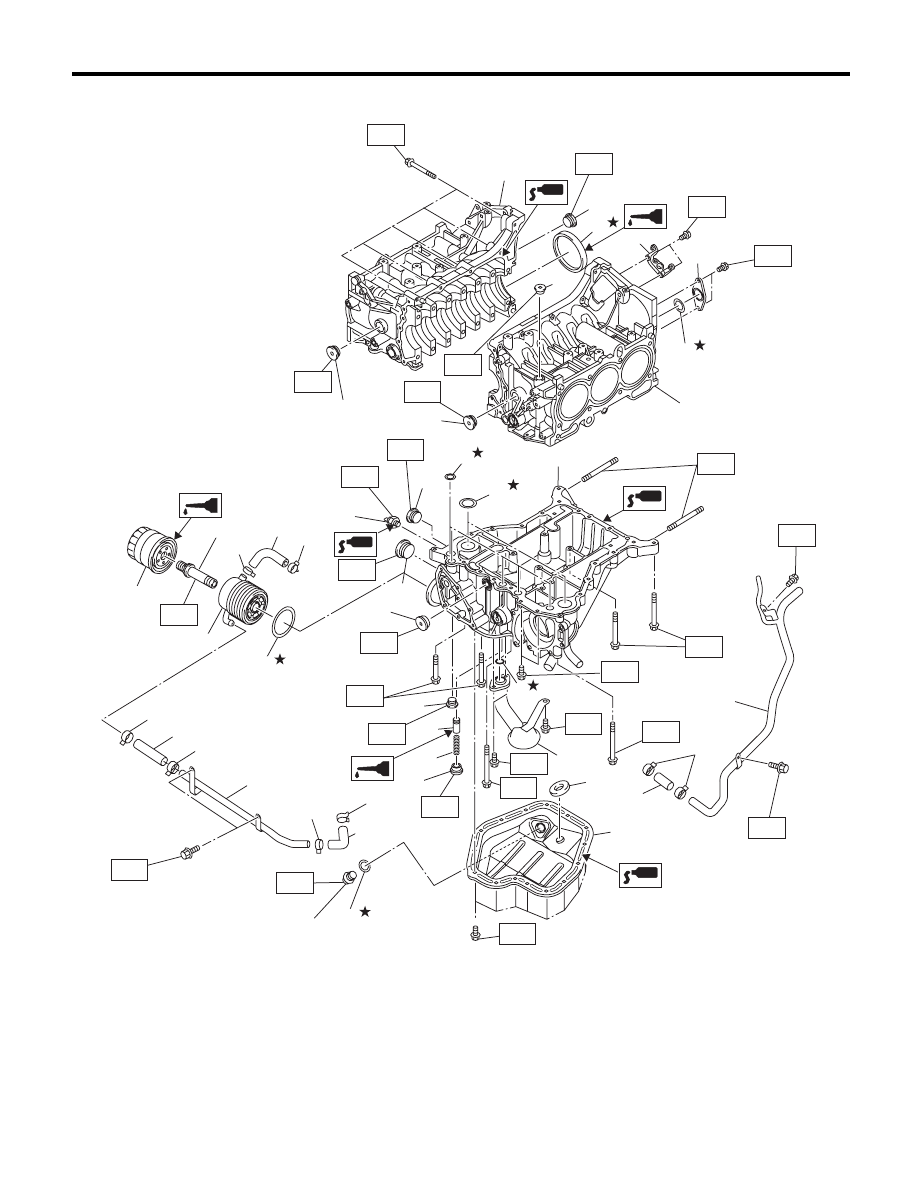

6. CYLINDER BLOCK

(5)

(6)

(7)

(9)

(5)

(8)

(19)

(19)

(10)

(19)

(19)

(21)

(22)

(23)

T1

T2

T2

T2

T1

T2

T2

T5

T2

T9

ME-03327

T4

T6

T10

(5)

(1)

(3)

(4)

(5)

(2)

(19)

(19)

(20)

(19)

(19)

T1

T1

T8

T3

T5

T8

T8

(5)

(18)

(17)

(13)

(14)

(13)

(16)

(13)

(14)

(13)

(15)

(13)

(13)

(11)

(12)

(14)

T6

T1

T7

T3

T1

(14)

(13)

(24)

T4

T4

ME(H6DO)-12

General Description

MECHANICAL

(1)

Cylinder block (RH)

(13)

Clamp

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Cylinder block (LH)

(14)

Hose

T1: 6.4 (0.7, 4.7)

(3)

Rear oil seal

(15)

Oil cooler pipe

T2: 18 (1.8, 13.3)

(4)

Service hole cover

(16)

Oil cooler

T3: 25 (2.5, 18.4)

(5)

O-ring

(17)

Oil cooler connector

T4: 16 (1.6, 11.8)

(6)

Oil pan upper

(18)

Oil filter

T5: 37 (3.8, 27.3)

(7)

Oil pressure switch

(19)

Plug

T6: 44 (4.5, 32.5)

(8)

Oil strainer

(20)

Crankshaft position sensor holder

T7: 54 (5.5, 39.8)

(9)

Magnet

(21)

Relief valve

T8: 70 (7.1, 51.6)

(10)

Oil pan lower

(22)

Relief valve spring

T9: 23 (2.3, 17.0)

(11)

Metal gasket

(23)

Plug

T10: 90 (9.2, 66.4)

(12)

Drain plug

(24)

Water pipe





ME(H6DO)-13

General Description

MECHANICAL

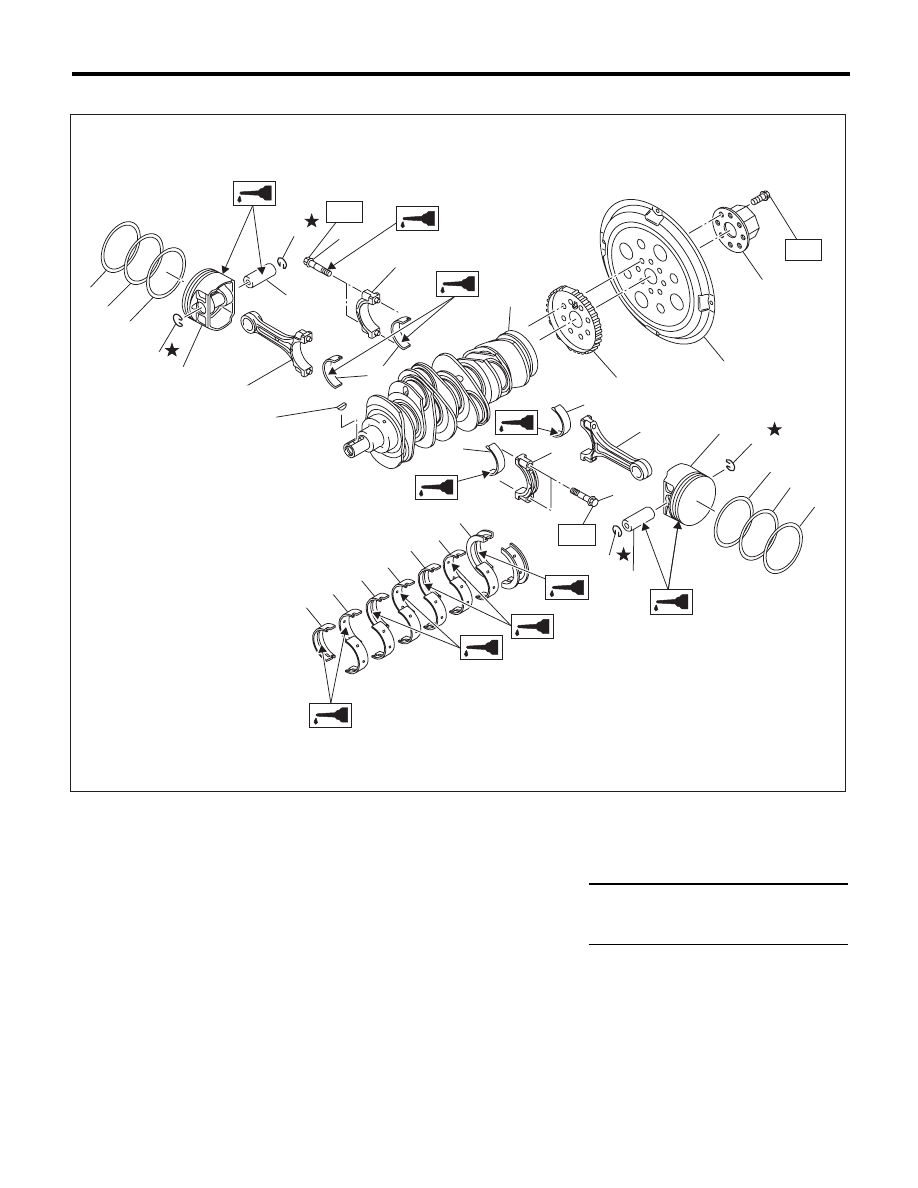

7. CRANKSHAFT AND PISTON

(1)

Reinforcement

(9)

Piston pin

(16)

Crankshaft bearing #1, #3, #5

(2)

Drive plate

(10)

Connecting rod

(17)

Crankshaft bearing #2, #4, #6

(3)

Crankshaft sensor plate

(11)

Connecting rod bearing

(18)

Crankshaft bearing #7

(4)

Top ring

(12)

Connecting rod bolt





(5)

Second ring

(13)

Connecting rod cap

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Oil ring

(14)

Crankshaft

T1: 53 (5.4, 39.1)

(7)

Snap ring

(15)

Woodruff key

T2: 81 (8.3, 59.7)

(8)

Piston

(9)

(1)

(3)

(2)

(4)

(5)

(6)

(7)

(8)

(9)

(7)

(8)

(7)

(6)

(5)

(4)

(7)

(15)

(11)

(13)

(12)

(12)

(14)

(10)

(11)

(11)

(13)

(18)

(16)

(17)

(17)

(16)

(17)

(16)

(10)

T1

T2

T1

ME-02454
