IN(H6DO)-7

Air Intake Chamber

INTAKE (INDUCTION)

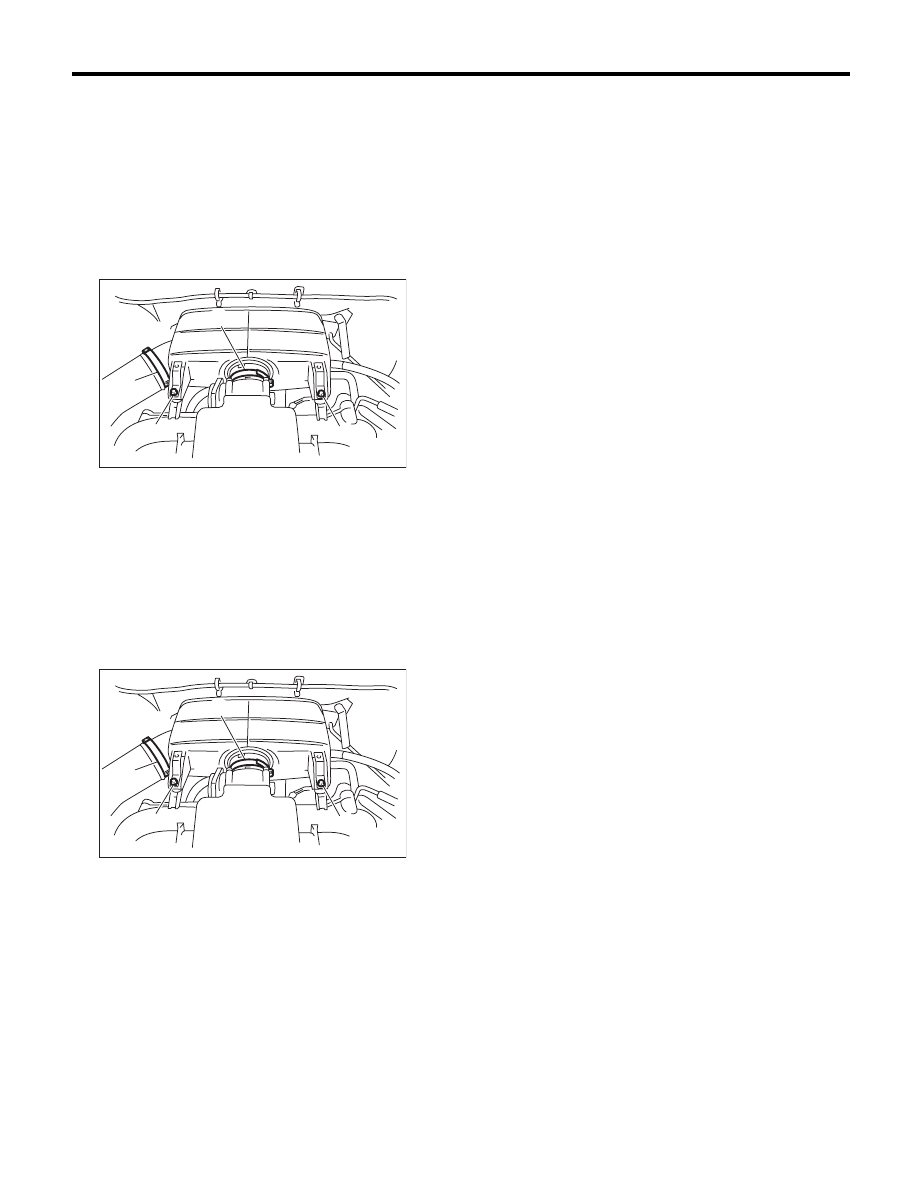

4. Air Intake Chamber

A: REMOVAL

1) Remove the collector cover.
2) Loosen the clamp (A) which connects air intake
chamber to throttle body.
3) Loosen the clamp (B) which connects intake
boot to air intake chamber.
4) Remove the bolt (C) which secures air intake
chamber to the stay.

5) Disconnect the blow-by hoses, then remove the
air intake chamber.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Clamp (A), (B)

3 N·m (0.3 kgf-m, 2.2 ft-lb)

Bolt (C)

6.5 N·m (0.7 kgf-m, 4.8 ft-lb)

C: INSPECTION

1) Check for cracks or loose connections.
2) Check that no foreign matter is mixed in air in-
take chamber.

(A)

IN-02095

(C)

(C)

(B)

(A)

IN-02095

(C)

(C)

(B)

IN(H6DO)-8

Air Intake Duct

INTAKE (INDUCTION)

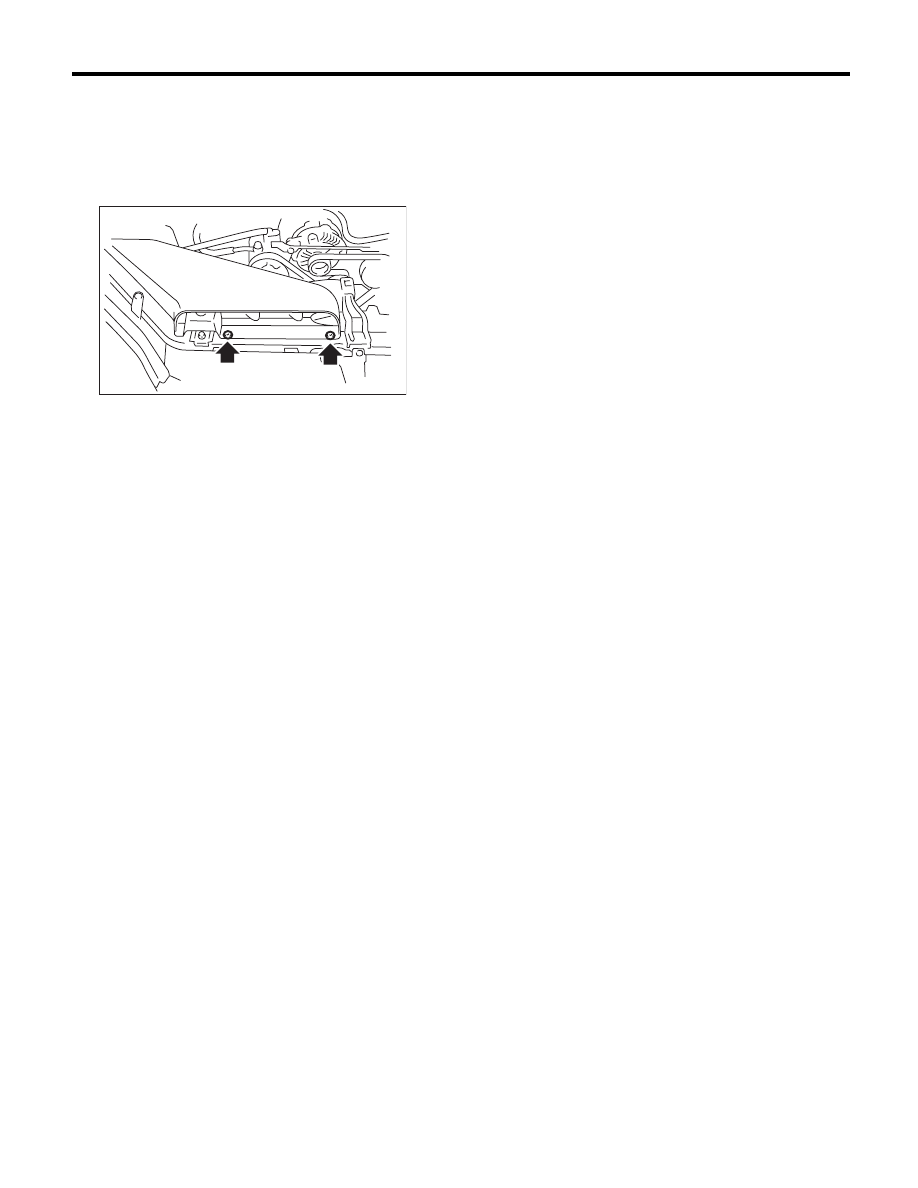

5. Air Intake Duct

A: REMOVAL

1) Remove the clip which installs the air intake duct
on the front side of body.
2) Remove the air intake duct.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Check for cracks or loose connections.
2) Check that no foreign matter is mixed in air in-
take duct.

IN-02013

IN(H6DO)-9

Resonator Chamber

INTAKE (INDUCTION)

6. Resonator Chamber

A: REMOVAL

The resonator chamber and air cleaner case are in-
tegrated into one unit; therefore, refer to “Air Clean-
er Case” for removal procedure. <Ref. to
IN(H6DO)-5, REMOVAL, Air Cleaner Case.>

B: INSTALLATION

The resonator chamber and air cleaner case are in-
tegrated into one unit; therefore, refer to “Air Clean-
er Case” for installation procedure. <Ref. to
IN(H6DO)-6, INSTALLATION, Air Cleaner Case.>

C: INSPECTION

Check for cracks or loose connections.
