EC(H6DO)-16

Drain Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

14.Drain Valve

A: SPECIFICATION

Canister is a non-disassembled part, so do not re-
move the drain valve from canister. Refer to “Can-
ister” for removal and installation procedures. <Ref.
to EC(H6DO)-6, REMOVAL, Canister.> <Ref. to
EC(H6DO)-7, INSTALLATION, Canister.>

EC(H6DO)-17

PCV Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

15.PCV Valve

A: REMOVAL

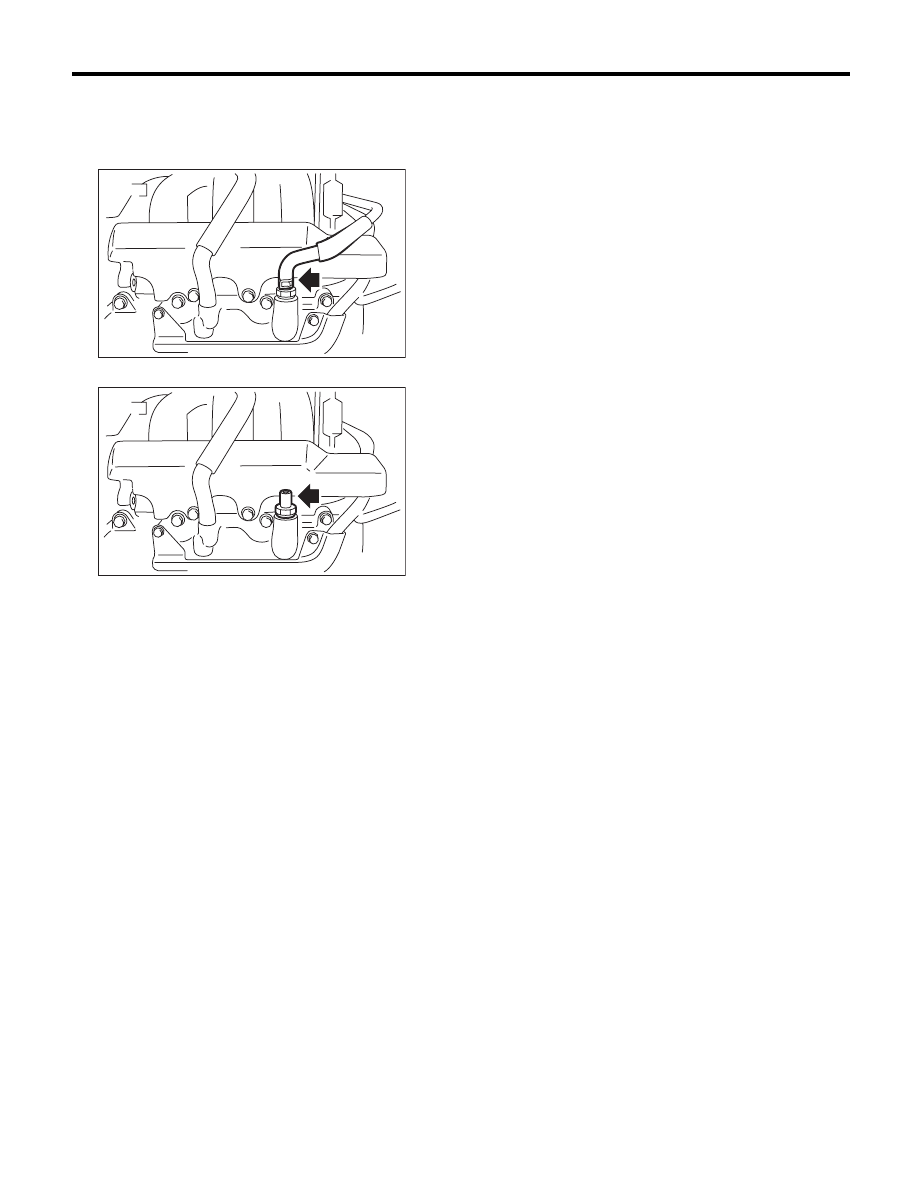

1) Disconnect the PCV hose.

2) Remove the PCV valve from rocker cover.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Apply liquid gasket to the bolt threads of PCV
valve.

Liquid gasket:

THREE BOND 1141 (Part No. 004403006) or
equivalent

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

EC-02202

EC-02203

EC(H6DO)-18

PCV Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

IN(H6DO)-2

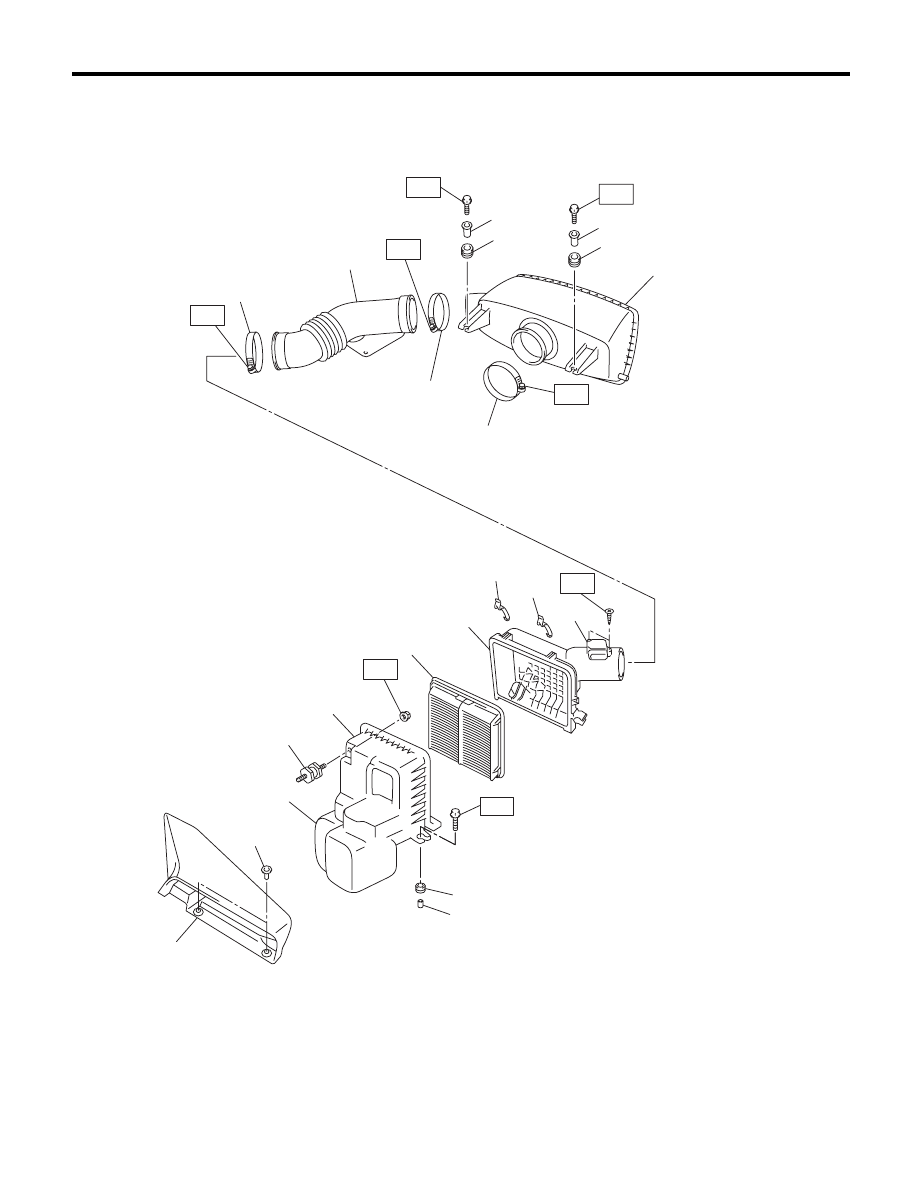

General Description

INTAKE (INDUCTION)

1. General Description

A: COMPONENT

(12)

(16)

(15)

(11)

T1

(6)

(5)

(9)

(9)

(8)

(18)

(7)

(4)

(17)

(3)

(2)

(1)

T3

T3

(13)

T2

T2

(14)

(13)

(14)

T4

T5

(10)

T3

IN-02212
