Instrument Panel Lower Cover

EXTERIOR/INTERIOR TRIM

18.Instrument Panel Lower Cover

A: REMOVAL

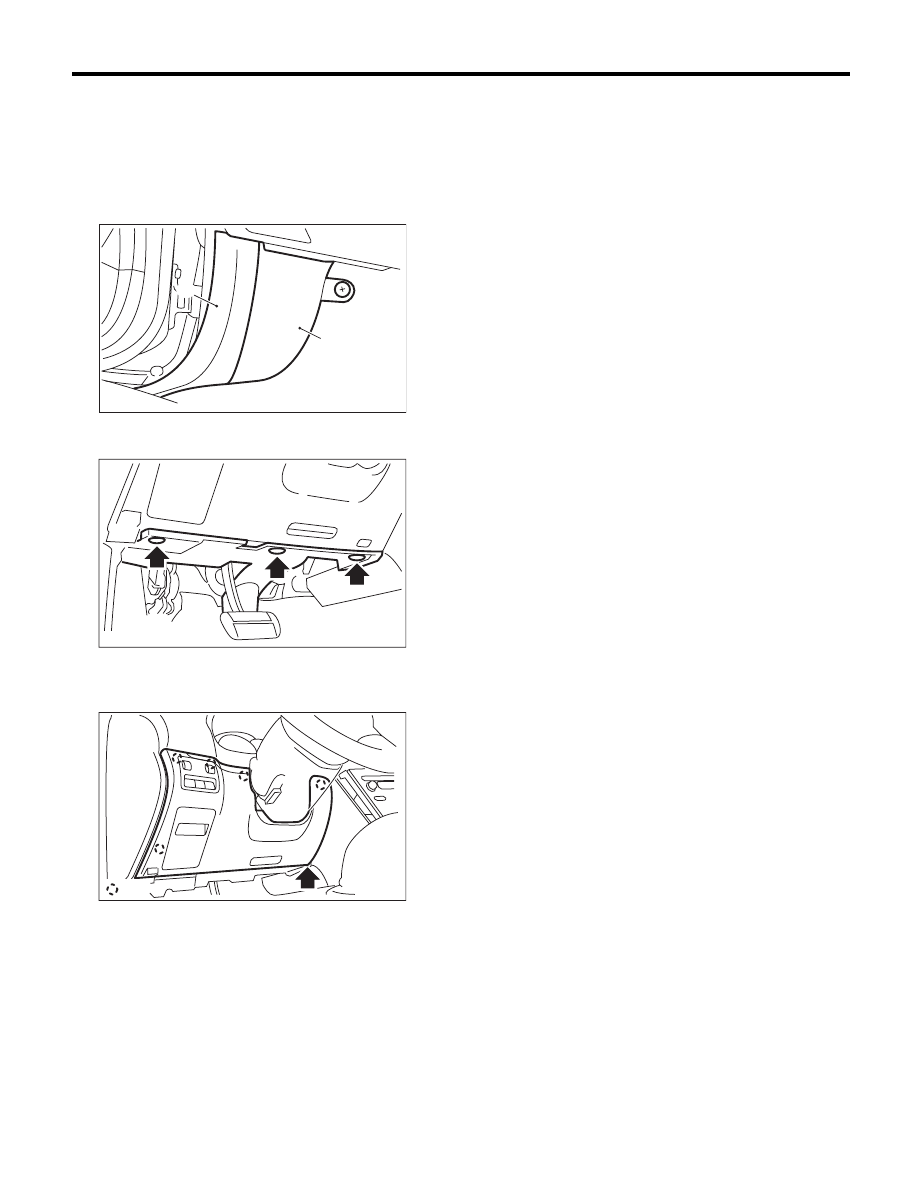

1) Disconnect the ground cable from the battery.
2) Remove the front door inside scuff plate (A) and
front pillar lower trim (B) on the driver’s side. <Ref.
to EI-61, REMOVAL, Lower Inner Trim.>

3) Remove the clips, and remove the instrument
panel lower cover under.

4) Loosen the screw (A), disconnect the connec-
tors, and remove the instrument panel lower cover
upper.

B: INSTALLATION

Install in the reverse order of removal.

(B) Clip

EI-00758

(B)

(A)

EI-01059

EI-01728

(A)

:(B)

EI-52

Glove Box

EXTERIOR/INTERIOR TRIM

19.Glove Box

A: REMOVAL

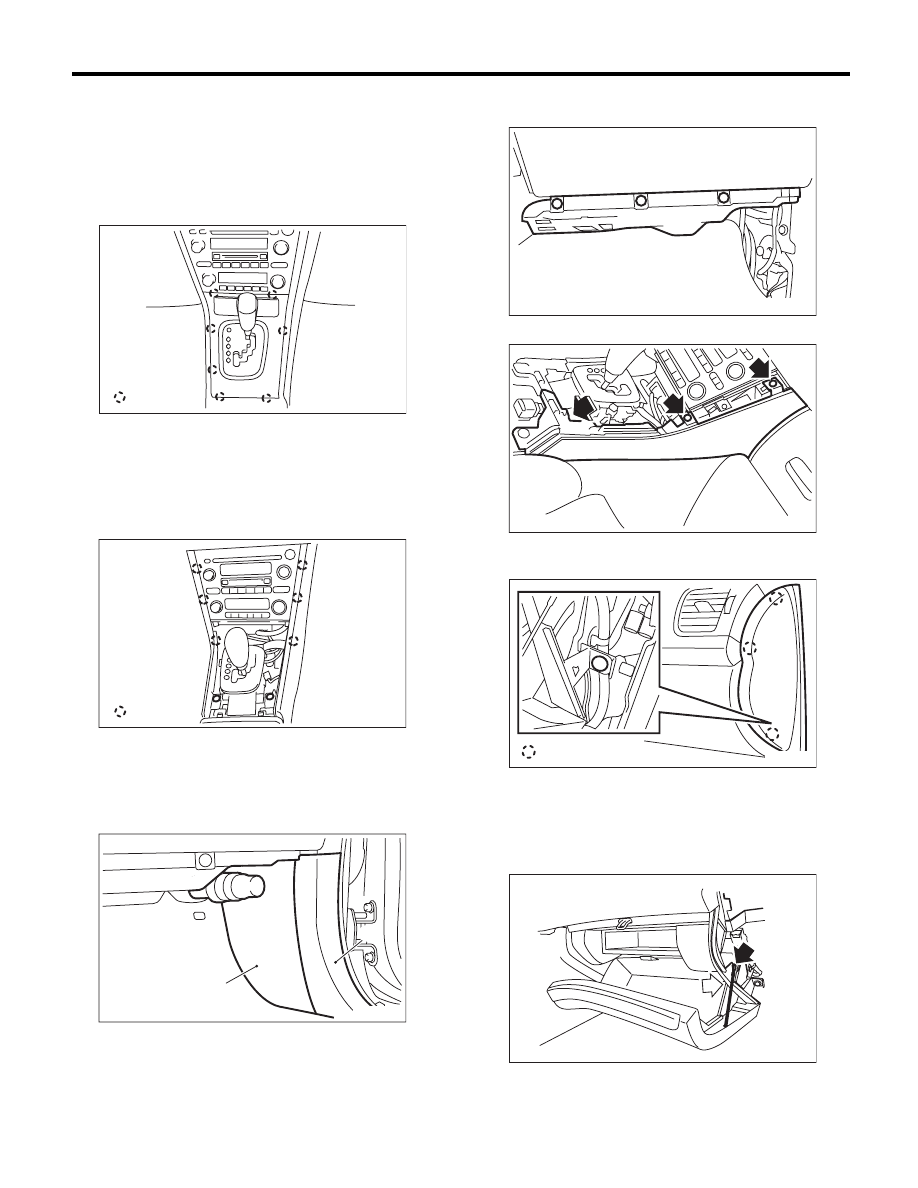

1) Disconnect the ground cable from the battery.
2) Remove the console box. <Ref. to EI-54, RE-
MOVAL, Console Box.>
3) Remove the console front panel.

NOTE:
For the AT model, remove the ring indicator.
For the MT model, remove the shift knob.
4) Remove the console side garnish.

5) Remove the front inside scuff plate (A) and front
pillar lower trim (B). <Ref. to EI-61, REMOVAL,
Lower Inner Trim.>

6) Remove the clips, and remove the glove box
lower cover.

7) Remove the console side panel.

8) Remove the instrument panel side cover, and re-
move the clip.

9) Remove the strap of the glove box damper.
10) Remove the backside of stopper on one side,
and remove the glove box lid.

(A) Hook

(A) Hook

EI-01060

: (A)

EI-00762

: (A)

EI-00763

(B)

(A)

(A) Clip

EI-00764

EI-00765

 : (A)

EI-00766

EI-01731

EI-53

Glove Box

EXTERIOR/INTERIOR TRIM

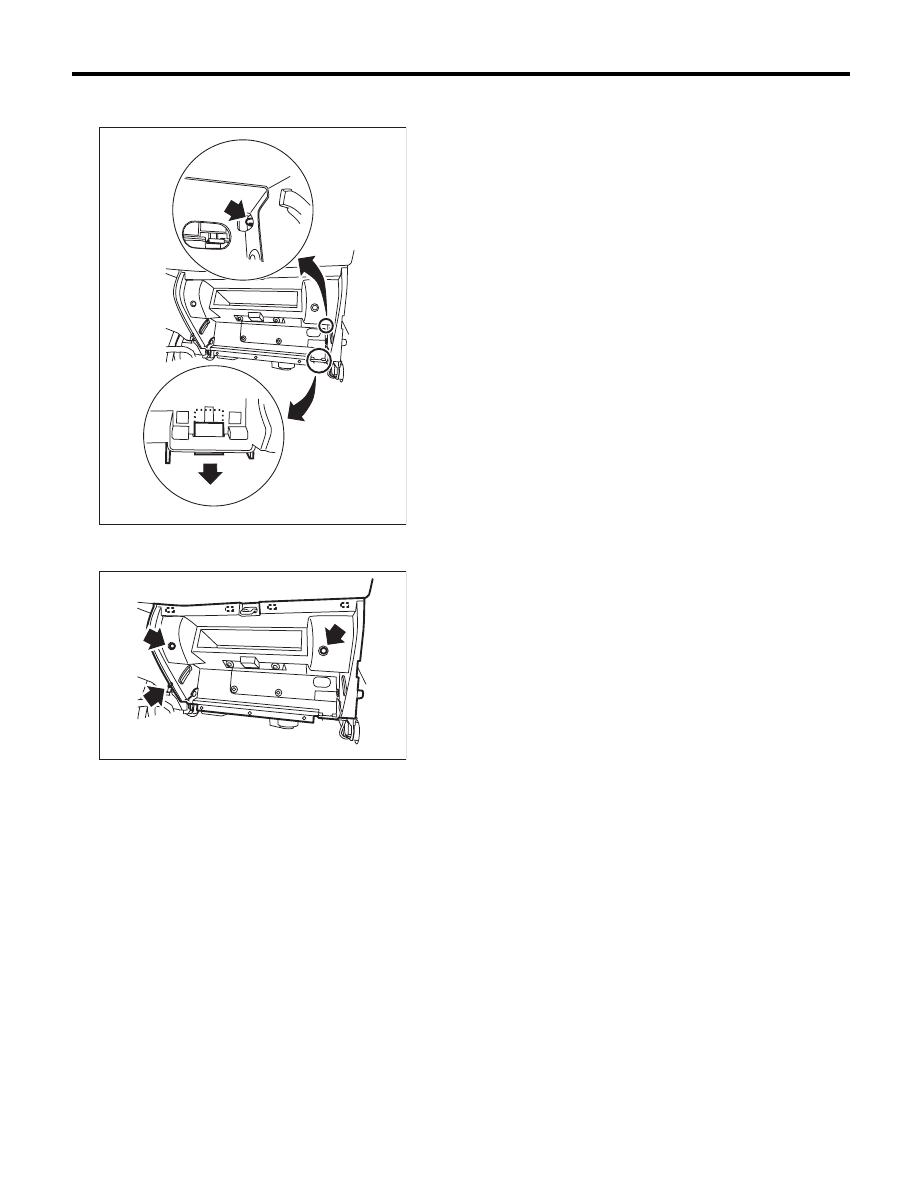

11) Remove the harness holder and connector
holder.

12) Remove the screws and upper clip to remove
the glove box.

B: INSTALLATION

Install in the reverse order of removal.

EI-01730

EI-01729

EI-54

Console Box

EXTERIOR/INTERIOR TRIM

20.Console Box

A: REMOVAL

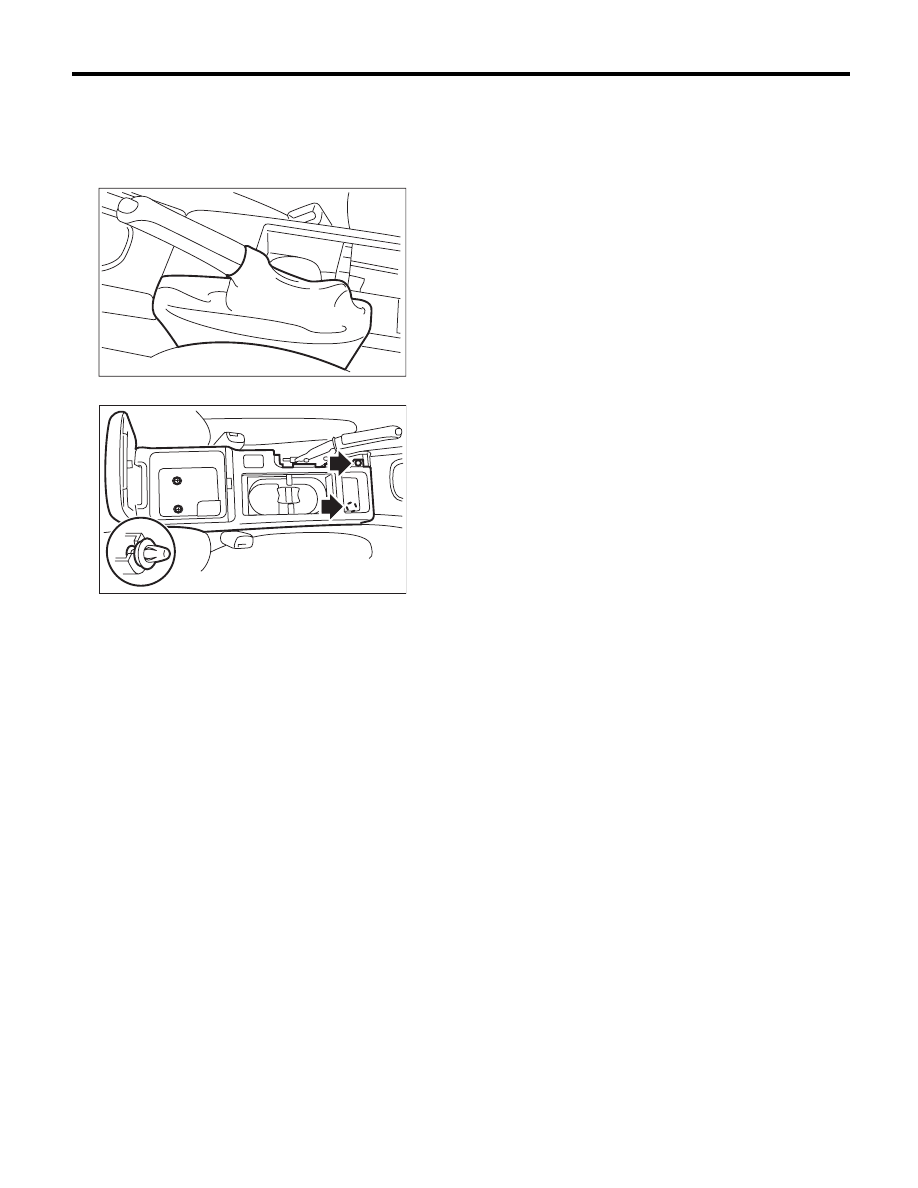

1) Disconnect the ground cable from the battery.
2) Remove the parking brake lever cover.

3) Remove the bolts and clips.

4) Disconnect the connector, and remove the con-
sole box.

B: INSTALLATION

Install in the reverse order of removal.
