Subaru Legacy IV (2008 year). Manual - part 1136

EI-43

Side Sill Spoiler

EXTERIOR/INTERIOR TRIM

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
For the rearmost clip securing the side sill spoiler,
install through the end cover.

(1) Vehicle body

(2) End cover

(3) Side sill spoiler

(1)

EI-00791

(2)

(3)

EI-44

Side Protector

EXTERIOR/INTERIOR TRIM

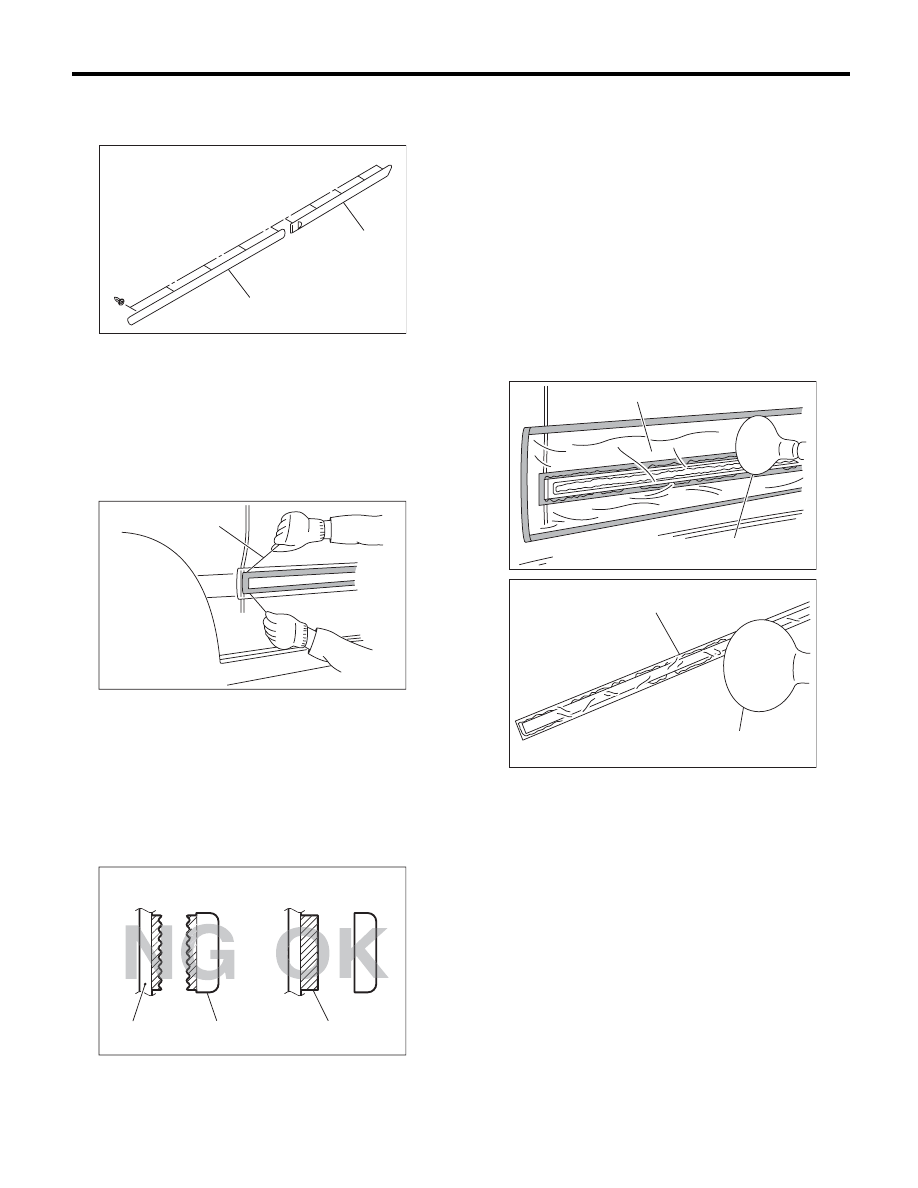

13.Side Protector

A: REMOVAL

1) Slide in a thin thread (A) of 0.8 mm (0.031 in) diam-
eter or less (fishing line etc.) between the body and
the protector, and cut the double-sided tape. Pull the
protector, and remove the clip using the clip remover.

NOTE:
• To optimize the effect of solvent, slide the thread
along body without removing the double-sided tape
on the surface of body and protector.
• If it is difficult to remove the double-sided tape,
warm it up to approx. 40°C (104°F).
• If the double-sided tape remains thick on the sur-
face due to interfacial peeling, apply solvent after
slicing off the double-sided tape using a cutter.

2) Apply masking tape around the double-sided
tape remaining on the surface of body or protector.
3) Apply solvent uniformly on the double-sided tape
using a brush.

CAUTION:
• Do not use solvent to the body which has
been repaired with lacquer paint.
• Wipe off immediately when the solvent is at-
tached on surface of the body or protector.

Solvent:

3M 8907 or equivalent

4) Cover the area where solvent is applied using
plastic wrap (A), and then heat the double-sided
tape for 5 to 10 minutes in 40 — 60°C (104 —
140°F) using a heat light (B).

CAUTION:
Do not heat the double-sided tape until the sur-
face becomes white and excessively dried.
5) Remove the double-sided tape using a plastic
spatula.
6) After completely removing the double-sided
tape, detach the masking tape and clean the sur-
face using a cotton cloth damped with white gaso-
line.

(A) White clip

(1) Front door protector

(2) Rear door protector

(A) Panel

(B) Side protector

(C) Double-sided tape

EI-01754

(1)

(2)

(A)

EI-00153

(A)

EI-01586

(A)

(B)

(C)

EI-00155

(A)

(B)

EI-00156

(A)

(B)

EI-45

Side Protector

EXTERIOR/INTERIOR TRIM

B: INSTALLATION

1) Apply primer to the protector surface where the
double-sided tape is to be adhered, and then ad-
here the double-sided tape as shown in the figure.

Primer:

3M K-500 or equivalent

Double-sided tape:

3M 5531-5 or equivalent

2) Heat the adhering part using a heat light.
Body side: 40 — 60°C (104 — 140°F)
Protector side: 20 — 30°C (68 — 86°F)
3) Peel off the backing sheet of double-sided tape,
align the clip position, and then adhere the tape to
the body while taking care to avoid air entering.

CAUTION:
To keep the adhesion, do not wash the vehicle
within 24 hours from installation.

(1) Double-sided tape: thickness 1.2 mm (0.047 in),

width 5 mm (0.197 in)

EI-00536

(1)

(1)

EI-46

Side Garnish

EXTERIOR/INTERIOR TRIM

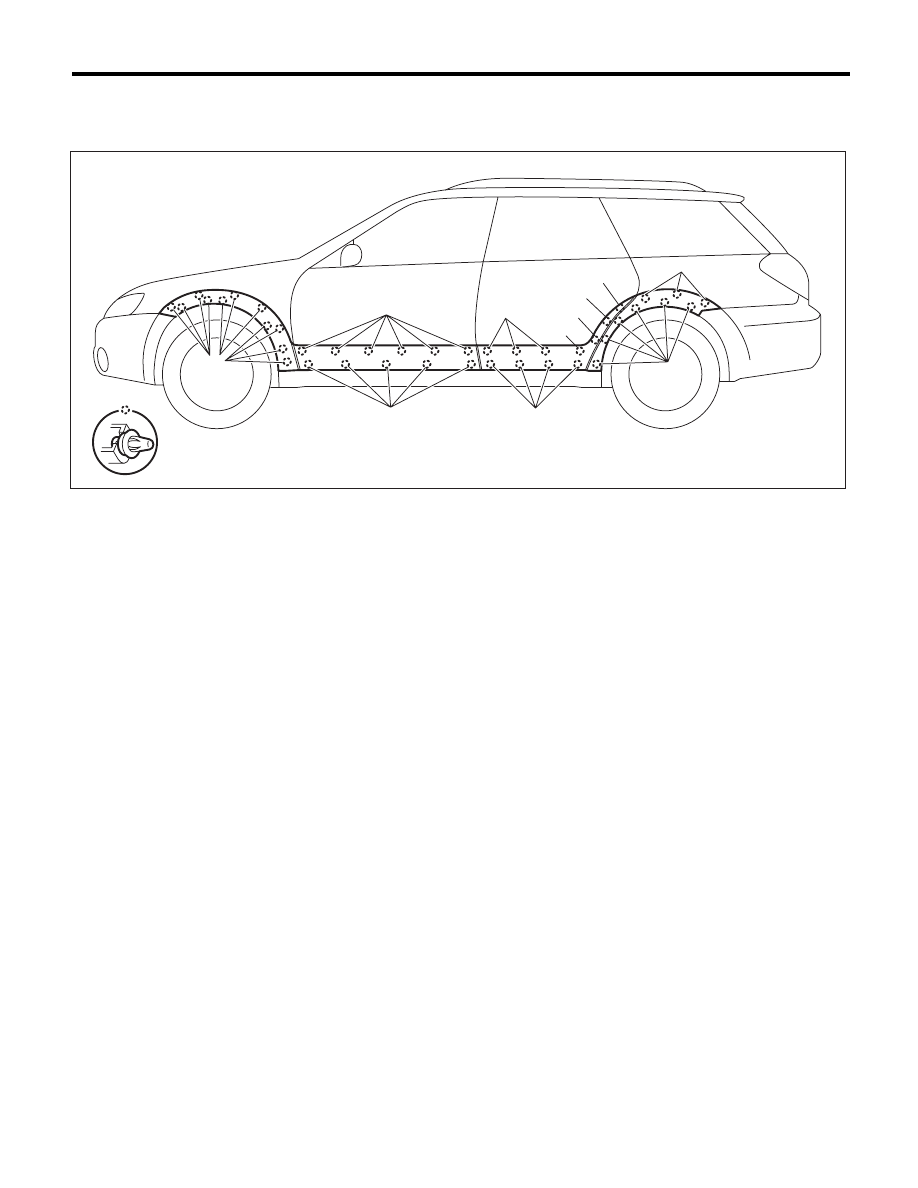

14.Side Garnish

A: REMOVAL

1) Remove the side sill spoilers. <Ref. to EI-42, RE-
MOVAL, Side Sill Spoiler.>
2) For removal of the side garnish, refer to the re-
moval procedure of “Side Protector”. <Ref. to EI-
44, REMOVAL, Side Protector.>

B: INSTALLATION

Check the color of the clip, and install in the reverse
order of removal.

(A)

Black clip

(C)

Pink clip

(E)

Green clip

(B)

White clip

(D)

Gray clip





EI-01755

(A)

(A)

(B)

(B)

(A)

(C)

(D)

(B)

(A)

(E)

(E)
