SE-40

Power Seat System

SEATS

D: ADJUSTMENT

NOTE:
The calibration procedures apply only to the mem-
ory-equipped seat on the driver’s side.

1. CONDITIONS FOR INITIALIZATION

Perform the initializing operation to the memory
module when the following conditions are met.
• When the seat was removed from vehicle.
• When the memory module was replaced.
• When the slide rail assembly or reclining motor
assembly was removed or replaced.
• When the pulse generated while the seat is mov-
ing differs from the actual distance. (When memory
replay operation is not normally carried out)

2. INITIALIZATION PROCEDURE

NOTE:
• Initialize the records inside the module by per-
forming all the following steps regardless the item
order.
• Buzzer sounds once when keeping the switch
operation for three seconds with each seat in lock*
status.
• After the completion of all items for initialization
process, the buzzer sounds three times when fin-
ishing the final operation and turning the switch
from ON to OFF.
1) Move the seat rearward using the slide switch,
and keep the seat lock* status for 3 seconds or
more.
2) Move the seat downward using tilt switch, and
keep the seat lock* status for three seconds or
more.
3) Move the seat downward using lifter switch, and
keep the seat lock* status for three seconds or
more.
4) Tilt the seatback forward using reclining switch,
and keep the seat lock* status for three seconds or
more.
*: Seat lock is the status that there is no pulse out-
put from the encoder within the specified period of
time although it reaches the movable position end.

NOTE:
When the following conditions are met, the initializ-
ing operation is cancelled even though the proce-
dure is carried out halfway.
• Any operation interval between each initialization
procedures from 1) to 4) exceeded 10 seconds.
• All operations throughout initialization procedure
1) to 4) was not performed.
• During initialization procedure, power supply
was cut off, or the voltage to the memory module
exceeded the range of operating voltage.

SL-2

General Description

SECURITY AND LOCKS

1. General Description

A: COMPONENT

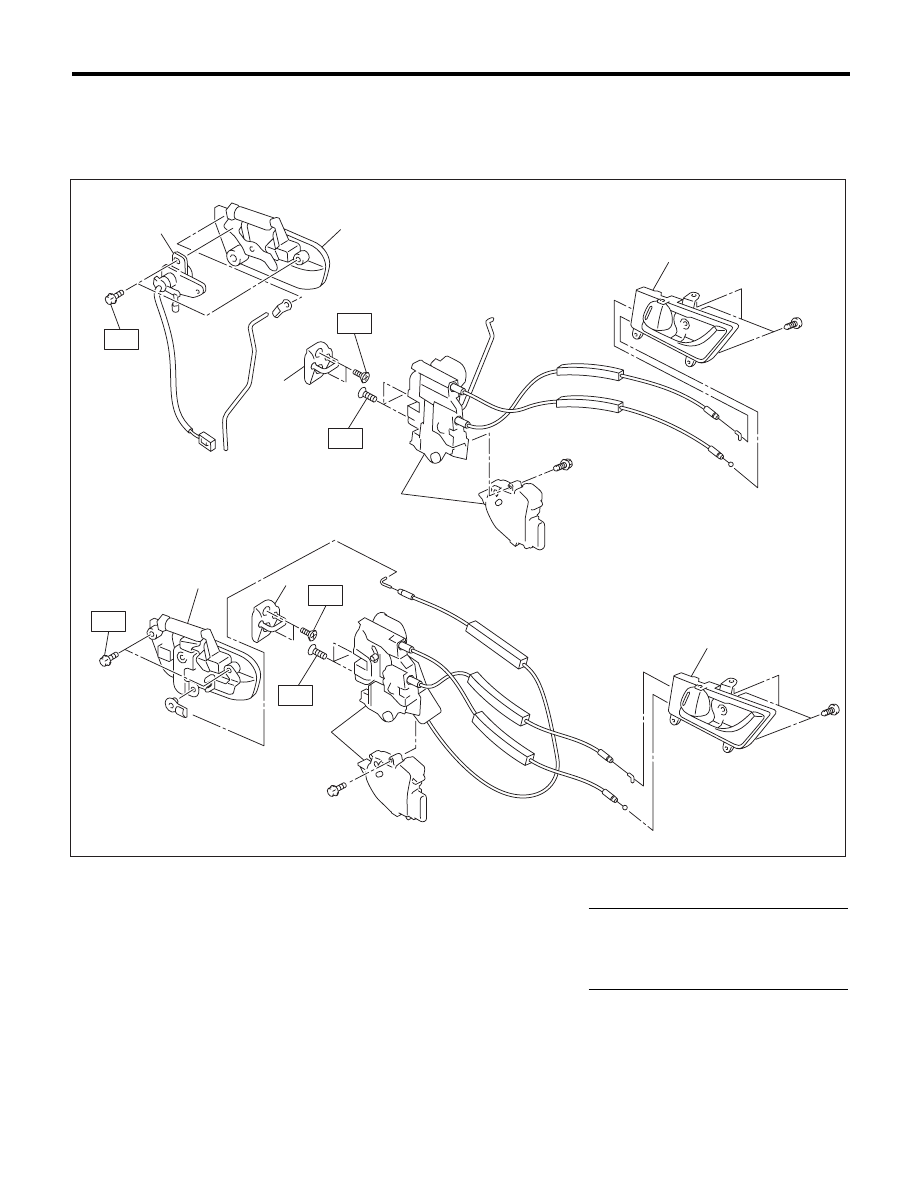

1. DOOR LOCK ASSEMBLY

(A)

Front

(B)

Rear















(1)

Inner remote ASSY

(4)

Key cylinder (switch)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Front door latch and door lock
actuator ASSY

(5)

Striker

T1: 6.5 (0.66, 4.8)

(6)

Rear door latch and door lock
actuator ASSY

T2: 7.5 (0.76, 5.5)

(3)

Door outer handle

T3: 18 (1.8, 13.3)

SL-00394

T2

T3

T1

(5)

(2)

(3)

T2

(3)

(1)

(A)

(B)

(1)

T3

T1

(5)

(6)

(4)

SL-3

General Description

SECURITY AND LOCKS

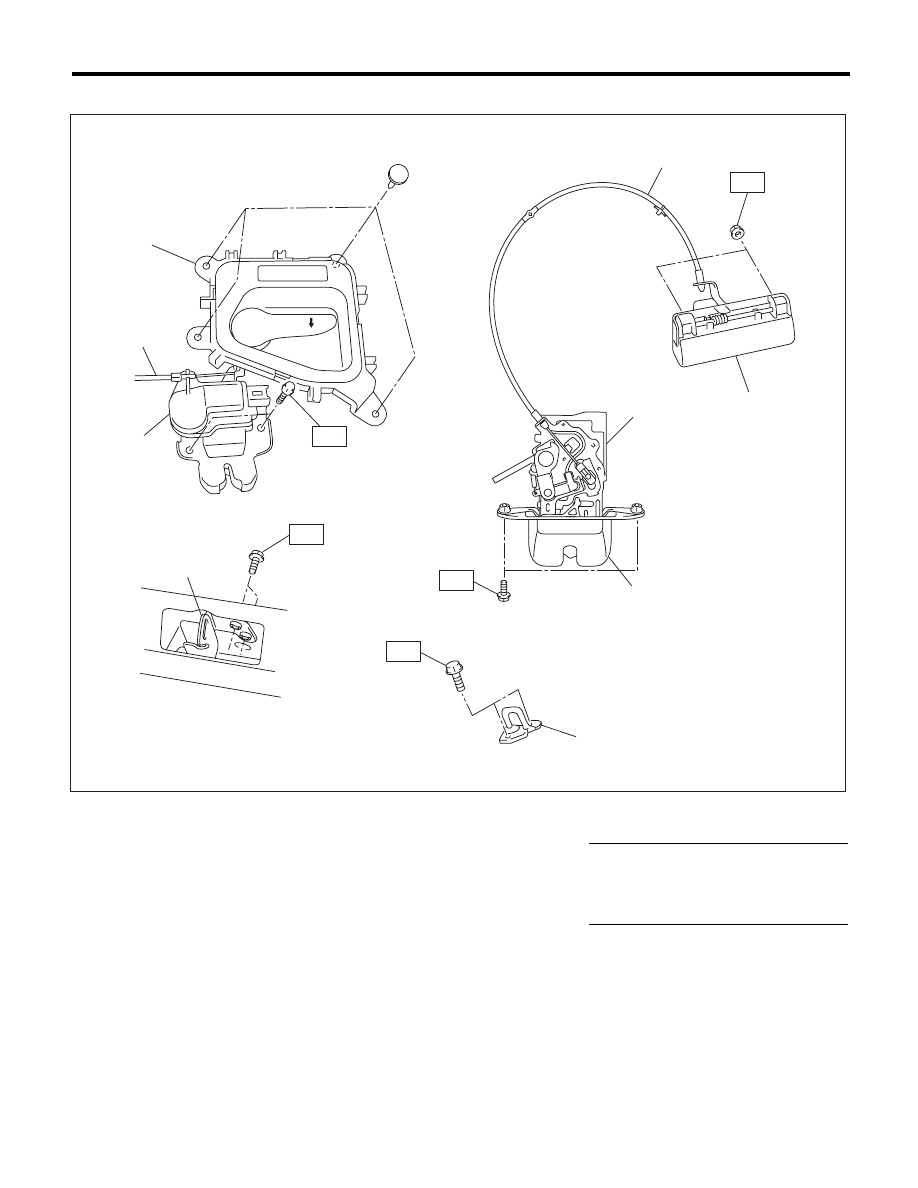

2. TRUNK LID AND REAR GATE LOCK

(A)

Trunk

(B)

Rear gate













(1)

Cable

(5)

Rear gate outer handle

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Striker

(6)

Rear gate lock actuator

T1: 7.5 (0.76, 5.5)

(3)

Trunk lid lock ASSY

(7)

Rear gate latch

T2: 18 (1.8, 13.3)

(4)

Trunk lid release handle





T3: 25 (2.5, 18.4)

SL-00380

(2)

T3

T2

T1

(1)

(4)

(A)

(B)

(3)

(1)

(6)

(5)

(7)

(2)

T1

T1

SL-4

General Description

SECURITY AND LOCKS

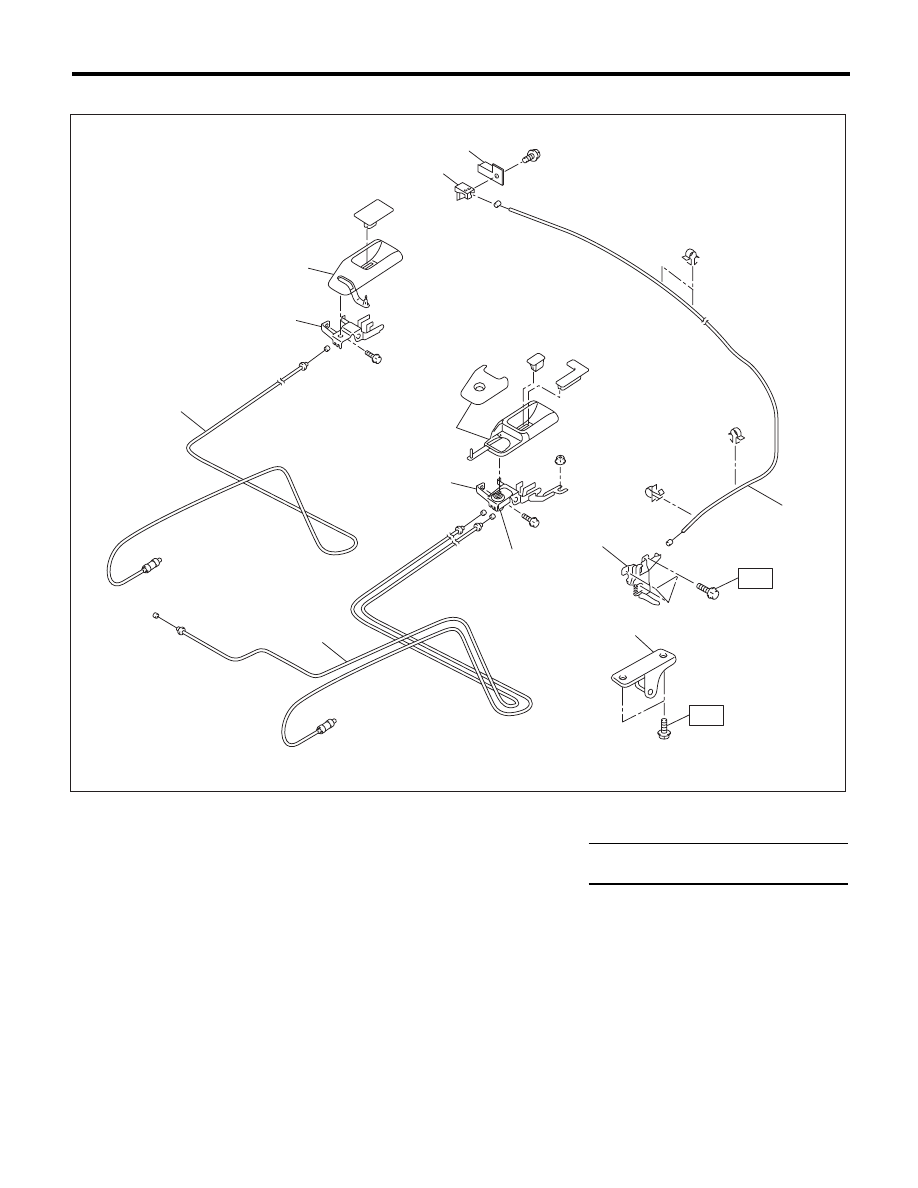

3. FRONT HOOD LOCK AND REMOTE OPENERS

(A)

Sedan model

(B)

Wagon model

(C)

Hood













(1)

Front hood lock ASSY

(5)

Cover

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Lever ASSY

(6)

Pull handle ASSY

T: 33 (3.36, 24.2)

(3)

Lever ASSY bracket

(7)

Key cylinder





(4)

Cable

(8)

Striker



SL-00381

(2)

(5)

(6)

(7)

(B)

(C)

(A)

(4)

(4)

(1)

(3)

(5)

(6)

(4)

T

(8)

T
