List of Plastic Material Notations

BODY STRUCTURE

4. List of Plastic Material Notations

A: SPECIFICATION

Notation sym-

bol

Material name

Notation

symbol

Material name

ABS

ABS resin
(acrylonitrile-butadiene-styrene resin)

PMMA

Polymethyl methacrylate

AES

Acrylonitrile/ethylene/styrene

PP

Polypropylene

ASA

Acrylonitrile/styrene/acrylate

PPE

Poly (phenylene ether)

EPDM

Ethylene/propylene/dien rubber

PP -GF20

Polypropylene (20% glass fiber content)

GF

Glass fiber

PP - GF30

Polypropylene (30% glass fiber content)

PA

Polyamide

PVC

Polyvinyl chloride

PBT

Poly (butylene terephthalate)

SEPM

Styrene/ethylene/propylene rubber

PC

Polycarbonate

TPO

Thermoplastic olefine

PE

Polyethylene

UP

Unsaturated polyester resin

PET

Polyethylene terephthalate

UP - GF10

Unsaturated polyester resin (10% glass fiber
content)

PET - GF10

Polypropylene (10% glass fiber content)





BS-29

Body Sealing

BODY STRUCTURE

5. Body Sealing

A: SPECIFICATION

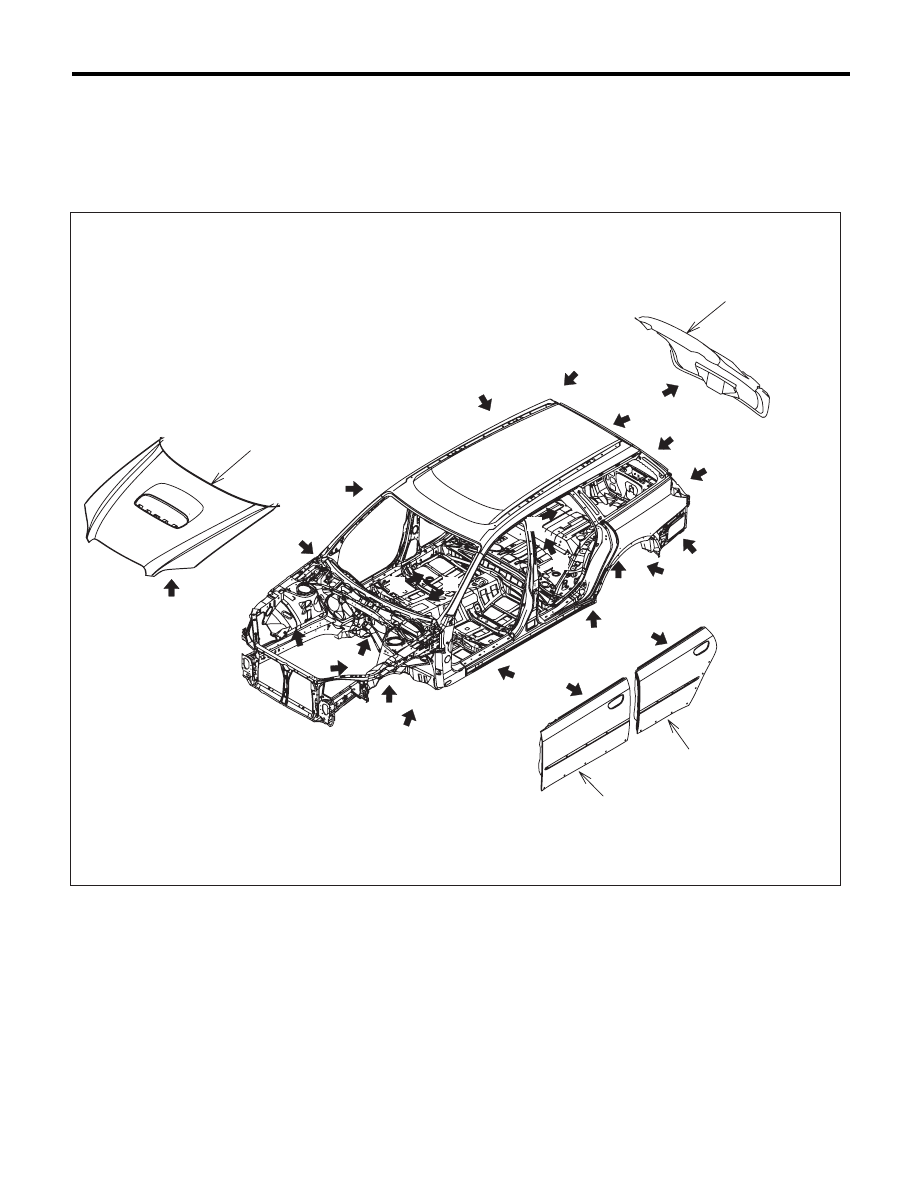

Used material:

THREE BOND 4101 (004403063)

• Common for wagon and sedan model

(1)

Front hood

(3)

Rear door

(4)

Front door

(2)

Rear

gate





(1)

(2)

(3)

(4)

Q

D

H

I

J

P

K

U

G

Y

X

R

C

W

B

A

E

F

M

N

O

S

T

V

L

BS-01721

BS-30

Body Sealing

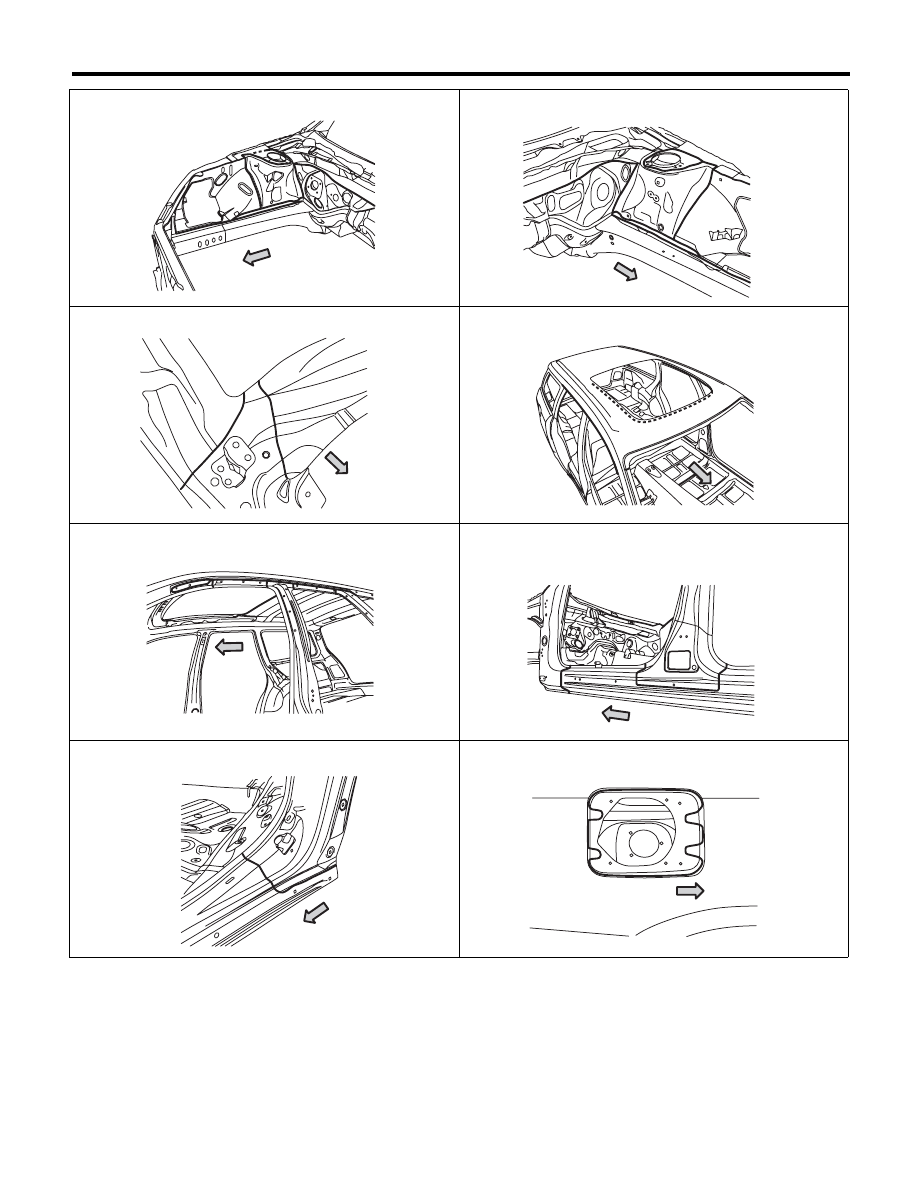

BODY STRUCTURE

View A

View B

View C

View D

View E

View F

View G

View H

Ft

BS-01498

Ft

BS-01499

Ft

BS-00734

Ft

BS-00735

Ft

BS-00736

Ft

BS-01601

Ft

BS-00738

Ft

BS-00739

BS-31

Body Sealing

BODY STRUCTURE

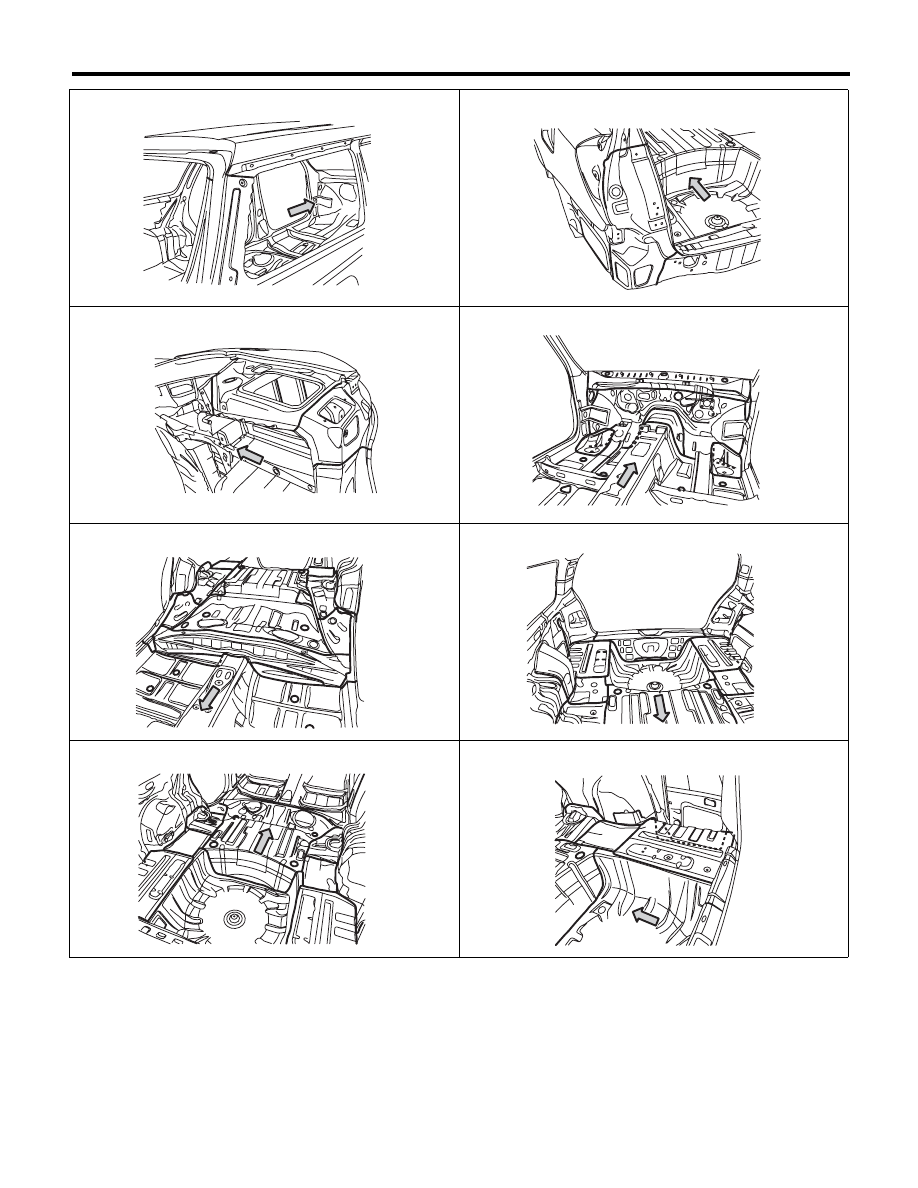

View I

View J

View K

View L

View M

View N

View O

View P

Ft

BS-00740

Ft

BS-00741

Ft

BS-00742

Ft

BS-00743

Ft

BS-01718

Ft

BS-01719

Ft

BS-01720

Ft

BS-00747
