BS-32

Body Sealing

BODY STRUCTURE

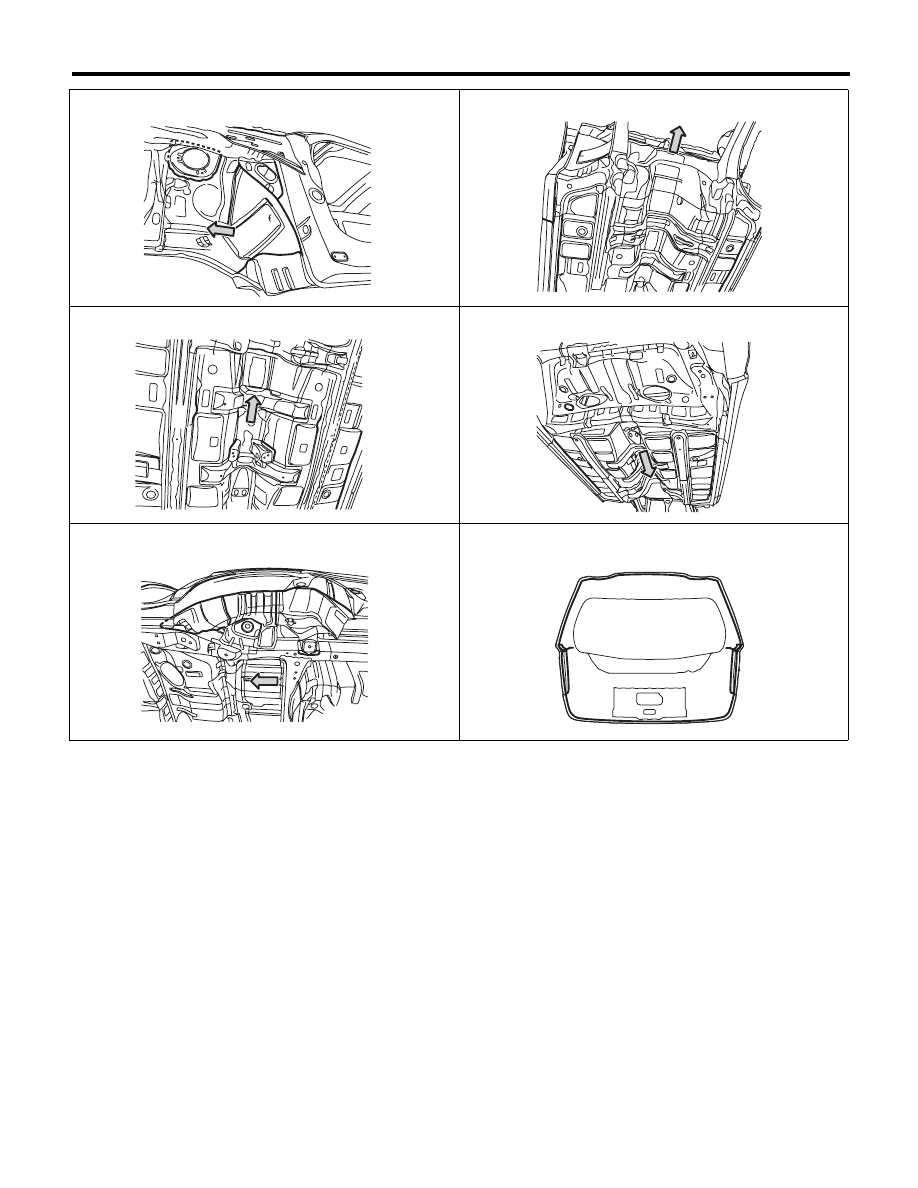

View Q

View R

View S

View T

View U

View V

Ft

BS-00748

Ft

BS-01500

Ft

BS-01501

Ft

BS-01502

Ft

BS-01602

BS-00756

BS-33

Body Sealing

BODY STRUCTURE

CAUTION:
Sealer already has been applied to hood, door, and rear gate in replacement condition.

View W
Sedan model and wagon model

(1) Application not required.
(2) 50 mm (1.97 in)

OUTBACK model

(1) Application not required.
(2) 50 mm (1.97 in)
(3) 84 mm (3.31 in) Fatten out after applied in this period.

View X

(1) Do not block the water drain holes.

View Y

(1) Do not block the water drain holes.

(1)

BS-01436

(2)

(2)

(1)

BS-02095

(2)

(2)

(3)

(3)

(1)

BS-00754

(1)

BS-00755

BS-34

Body Sealing

BODY STRUCTURE

• Sedan model

(1)

Trunk





(1)

AA

BB

CC

DD

EE

FF

GG

HH

BS-00757

BS-35

Body Sealing

BODY STRUCTURE

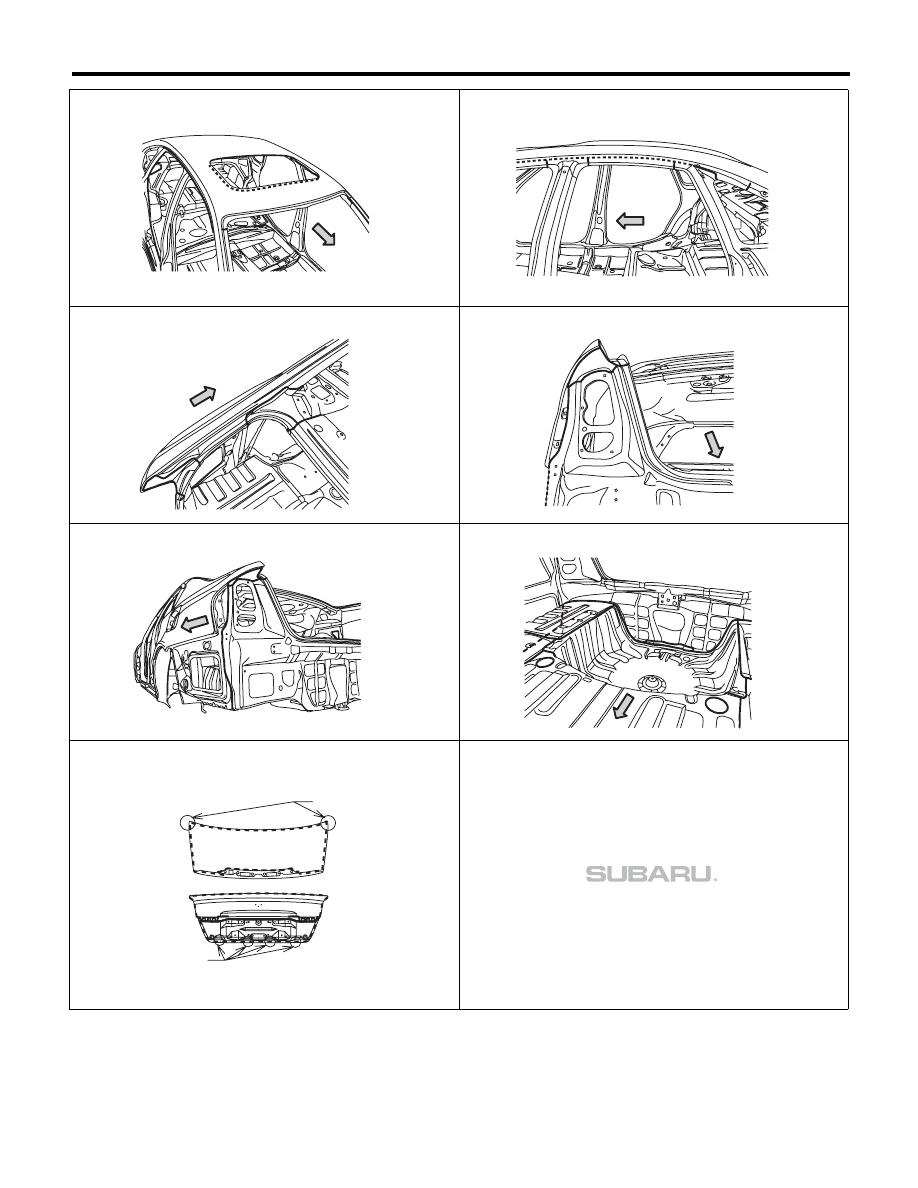

CAUTION:
Sealer already has been applied to the trunk in replacement condition.

View AA

View BB

View CC

View DD

View EE

View FF

View GG
View HH

(1) The holes shall be blocked.
(2) Do not block the water drain holes.

Ft

BS-00758

Ft

BS-00759

Ft

BS-00760

Ft

BS-00761

Ft

BS-00762

Ft

BS-00763

(1)

(2)

BS-00764
