BS-20

Datum Dimensions

BODY STRUCTURE

NOTE:

• The reference point (70) is at the body center, while the other points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

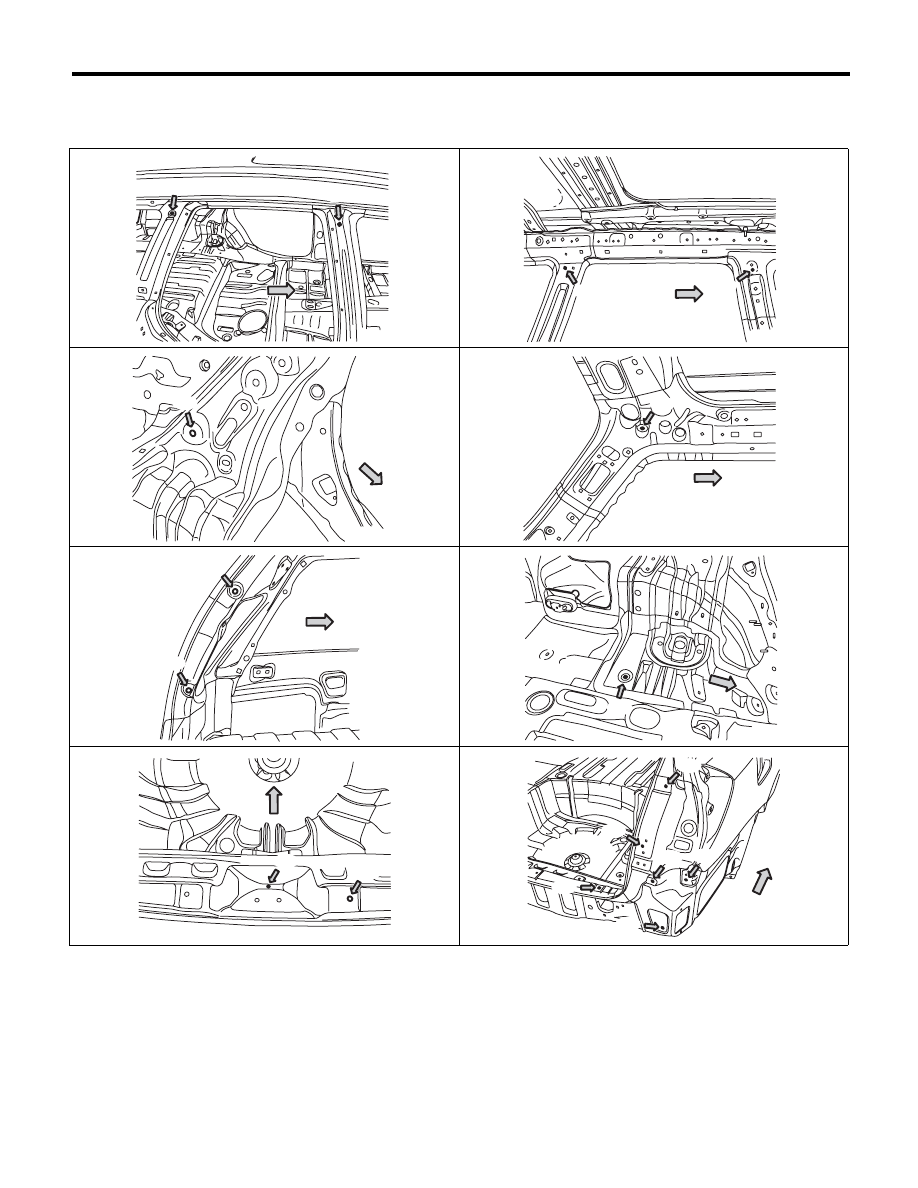

Ft

(34)

(26)

BS-01475

Ft

(44)

(53)

BS-01476

Ft

(54)

BS-01477

Ft

(64)

BS-01478

Ft

(62)

(63)

BS-01479

Ft

(58)

BS-01535

Ft

(70)

(69)

BS-01481

Ft

(71)

(72)

(73)

(74)

(75)

(68)

BS-01482

BS-21

Datum Dimensions

BODY STRUCTURE

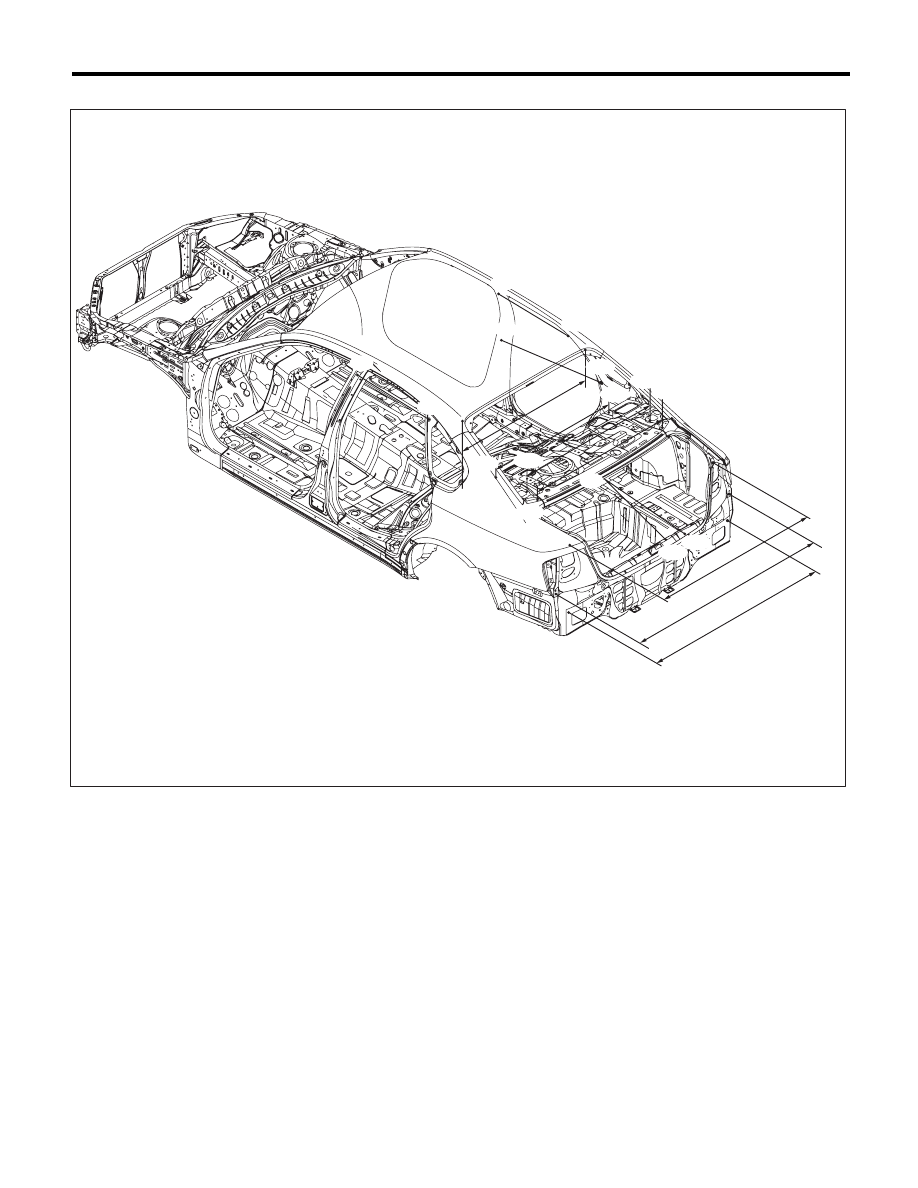

• Sedan model

(26)

Gauge hole (symmetrical)

(122) Trim clip mounting hole

(symmetrical)

(127) Trim clip mounting hole

(symmetrical)

(44)

Trim clip mounting hole
(symmetrical)

(123) Sunroof drain hose clip mounting

hole (symmetrical)

(128) ED hole (symmetrical)

(45)

Trim clip mounting hole
(symmetrical)

(129) Combination light mounting hole

(symmetrical)

(124) Trim clip mounting hole

(symmetrical)

(58)

Gauge hole (symmetrical)

(130) Bumper bracket mounting hole

(symmetrical)

(120) Six light glass mounting hole

(symmetrical)

(125) Harness clip mounting hole

(symmetrical)

(131) ED hole (symmetrical)

(121) Trim clip mounting hole

(symmetrical)

(126) Gauge hole (symmetrical)









BS-01536

(121)

(44)

(120)

(123)

(123)

(122)

(58)

(125)

(125)

(45)

(126)

(127)

(128)

(126)

(130)

(129)

(131)

(130)

(129)

(131)

(124)

(124)

(26)

BS-22

Datum Dimensions

BODY STRUCTURE

NOTE:

• All reference points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

Point of measurement

Datum dimension mm (in)

(26) — (120)

598 (23.54)

(44) — (121)

570 (22.44)

(45) — (122)

835 (32.87)

(58) — (127)

916 (36.06)

(58) — (128)

904 (35.59)

(123) — (123)

1,024 (40.31)

(124) — (124)

940 (37.01)

(125) — (125)

1,024 (40.31)

(126) — (126)

1,040 (40.94)

(129) — (129)

1,191 (46.89)

(130) — (130)

1,442 (56.77)

(131) — (131)

1,322 (52.05)

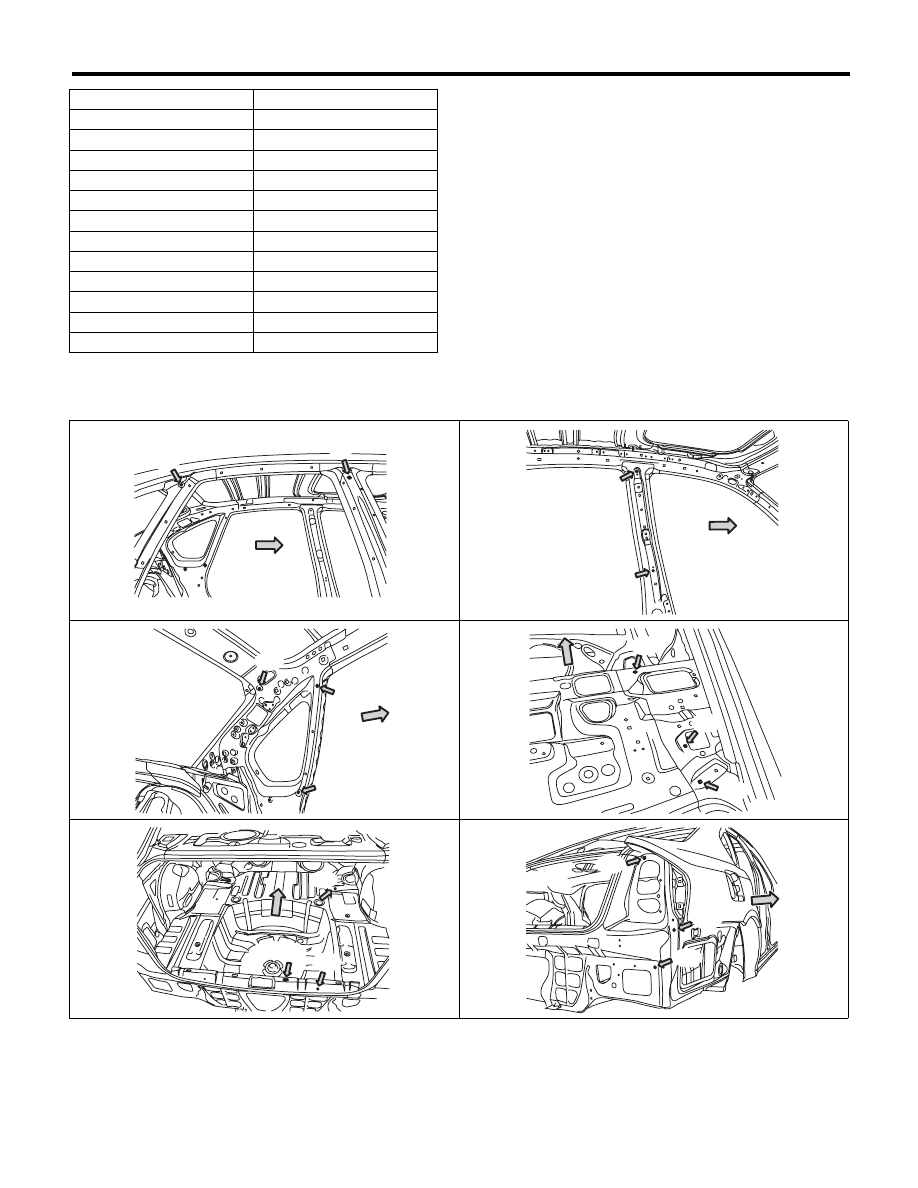

Ft

(120)

(26)

BS-01483

Ft

(44)

(45)

BS-01496

Ft

(123)

(121)

(122)

BS-01485

Ft

(124)

(125)

(126)

BS-01486

Ft

(58)

(127)

(128)

BS-01537

Ft

(129)

(130)

(131)

BS-01490

BS-23

Datum Dimensions

BODY STRUCTURE

5. SUSPENSION MOUNT

NOTE:
• Longitudinal dimensions are projected dimensions.
• The height dimensions are the vertical distances from the gauge point on the assumed horizontal line
through the side sill flange joint (bending angle point).
