Subaru Legacy IV (2008 year). Manual - part 1082

BS-16

Datum Dimensions

BODY STRUCTURE

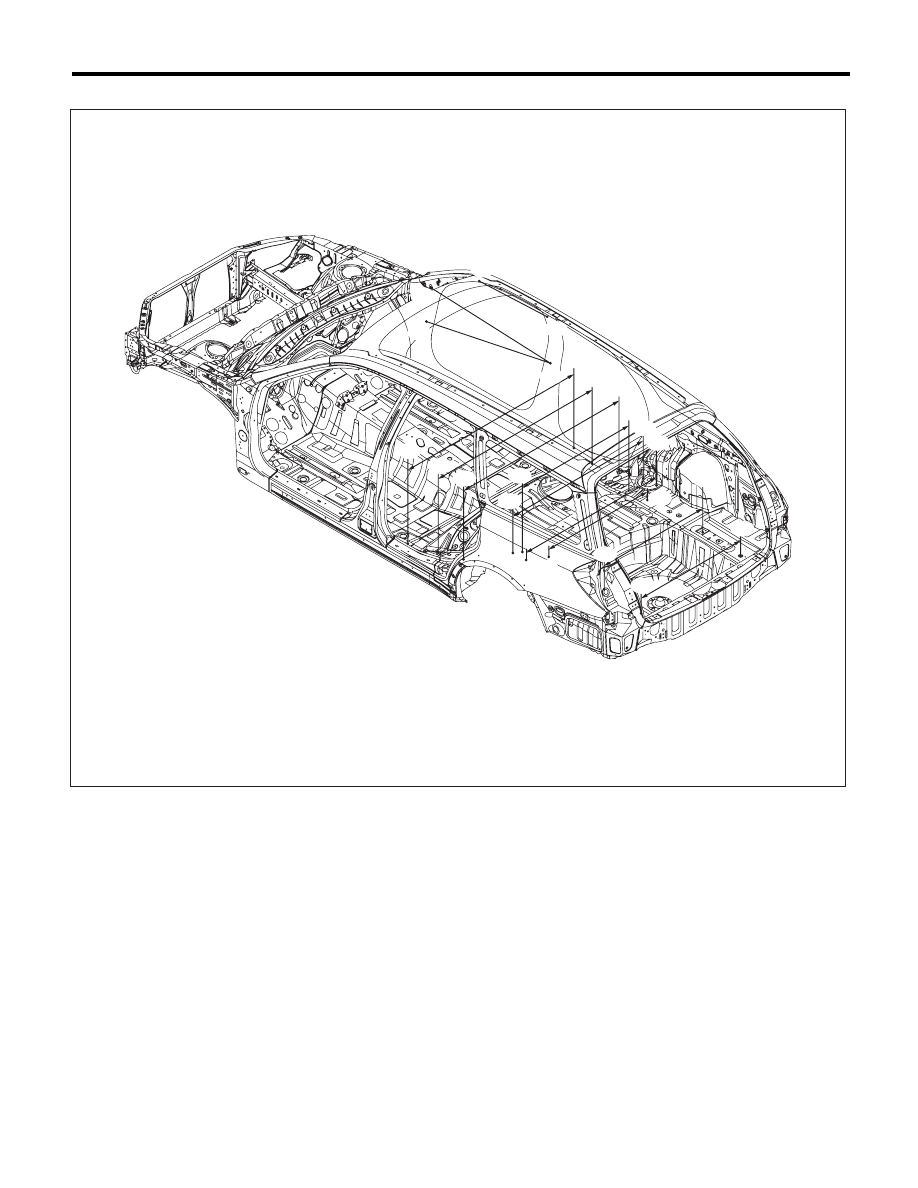

• Common for wagon and sedan model, 3

(38)

Trim clip mounting hole
(symmetrical)

(48)

Harness clip mounting hole
(symmetrical)

(56)

Rear suspension mounting hole
(symmetrical), front

(39)

ED hole (symmetrical)

(49)

Harness clip mounting hole
(symmetrical)

(57)

Rear seat hinge mounting hole
(symmetrical)

(40)

Hood lock lever arrest hole
(symmetrical)

(50)

Side sill cover mounting hole
(symmetrical)

(58)

Gauge hole (symmetrical)

(44)

Trim clip mounting hole
(symmetrical)

(60)

Gauge hole (symmetrical)

(55)

Rear suspension mounting hole
(symmetrical), rear

(61)

Gauge hole (symmetrical)

(45)

Trim clip mounting hole
(symmetrical)

BS-01532

(60)

(38)

(39)

(40)

(44)

(45)

(48)

(49)

(50)

(57)

(56)

(55)

(58)

(60)

(61)

(61)

(58)

(55)

(57)

(56)

(50)

(49)

(48)

BS-17

Datum Dimensions

BODY STRUCTURE

NOTE:

• All reference points are left-right symmetrical.
• The dimensions are the actual dimensions between the reference points.

Point of measurement

Datum dimension mm (in)

(38) — (44)

586 (23.07)

(39) — (45)

993 (39.09)

(40) — (45)

1,043 (41.06)

(48) — (48)

1,380 (54.33)

(49) — (49)

1,280 (50.39)

(50) — (50)

1,294 (50.94)

(55) — (55)

1,084 (42.68)

(56) — (56)

1,090 (42.91)

(57) — (57)

886 (34.88)

(58) — (58)

820 (32.28)

(60) — (60)

820 (32.28)

(61) — (61)

840 (33.07)

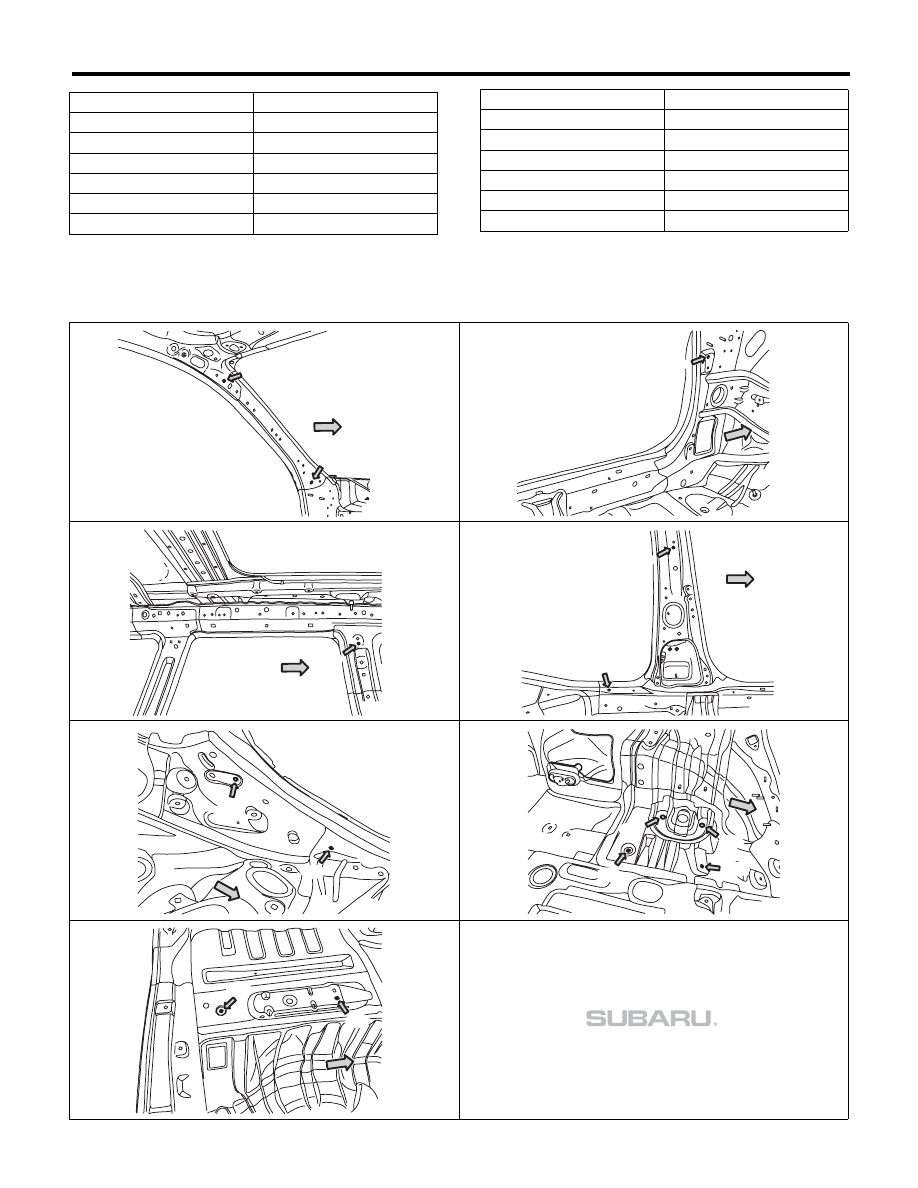

Point of measurement

Datum dimension mm (in)

Ft

(38)

(39)

BS-01468

Ft

(40)

BS-01469

Ft

(44)

BS-01470

Ft

(48)

(45)

BS-01471

Ft

(50)

(49)

BS-01472

Ft

(58)

(55)

(56)

(57)

BS-01533

Ft

(61)

(60)

BS-01495

BS-18

Datum Dimensions

BODY STRUCTURE

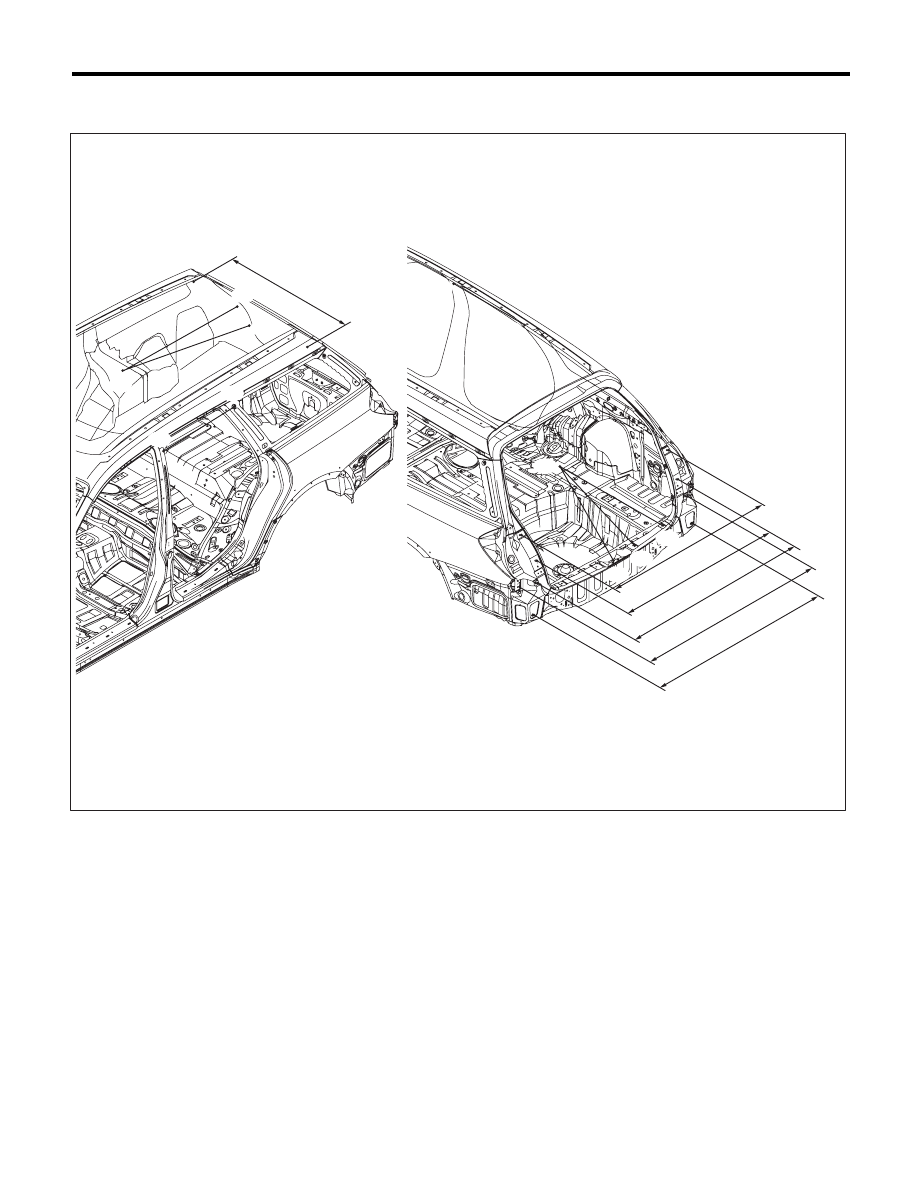

4. REAR

• Wagon model

(26)

Gauge hole (symmetrical)

(62)

Trim clip mounting hole
(symmetrical)

(70)

Repair location hole (body center)

(34)

Rear quarter glass mounting hole
(symmetrical)

(71)

Combination light mounting hole
(symmetrical)

(63)

Trim clip mounting hole
(symmetrical)

(44)

Trim clip mounting hole
(symmetrical)

(72)

Buffer mounting hole
(symmetrical)

(64)

Harness clip mounting hole
(symmetrical)

(53)

Trim clip mounting hole
(symmetrical)

(73)

Bumper mounting hole
(symmetrical)

(68)

Trim clip mounting hole
(symmetrical)

(54)

Rear seat striker mounting hole
(symmetrical)

(74)

Bracket corner mounting hole
(symmetrical)

(69)

Trim clip mounting hole
(symmetrical)

(58)

Gauge hole (symmetrical)

(75)

Gauge hole (symmetrical)

BS-01534

(64)

(64)

(44)

(53)

(70)

(69)

(58)

(68)

(71)

(72)

(74)

(73)

(75)

(71)

(72)

(74)

(73)

(75)

(63)

(62)

(34)

(26)

(54)

BS-19

Datum Dimensions

BODY STRUCTURE

Point of measurement

Datum dimension mm (in)

(26) — (34)

613 (24.13)

(44) — (53)

591 (23.27)

(54) — (62)

969 (38.15)

(54) — (63)

884 (34.80)

(58) — (68)

900 (35.43)

(58) — (69)

958 (37.72)

(58) — (70)

990 (38.98)

(64) — (64)

944 (37.17)

(71) — (71)

1,224 (48.19)

(72) — (72)

1,173 (46.18)

(73) — (73)

1,438 (56.61)

(74) — (74)

1,250 (49.21)

(75) — (75)

1,320 (59.97)
