BODY STRUCTURE

1. CENTER STRUCTURE

NOTE:
• Longitudinal dimensions are projected dimensions.
• The height dimensions are the vertical distances from the gauge point on the assumed horizontal line
through the side sill flange joint (bending angle point).
• Diagonal dimensions are the actual dimensions between reference points. The values in brackets are pro-
jected dimensions for reference.

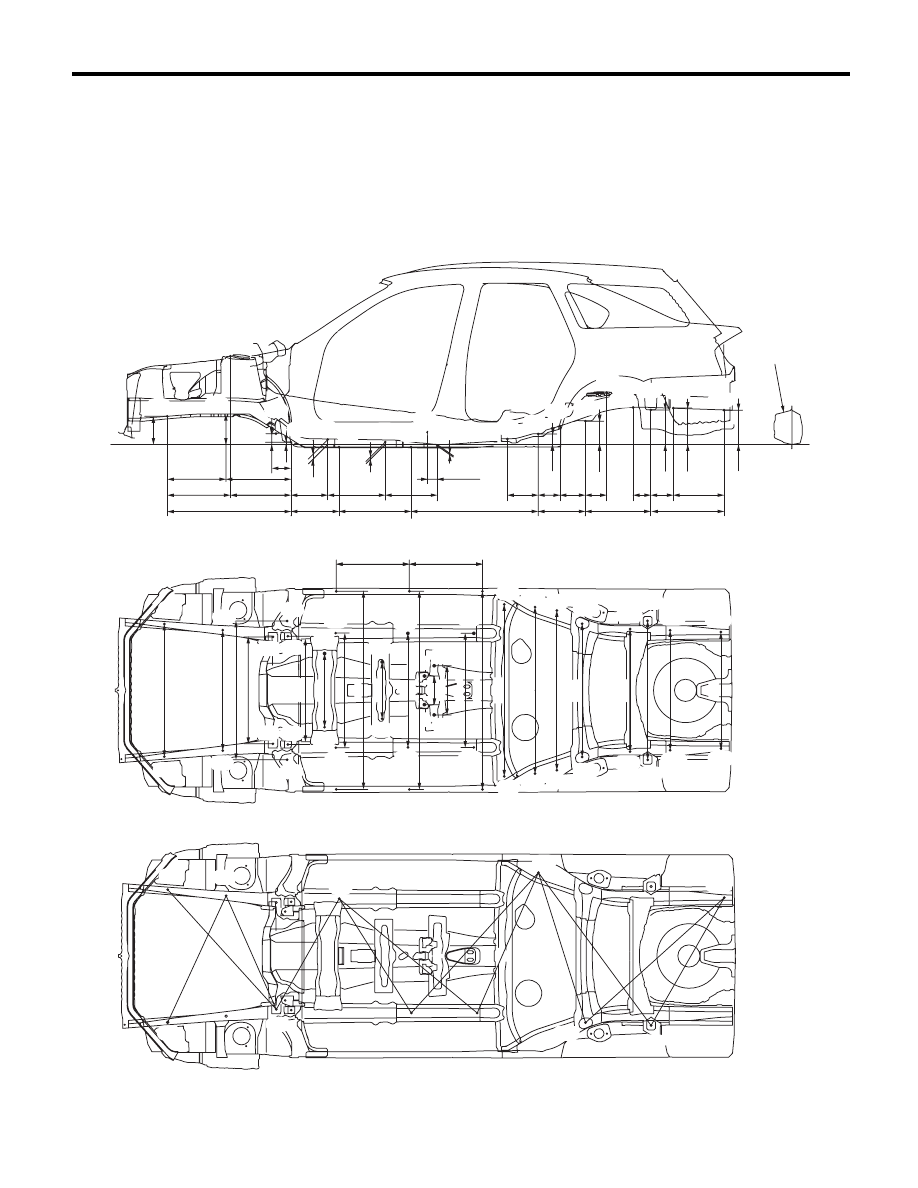

Unit: mm

BS-01530

(17)

(85)

(86)

(B)

(A)

(C)

(80)

(81)

(82)

(84) (89) (88)

(90) (92)

(93)

(94)

(97) (98)

(99)

(55)

(100)

(101)

(102) (103)

(104)

(91)

(87)

(96)

(86)

(91)

(85)

(80)

(81)

(83)

(82) (84)

(89)

(88)

(80)

(81)

(82) (84)

(83)

(89)

(88)

(87)

(92)

(90)

(92)

(90)

(94)

(93)

(95)

(93)

(94)

(95)

(97) (98)

(99)

(100)

(101)

(102)

(103)

(104)

(96)

(97) (98)

(99)

(100)

(101)

(102)

(103)

(104)

(92)

(95)

(80)

(81)

(80)

(82)

(88)

(98)

(104)

(100)

(102)

BS-5

Datum Dimensions

BODY STRUCTURE

(A)

Standard line

(B)

Side sill

(C)

Upper face













(80)

Gauge hole (symmetrical)

(89)

Transmission crossmember
mounting hole (symmetrical)

(97)

Fuel protector mounting hole
(symmetrical)

(81)

Front crossmember mounting hole
(symmetrical), Lower surface rear

(90)

Gauge hole (symmetrical)

(98)

Trailing arm mounting hole
(symmetrical)

(82)

Front arm mounting hole
(symmetrical)

(91)

Under cover mounting hole
(symmetrical)

(99)

Trailing arm mounting hole
(symmetrical)

(83)

Strut mount mounting hole
(symmetrical)

(92)

Under cover mounting hole
(symmetrical)

(100) Rear suspension crossmember

mounting hole (symmetrical)

(84)

Strut mount mounting hole
(symmetrical)

(93)

Center bearing mounting hole
(symmetrical)

(101) Canister hose mounting hole

(symmetrical)

(85)

Transmission crossmember
mounting hole (symmetrical)

(94)

Exhaust cover mounting hole
(symmetrical)

(102) Rear suspension crossmember

mounting hole (symmetrical)

(86)

Drain hose mounting hole
(symmetrical)

(95)

Weight reduction hole
(symmetrical)

(103) Gauge hole (symmetrical)

(87)

Under cover mounting hole
(symmetrical)

(96)

Under cover mounting hole
(symmetrical)

(104) Weight reduction hole

(symmetrical)

(88)

Under cover mounting hole
(symmetrical)









BS-6

Datum Dimensions

BODY STRUCTURE

Point of measurement

Dimension mm (in)

Datum line to (80)

198 (7.80)

Datum line to (81)

212 (8.35)

Datum line to (82)

77 (3.03)

Datum line to (84)

17 (0.07)

Datum line to (89)

(4AT and MT) 35 (1.38)

(5AT) 56 (2.20)

Datum line to (90)

18 (0.71)

Datum line to (94)

–9 (–0.35)

Datum line to (98)

75 (2.95)

Datum line to (100)

164 (6.46)

Datum line to (102)

243 (9.57)

Datum line to (103)

255 (10.04)

Datum line to (104)

241 (9.49)

(17) to (80)

439 (17.28)

(17) to (84)

423 (16.65)

(80) to (81)

408 (16.06)

(80) to (84)

862 (33.94)

(81) to (84)

454 (17.87)

(82) to (84)

104 (4.09)

(84) to (88)

335 (13.19)

(84) to (89)

(4AT and MT) 257 (10.12)

(5AT) 357 (14.06)

(88) to (92)

503 (19.80)

(89) to (90)

302 (11.89)

(90) to (94)

363 (14.29)

(92) to (98)

887 (34.92)

(93) to (94)

68 (2.68)

(97) to (98)

215 (8.46)

(98) to (99)

152 (5.98)

(98) to (100)

329 (12.95)

(99) to (100)

177 (6.97)

(100) to (55)

149 (5.87)

(100) to (102)

457 (17.99)

(101) to (102)

123 (4.84)

(102) to (103)

157 (6.18)

(102) to (104)

505 (19.88)

(103) to (104)

348 (13.70)

(80) RH to (80) LH

926 (36.46)

(81) RH to (81) LH

840 (33.07)

(82) RH to (82) LH

746 (29.37)

(83) RH to (83) LH

968 (38.11)

(84) RH to (84) LH

756 (29.76)

(87) RH to (87) LH

1,382 (54.41)

(87) to (91)

510 (20.08)

(88) RH to (88) LH

800 (31.50)

(89) RH to (89) LH

(4AT and MT) 529 (20.83)

(5AT) 433 (17.05)

(90) RH to (90) LH

396 (15.59)

(91) RH to (91) LH

1,382 (54.41)

(91) to (96)

510 (20.08)

(92) RH to (92) LH

796 (31.34)

(93) RH to (93) LH

200 (7.87)

(94) RH to (94) LH

343 (13.50)

(95) RH to (95) LH

796 (31.34)

(96) RH to (96) LH

1,382 (54.51)

(97) RH to (97) LH

1,200 (47.24)

(98) RH to (98) LH

1,163 (45.49)

(99) RH to (99) LH

1,115 (43.90)

(100) RH to (100) LH

930 (36.61)

(101) RH to (101) LH

856 (33.70)

(102) RH to (102) LH

970 (38.19)

(103) RH to (103) LH

836 (32.91)

(104) RH to (104) LH

814 (32.05)

(85)

Height 86 (3.39),

Width 620 (24.41)

(86)

Height 117 (4.61),
Width 600 (23.62)

Point of measurement

Dimension/Projected Dimen-

sions For Reference mm (in)

(80) RH to (82) LH

1,135 (44.68)/1,128 (44.41)

(80) LH to (81) RH

973 (38.31)/973 (38.31)

(81) RH to (82) LH

877 (34.53)/867 (34.13)

(82) LH to (88) LH

894 (35.20)/889 (35.00)

(88) RH to (92) LH

943 (37.13)/943 (37.13)

(88) RH to (95) LH

1,251 (49.25)/1,251 (49.25)

(92) LH to (98) RH

1,325 (52.17)/1,321 (52.01)

(95) LH to (98) RH

1,072 (42.20)/1,069 (42.09)

(98) RH to (100) LH

1,101 (43.35)/1,097 (43.19)

(98) RH to (102) LH

1,335 (52.56)/1,325 (52.17)

(100) LH to (104) RH

1,305 (51.38)/1,303 (51.30)

(102) LH to (104) RH

1,028 (40.47)/1,028 (40.47)

Point of measurement

Dimension mm (in)

BS-7

Datum Dimensions

BODY STRUCTURE

NOTE:
For reference point (17) Strut mounting hole (symmetrical), refer to “Datum Dimensions”. <Ref. to BS-8,
FRONT STRUCTURE, MEASUREMENT, Datum Dimensions.>
For reference point (55) Rear suspension mounting hole (symmetrical), refer to “Datum Dimensions”. <Ref.
to BS-11, INSIDE, MEASUREMENT, Datum Dimensions.>

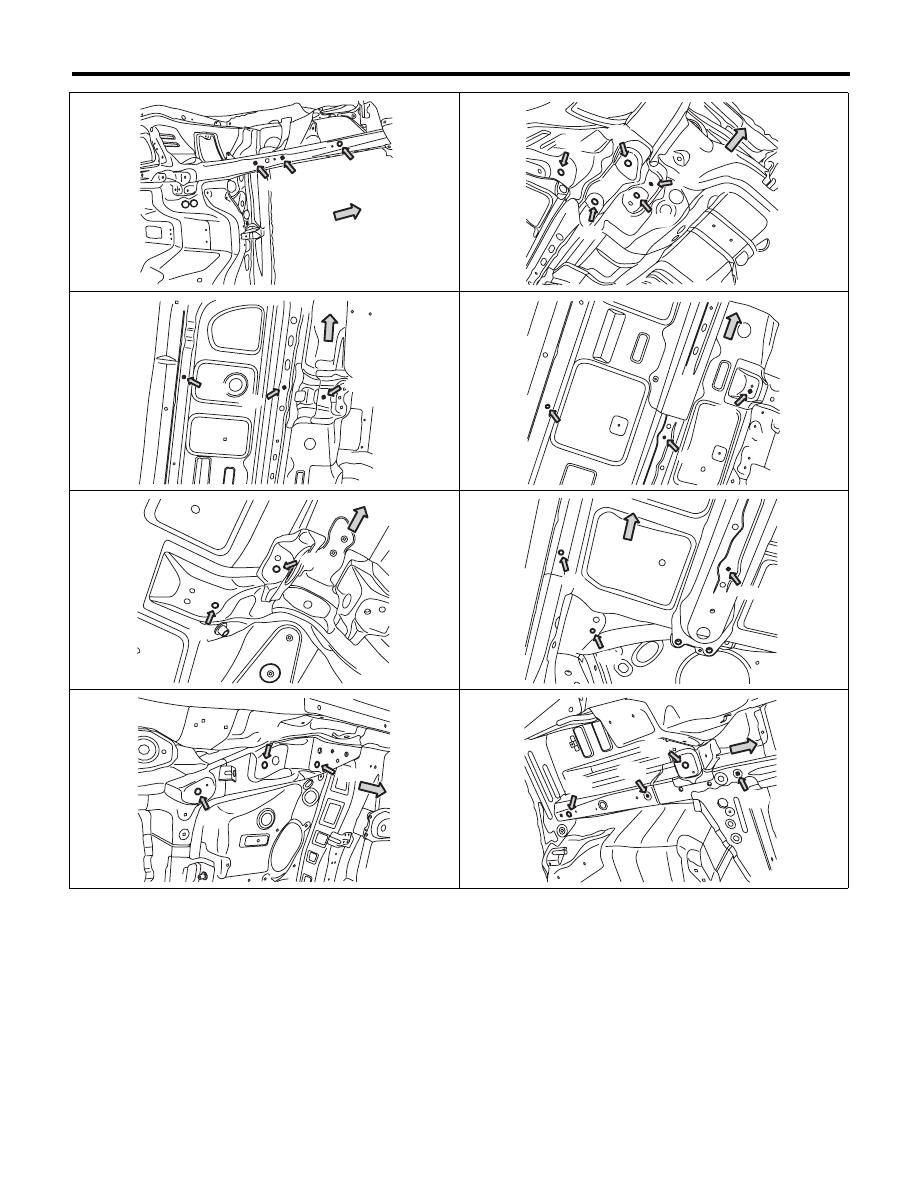

Ft
