GW-3

General Description

GLASS/WINDOWS/MIRRORS

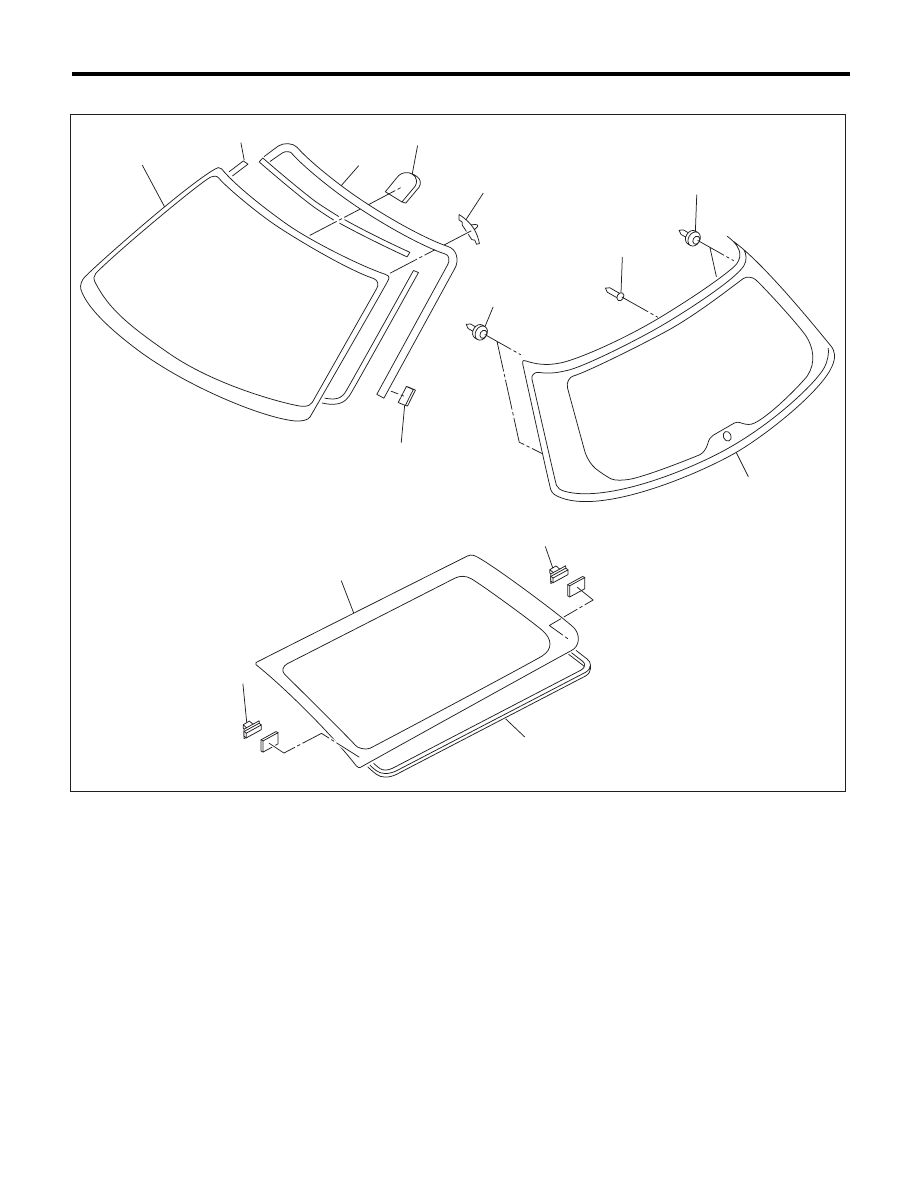

2. FIXED GLASS (WAGON MODEL)

(1)

Windshield glass

(5)

Locating pin

(9)

Rear gate glass

(2)

Dam rubber

(6)

Fastener

(10)

Seal

(3)

Molding

(7)

Rear quarter glass

(11)

Locating pin

(4)

Rearview mirror mount

(8)

Holder





GW-00758

(1)

(2)

(2)

(3)

(5)

(6)

(6)

(7)

(8)

(11)

(8)

(9)

(10)

(4)

GW-4

General Description

GLASS/WINDOWS/MIRRORS

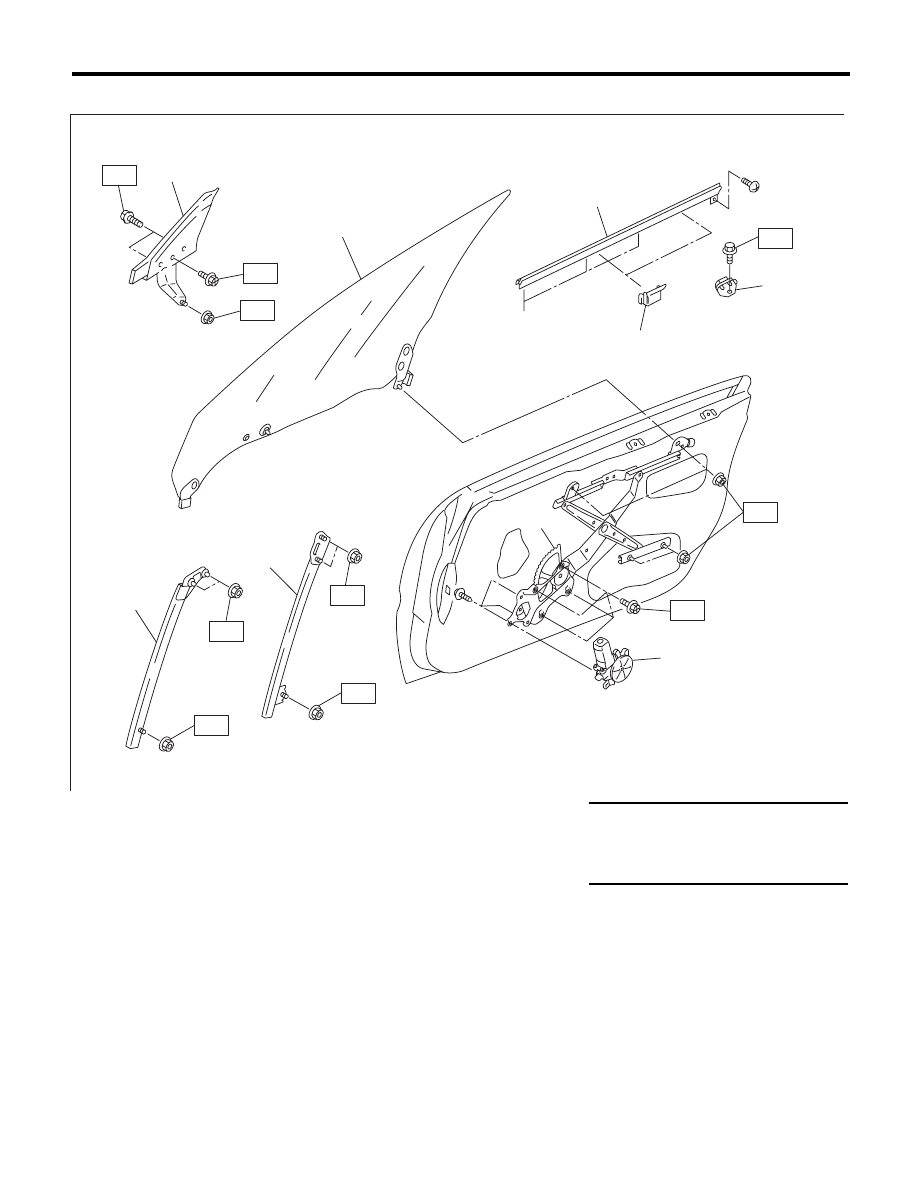

3. FRONT DOOR GLASS

(1)

Glass

(6)

Stabilizer (inner)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Door sash (front)

(7)

Regulator ASSY

T1: 6 (0.61, 4.3)

(3)

Door sash (rear)

(8)

Motor ASSY

T2: 7.5 (0.76, 5.5)

(4)

Weather strip outer

(9)

Mirror gusset

T3: 14 (1.43, 10.1)

(5)

Stabilizer

(outer)





GW-00759

T3

T2

T2

T1

T1

(8)

(7)

(3)

(2)

(1)

(9)

T3

T3

T3

T2

(6)

(5)

(4)

T1

GW-5

General Description

GLASS/WINDOWS/MIRRORS

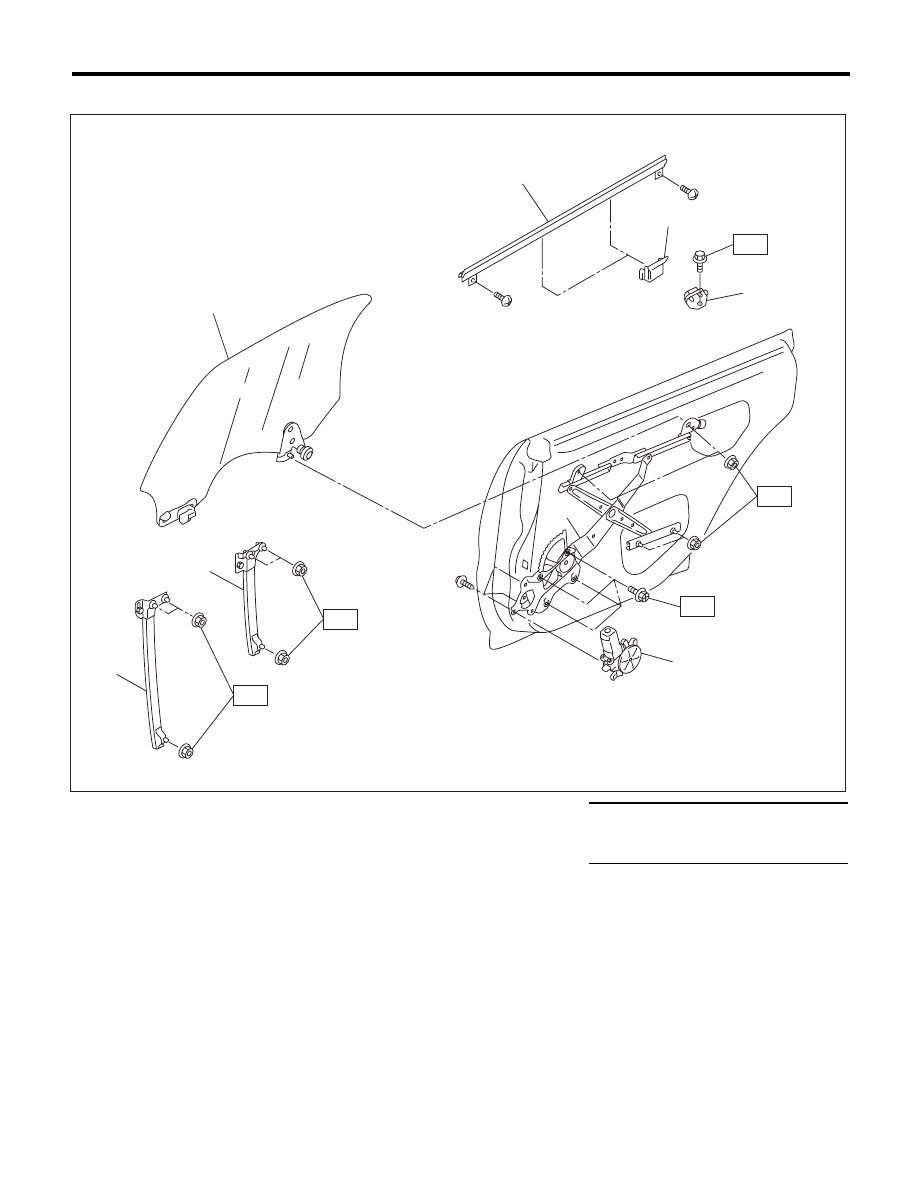

4. REAR DOOR GLASS

(1)

Glass

(5)

Stabilizer (outer)

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Door sash (front)

(6)

Stabilizer (inner)

T1: 7.5 (0.76, 5.5)

(3)

Door sash (rear)

(7)

Regulator ASSY

T2: 14 (1.43, 10.1)

(4)

Weather strip outer

(8)

Motor ASSY





GW-00257

T1

T1

(8)

(7)

(1)

(2)

(3)

T2

T1

(6)

(5)

(4)

T2

GW-6

General Description

GLASS/WINDOWS/MIRRORS

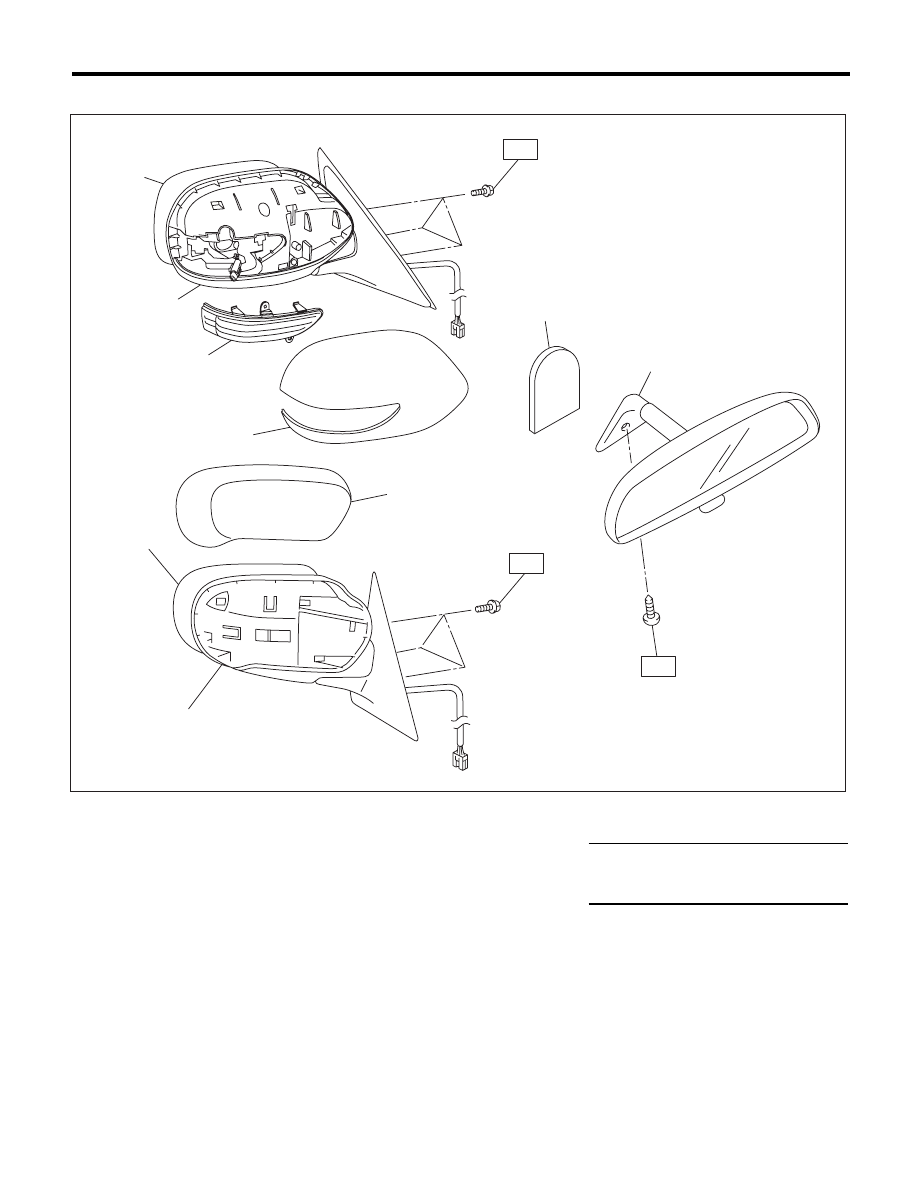

5. MIRROR

B: CAUTION

• When electrical connectors are disconnected, always conduct an operational check after connecting them
again.
• Avoid impact and damage to the glass.

(A)

Model with side turn signal light

(B)

Model without side turn signal light















(1)

Outer mirror

(4)

Side turn signal light

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Mirror

(5)

Rearview mirror

T1: 1.9 (0.19, 1.4)

(3)

Scalp cap

(6)

Mount

T2: 4.5 (0.46, 3.3)

GW-00621

(1)

(2)

(3)

(5)

(6)

(A)

(B)

T1

T2

T2

(2)

(3)

(4)

(1)
