Horn

COMMUNICATION SYSTEM

3. Horn

A: REMOVAL

1) Disconnect the ground cable from battery.

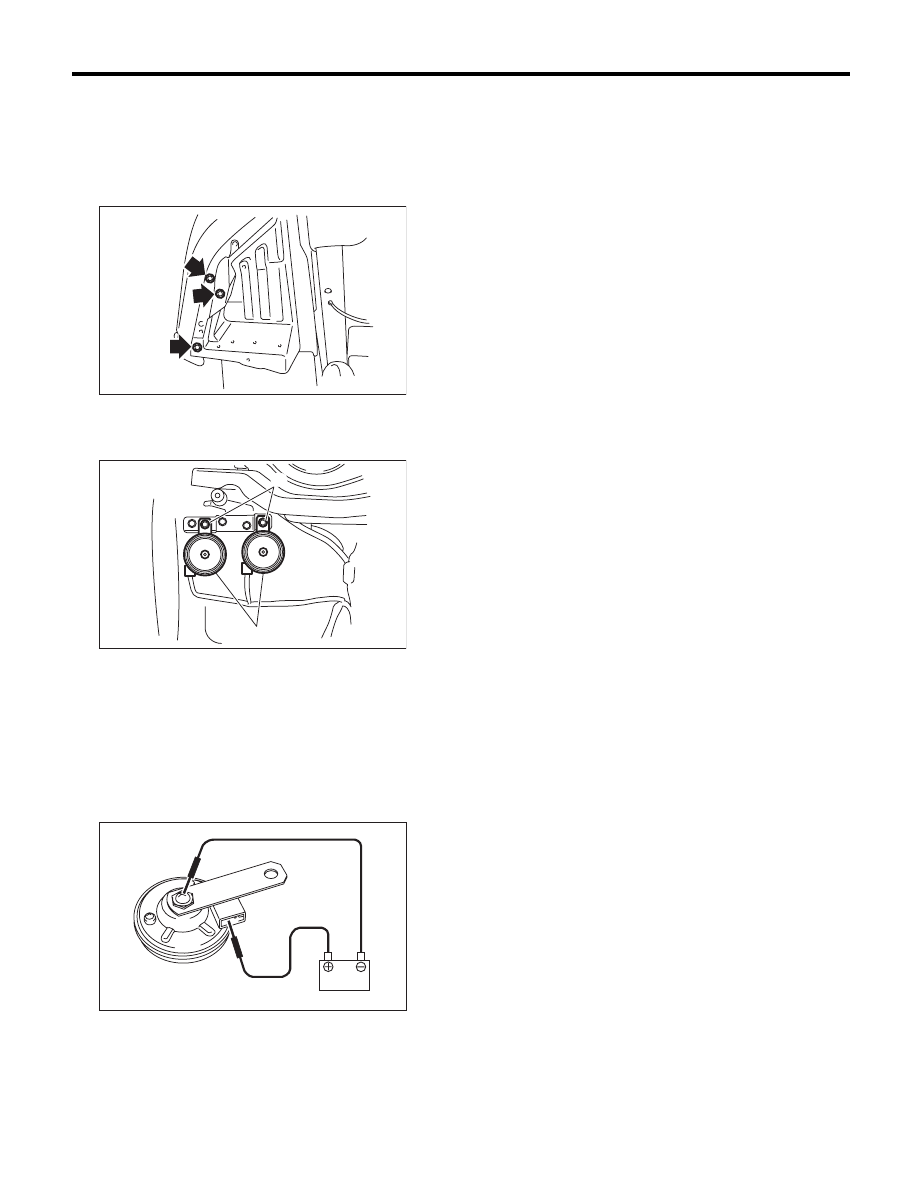

2) Remove the three clips and peel the right side
lower mud guard upward.

3) Remove the horn bracket mounting bolt (A).
4) Disconnect the harness connector and remove
the horn assembly (B).

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

C: INSPECTION

With 12 V direct current supplied between horn ter-
minals, check that the horn sounds properly.

COM00043

(B)

(A)

COM00053

COM00008

COM-5

Horn Switch

COMMUNICATION SYSTEM

4. Horn Switch

A: REMOVAL

CAUTION:
Before servicing, be sure to read the notes in
the “AB” section for proper handling of the
driver’s airbag module. <Ref. to AB-4, CAU-
TION, General Description.>

NOTE:
Horn switch is a unit with the driver’s airbag mod-
ule.
1) Disconnect the ground cable from the battery.
2) Remove the driver’s airbag module. <Ref. to AB-
14, REMOVAL, Driver’s Airbag Module.>

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

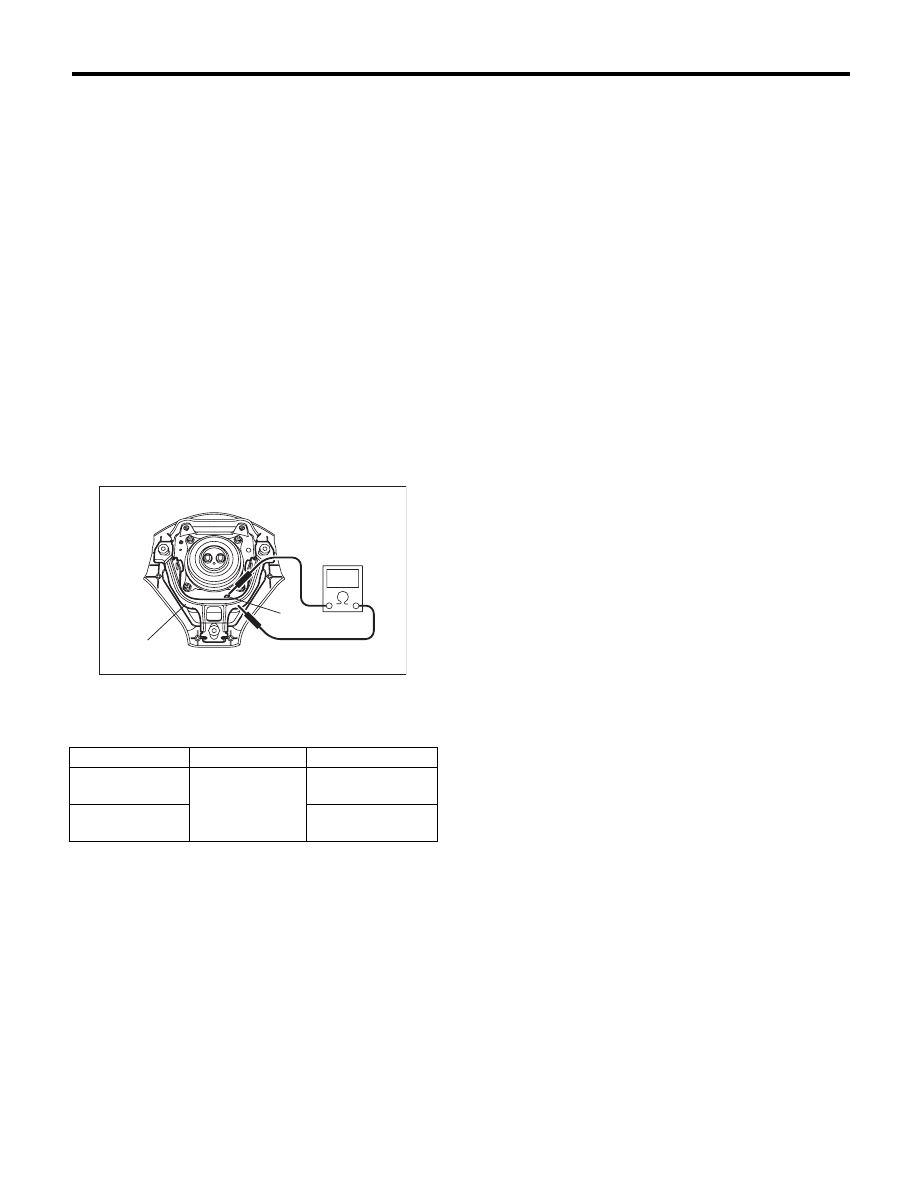

Measure the resistance between horn switch termi-
nal and airbag module bracket.

(1) Horn switch terminal

(2) Airbag module bracket

Switch position

Terminal No.

Resistance

When horn switch
is pushed.

Horn switch ter-
minal and airbag
module bracket

Less than 1

:

When horn switch
is not pushed.

1 M

: or more

(2)

(1)

COM00037

COM-6

Horn Switch

COMMUNICATION SYSTEM

GW-2

General Description

GLASS/WINDOWS/MIRRORS

1. General Description

A: COMPONENT

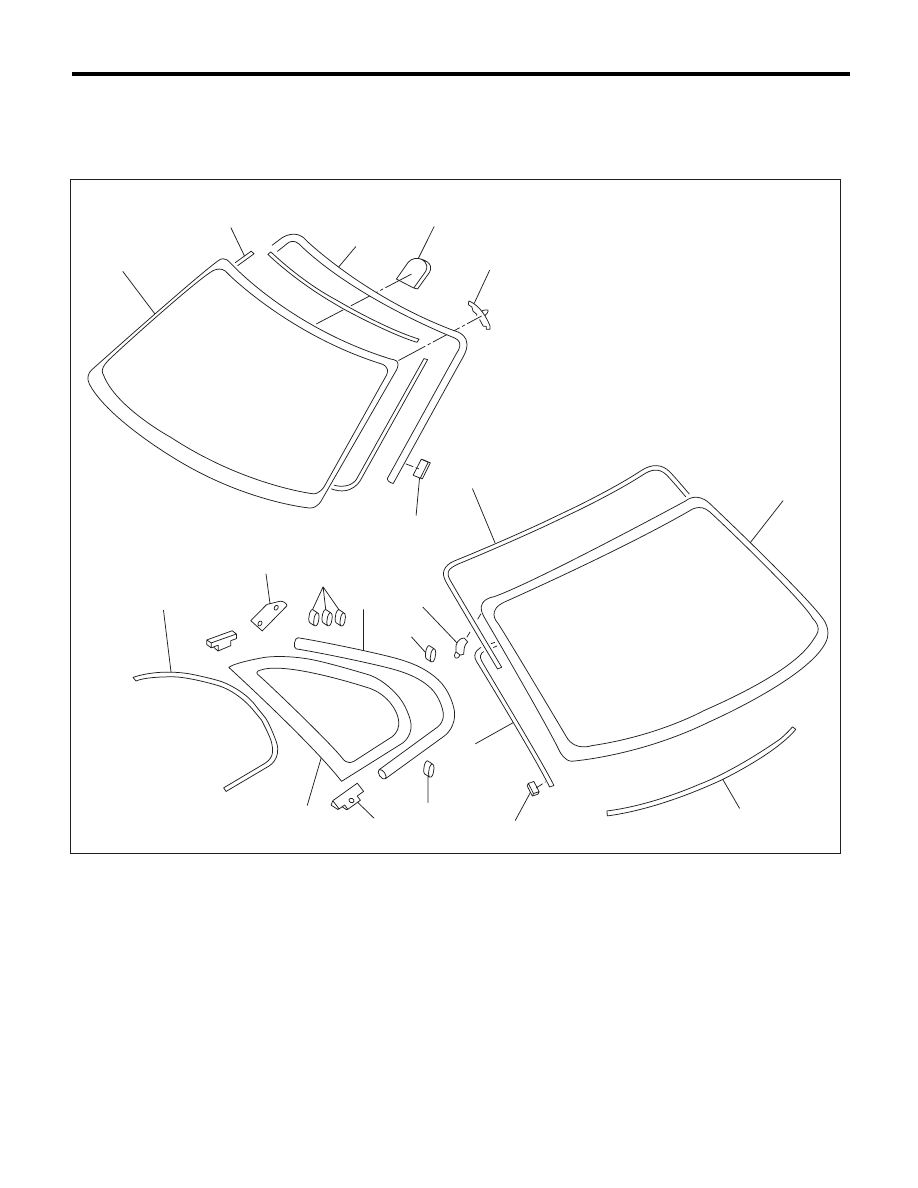

1. FIXED GLASS (SEDAN MODEL)

(1)

Windshield glass

(5)

Locating pin

(9)

Clip

(2)

Dam rubber

(6)

Rear window glass

(10)

Seal

(3)

Molding

(7)

Six light glass

(11)

Spacer

(4)

Rearview mirror mount

(8)

Bracket





GW-00538

(2)

(6)

(2)

(7)

(8)

(9)

(2)

(3)

(5)

(10)

(3)

(8)

(1)

(2)

(3)

(4)

(5)

(11)

(9)

(9)
