ET-21

Navigation Body

ENTERTAINMENT

15.Navigation Body

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Slide the driver’s seat to the forward position.
3) Disconnect the connector.

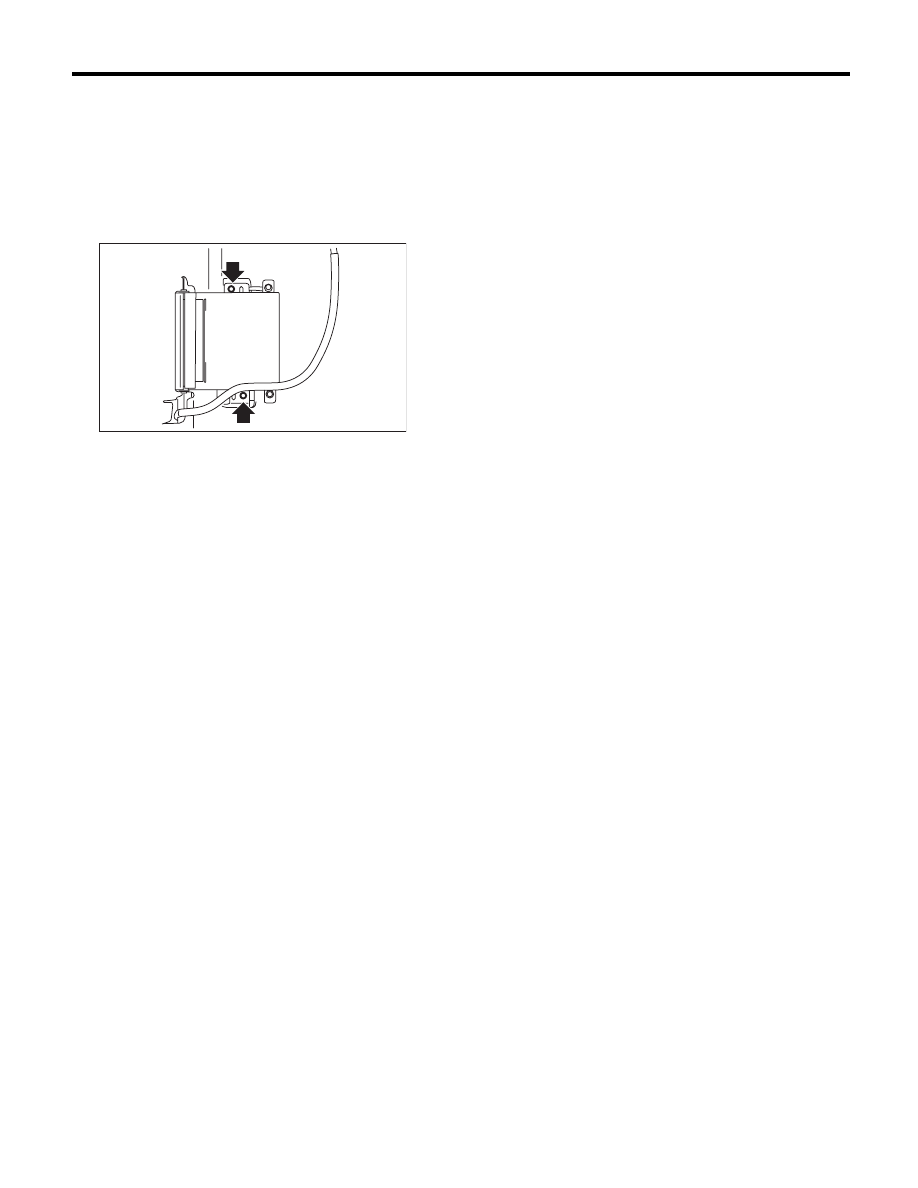

4) Remove the bolts and then remove the naviga-
tion unit.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

8 N·m (0.82 kgf-m, 5.9 ft-lb)

ET-00185

ET-22

AUX Input Terminal

ENTERTAINMENT

16.AUX Input Terminal

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the console box. <Ref. to EI-54, RE-
MOVAL, Console Box.>
3) Disconnect the harness connector, and remove
the AUX input terminal from the console box.

B: INSTALLATION

Install in the reverse order of removal.

ET-23

Front Accessory Power Supply Socket

ENTERTAINMENT

17.Front Accessory Power

Supply Socket

A: WIRING DIAGRAM

<Ref. to WI-154, WIRING DIAGRAM, Front Acces-
sory Power Supply Socket System.>

B: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the console front panel. <Ref. to EI-55,
REMOVAL, Center Console.>

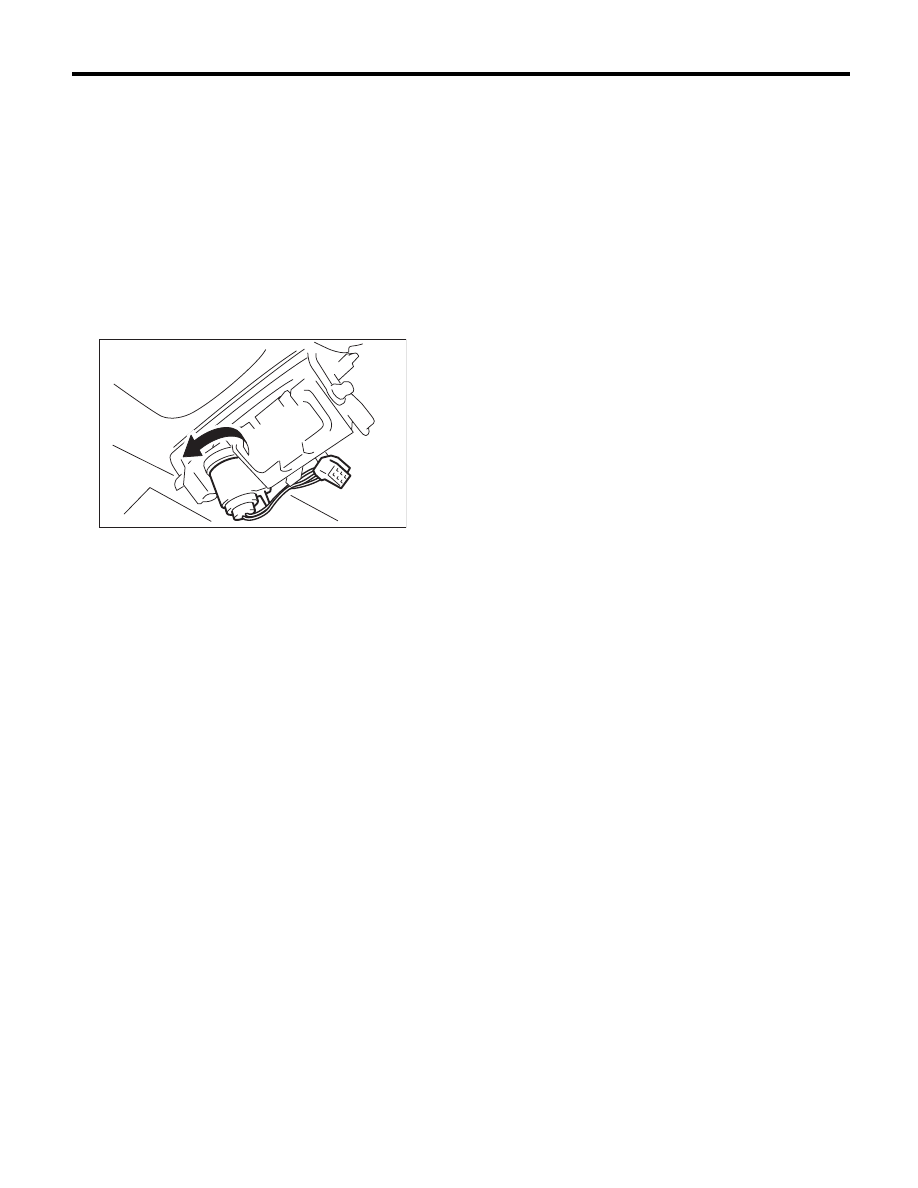

3) Disconnect the harness connector, and remove
the accessory power supply socket.

C: INSTALLATION

Install in the reverse order of removal.

ET-00094

ET-24

Rear Accessory Power Supply Socket

ENTERTAINMENT

18.Rear Accessory Power

Supply Socket

A: WIRING DIAGRAM

<Ref. to WI-155, WIRING DIAGRAM, Rear Acces-
sory Power Supply Socket System.>

B: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the console box. <Ref. to EI-54, RE-
MOVAL, Console Box.>

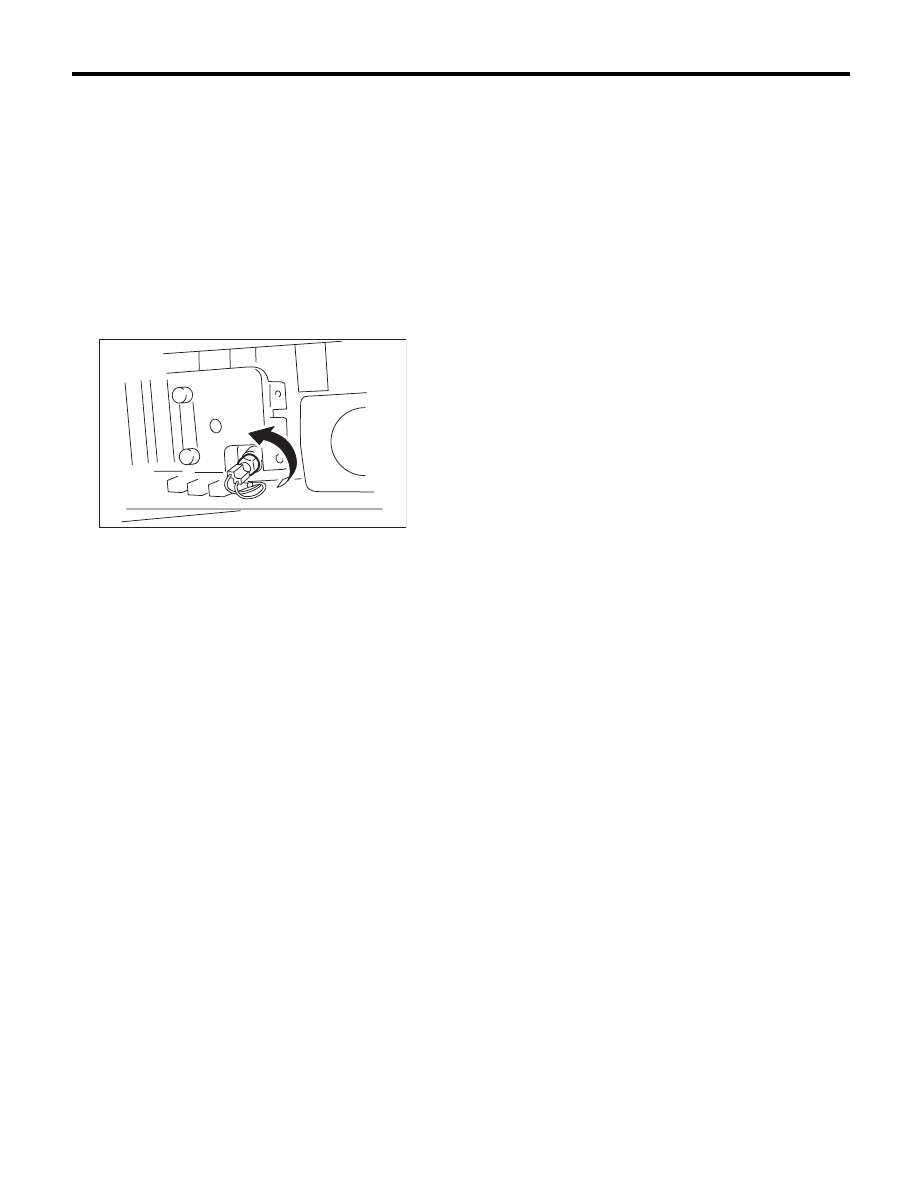

3) Disconnect the harness connector, and remove
the accessory power supply socket.

C: INSTALLATION

Install in the reverse order of removal.

ET-00095
