LI-25

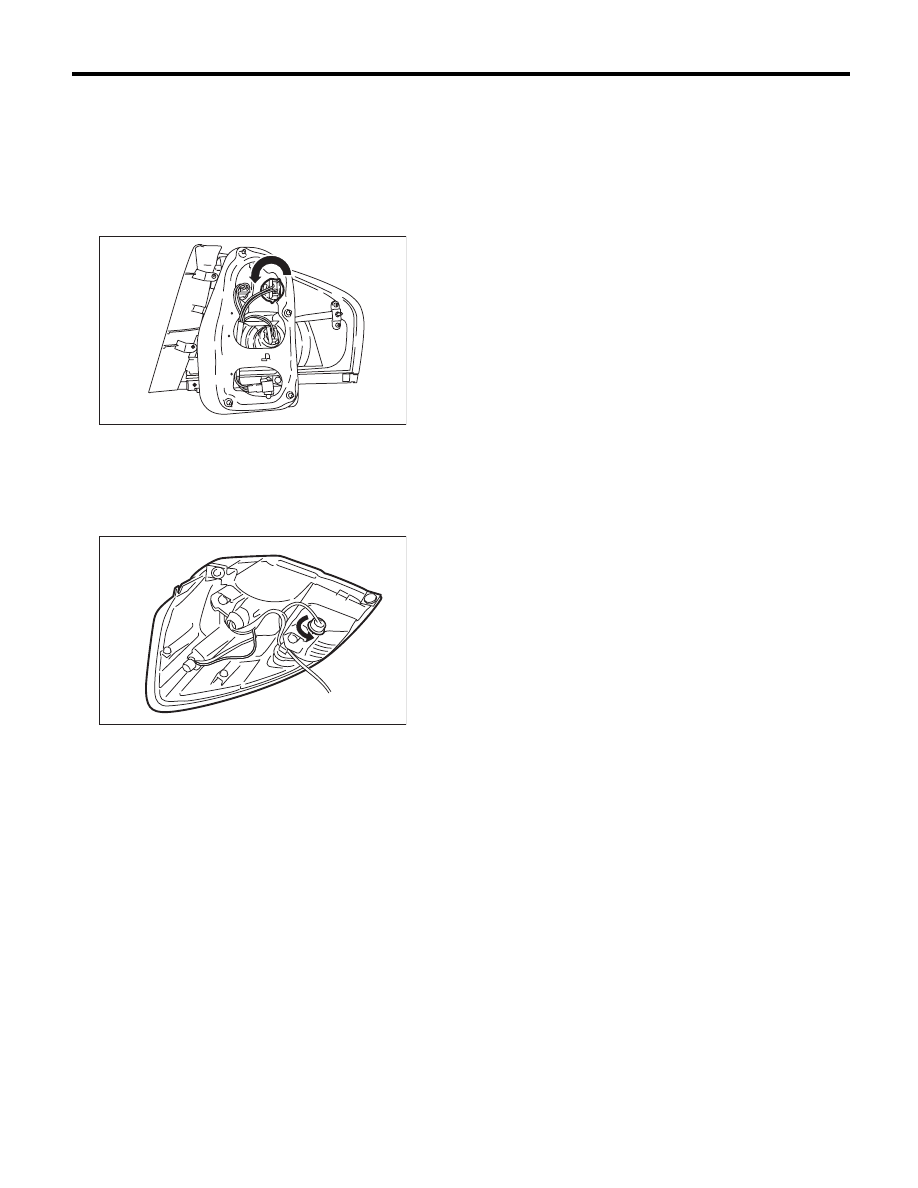

Rear Turn Signal Light Bulb

LIGHTING SYSTEM

21.Rear Turn Signal Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Disconnect the ground cable from the battery.
2) Remove the trunk side trim cover.
3) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the rear combination light assembly.
<Ref. to LI-23, WAGON MODEL, REMOVAL, Rear
Combination Light Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

LI-00776

LI-00442

LI-26

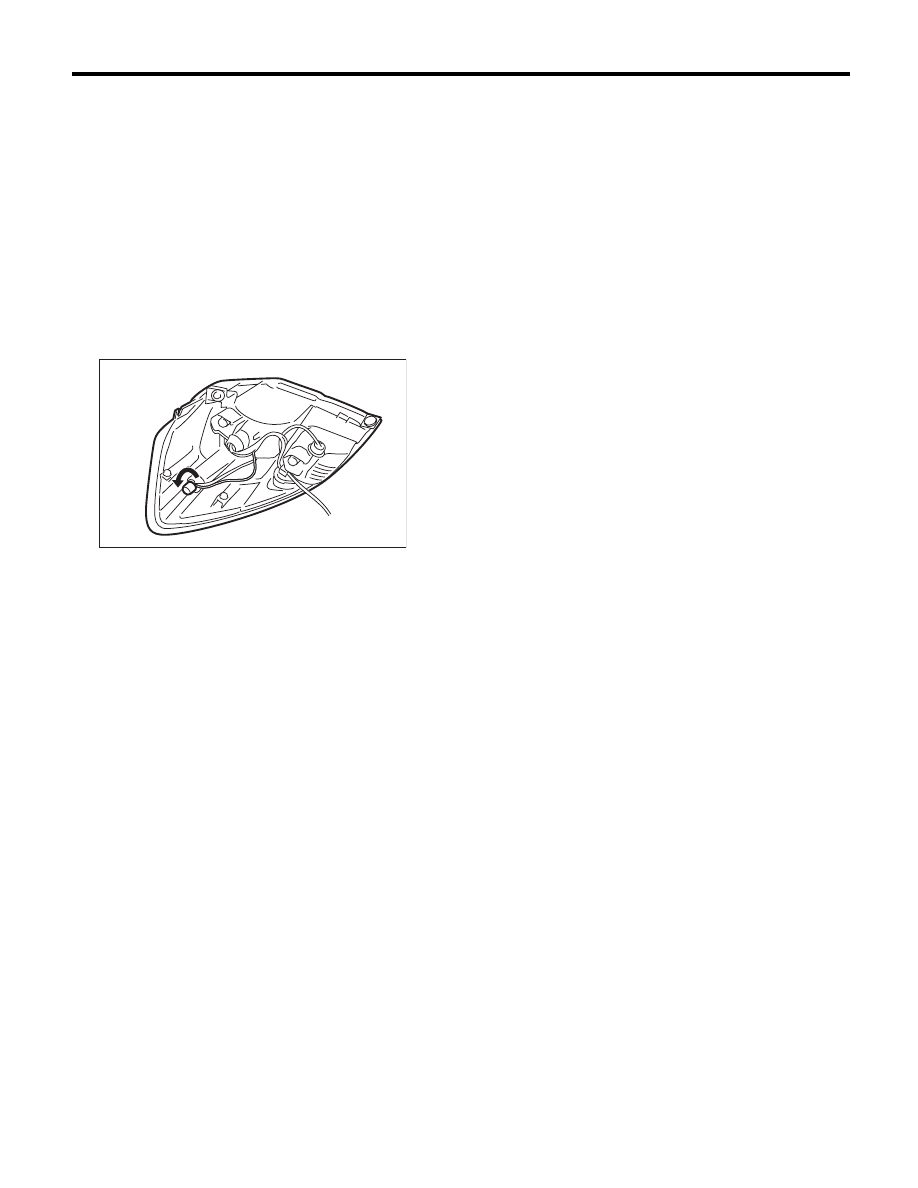

Rear Side Marker Light Bulb

LIGHTING SYSTEM

22.Rear Side Marker Light Bulb

A: REMOVAL

1. SEDAN MODEL

The rear side marker light bulb is integrated into the
tail/stop light bulb as a single unit. <Ref. to LI-24,
SEDAN MODEL, REMOVAL, Tail/Stop Light
Bulb.>

2. WAGON MODEL

1) Remove the rear combination light assembly.
<Ref. to LI-23, WAGON MODEL, REMOVAL, Rear
Combination Light Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification.
<Ref. to LI-2, SPECIFICATION, General Descrip-
tion.>
3) If NG, replace the bulb with a new part.

LI-00450

LI-27

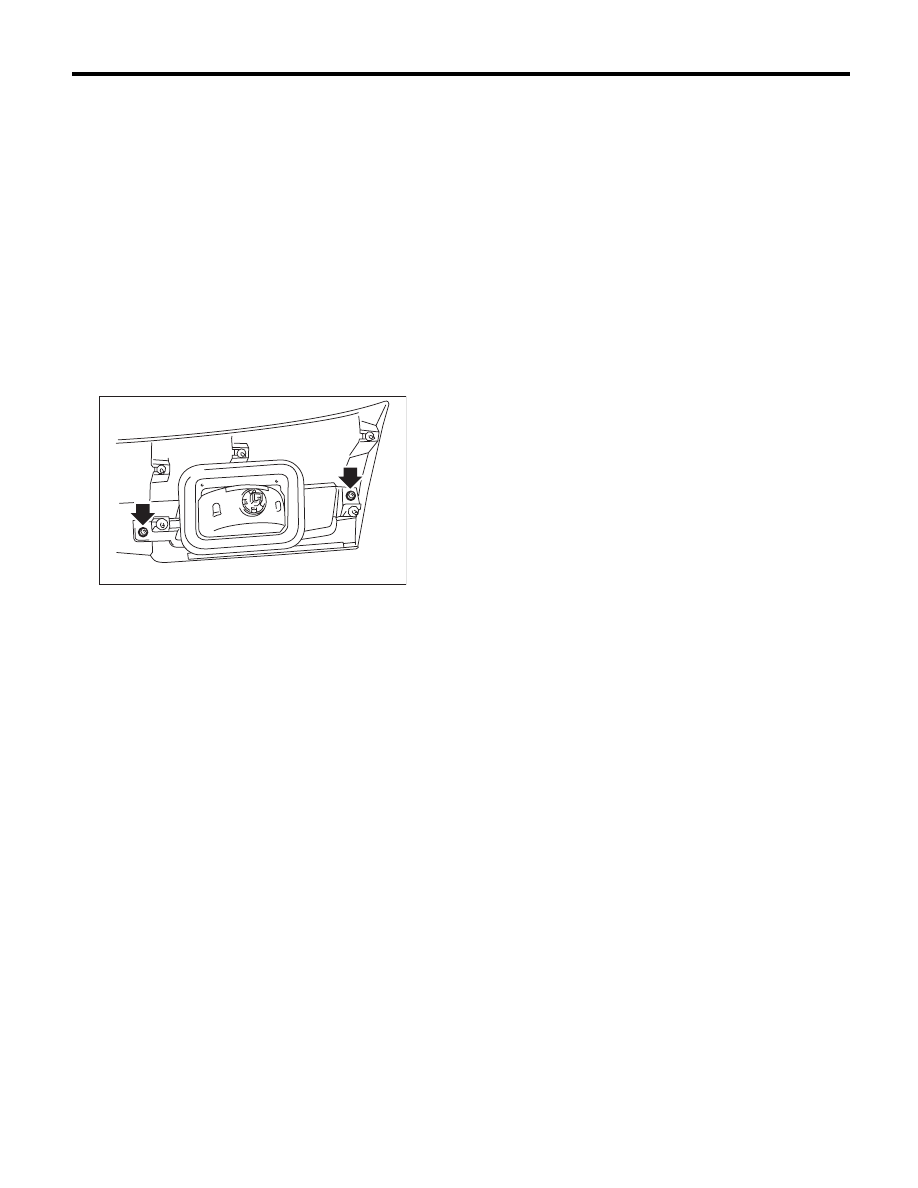

Back-up Light Assembly

LIGHTING SYSTEM

23.Back-up Light Assembly

A: REMOVAL

1. SEDAN MODEL

Remove the rear combination light. <Ref. to LI-23,
REMOVAL, Rear Combination Light Assembly.>

2. WAGON MODEL

1) Disconnect the ground cable from the battery.
2) Remove the rear gate trim. <Ref. to EI-68, RE-
MOVAL, Rear Gate Trim.>
3) Disconnect the harness connector and remove
the rear gate garnish. <Ref. to EI-75, REMOVAL,
Rear Gate Garnish.>
4) Remove the attachment nuts and remove the
back-up light assembly.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

LI-00301

LI-28

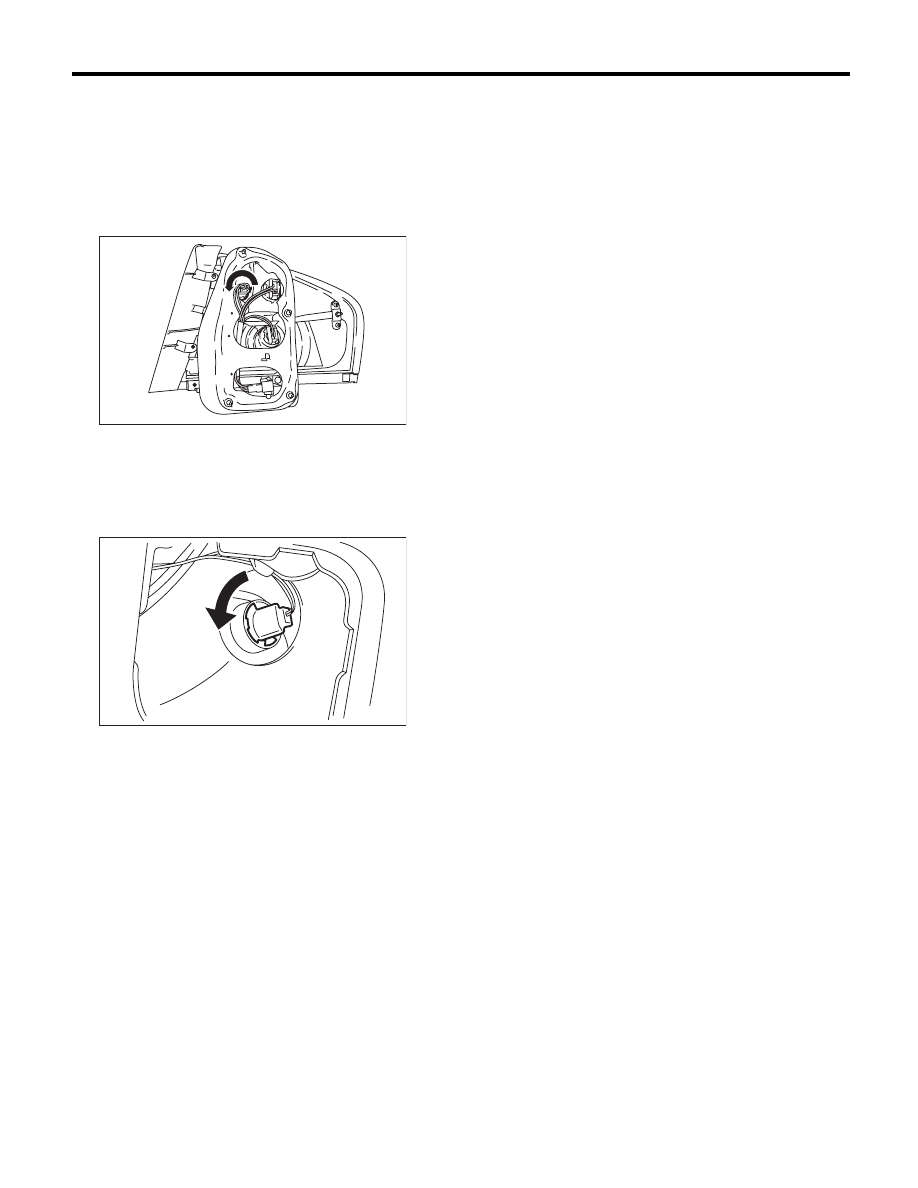

Back-up Light Bulb

LIGHTING SYSTEM

24.Back-up Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Disconnect the ground cable from the battery.
2) Remove the trunk side trim cover.
3) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Disconnect the ground cable from the battery.
2) Remove the bulb inspection cover of the rear
gate trim.
3) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new part.

LI-00777

LI-00305
